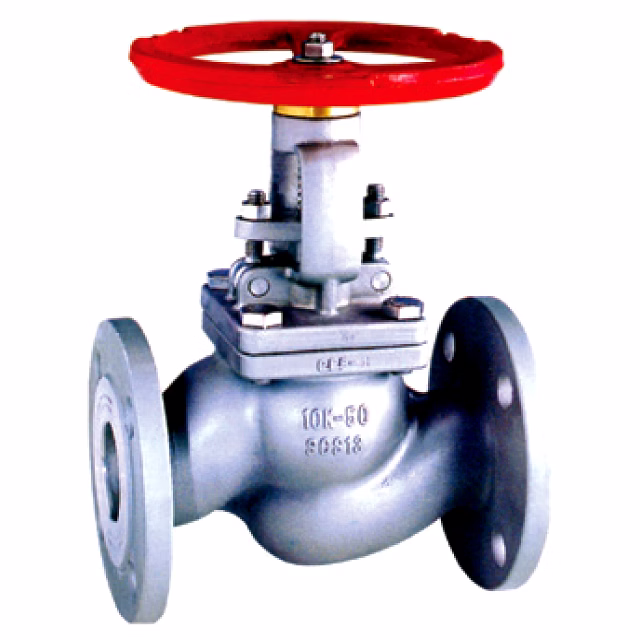

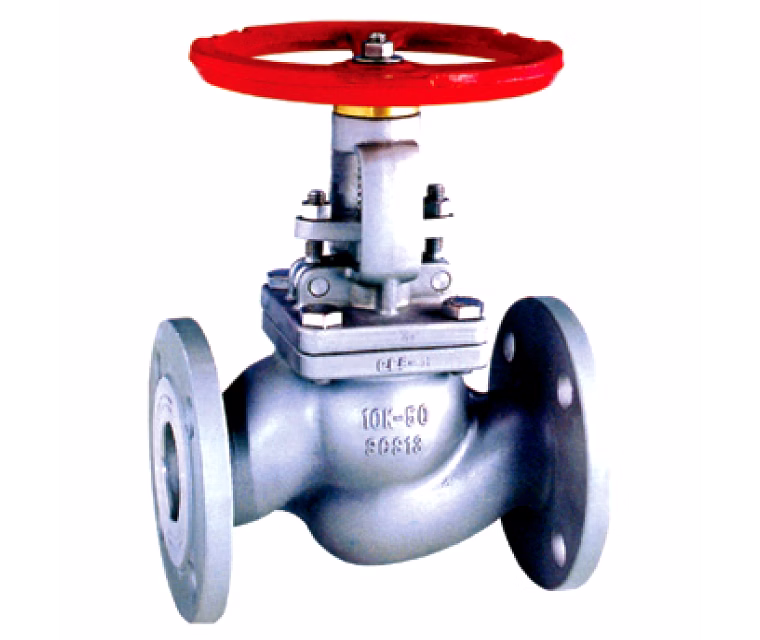

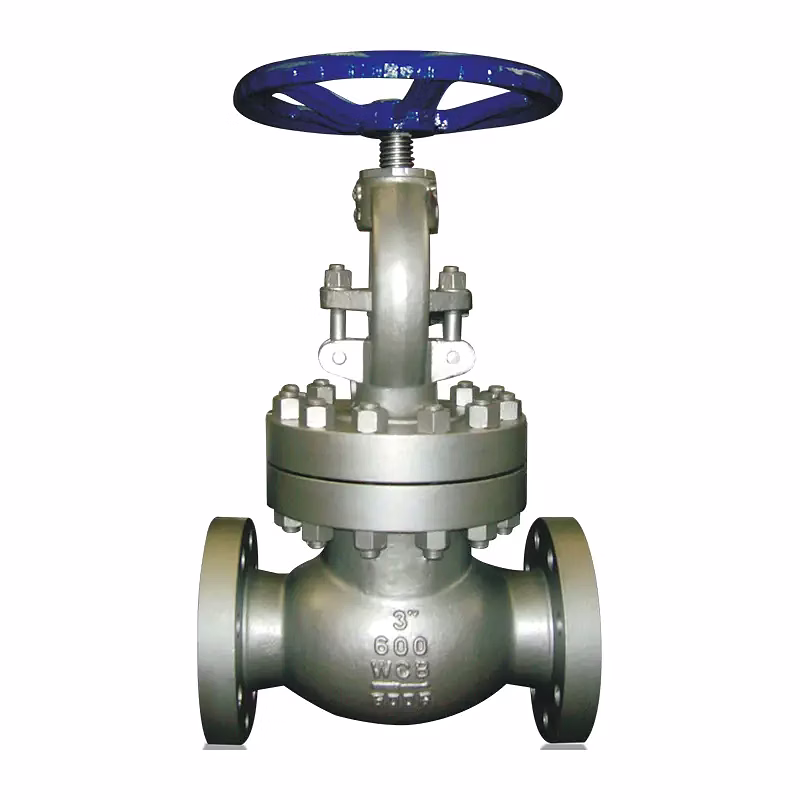

Globe Valve from SAMARTH IRRIGATION is an industrial-grade valve designed for reliable throttling, flow isolation, and shut-off in demanding piping systems. Built to BS 1873 and tested to API Std. 598, this globe valve is suitable for applications where accurate flow control, leak-tight performance, and long service life are essential. This product is especially suited for steam, utility, and process pipelines, where operators need dependable regulation of flow as well as secure shut-off capability. The valve construction is engineered for durability and ease of maintenance, making it a practical choice for plants that require efficient operation under high pressure and continuous service conditions. SAMARTH IRRIGATION offers globe valves in a wide material range to match diverse industrial media and operating environments. Options include carbon steel, stainless steel grades such as 304, 316, 304L, 316L, and 321, as well as special alloys like Hastelloy B & C and Alloy 20. Larger casted versions are also available in ASTM-approved materials including carbon steel, stainless steel, cast iron, and alloy steel grades. Key design elements include an outside screw and rising stem construction, which keeps the threads away from the process fluid and simplifies lubrication. The body and bonnet are manufactured with robust casting sections for added strength. Replaceable seat rings support long-term serviceability, while the back seat arrangement allows stuffing box repacking with the valve fully open. The plug-type disc is designed for tight sealing and extended wear life, helping maintain performance over time. For higher-pressure and larger-size valves, thrust bearings and gear drive arrangements are available, and special seating materials can be supplied on request. With sizes from 15 mm to 500 mm and pressure classes from 150 to 2500, this Globe Valve is suitable for a broad range of industrial installations. End connections include screwed, flanged, socket weld, and buttweld configurations, allowing integration into different piping standards. For buyers looking for an export-ready industrial globe valve supplier, SAMARTH IRRIGATION provides dependable product quality, technical versatility, and timely delivery for bulk procurement.
Key Features
| Features | Description |
|---|---|
| Product Type | Industrial Globe Valve for throttling, isolation, and shut-off applications |
| Design Standard | BS 1873 / ASME B16.34 |
| Testing Standard | API Std. 598 |
| Size Range | 15 mm to 500 mm |
| Pressure Rating | Class 150 to 2500 / ND-10 to ND-64 |
| End Connections | Screwed, flanged, socket weld, and buttweld |
| Valve Construction | Outside screw rising stem with rising handwheel |
| Maintenance Feature | Replaceable seat ring and back seat ring for easy repacking |
| Attributes | Description |
|---|---|
| Product Name | Globe Valve |
| Store Name | SAMARTH IRRIGATION |
| MOQ | 1 Number |
| Application | Steam, utility, and process pipelines |
| Function | Throttling, flow control, isolation, and shut-off |
| Design Standard | BS-1873 / ASME B16.34 |
| Face to Face Dimensions | ASME B16.10 |
| Testing Standard | API Std. 598 |
| Size Range | 15 mm to 500 mm |
| Pressure Rating | 150 / 300 / 600 / 900 / 1500 / 2500 class and ND-10 / ND-16 / ND-25 / ND-40 / ND-64 |
| End Connections | Screwed to BSP / BSPT / NPT, Flanged to ASME B16.5, Socket Weld to ASME B16.11, Buttweld to ASME B16.25 |
| Body Material Options | Carbon steel, stainless steel, cast iron, alloy steel, Hastelloy B & C, Alloy 20 |
| Stem Construction | Outside screw rising stem |
| Seat Ring | Replaceable, with special seat ring options available on request |
| Disc Type | Plug type disc |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
It is specifically designed for throttling, with a plug-type disc and seat arrangement that supports controlled flow regulation and reliable shut-off in industrial pipelines.
It is best suited for steam, utility, and process pipelines where frequent flow control, isolation, and dependable sealing are required.
The valve is manufactured to BS 1873 and ASME B16.34, and tested to API Std. 598.
Yes, it can be supplied in stainless steel grades such as 304, 316, 304L, 316L, 321, as well as Hastelloy B & C and Alloy 20 for more demanding service conditions.
Available end connections include screwed BSP/BSPT/NPT, flanged ASME B16.5, socket weld ASME B16.11, and buttweld ASME B16.25.
Yes, it is offered in pressure classes from 150 to 2500, making it suitable for a wide range of high-pressure industrial applications.
It includes an outside screw rising stem, replaceable seat rings, a back seat ring for repacking while open, and swinging eye bolts for easier stuffing box access.
Brand: any
Country Of Origin: India
Samarth Irrigation is a premier dealer, supplier and exporter of superior quality industrial Globe Valves. Samarth Irrigation is a reputed name in valves for isolation, control, and flow reversal applications.
Samarth Irrigation Globe Valves are manufactured to BS 1873 and tested to API Std. 598.
These valves are used where throttling or both throttling and shut-off are required.
These are widely used in critical industrial applications like steam, utility, and process pipelines.
Our expertise extends to the manufacturing of Globe Valves. Recognized as a leading Globe valve Manufacturer, our products stand out for their precision and performance. We also cater to Globe valve Dealers and Globe valve Stockists with our extensive range. As a trusted Globe valve Exporter, we guarantee timely deliveries and unmatched quality.
Material of Construction:
From bar stock in carbon steel or stainless steel (304, 316, 304L, 316L. 321) Hastelloy B & C & Alloy 20 for sizes 15mm to 50mm.
Castings in carbon steel to ASTM A216 Gr. WCB, WCC, LCB, LCC.
Casting in stainless steel to ASTM A 351 Gr. CF8/CF8M/C 8C/CF3/CF3M Alloy 20. Hastelloy B & C.
Castings in C.I. to I.S. 210 Gr. FG200/220/260.
Castings in Alloy Steel to ASTM A 217 C5, WC6, WC9, WC12.
Design Standard: BS-1873 / ASME B 16.34
Face To Face Dimensions: ASME B 16.10
Size Range: 15mm to 500 mm
Pressure Rating: 150/300/600/900/1500/2500 class and ND-10, ND-16, ND-25, ND-40, ND-64
Ends: Screwed to BSP/BSPT/NPT, Flanged to ASME B16.5, Socket weld to ASME B 16.11, Buttweld to ASME B 16.25
Features:
✔️ Outside screw rising stem rising handwheel construction threads are away from fluids and easy to lubricate.
✔️ Body and bonnet made from high quality casting with liberal sections.
✔️ Seat ring screwed into the body are replaceable.
✔️ Back seat ring features facilitate repacking of the stuffing box on line with valve in fully open position.
✔️ Swinging eye bolts facilitate easy access to the stuffing box.
✔️ Plug type disc designed to give leak tight seat ring over a long period of in-built wear life.
✔️ Satellite seat ring and disc can also be offered on special request.
✔️ The valves of higher pressure and bigger sizes are provided with thrust bearings and also with gear drive arrangements and flange also can be offered for different standards.
