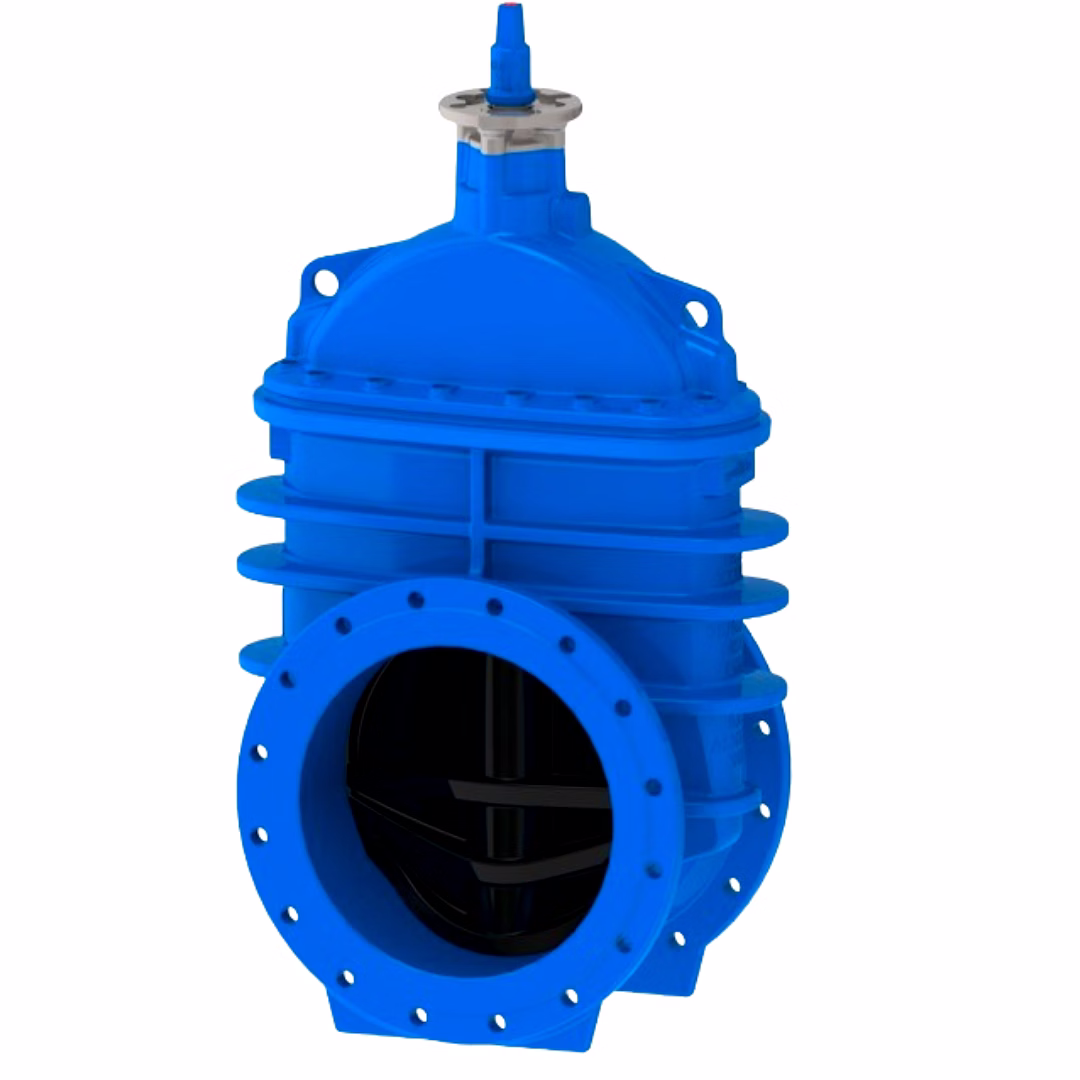

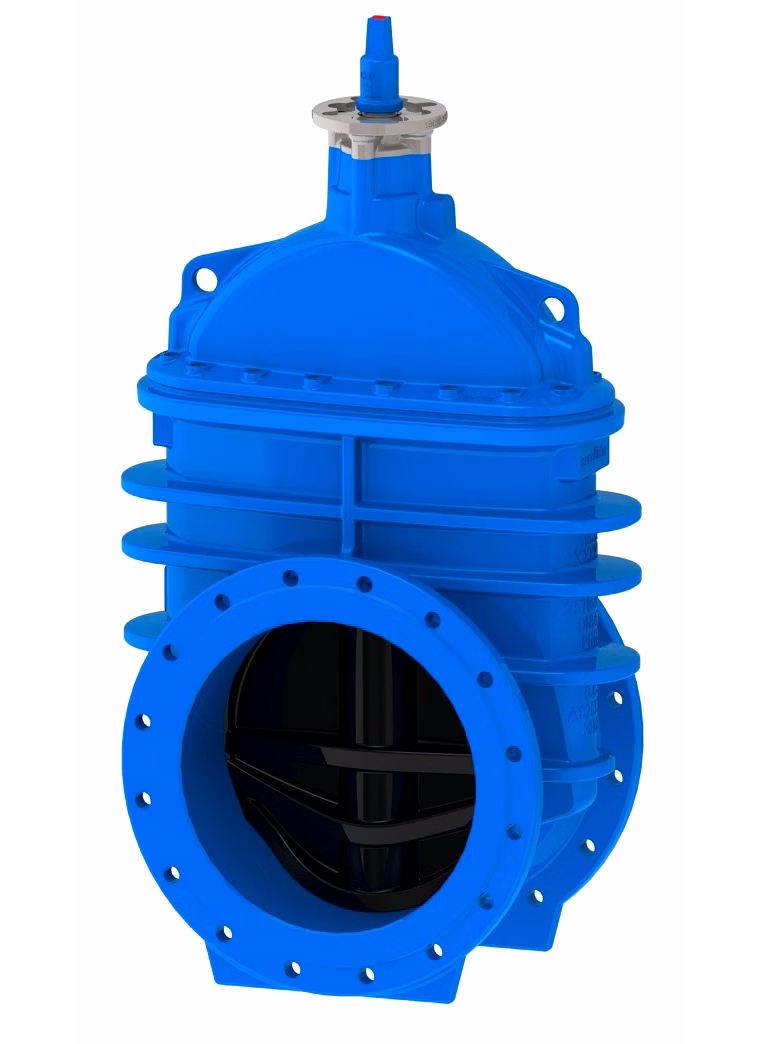

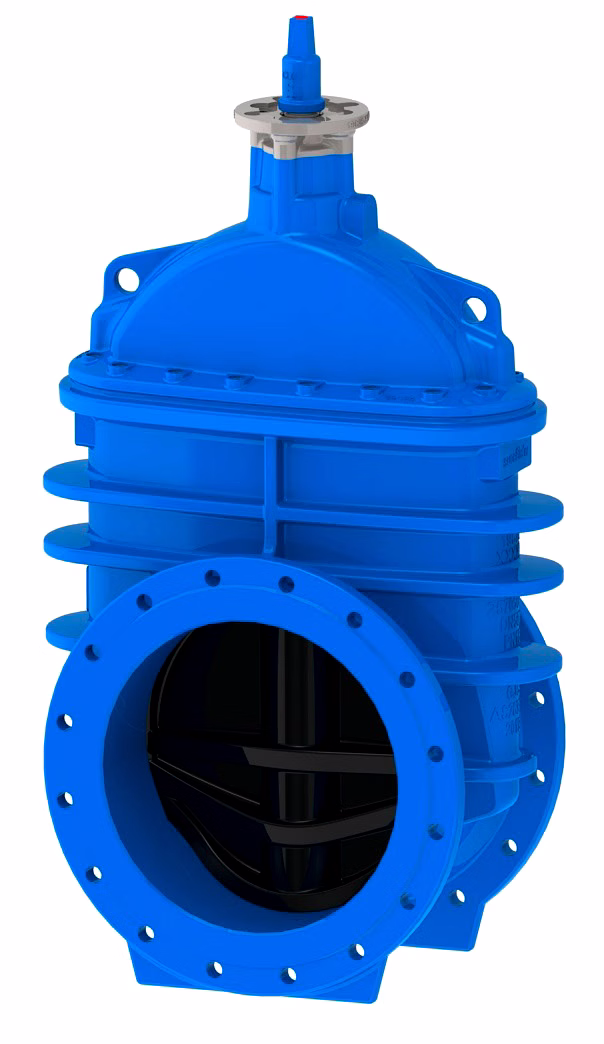

Samarth Irrigation Gate Valve is a heavy-duty industrial valve designed for reliable shut-off performance in demanding fluid handling systems. Built for export and bulk industrial supply, this gate valve is engineered to deliver dependable operation across a wide range of pressure classes, sizes, and end connections. It is suitable for applications where full bore flow, low pressure drop, and secure isolation are required in pipelines. The valve is manufactured using a broad range of construction materials to suit different operating environments, including carbon steel, stainless steel grades such as 304, 316, 304L, 316L, and 321, Alloy 20, Hastelloy B & C, cast carbon steel to ASTM A216 Gr. WCB/WCC/LCB/LCC, stainless steel castings to ASTM A351 Gr. CF8/CF8M/CF8C/CF3/CF3M, cast iron to IS 210 Gr. FG200/220/260, and alloy steel castings to ASTM A217 C5, WC6, WC9, and WC12. This material flexibility makes the valve suitable for corrosive, high-temperature, and high-pressure service conditions depending on the selected configuration. Designed in accordance with API 600 and BS-1414, the gate valve meets internationally accepted industry standards. The face-to-face dimensions comply with ASME B16.10, while the valve is available in multiple connection types including screwed ends for BSP/BSPT/NPT sizes from 15 mm to 50 mm, flanged ends to ASME B16.5, socket weld ends to ASME B16.11 for sizes 15 mm to 50 mm, and butt weld ends to ASME B16.25 for sizes 15 mm to 600 mm. Size availability from 15 mm to 600 mm and pressure classes from 150 to 2500 allow integration into a wide variety of industrial systems. This gate valve features an outside screw rising stem construction, which keeps the stem threads away from the line fluid and simplifies lubrication. The design includes a backseat ring that supports repacking of the stuffing box while the valve remains fully open, improving serviceability. A swinging eyebolt provides easier access to the stuffing box, and replaceable screwed seat rings help extend service life and simplify maintenance. For higher pressure and larger sizes, thrust bearings and gear drive arrangements can be provided for smoother operation. The body and bonnet are built from high-quality castings with generous section thickness for added strength and durability. Because of its robust construction, maintenance-friendly design, and wide material and end-connection options, this industrial gate valve is an excellent choice for exporters, EPC contractors, plant engineers, and industrial procurement teams seeking a dependable shut-off valve for water treatment, process plants, petrochemical lines, power plants, oil and gas systems, and other critical flow-control applications.
Key Features
| Features | Description |
|---|---|
| Design Standard | API 600 / BS-1414 |
| Size Range | 15 mm to 600 mm |
| Pressure Rating | Class 150 / 300 / 600 / 900 / 1500 / 2500 |
| Stem Design | Outside screw rising stem construction |
| Seat Rings | Replaceable seat rings screwed into the body |
| Maintenance Access | Backseat ring and swinging eyebolt for easy servicing |
| End Connections | Screwed, flanged, socket weld, and butt weld |
| Heavy-Duty Build | High-quality cast body and bonnet with liberal sections |
| Attributes | Description |
|---|---|
| Product Name | Gate Valve |
| Store Name | SAMARTH IRRIGATION |
| MOQ | 10 Numbers |
| Type | Industrial gate valve |
| Design Standard | API 600 / BS-1414 |
| Face-to-Face Standard | ASME B16.10 |
| Size Range | 15 mm to 600 mm |
| Pressure Classes | Class 150 / 300 / 600 / 900 / 1500 / 2500 |
| Screwed End Connection | BSP / BSPT / NPT for 15 mm to 50 mm |
| Flanged End Connection | ASME B16.5 |
| Socket Weld Connection | ASME B16.11 for 15 mm to 50 mm |
| Butt Weld Connection | ASME B16.25 for 15 mm to 600 mm |
| Body Materials | Carbon steel, stainless steel, alloy 20, Hastelloy, cast iron, alloy steel |
| Operating Feature | Full shut-off / isolation service |
| Stem Type | Rising stem |
| Serviceability | Backseat ring and replaceable seat ring design |
| Drive Option | Gear drive available for higher pressure and larger sizes |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
It is available in pressure classes from 150 to 2500 and is designed to API 600 / BS-1414 standards, making it suitable for demanding high-pressure service.
Yes. It is available in carbon steel, stainless steel grades 304/316/304L/316L/321, Alloy 20, Hastelloy B & C, cast iron, and alloy steel options for different service environments.
The valve is available with screwed, flanged, socket weld, and butt weld end connections depending on the required size and installation standard.
Yes. The backseat ring enables repacking of the stuffing box with the valve in the fully open position, and the swinging eyebolt improves access to the stuffing box.
Yes. For higher pressure and bigger sizes, the valve can be supplied with thrust bearings and gear drive arrangements for easier operation.
Yes. The seat rings are screwed into the body and are replaceable, which helps extend service life and simplify maintenance.
Brand: any
Country Of Origin: India
Samarth Irrigation proudly serves as an Exporter of gate valves, extending the reach of our high-quality products to clients globally. Our valves are recognized for their robust construction, reliability, and compliance with international quality standards.Samarth Irrigation is your trusted partner for superior valve solutions.
Material of Construction:
From bar stock in carbon steel or stainless steel (304, 316,304L. 316L. 321), Alloy 20, Hastelloy B & C.
Castings in carbon steel to ASTM A216 Gr. WCB, WCC, LCB, LCC.
Casting in stainless steel to ASTM A 351 Gr. CF8/CF 8M/CF 8C/CF3/CF 3M Alloy 20, Hastelloy B & C.
Castings in C.I. to I.S. 210 Gr. FG200/220/260.
Castings in Alloy Steel to ASTM A 217 C5, WC6, WC9, WC12.Design
Standard: API 600 / BS-1414
Face To Face Dimensions: ASME B 16.10
Size Range: 15mm to 600 mm
Pressure Rating:
• Class150/300/600/900/1500/2500
• Screwed to BSP/BSPT/NPT for sizes 15 mm to 50 mm
• Flanged to ASME B 16.5
• Socket Weld to ASME B16.11 for sizes 15 mm to 50 mm
• Butt weld to ASME B 16.25 for sizes 15 mm to 600 mm
Features:
✔️ Outside screw rising stem construction, threads are away from the line fluid and easy to lubricate.
✔️ Removal of hand wheel from the yoke sleeve would not cause wedge gate to fall down yoke sleeve and handwheel assembly is so arranged in the yoke of bonnet.
✔️ Backseat ring features facilitate repacking of the stuffing box on line with the valve in fully open position.
✔️ Swinging eyebolt facilitates easy access to the stuffing box.
✔️ Seat ring screwed into the body are replaceable.
✔️ Stellated wedge & Seat ring can also be offered on special request.
✔️ In built wear life for long duration of service.
✔️ Body & bonnet made from high quality casting with liberal sections.
✔️ The valves of higher pressure and bigger sizes are provided with thrust bearings and also with gear drive arrangements and flange also can be offered for different standards.
