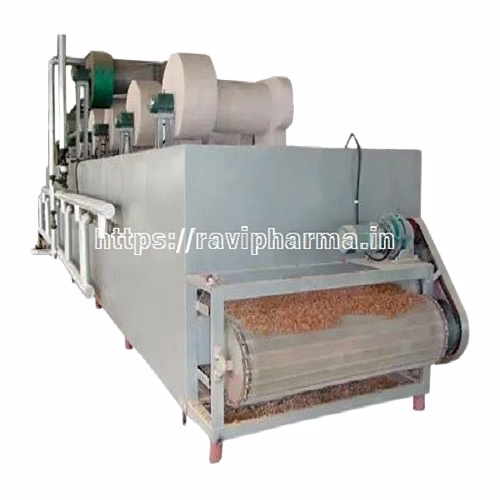

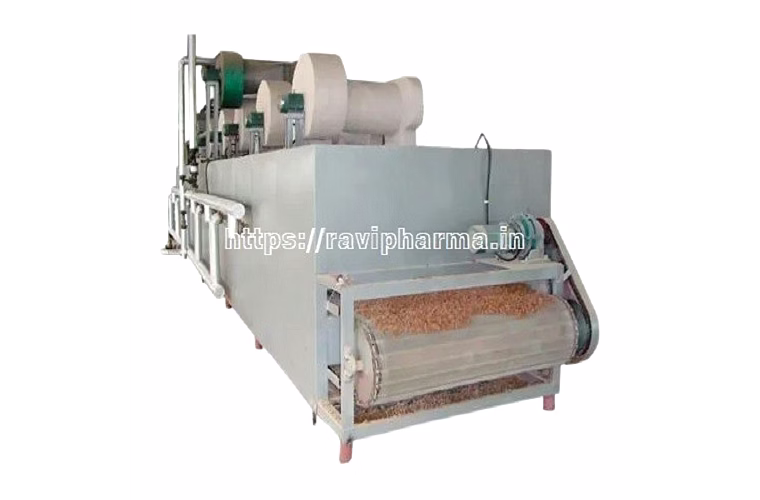

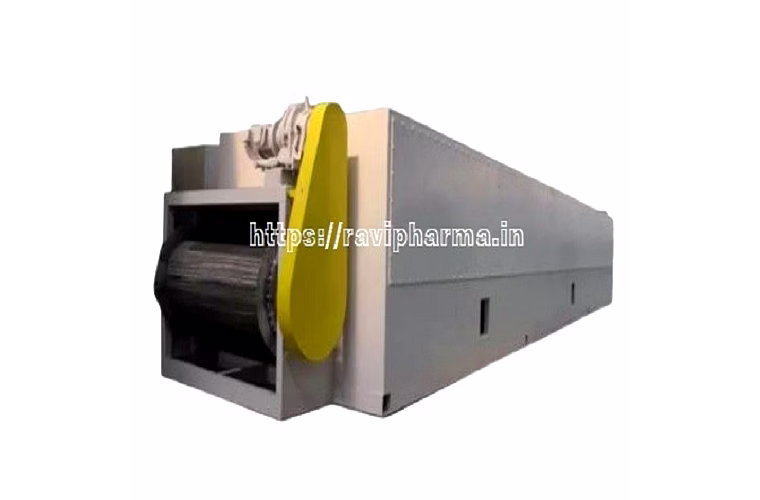

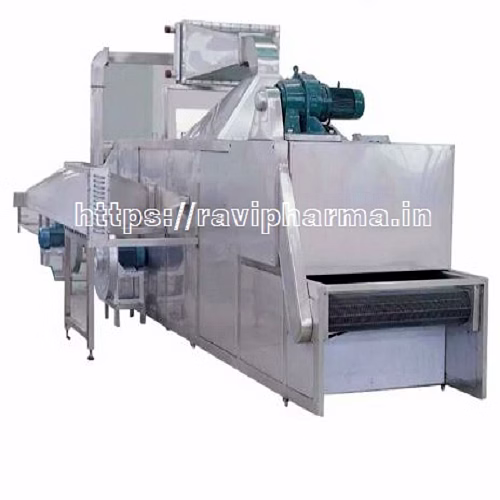

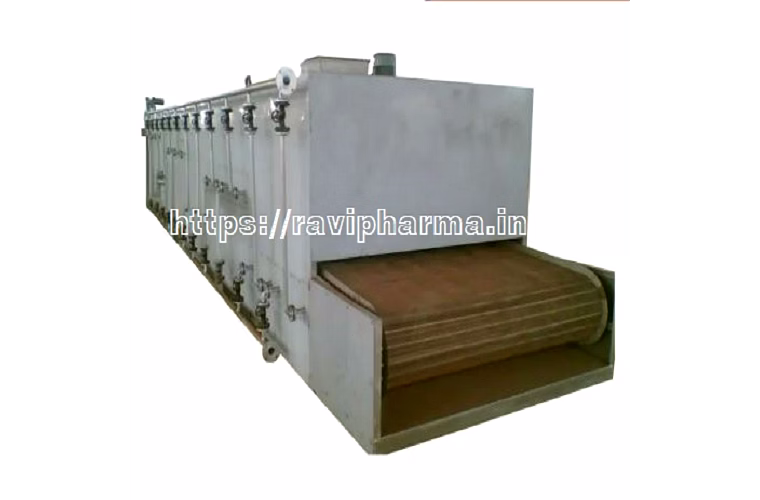

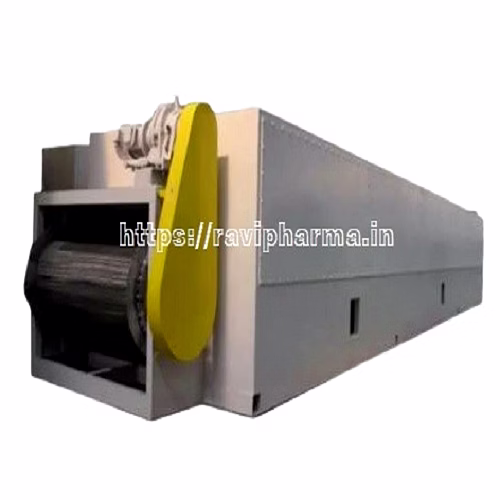

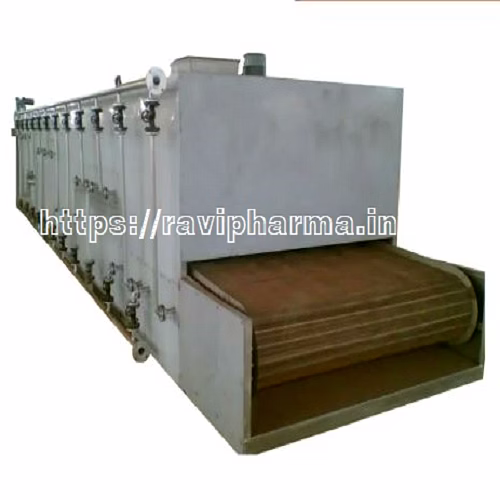

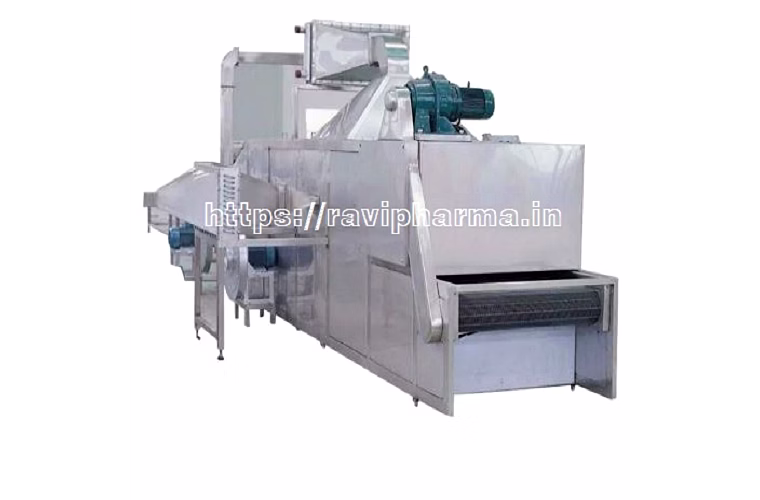

The RAVI Belt Dryer is a highly efficient continuous drying equipment designed for processing flaky, strip, and granular materials with excellent air permeability. Ideal for industrial applications involving dehydrated vegetables, catalysts, and other substances with both high and low moisture contents, this belt dryer offers fast drying speeds with high evaporation intensity while maintaining superior product quality. The dryer accommodates a variety of raw materials including medicine raw materials, bulk drugs, food items, dairy products, fertilizers, pesticides, paints, powders, granules, pigments, dyestuffs, and plastic resins. Operating on a reliable mesh belt system with adjustable speed controls, it ensures gentle and uniform drying through independent hot air circulation units. The system allows flexible configuration with multiple drying units customized to meet specific customer requirements, making it an optimal solution for industries requiring continuous, high-throughput drying processes that preserve product shape and integrity.
Key Features
| Features | Description |
|---|---|
| Material Compatibility | Suitable for flaky, strip, granular materials with good air permeability including food, pharmaceuticals, chemicals, and dyes |
| Drying Speed | Fast drying speed with high evaporation intensity for increased production efficiency |
| Product Quality | Ensures good product quality by maintaining shape and moisture content control |
| Mesh Belt | Uses 12-60 mesh stainless steel mesh belt for uniform material spreading and movement |
| Adjustable Speed | Belt running speed adjustable for optimal drying depending on material temperature |
| Independent Drying Units | Composed of several units each with independent hot air circulation for precise drying control |
| Dehumidification | Special dehumidification fan to discharge tail gas and optimize drying environment |
| Flexible Configuration | Upper and lower drying units can be selectively equipped based on user requirements |
| Continuous Operation | Enables continuous production with automatic feed and product discharge mechanisms |
| Wide Industrial Application | Applicable across pharmaceutical, food, chemical, fertilizer, plastic, and paint industries |
| Attributes | Description |
|---|---|
| Drying Method | Continuous belt drying with hot air circulation |
| Mesh Belt Material | Stainless steel (12-60 mesh) |
| Material Types | Flaky, strip, granular with air permeability |
| Temperature Range | Suitable for both low and high material temperatures |
| Air Flow | Hot air passes from top to bottom or bottom to top through material layer |
| Unit Configuration | Multiple independent drying units, number customizable |
| Dehumidification System | Includes special fan and regulating valve for tail gas discharge |
| Belt Speed Control | Variable speed adjustable depending on material requirements |
| Product Output | Continuous product collection via collector |
| Application Industries | Pharmaceuticals, food, fertilizers, pesticides, paints, plastics, pigments |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Yes, the RAVI Belt Dryer is specifically designed for materials with both high and low water content, ensuring efficient drying through controlled hot air circulation and adjustable belt speed.
Yes, the dryer consists of multiple independent drying units that can be flexibly equipped and customized based on the processing needs of the user.
Materials that lack shape stability or are not suitable for air permeation drying, such as very fine powders without granulation, may not be compatible with the belt drying process.
Moisture is removed through a special dehumidification fan that discharges tail gas, controlled with a regulating valve to maintain optimal drying conditions.
Yes, the mesh belt speed is fully adjustable, allowing operators to control drying time and temperature to suit specific material requirements.
Yes, it is designed for continuous production with a uniform feeding system and an automated collection mechanism for dried products.
Country Of Origin: India
Belt Dryer is a series of dryers have the advantages of fast drying speed, high evaporation intensity and good product quality. For the paste materials of dehydrated filter cake, they can only be dried after granulating or making into strips. The raw materials can be medicine raw materials, Bulk drug, food items, dairy products, fertilizers, pesticides, paint, powder, granule, packing bottle, pigment, dyestuff, dehydration vegetable, dried fruit and melons, banger, plastic resin, electric elements, drying varnish and so on.
Belt Dryer has the advantages of high drying rate, high evaporation intensity and good product quality. Belt dryer is widely used in industry, mainly for drying small pieces of materials and fibrous materials. In a word, the materials dried by the belt dryer must have a certain shape, and still keep a certain shape after drying.
Working Principle :-

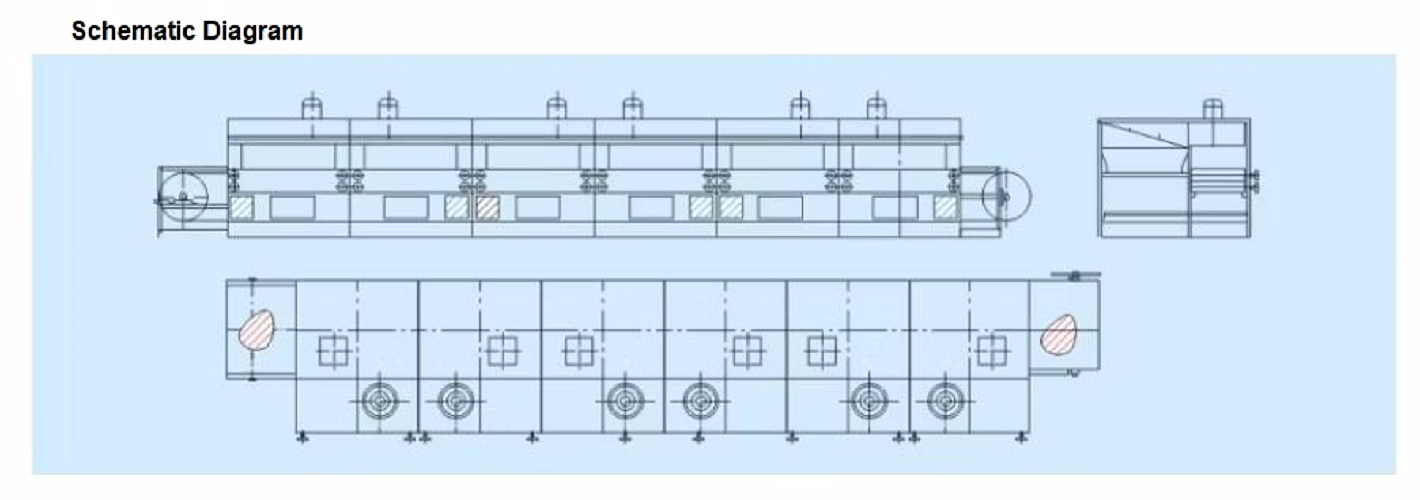

The material is evenly spread on the mesh belt by the feeder, and the mesh belt adopts 12-60 mesh stainless steel mesh. Driven by the transmission device, it moves in the dryer. The dryer is composed of several units. Each unit has an independent hot air circulation. Part of the tail gas is discharged by a special dehumidification fan. The waste gas is controlled by a regulating valve. The hot gas passes through the materials laid on the mesh belt from bottom to top or from top to bottom, and is heated and dried to take away the moisture.
The net belt moves slowly, the running speed can be adjusted freely according to the material temperature, and the dried product falls into the collector continuously. The upper and lower circulation units can be flexibly equipped according to the needs of users, and the number of units can be selected according to the customers’ needs.
