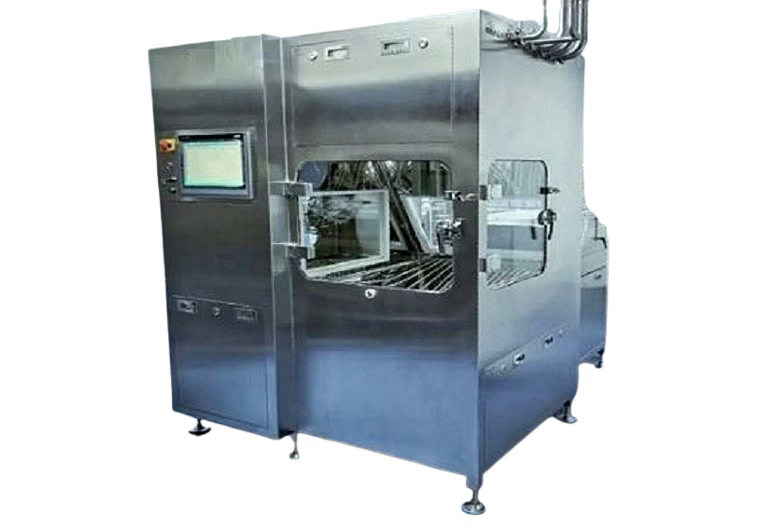

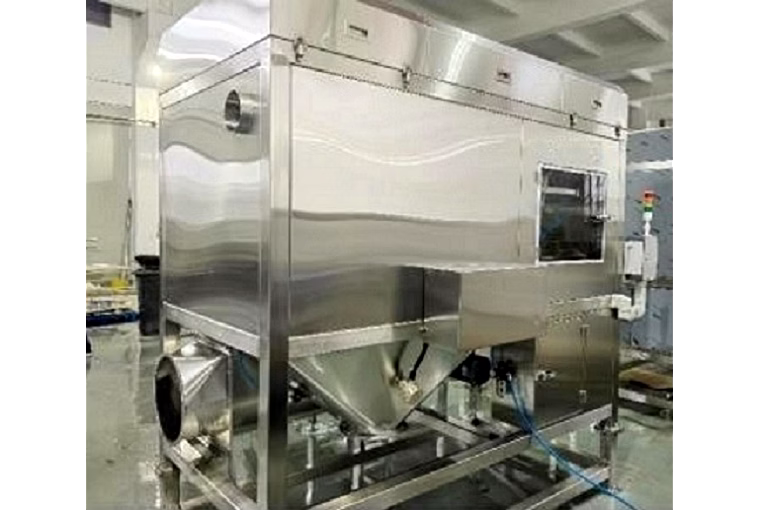

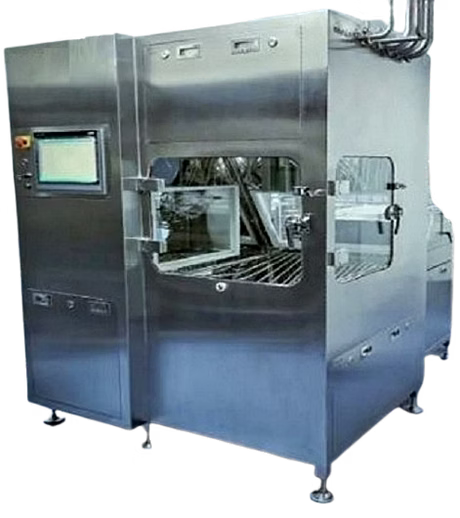

The Pneuconveyor Compact Bag Emptying System (Model PC-BES-COMPACT-25) is a state-of-the-art machine designed for efficient and hygienic removal of outer bags from double-layer packaging such as woven bags and kraft paper bags. This compact system integrates advanced features including automatic bag positioning, precise rotary blade cutting, efficient material emptying, and automatic waste bag recycling, making it an indispensable solution for industries with stringent production environment standards. Its high emptying rate of up to 99.99% ensures minimal product loss, supporting quality control in sectors like pharmaceuticals, high-end food production, dairy, and fine chemicals. The system features a belt conveyor to feed bags seamlessly, a rotary blade cutting device to cut open bags with a single blade action, and a cleaning mechanism that guarantees removal of almost all materials. Additionally, the empty bags are automatically collected and compacted, optimizing waste management. Suitable for spaces with limited room and where control of dust and bag debris is critical, this compact model offers a turnkey solution with PLC-based automation for simplified operations and maintenance. Its compatibility with dust collectors ensures no dust leakage, promoting healthy work environments and compliance with safety regulations.
Key Features
| Features | Description |
|---|---|
| Model | PC-BES-COMPACT-25 |
| Bag Emptying Capacity | 120-150 bags/hour (depending on material fluidity) |
| Bag Weight Range | 10 – 25 kg |
| Material Types | Powder, Granules, Flakes |
| Cutting Mechanism | Rotary Blades with single blade cutting |
| Emptying Rate | 99.9% - 99.99% |
| Power Consumption | Approximately 3.7 KW |
| Compressed Air Consumption | 150 L/min at 0.6 Mpa |
| Dimensions (LxWxH) | 2800 mm x 1130 mm x 2100 mm (±50 mm) |
| Equipment Weight | Approx. 750 kg |
| Dust Control | No dust leakage when connected with dust collector |
| Automation | PLC automatic control with one-click start |
| Waste Management | Automatic collection and compaction of empty bags |
| Attributes | Description |
|---|---|
| Applicable Industries | Pharmaceutical, High-end Food, Dairy, Fine Chemicals |
| Bag Types Supported | Double-layer woven bags and kraft paper bags |
| Space Requirement | Suitable for small spaces |
| Operation Requirements | High dust control and minimal bag debris |
| Installation | Simple installation with PLC operation |
| Maintenance | Easy maintenance and reliable operations |
| Material Handling | Handling powders, granules, and flakes with minimal residue |
| Automatic Functions | Bag positioning, cutting, dumping, and waste recycling |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The system supports bag weights ranging from 10 to 25 kilograms, suitable for typical double-layer woven and kraft paper bags.
The machine achieves an emptying rate between 99.9% and 99.99%, effectively handling powders, granules, and flakes.
Yes, when connected to a dust collector, the system prevents any dust leakage, maintaining hygienic operational standards.
Absolutely, the empty bags are collected automatically and then compacted using the integrated waste bag compactor for efficient disposal.
The equipment utilizes PLC automatic control with one-click start functionality, ensuring simple installation, reliable operation, and ease of use.
Yes, the compact design and overall dimensions make it ideal for locations where space is constrained but high operational standards are required.
Country Of Origin: India
Bag Emptying System (Compact Model)Pneuconveyor – Compact Bag emptying machine is used to remove the outer bag of double-layer packaging woven bags or kraft paper bags, and has functions such as bag positioning, automatic bag cutting, automatic dumping, and waste bag recycling. Applicable to a wide range of industries: In industries such as medicine, high-end food, dairy products, and fine chemicals that have strict requirements on production environment and material quality, this equipment has become a key equipment to ensure efficient and clean operation of the production process due to its excellent performance., helping companies improve product quality and market competitiveness.
The belt conveyor feed the bag into the machine and move the bag through cut device with one blade, the material is emptied by cleaning mechanism and fall into storage hopper. The empty bag can be automatically collected and compacted by waste bag compactor. It is suitable for places with small space, small unpacking amount, high control requirements for dust and high control requirements for bag debris.
Technical Parameters:-
MODEL PC-BES-COMPACT-25
Capacity 120-150 bags/hour (depending on fluidity of material)
Bag Weight 10 – 25kg
Material handled Powder, Granules, Flakes
Cutting Mechanism Rotary Blades
Emptying rate 99.9%-99.99% (depending on the fluidity of material)
Overall power about 3.7KW
Compressed air about 150L/ min / 0.6mpa
Overall dimensions L2800 * W1130 * H2100 (±50)mm
Weight of equipment 750kgs approx.
Technical characteristic :-
