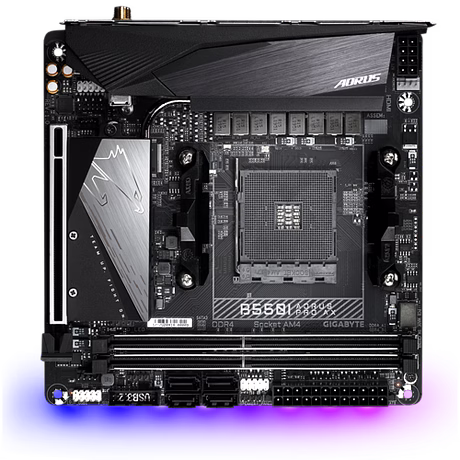

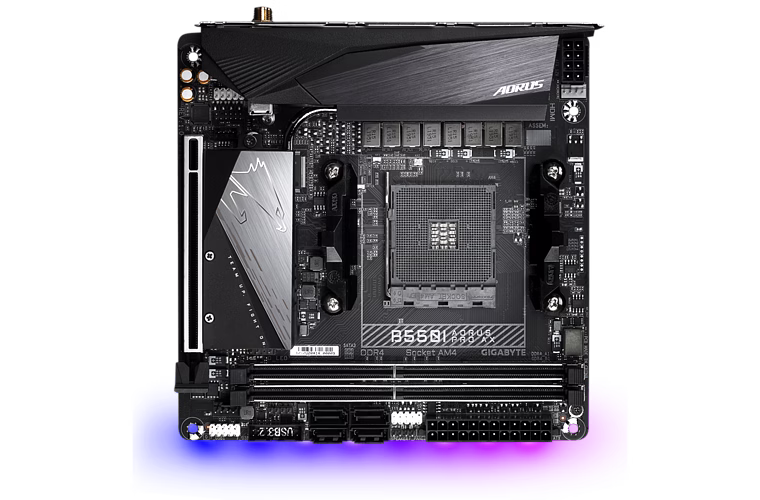

The AMD B550 Mini-ITX AORUS Motherboard is a high-performance, compact motherboard designed for professional and enthusiast users seeking advanced features in a small form factor. Supporting AMD Ryzen 5000, 4000 G-Series, and 3000 Series processors, this motherboard features a Direct 8 Phases Digital VRM solution with 90A Smart Power Stages, ensuring stable and efficient power delivery for overclocking and intensive workloads. Equipped with an advanced thermal design including an extended multi-layered VRM heatsink and thermal baseplate, it maintains optimal temperatures for enhanced stability. Dual PCIe 4.0/3.0 M.2 slots with Thermal Guards provide ultra-fast NVMe storage options ideal for data-intensive tasks. Networking is future-proof with onboard Intel WiFi 6 802.11ax 2T2R and Bluetooth 5 along with blazing-fast 2.5GbE LAN that supports bandwidth management. The board includes USB 3.2 Gen2 Type-C, multiple display outputs including DisplayPort and Dual HDMI, and supports RGB FUSION 2.0 for customizable lighting. Its Smart Fan 5 system features multiple temperature sensors and hybrid fan headers with FAN STOP technology to optimize cooling silently. The pre-installed I/O shield and Q-Flash Plus BIOS update system provide easy installation and maintenance without requiring CPU, memory, or graphics card installation. This motherboard is the ideal choice for compact industrial PCs, high-performance workstations, and gaming systems requiring reliability, performance, and efficient thermal and power management in a Mini-ITX form factor.
Key Features
| Features | Description |
|---|---|
| Processor Support | AMD Ryzen 5000/5000 G-Series/4000 G-Series/3000 Series Processors |
| Memory Support | Dual Channel ECC/Non-ECC Unbuffered DDR4, 2 DIMMs |
| VRM Design | Direct 8 Phases Digital VRM with 90A Smart Power Stage |
| Thermal Design | Advanced Extended & Multi-Layered VRM Heatsink with Thermal Baseplate |
| Storage | Dual NVMe PCIe 4.0/3.0 x4 M.2 Slots with Thermal Guard |
| Networking | Intel WiFi 6 802.11ax 2T2R, Bluetooth 5, 2.5GbE LAN with Bandwidth Management |
| Expansion Slot | Ultra Durable PCIe 4.0 x16 Slot |
| Audio | AMP-UP Audio with ALC1220-VB Codec and Nichicon Audio Capacitors, 120dB SNR |
| USB and Display | USB 3.2 Gen2 Type-C, DisplayPort, Dual HDMI Support |
| Cooling | Smart Fan 5 with Multiple Temperature Sensors and Hybrid Fan Headers |
| BIOS Update | Q-Flash Plus Supports BIOS Update without CPU/Memory/Graphics installed |
| Installation | Pre-installed IO Shield for Easy and Secure Installation |
| RGB Lighting | RGB FUSION 2.0 with Addressable LED & RGB LED Strip Support |
| Attributes | Description |
|---|---|
| Form Factor | Mini-ITX |
| CPU Socket | AM4 |
| Chipset | AMD B550 |
| Memory Type | DDR4 |
| Maximum Memory | 64GB |
| M.2 Slots | 2 (PCIe 4.0/3.0 x4 with Thermal Guard) |
| LAN | 2.5 GbE Ethernet |
| Wireless | Intel WiFi 6 802.11ax, Bluetooth 5 |
| Audio Chipset | Realtek ALC1220-VB |
| Power Phase Design | 8 Phases with 90A Smart Power Stage |
| USB Ports | USB 3.2 Gen2 Type-C and multiple Type-A ports |
| Display Outputs | DisplayPort, 2x HDMI |
| BIOS | Q-Flash Plus supported |
| Cooling System | Extended VRM Heatsink, Thermal Baseplate, Smart Fan 5 |
| Audio SNR | 120dB |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Yes, the AMD B550 Mini-ITX AORUS motherboard supports both ECC (Error-Correcting Code) and non-ECC unbuffered DDR4 memory modules in its two DIMM slots.
Yes, this motherboard supports Q-Flash Plus technology, allowing BIOS updates without requiring the CPU, memory, or graphics card to be installed.
The motherboard includes an Intel WiFi 6 802.11ax 2T2R module and Bluetooth 5, ensuring compatibility with current high-speed wireless standards.
It features an advanced thermal design with an extended and multi-layered VRM heatsink, thermal baseplate, and Thermal Guards on the dual M.2 slots, along with Smart Fan 5 control featuring multiple temperature sensors and hybrid fan headers.
Yes, it supports RGB FUSION 2.0, which is compatible with both addressable LED and traditional RGB LED strips for customizable lighting effects.
Brand: GIGABYTE
Country Of Origin: China
Enhanced System Performance
Upgrade your PC�s potential with AMD B550 MINI-ITX AORUS MOTHERBOARD WITH DIRECT 8 PHASES DIGITAL VRM, ADVANCED THERMAL DESIGN WITH EXTENDED VRM HEATSINK, THERMAL BASEPLATE, DUAL PCIE 4.0/3.0 M.2 WITH THERMAL GUARD, INTEL� WIFI 6 802.11AX, 2.5GBE LAN, RGB FUSION 2.0, Q-FLASH PLUS, engineered by GIGABYTE to boost overall performance and support multitasking, high-speed data access, and smoother operations for a variety of applications.
Precision Engineering & Compatibility
This product is made with quality-tested components to ensure wide compatibility with systems in its category. Whether you're upgrading RAM, storage, or a motherboard, it integrates smoothly for a reliable upgrade experience.
Durable and Reliable
Built for sustained usage, it delivers consistent power efficiency, thermal management, and durability over time. Ideal for users who demand stability in everyday or high-intensity operations.
