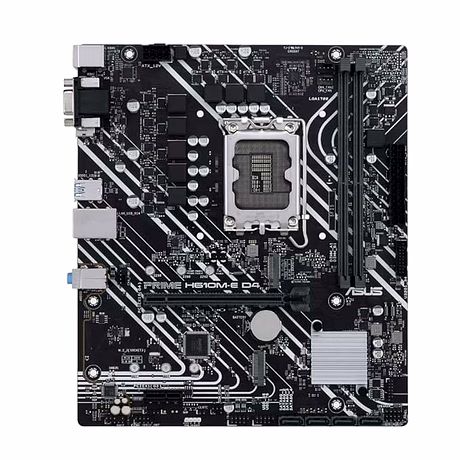

The ASUS Prime H610M-E D4 Micro-ATX Motherboard is designed for users seeking a compact yet powerful foundation for their desktop computing or gaming builds. Compatible with Intel's latest LGA 1700 socket processors, this motherboard supports DDR4 memory modules, allowing cost-effective memory upgrades without sacrificing performance. PCIe 4.0 support enables ultra-fast graphics cards and NVMe SSDs to operate at peak speeds, optimized by its dual M.2 slots that allow for flexible high-speed storage configurations. The onboard Realtek 1Gb Ethernet ensures reliable and stable wired network connectivity for both professional and gaming environments. For display output, the board offers versatile options including DisplayPort, HDMI, and legacy D-Sub ports to support multiple monitor setups. Additionally, USB 3.2 Gen 1 ports and six SATA 6Gbps interfaces provide ample connectivity options for peripherals and storage devices. The inclusion of a COM header and an RGB header enhances expandability, allowing for customized lighting and legacy device support. This Micro-ATX motherboard is ideal for builders looking for a balance between performance, expandability, and efficient use of space in affordable desktop or gaming PCs.
Key Features
| Features | Description |
|---|---|
| CPU Socket | LGA 1700 for Intel 12th/13th Gen processors |
| Memory Support | Supports DDR4 RAM up to 3200 MHz |
| Expansion Slots | PCIe 4.0 x16 slot for high-speed graphics cards |
| Storage Options | Dual M.2 slots (PCIe 4.0 and PCIe 3.0) and 6 SATA 6Gbps ports |
| Networking | Integrated Realtek 1Gb Ethernet LAN |
| Video Outputs | DisplayPort, HDMI, and D-Sub ports |
| USB Ports | USB 3.2 Gen 1 Type-A ports and additional USB headers |
| Form Factor | Micro-ATX (244mm x 226mm) |
| Additional Headers | COM header, RGB header for lighting customization |
| Audio | High definition audio codec with multi-channel support |
| Attributes | Description |
|---|---|
| Chipset | Intel H610 |
| Supported Processors | Intel 12th & 13th Gen Core i9/i7/i5/i3, Pentium Gold, Celeron |
| DIMM Slots | 2 x DDR4 DIMM slots (max 64GB) |
| PCIe Slots | 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x1 |
| M.2 Slots | 2 x M.2 slots supporting PCIe 4.0/3.0 SSDs |
| SATA Ports | 6 x SATA 6Gbps |
| Ethernet Controller | Realtek RTL8111H Gigabit LAN |
| Video Outputs | 1 x DisplayPort, 1 x HDMI, 1 x D-Sub (VGA) |
| USB Ports | 4 x USB 3.2 Gen 1 ports (rear), USB headers for front panel |
| Form Factor Dimensions | Micro-ATX (244mm x 226mm) |
| RGB Header | 1 x 4-pin RGB header |
| Audio | Realtek ALC892/897 HD Audio |
| BIOS | UEFI BIOS with EZ Mode |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
No, the ASUS Prime H610M-E D4 uses the Intel H610 chipset, which does not support CPU or memory overclocking features.
Yes, the ASUS Prime H610M-E D4 features dual M.2 slots that can be used simultaneously for installing two NVMe or SATA M.2 SSDs.
Yes, the integrated Realtek RTL8111H Gigabit Ethernet provides reliable and stable network connectivity suitable for professional and gaming environments.
There are four USB 3.2 Gen 1 Type-A ports available on the rear I/O panel for high-speed peripheral connectivity.
Yes, it includes a 4-pin RGB header that allows connection and synchronization of compatible RGB lighting components.
The motherboard provides DisplayPort, HDMI, and legacy D-Sub (VGA) ports for multiple monitor connections without needing a dedicated graphics card.
No, the ASUS Prime H610M-E D4 supports DDR4 memory only and is not compatible with DDR5 modules.
