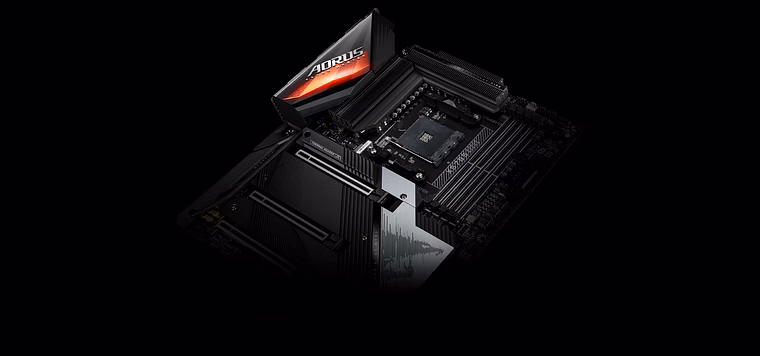

The AMD X570S AORUS MASTER is a high-performance motherboard designed by GIGABYTE to maximize the capabilities of AMD Ryzen processors from the 2000 series up to the 5000 series including G variants. Featuring an advanced Direct 14+2 Phases Infineon Digital VRM with 70A power stage, it ensures stable power delivery and efficient overclocking performance. Equipped with four DDR4 DIMM slots supporting dual channel ECC and non-ECC unbuffered memory, it offers flexible and reliable memory configurations for professional and enthusiast workloads. The motherboard integrates advanced thermal solutions such as Fins-Array II, Direct Touch Heatpipe II, M.2 Thermal Guard III, and a Thermal Backplate to maintain optimal operating temperatures during intense usage scenarios. Connectivity is enhanced with Intel WiFi 6E (802.11ax) and Bluetooth 5.2, along with blazing fast Intel 2.5GbE LAN featuring cFosSpeed for superior network performance. Storage options include four Ultra-Fast NVMe PCIe 4.0/3.0 M.2 slots with thermal guards ensuring sustained high-speed data transfer. It supports SuperSpeed USB 3.2 Gen 2x2 Type-C interfaces delivering up to 20Gb/s transfer speeds, catering to demanding data exchanges. The 125dB SNR AMP-UP audio system includes a high-end ESS SABRE 9118 DAC, ALC1220-VB codec, and WIMA audio capacitors for an immersive, high-fidelity audio experience. Smart Fan 6 technology with multiple temperature sensors and hybrid fan headers enables dynamic cooling with noise detection and FAN STOP features. Aesthetically, it features RGB FUSION 2.0 with multi-zone addressable LED lighting compatible with addressable LED and RGB strips. The Q-Flash Plus function permits BIOS updates without the need for CPU, memory, or graphics card installation, facilitating easy maintenance and upgrades. This motherboard is ideal for professional workstations, gaming rigs, and creative setups demanding sustained reliability, high-speed connectivity, and customizable performance tuning.
Key Features
| Features | Description |
|---|---|
| Processor Support | AMD Ryzen 5000/4000 G/3000/3000 G/2000/2000 G Series |
| Memory Support | Dual Channel ECC/Non-ECC Unbuffered DDR4, 4 DIMMs |
| Power Design | Direct 14+2 Phases Infineon Digital VRM with 70A Power Stage |
| Thermal Solution | Fins-Array II, Direct Touch Heatpipe II, M.2 Thermal Guard III, Thermal Backplate |
| Wireless Connectivity | Intel WiFi 6E 802.11ax & Bluetooth 5.2 |
| Network | Intel 2.5GbE LAN with cFosSpeed |
| Storage Interfaces | 4 x Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 Slots with Thermal Guards |
| USB Ports | SuperSpeed USB 3.2 Gen 2x2 Type-C (20Gb/s) |
| Audio System | 125dB SNR AMP-UP Audio with ESS SABRE 9118 DAC, ALC1220-VB Codec, WIMA Capacitors |
| Cooling | Smart Fan 6 with Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP & Noise Detection |
| Lighting | RGB FUSION 2.0 with Multi-Zone Addressable LED, Supports Addressable & RGB LED Strips |
| BIOS Flashing | Q-Flash Plus for BIOS update without CPU, Memory, or Graphics Card |
| Attributes | Description |
|---|---|
| Form Factor | ATX |
| Chipset | AMD X570S |
| Memory Slots | 4 DIMMs |
| Max Memory Capacity | 128GB |
| Memory Type | DDR4 ECC/Non-ECC Unbuffered |
| PCIe Slots | Supports PCIe 4.0/3.0 |
| M.2 Slots | 4 Ultra-Fast NVMe PCIe 4.0/3.0 x4 with Thermal Guards |
| LAN | Intel 2.5GbE LAN with cFosSpeed Technology |
| Wireless | Intel WiFi 6E 802.11ax and Bluetooth 5.2 |
| USB Ports | Includes USB 3.2 Gen 2x2 Type-C with up to 20Gb/s transfer speeds |
| Audio | 125dB SNR AMP-UP Audio w/ ESS SABRE 9118 DAC, ALC1220-VB Codec, WIMA Capacitors |
| Thermal Features | Fins-Array II, Direct Touch Heatpipe II, Thermal Backplate, M.2 Thermal Guard III |
| BIOS | Q-Flash Plus Support |
| RGB Lighting | RGB FUSION 2.0 Multi-Zone Addressable LED |
| OS Support | Supports Windows and Linux-based systems |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Yes, this motherboard supports dual channel ECC (Error Correcting Code) unbuffered DDR4 memory in addition to non-ECC memory, making it suitable for workstation and professional use requiring stable memory reliability.
Yes, the Q-Flash Plus function allows users to update the BIOS even without the CPU, memory, or graphics card installed, enabling easier BIOS recovery and maintenance.
The motherboard uses a suite of advanced thermal solutions including Fins-Array II heat sinks, Direct Touch Heatpipe II, M.2 Thermal Guard III, and a thermal backplate to dissipate heat efficiently and maintain system stability under heavy loads.
Yes, the motherboard includes Intel WiFi 6E (802.11ax) technology offering enhanced wireless speeds, lower latencies, and compatibility with modern WiFi 6 and 6E networks in the 6GHz band.
The motherboard features a 125dB SNR AMP-UP audio solution with a high-end ESS SABRE 9118 DAC, Realtek ALC1220-VB codec, and premium WIMA audio capacitors for superior sound quality.
Brand: GIGABYTE
Country Of Origin: China
Enhanced System Performance
Upgrade your PC�s potential with AMD X570S AORUS MASTER, engineered by GIGABYTE to boost overall performance and support multitasking, high-speed data access, and smoother operations for a variety of applications.
Precision Engineering & Compatibility
This product is made with quality-tested components to ensure wide compatibility with systems in its category. Whether you're upgrading RAM, storage, or a motherboard, it integrates smoothly for a reliable upgrade experience.
Durable and Reliable
Built for sustained usage, it delivers consistent power efficiency, thermal management, and durability over time. Ideal for users who demand stability in everyday or high-intensity operations.
