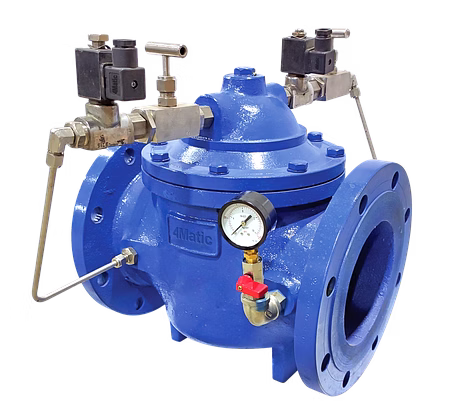

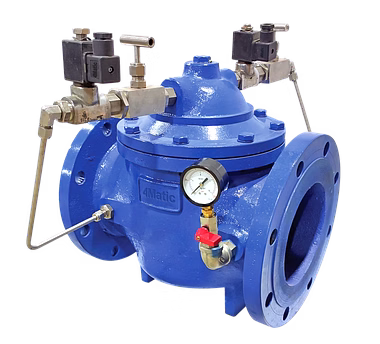

The 4MFCV Series Dual Solenoid Flow Control Valve is a precision-engineered valve designed for applications requiring controlled flow reduction with enhanced operational efficiency. Utilizing two solenoid pilot valves, this dual solenoid-operated valve manages both flow and pressure in the main valve for superior control. When an electrical pulse is applied to the inlet solenoid, the main valve instantly closes by filling the upper chamber with fluid, causing the diaphragm to seal firmly against the spring tension. Conversely, energizing the outlet solenoid gradually opens the main valve as the upper chamber pressure is released, allowing fluid to flow smoothly. Constructed with robust materials such as Cast Iron (CI), Ductile Iron (DI), WCB (carbon steel), and corrosion-resistant stainless steels CF8 and CF8M, the valve withstands temperatures up to 150°C and supports maximum inlet pressures of 12 kg/cm². The valve seals are available in NBR, EPDM, or Viton, ensuring compatibility with various media including water, oil, and air. Flanged ends facilitate easy integration in piping systems. The 4MFCV Series excels in automatic tank level control, eliminating the need for constant manual supervision. Its hydraulic operation reduces energy consumption by negating the necessity for electrical power for main valve actuation. The design mitigates water hammer effects by enabling smooth, non-slam valve closing, thereby protecting pipeline integrity. Highly durable and corrosion-resistant, this valve is adaptable to municipal, industrial, and irrigation systems, offering customizable pressure adjustment ranges from 1-6 kg/cm², 4-10 kg/cm², to 10-16 kg/cm². Businesses seeking reliable, low-maintenance flow control solutions will find the 4MFCV Series valve an excellent choice for optimizing process efficiency and system longevity.
Key Features
| Features | Description |
|---|---|
| Operation Type | Dual Solenoid Operated Flow Control Valve |
| Control Mechanism | Two solenoid pilot valves managing flow and pressure |
| Valve Body Materials | Cast Iron (CI), Ductile Iron (DI), WCB (carbon steel), CF8 and CF8M stainless steels |
| Maximum Temperature | Up to 85°C (CI/DI), 120°C (WCB), 150°C (CF8/CF8M) |
| Maximum Inlet Pressure | 12 kg/cm² |
| Pressure Adjusting Range | 1-6 kg/cm², 4-10 kg/cm², 10-16 kg/cm² |
| Seal Material Options | NBR, EPDM, Viton |
| Connection Type | Flanged Ends |
| Media Compatibility | Water, Oil, Air |
| Automatic Operation | Maintains tank levels automatically without manual intervention |
| Energy Efficiency | Hydraulic operation without electrical energy |
| Durability | Corrosion-resistant materials for long-lasting service |
| Water Hammer Protection | Smooth, non-slam closing action prevents pipeline damage |
| Applications | Suitable for municipal, industrial, and irrigation systems |
| Maintenance | Low maintenance due to simple design |
| Attributes | Description |
|---|---|
| Body Material | CI / DI / WCB / CF8 / CF8M |
| Maximum Temperature | 85°C (CI/DI), 120°C (WCB), 150°C (CF8/CF8M) |
| Max Inlet Pressure | 12 kg/cm² |
| Pressure Adjustment Ranges | 1-6 kg/cm², 4-10 kg/cm², 10-16 kg/cm² |
| Seal Type | NBR, EPDM, Viton |
| End Connections | Flanged |
| Control Type | Dual Solenoid |
| Media | Water, Oil, Air |
| Operation Mode | Hydraulic, automatic tank level maintenance |
| Valve Type | Flow Control Valve with diaphragm and spring mechanism |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The dual solenoid mechanism allows separate control of the inlet and outlet pilot valves, providing more precise and gradual opening and closing of the main valve. This enhances flow and pressure regulation efficiency and reduces water hammer effects.
The CF8 and CF8M stainless steel body materials are ideal for high temperature (up to 150°C) and corrosive environments, while Cast Iron and Ductile Iron are suitable for standard water and oil applications.
Yes, the valve offers three pressure adjustment ranges (1-6 kg/cm², 4-10 kg/cm², and 10-16 kg/cm²) that can be selected or customized depending on the operational needs.
No, the main valve operates hydraulically; solenoids control the pilot valves electrically, but the main valve itself does not require electrical energy, improving energy efficiency.
The valve's design ensures a smooth, non-slam closing action by gradually releasing pressure in the upper chamber, preventing sudden flow interruptions that cause water hammer.
Country Of Origin: India
4MBUD Series Scada Compatible Flow Control Valve– Precision Flow with 4Matic Valves.
Accurate flow regulation, as well as automation, are some of the important necessities that modern industries require to maintain the operational efficiency in the system. A 4MBUD Series Scada Compatible Flow Control Valve is basically engineered to offer efficient flow management, which also includes the part of high trustability, making therefore the option for automated control systems in the sectors having this kind of requirements.
One of the main principles behind the 4MBUD Series Scada Compatible Flow Control Valve is just that both the solenoids are active at the same time and the valve can be opened or closed when the flow is changed. This model is at the forefront of the water treatment industry, as it is capable of the highest precision in flow control, minimal leakage, and regulation of the flow in gentle manners etc. 4Matic Valves engineers these products from materials which some are extraordinarily durable, hence long service life and steady performance in case of even the most extreme conditions are assured.
Industries rely on 4Matic Valves to provide the 4MBUD Series Scada Compatible Flow Control Valve because it has great features in terms of automation and its compatibility with varied systems. Using this valve as part of your control setup makes it possible to operate it from a distant location, thereby lessening the manual part of intervention and as a result system safety is enhanced as well. The small-sized valve and the dependable solenoid mechanism are capable of making this product compatible even with applications involving high and low pressures, thus it is efficient no matter which sector is affected by diverse conditions.
Industries utilizing a 4MBUD Series Scada Compatible Flow Control Valve made by 4Matic Valves receive the benefit of cutting-edge technology, minimal maintenance, and improved system performance. Such valves can be utilized efficiently for the accurate dosing of fluids, the regulation of pressure, and the automation of the flow distribution besides other applications.
Choose 4Matic Valves for your Dual Solenoid Operated Flow Control Valve requirements and experience intelligent engineering with infinite possibilities.
