pneuconveyor systems & engineers

Portable Powder Transfer System

pneuCONVEYOR — SEMI AUTOMATIC BAG EMPTYING SYSTEM (Model: Multicut) is ideal for food, pharmaceutical, chemical and related applications.

pneuCONVEYOR—Bag slitting machine ends all your dust and discharge problems once and for all. The automatic bag slitter machine is suitable for the continuous and dust-free handling of all types of single or multi layered bags. pneuCONVEYOR’s fully automatic bag slitter can cut open and discharge up to 1000 bags per hour of powdered materials with soft lumps upto 100mm size from poly woven, HDPE, hessian and paper bags including bags of multiwall construction. Depending on the properties of the product and the condition of bags, capacities up to 15tons per hour can be obtained. The standard execution will handle approximately 10 tons per hour. The product is discharged within a contained dust free environment with automatic empty bag compaction.

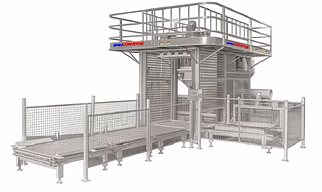

Automatic Bag / Sack Emptying Station

A Fully Automatic Sack Emptying Station is designed for dust-free, high-capacity unloading of powder and granular materials from 25–50 kg sacks without manual intervention.

Bag Emptying System (Compact Model)Pneuconveyor – Compact Bag emptying machine is used to remove the outer bag of double-layer packaging woven bags or kraft paper bags, and has functions such as bag positioning, automatic bag cutting, automatic dumping, and waste bag recycling. Applicable to a wide range of industries: In industries such as medicine, high-end food, dairy products, and fine chemicals that have strict requirements on production environment and material quality, this equipment has become a key equipment to ensure efficient and clean operation of the production process due to its excellent performance., helping companies improve product quality and market competitiveness.

The belt conveyor feed the bag into the machine and move the bag through cut device with one blade, the material is emptied by cleaning mechanism and fall into storage hopper. The empty bag can be automatically collected and compacted by waste bag compactor. It is suitable for places with small space, small unpacking amount, high control requirements for dust and high control requirements for bag debris.

pneuCONVEYOR – Dense phase conveying System : Dense phase conveying is a highly reliable pneumatic conveying system with a low velocity and a high product/air ratio, suitable to convey powders and granule. With Dense Phase Conveyors the product is introduced into the conveying line through a pressure vessel and is suitable to convey products from a single point to one or more receiving points.

pneuCONVEYOR – Dilute Phase (Lean Phase) Pneumatic Conveying systems

Dilute Phase (Lean Phase) Pneumatic Conveying System can be used for Dry Powders and Granules. There is a wide variety of Materials that can be conveyed with this system. Be it powder of any mesh or Granules of around 5 to 10 mm sizes. Any material that needs to be conveyed with Pneumatic Conveying System should be Dry and Free flowing in the first place. In some cases of free flowing powder, moisture content up to 15% can also be transferred by this system, It is not advisable to use it if the material has high moisture level or if it is sticky.
