Enviro~Tech Systems & Engineers

PP Y Type Strainer Flange End

Available M.O.C.:

PP (Polypropylene)

Capacity:4-8 Inch

Size:2 inch

Material:PP

Media:Water

Color:GRAY

Usage/Application:WATERLINE AND INDUSTRIES

End Connection:FLANGE END

Manufacture OF PP / HDPE / ISO / PVDF BALL VALVE ,HDPE PIPE FITTING,PP PIPE FITTING , MDPE PIPE FITTING AND ELECTROFUSION PIPE FITTING,PP PALL RING,Cooling Tower Nozzles, Manufacture From India has been committed to excellence in designing, manufacturing P.P Molded fittings, Cooling Tower Nozzles, in all size required for water Treatment, Chemical and Pharmaceutical Industries.

MODEL NO. F-7500

Mount: Panel

Make: Aster

The EnviroTech Chemical Dosing Pump Model MMDP.I is a highly efficient, precision-engineered solution for accurate chemical dosing across industries like water treatment, pharmaceuticals, and chemical processing. Designed with state-of-the-art materials and advanced features, this pump guarantees reliability, durability, and exceptional performance.

Product Description

Our range of portable Pen Type meters are economical range of easy to use and reliable hand held pen type meters. An important feature of the testers is the compact single chamber design. The meter gives accurate readings with its Built-in temperature sensor and can be easily calibrated. The meter is provided with an Auto Off function o enhance the battery life of the LR44 batteries. Also a hold function helps the user to Read and Record results with ease and convinence. These meters are cost effective and come encased in a protective carrying pouch for safety and portability.

Product Description

Made from 100 % virgin material.

smooth surface.

with lids

cap 30 ltrs 40 ltrs 50 ltrs 60 ltrs 80 ltrs 100 ltrs 120 ltrs 150 ltrs 200 ltrs 220 ltrs 250 ltrs 300 ltrs 500 ltrs 1000 ltrs 1500 ltrs 2000 ltrs capacity tank available

Additional Information

Item Code CHEMICALTANKS

Production Capacity 30 TO 2000 LTRS

Product Description

Spun filter cartridges are made up of 100% polypropylene fibers. The fibers have been carefully spun together to form a true gradient density from outer to inner surface. Filter cartridges are available with core & without core version. The superior structure remains integral even under severe operating conditions and there is no media migration. Polypropylene fibers are blown continuously on central molded core, without any binders, resins or lubricants. Unfiltered fluid passes through depth filter matrix and enables the progressive retention of finer particles which provides high efficiency, high dirt retention & long filter life. Fluid flows from outside to inside through filter media. Particulates are held securely in the filter matrix and clean fluid flows to the downstream side of cartridge

Tube Body Construction:Acrylic

Range Ability:12000 LPH

Usage/Application:Industrial Use

Packaging Type:Box

Model Name/Number:F12000

Brand:ASTER

Float Material:SS

Power Supply:Electric

Suitable For:Water

Use:Water Treatment

Country of Origin:Made in India

MODEL MMDP II

Pump flow rate ( Discharge capacity) 0-662LPH ( liter per hour)

Control Manually

Discharge Pressure 3kg/cm2(Bar)

STROCK LEIGHT 8 MM

SPM /Gear Ratio 185/ 8:1

Coupling Type Flexible spider

Turn Down ration 10:1

Efficiency/Accuracy 98% / +- 1%

End connections 1” BSP FEMALE TREADED

LUBRICATION OIL SPLASH TYPE

MOC ( Material of construction)- contact parts:-

DIAPHRAGH PTFE

LIQUID END P.P

NRV SEAT / CAGE P.P

NRV BALL P.P

Seal NRV PTFE

WORM WHEEL Phosphorous Bronze

Gear Housing IS210 FG 260 C.I

Pump & drive mounting base M.S.

Coupling guard SS304

Driven ( Motor) DATA SHEET

Phase / Voltas/ Hz 3 / 415 /50 AC

Enclosure / Insulation IP-55, / STD TEFC

HP / Kw /RPM 1.0/ 0.75/ 1440

Mounting / make FOOT /CGL/BBL/HINDUSTHAN

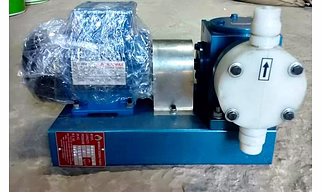

Plunger Type Metering Pumps,

Maximum Flow Rate: 50 LPM

Flow Rate(LPH):200

Maximum Flow Rate:50 LPM

Material:SS

Usage:Chemical Dosing

Head:5

Phase: 3 Phase

Power Source:Electric

Suction Tubing:6/4

Country of Origin:Made in India

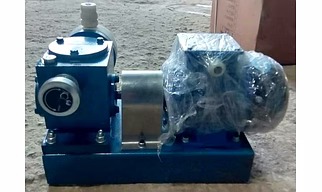

MECHANICAL DIAPHRAGM PUMP

MODEL MMDP .I

Pump flow rate ( Discharge capacity) 0 – 100 LPH

Discharge Pressure 5 kg/cm2

Stroke length 5 mm

SPM /Gear Ratio 100/15 :1

Turn Down Ratio 10 : 1

Efficiency / Accuracy 97% / +_3%

Coupling Type Flexible spider

End connections 1/2” BSP (Female- THREADED)

LUBRICATION OIL SPLASH TYPE

MOC ( Material of construction)- contact parts:- P P

DIAPHRAGM P.T.F.E

LIQUID END P P

NRV SEAT / CAGE P P

NRV BALL P.T.F.E/CERAMIC

Seal NRV PTFE( TEFLON)

NRV SIZE BV-10

WORM WHEEL Phosphorous Bronze

Gear Housing IS210 FG 260 C.I

Pump & drive mounting base M.S.

Coupling guard SS304

Driven ( Motor) DATA SHEET

Phase / Voltas/ Hz 3/ 415 /50 AC

Enclosure / Insulation IP-55, / STD TEFC –IE-2

HP / Kw /RPM 0.5/ 0.37 1440

Mounting / make FOOT/ABB/CGL/BBL/Equivalent

PUMP TYPE Simplex Mechanical Diaphragm Type

metering pump

MODEL MMDP .I

Pump flow rate ( Dischagre capcity) 0 – 50 LPH

Discharge Pressure 5 kg/cm2

Stroke length 5 mm

SPM /Gear Ratio 100/15 :1

Turn Down Ratio 10 : 1

Efficiency / Accuracy 97% / +_3%

Coupling Type Flexible spider

End connections 1/2” BSP (Female- THREADED)

LUBRICATION OIL SPLASH TYPE

MOC ( Material of construction)- contact parts:- P P

DIAPHRAGM P.T.F.E

LIQUID END P P

NRV SEAT / CAGE P P

NRV BALL P.T.F.E/CERAMIC

Seal NRV PTFE( TEFLON)

NRV SIZE BV-10

WORM WHEEL Phosphorous Bronze

Gear Housing IS210 FG 260 C.I

Pump & drive mounting base M.S.

Coupling guard SS304

Driven ( Motor) DATA SHEET

Phase / Voltas/ Hz 3/ 415 /50 AC

Enclosure / Insulation IP-55, / STD TEFC –IE-2

HP / Kw /RPM 0.5/ 0.37 1440

Mounting / make FOOT/ABB/CGL/BBL/Equivalent

Aster PP Flange Online Rotameters (BSTD)-The Rotameter's operation is based on the variable area principle: fluid flow raises a float in a tapered tube, increasing the area for passage of the fluid. The greater the flow, the higher the float is raised. The height of the float is directly proportional to the flow rate. The float reaches the stable position in the tube when the upward force entered by the flowing liquid equals to the downwards gravitational force entered by the weight of float.

E-Dose Max -100 LPH

Usage/Application:Chemical Dosing

Pump Type:Mechanically Actuated Pump

Suction/Discharge Tubing: Suction Discharge Foot Valve

Power Source:Electric

Material: PP

Voltage:415V

Frequency:50Hz

Discharge Pressure:5kg/cm2

Maximum Discharge Flow:5kg/cm2

Color:Blue

Motor Horsepower:0.25HP

Head:5kg/cm2

Product Weight:15 kgs

Motor Power:0.25HP

Speed:1340 RPM

Power Consumption:415V

Electrical:Three Phase

Dosing Rate:100 LPH

Plant Capacity:1000 LPH

Capacity:1000 LPH

Type:Vertical

Water Source Type:Industrial Wastewater

Usage/Application: Industrial

Material:PVC

Application Industry: Residential & Commercial Building

Treatment Technique: RO FRP Vessel

Automation Grade: Fully Automatic

Treatment Stages: Primary Treatment

Deliver Type: Outside India, PAN India

Country of Origin: Made in India

TECHNICAL SPECIFICATION OF MECHANICAL DIAPHRAGM PUMP

metering pump

MODEL MMDP .I

Pump flow rate ( Discharge capacity) 0 – 50 LPH

Discharge Pressure 5 kg/cm2

Stroke length 5 mm

SPM /Gear Ratio 100/15 :1

Turn Down Ratio 10 : 1

Efficiency / Accuracy 97% / +_3%

Coupling Type Flexible spider

End connections 1/2” BSP (Female- THREADED)

LUBRICATION OIL SPLASH TYPE

MOC ( Material of construction)- contact parts:- P P

DIAPHRAGM P.T.F.E

LIQUID END P P

NRV SEAT / CAGE P P

NRV BALL P.T.F.E/CERAMIC

Seal NRV PTFE( TEFLON)

NRV SIZE BV-10

WORM WHEEL Phosphorous Bronze

Gear Housing IS210 FG 260 C.I

Pump & drive mounting base M.S.

Coupling guard SS304

Driven ( Motor) DATA SHEET

Phase / Voltas/ Hz 3/ 415 /50 AC

Enclosure / Insulation IP-55, / STD TEFC –IE-2

HP / Kw /RPM 0.5/ 0.37 1440

Mounting / make FOOT/ABB/CGL/BBL/Equivalent

PP Dosing Tank

Storage Capacity:100 Lit

Material: Polypropylene

Tank Orientation:Vertical

Color: White

Material Grade: PP/LLDPE/HDPE

Shape: Cylindrical

Surface Finishing: Chemical /PP

Weight:5 KG

Surface Treatment: Chemical Storage

I Deal In: New Only

Country of Origin: Made in India

CWC 25 M3/hr. Rotameter

8"INCH SIZE RO END CAP ADAPTER

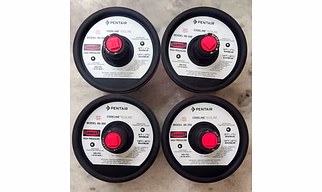

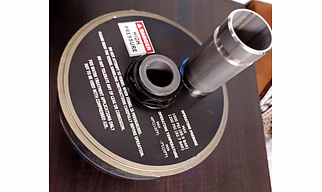

END CAP ASSEMBLY 8" INCH SIZE END PORT -1000 PSI

PH METER PO 650

MAKE: ASTER
