D.S.SHAH ENTERPRISES

DSSE-N

FEATURES:

• High Flow Oxygen Therapy

• Advanced Therapy

• 8 Hours Battery Backup

• Non-invasive Therapy

• Compatible with Standard Accessories

TECHNICAL SPECIFICATIONS:

• Patient Inclusions: Adult & Paediatric

• Therapy: Invasive Ventilation, Non-invasive Ventilation, O2 Therapy

• Modes: PC-CMV, PC-AC, PC-SIMV, VC-CMV, VC-AC, VC-SIMV, PRVC-CMV, PRVC-AC, PRVC-SIMV, PS/CPAP (PSV), APRV, High Flow Nasal Cannula (HFNC mode)

• Respiratory rate (RR): 1-80 BPM

• Peak Inspiratory Pressure: 80 cm of H2O

• PEEP: 0 -50 cm of H2O

• Pressure Support: 0 -60 cm of H2O

• Inspiratory Time (Ti): 0.2 -10 s

• I:E Ratio: 1:10 to 10:1

• Tidal Volume (VT): 50 -2000 mL

• Trigger Flow Sensitivity: 1 -20 L/min

• O2 Concentration (FiO2): 21 -100 %

• FiO2 Control: Closed Loop Electronic Manipulation

• Recruitment Tools: Manual Breath, O2 Boost, Inspiratory hold, Expiratory hold

• Leak Detection and Compensation: 100% leakage compensation in NIV modes

• O2 Therapy: Continuous flow 10 -75 L/min, Concentration 21 -100 %

• Oxygen Input: 46-60 PSIG

DSSE-N7

General Ventilation Specifications

Parameter Specifications

Patient Range Adult / Pediatric / Infant

Bias Flow Adaptive (>3 L/min)

Gas Delivery System Microprocessor Controlled Valves

Max. Airway Pressure 119 cmH₂O

Trigger Type Flow and Pressure

Inspiratory Flow Range 0 to 240 L/min

Communication & Connectivity

Feature Specifications

WiFi Yes

LTE Optional

RS-232C Ports 4 x RS-232C

USB 2 x USB (Data Transfer)

Ethernet 1 x HL7

OTA Updates Yes (via WiFi, no manual intervention)

Smart Features

Feature Specifications

Request a Callback Yes (via on-screen button)

Ventilation Modes

Invasive Modes

• Assist Control: PC, VC, PRVC

• Advanced: SIMV (PC/VC/PRVC) + PS, APRV

• Support: PS/CPAP, VS-VC, VS-PRVC

Non-Invasive Modes

• NIV/PS, DualPAP, HFOT

Maneuvers & Assessments

Parameter Specifications

Static Assessment Inspiratory / Expiratory Hold

O₂ Boost Yes

Suction Support Yes

NIF Yes

P0.1 Yes

Ventilation Settings & Parameters

Parameter Specifications

VT Adult: 100–4000 ml, Pediatric: 15–350 ml

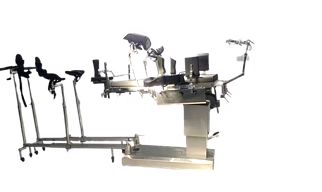

A Stainless Steel Electric + Manual C-Arm Compatible Operating Table with Orthopedic Attachments is a specialized surgical table designed for orthopedic surgeries that require real-time fluoroscopic imaging.

DSSE 1007- Stainless Steel Electric + Manual C Arm compatible Operating Table with Orthopedics Attachments

Parameter Specification:

Length of Table 1910 mm

Width of Table Top 522 mm

Minimum Height (without mattress) Min. 750 mm

Maximum Height (without mattress) Max. 1000 mm

Lateral Tilt ±20°

Trendelenburg 25°

Back Section ±50°

Head Section ±60°

Leg Section 0° – 90°

A Stainless Steel Hydraulic C-arm Compatible Operating Table is a specialized operating table used in a wide range of surgical procedures, including general surgery, orthopedic surgery, and neurological surgery, vascular surgery, cardiac procedures, pain management interventions, urology, gynecology, and laparoscopy procedures.

DSSE Fully Automatic Procedure Chair with 3 Motors.

A dermatology chair, also known as a derma chair, is a specialized piece of medical furniture designed for dermatology, cosmetology, and hair transplant procedures. Key specifications include hydraulic or electric height adjustment, adjustable backrest and leg rest, and a high weight capacity. These chairs often come with detachable headrests, leg rests, and armrests for versatility.

DSSE-E

Specification Details-

Type Electrosurgical Generator (Cautery Machine)

Maximum Power Output 400W

Display 7 Segment LED Digital

Monopolar Cut Modes Pure Cut, Blend 1, Blend 2, Endo Cut

Monopolar Coagulation Modes Spray, Dessicate, Fulgurate

Bipolar Modes Micro, Macro, Cut

Tissue Response Circuit Present

Patient Plate Monitoring System Present

Dimensions (W x H x D) 300 mm x 150 mm x 340 mm

Weight 5.5 kg

Power Supply 90V to 270V or 230VAC 50/60Hz (varies by distributor)

Power Efficiency Up to 97%

Programs Not applicable (basic model, no programmable memory)

Key Features:

• Microcontroller-based design for precision and safety

• Patient plate return electrode monitoring system with fault indication and alarm for enhanced safety

• High power efficiency, compact design, and portability

• Supplied with standard accessories (footswitch, handles, electrodes, bipolar forceps, patient plate, etc.)

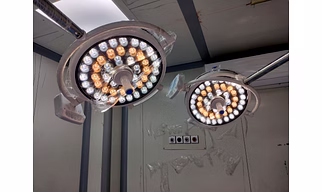

DSSE-Globe 48 Twin-

TECHNICAL DATA

Intensity: 1,60,000 × 2 Lux ±

Size of Light Field: 12-30 cm

Colour Temperature: 3800 - 5200 K

Colour Rendering Index: 91 RA

LED Life: > 50,000 Hrs

Number of LED: 48 × 48

Diameter of Light: 720 mm × 2

Special Function: Memory Function

Power Supply: 220V / 50 Hz AC

Focusing: Adjustable

Battery Backup: Optional

Remote: Yes

DSSE Manual 5 function ICU Bed-

Accessories Included with it:

*ABS head and foot bows.

*ABS Collapsible railing.

*ABS castor Wheels.

*Telescopic i.v rod with height adjustable.

*Mattress (32density).

DSSE AWS Venus Fully Loaded-

TECHNICAL FEATURES

  Application : Adult, Paediatric

  Driven Mode : Pneumatically driven electronically controlled

  Mode : Semi-open, Semi-closed or closed system

  Anesthetic vaporizer: Two hgt precise vaporizers, Halothane /Isoflurane/Sevoflurane

  Power supply : 100-240V, 50/60Hz

  Power Consumption: < 50W Fresh gas outlet is in front of frame

ANESTHESIA VENTILATOR SPECIFICATION

  Display : 7" TFT with Touch Screen

  Mode of Operation : VCMV, V- SIMV, PCMV, P-SIMV, PRVC, PSV, BAG and Standby

  Tidal Volume : 50 to 1500 ml

  Respiratory Rate : 1 to 60 BPM

  Ti : 0.2 to 8.0Sec

  I: E Ratio : 4:1 to 1:4

  Plateau : 0 to 50

  Pressure Support : 5 to 40 cmH2O

  Trigger : 0.5 to 5.0 cmH2O

  PEEP : 1 to 30 cmH2O

  Pressure Limit : 20 to 60 mBar

  Backup RR : 6to 60 BPM

  Backup Mode : VCMV, V- SIMV, PCMV, P-SIMV and PRVC

  Alarms : Low and High for Pressure, RR, Minute Volume and FIO2,
