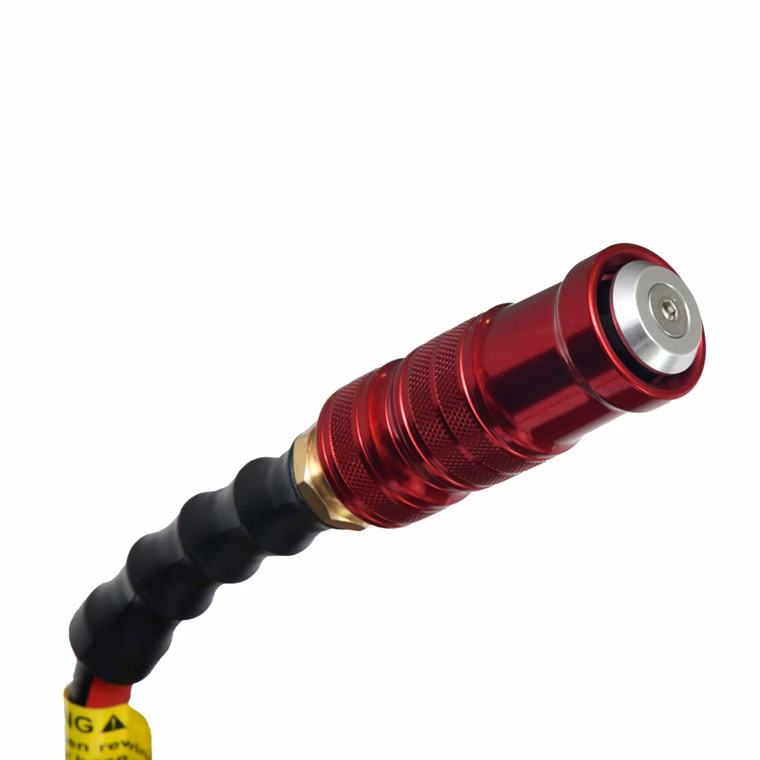

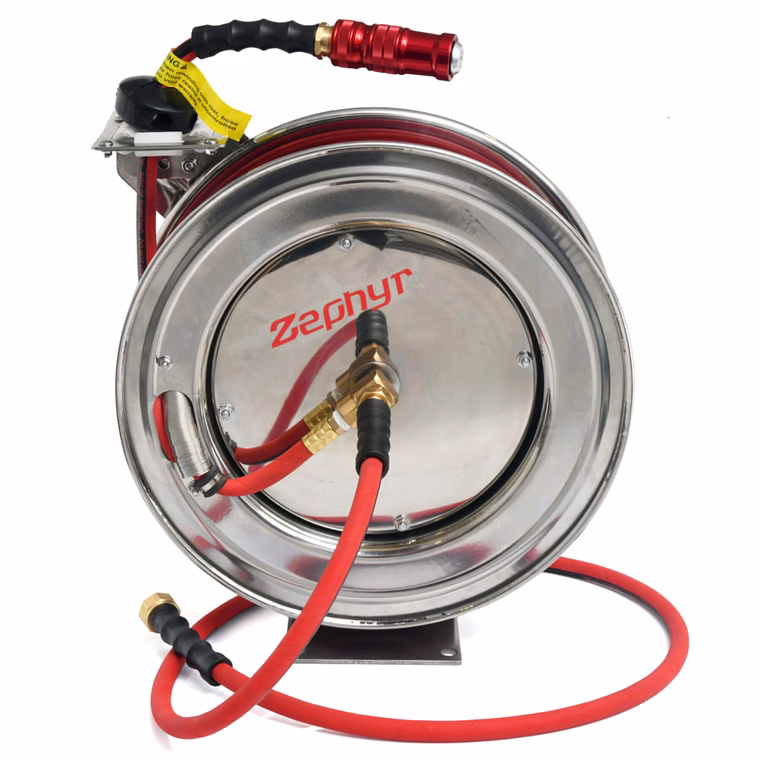

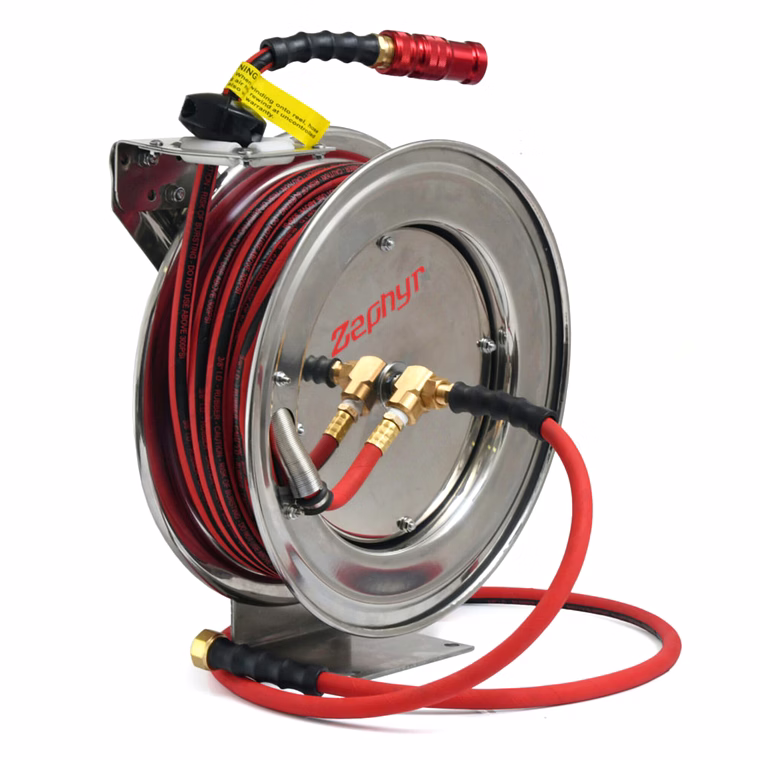

The Zephyr Auto-Retractable Steam Hose Reel 13mm x 08m Stainless Steel 304 (ZSR1308SS) is a high-performance industrial hose reel engineered for steam applications demanding robust durability and corrosion resistance. Constructed from premium 18-gauge stainless steel 304, this reel resists rust, heat, and wear, ensuring long-term functionality in harsh environments such as manufacturing plants, automotive workshops, and steam-powered operations. Featuring an industrial-grade spring-based auto-retraction mechanism, the reel effortlessly retracts the attached 13mm diameter, 8-meter long steam hose, equipped to withstand temperatures up to 160°C and pressures up to 5.5 BAR working pressure with a 55 BAR burst rating. The reel’s hardened stainless-steel fasteners and 12-point ratchet provide fine control for locking hose lengths, optimizing workflow efficiency. Its flexible multiple mounting options and adjustable outlet arm, complemented by four-way roller guides, facilitate seamless installation and hose handling while preventing tangles and hose damage. The package includes an aluminium spray nozzle and Zephyr Quick-Connect compatibility for swift attachment or removal of spray tools. Designed with safety and usability in mind, the reel is recommended to be used with heat-protective gear and is optionally offered with FDA-approved steam or hot water hoses, making it ideal for hygienic or food-grade applications. The inclusion of a 6-foot lead-in hose and mounting hardware delivers a turnkey solution for streamlined hose management and workspace organization. The Zephyr ZSR1308SS Steam Hose Reel is the definitive solution for businesses seeking efficient, durable, and premium hose handling under extreme steam conditions.
Key Features
| Features | Description |
|---|---|
| Material | 18-Gauge Stainless Steel 304 (Food-Grade) |
| Hose Diameter and Length | 13mm x 8 meters |
| Temperature Rating | Supports saturated steam up to 160°C |
| Pressure Rating | Working Pressure 5.5 BAR, Burst Pressure 55 BAR |
| Auto-Retraction Mechanism | Industrial-grade spring-based auto-retract system |
| Hose Construction | Rubber Steam Hose with double polyester braid, IS10655 Type 1 certified |
| Mounting Options | Multiple mounting options with adjustable outlet arm and swivel mount (optional) |
| Control | 12-point ratchet for precise hose length stop positions |
| Additional Accessories | Includes aluminium spray nozzle, 6ft lead-in hose, mounting hardware |
| Corrosion and UV Resistance | Stainless steel and hose designed for rust-free, ozone, and UV resistance |
| Compatibility | Compatible with Zephyr Quick-Connects for easy spray tool attachment/removal |
| Attributes | Description |
|---|---|
| Model Number | ZSR1308SS |
| Reel Material | Stainless Steel 304, 18-gauge |
| Hose Type | Rubber Steam Hose with double polyester braid |
| Hose Length | 8 meters |
| Hose Inner Diameter | 13 mm |
| Temperature Resistance | Up to 160°C saturated steam |
| Working Pressure | 5.5 BAR |
| Burst Pressure | 55 BAR |
| Mechanism Type | Spring-based auto-retraction |
| Ratchet Mechanism | 12-point for flexible hose locking |
| Mounting Options | Wall, ceiling, and swivel mount (optional) |
| Included Accessories | Aluminium spray nozzle, 6ft lead-in hose, mounting hardware |
| Certifications | IS10655 Type 1 Hose; FDA approved options available |
| Environmental Resistance | Ozone, UV, rust, and wear resistant |
| Applications | Industrial steam wash-down, manufacturing, automotive shops, food-grade environments |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.

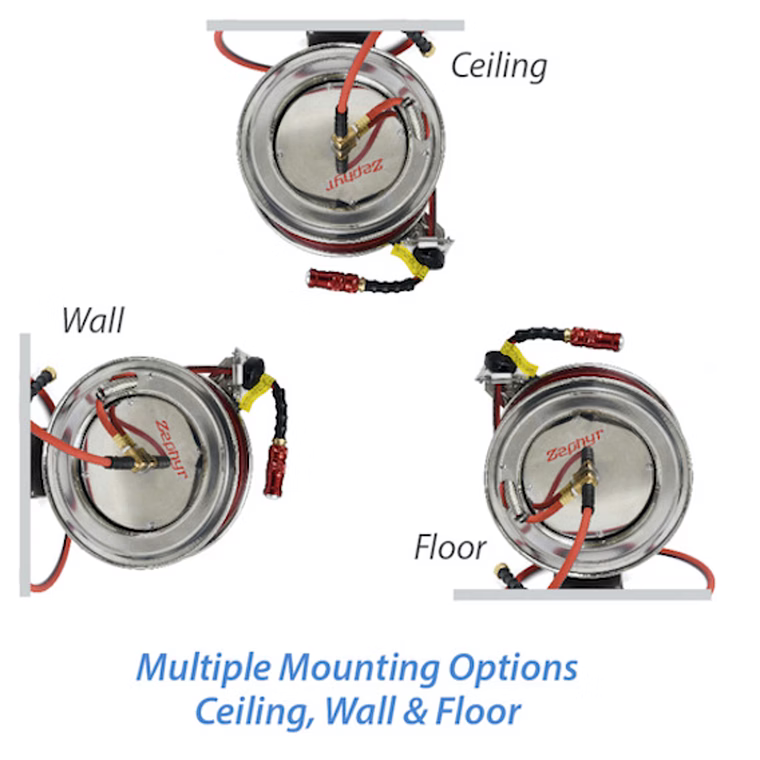

Yes, the reel supports multiple mounting options including wall and optional swivel ceiling mounts for flexible installation.
Yes, the reel is made of food-grade stainless steel 304 and optionally available with FDA-approved steam and hot water hoses to meet hygienic requirements.
The rubber steam hose supports saturated steam up to a maximum temperature of 160°C, complying with IS10655 Type 1 specifications.
Yes, the 12-point ratchet system enables precise and multiple hose length lock positions for enhanced operational efficiency.
Yes, the reel is designed for compatibility with Zephyr Quick-Connects for easy and fast spray tool attachment and removal.
The hose reel uses 18-gauge stainless steel 304 and stainless steel fasteners for corrosion resistance, while the hose is ozone and UV resistant, ensuring durability in industrial setups.
Brand: zephyr
Country Of Origin: India
The Stainless-Steel Auto-Retractable Steam Hose Reel combines durability and performance, making it the ideal choice for managing steam hoses in demanding industrial environments. Crafted from premium stainless steel, it offers exceptional resistance to corrosion, heat, and wear, ensuring long-lasting reliability even under extreme conditions. The auto-retractable mechanism allows for quick and effortless hose storage, preventing tangles and extending hose life. Perfect for use in manufacturing plants, automotive shops, or any steam-powered facility, this reel delivers efficient hose management, space-saving convenience, and enhanced safety, keeping your workspace organized and hoses easily accessible.
Hose Reel Features:
Hose Features:
