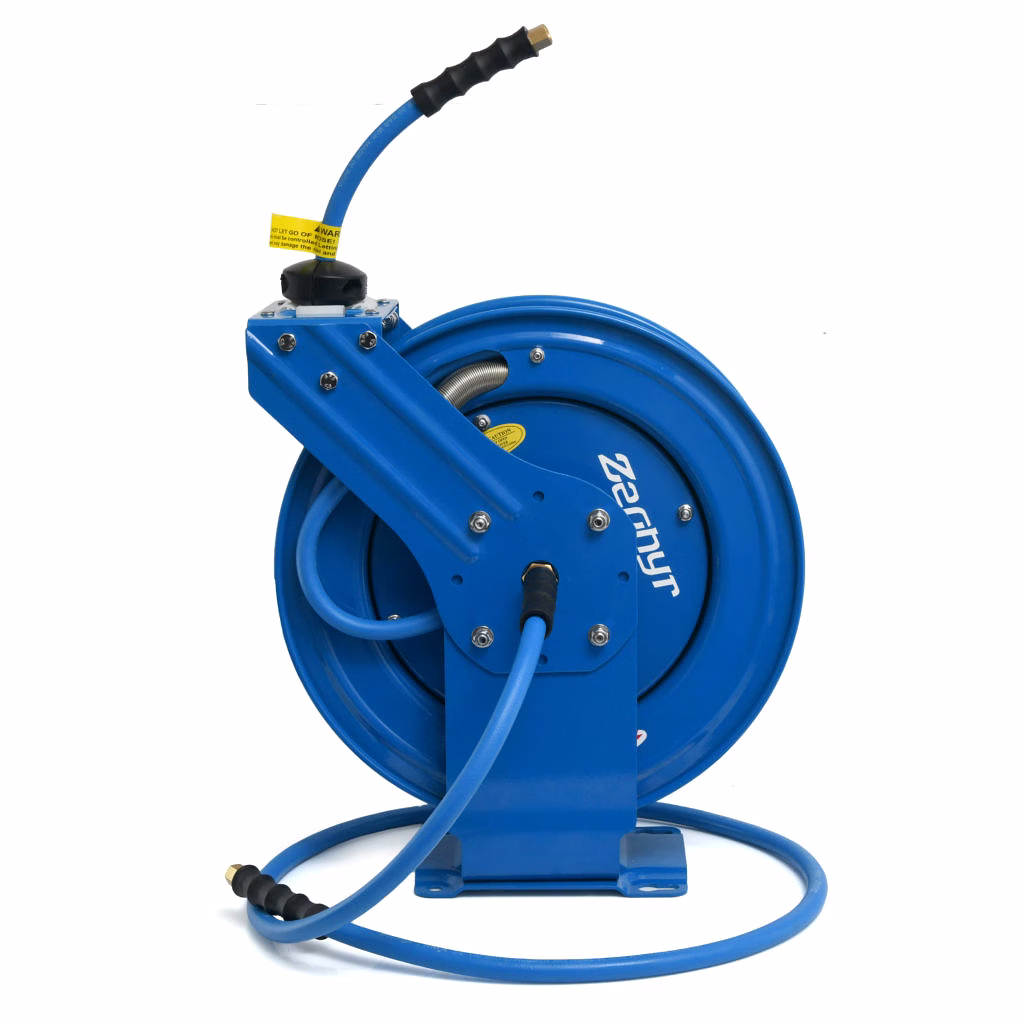

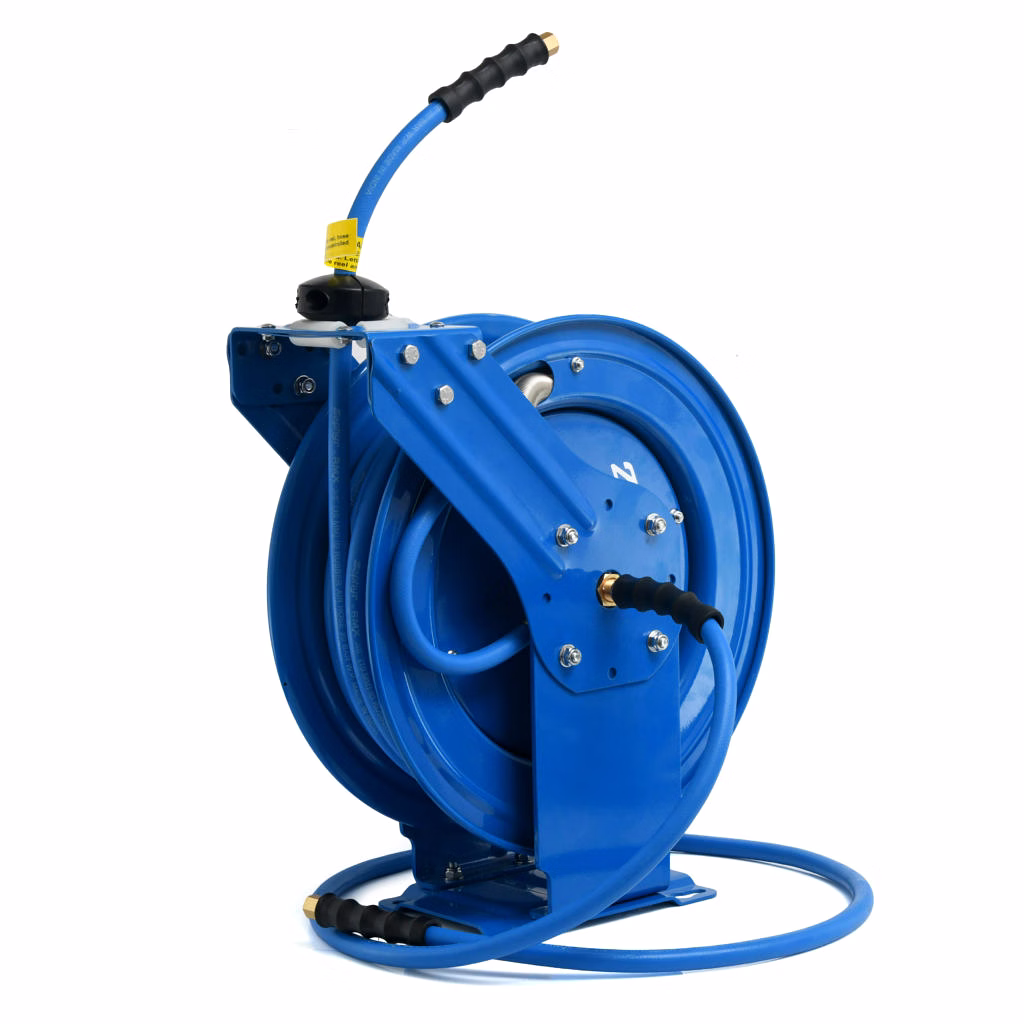

The Zephyr Auto-Retractable Air Hose Reel model ZAR1315DA features a heavy-duty dual-arm design that guarantees exceptional strength and durability for demanding industrial environments. Designed specifically for auto shops, workshops, garages, and home studios, this reel comes with a 13mm diameter by 15-meter long hose that retracts automatically via an industrial-grade spring mechanism ensuring smooth and efficient hose management. Constructed from 18-gauge powder-coated steel, the dual-arm frame provides enhanced rigidity and resistance against rough usage and wear. The reel integrates a precise 12-point ratchet system allowing the hose to be stopped at multiple fixed lengths, paired with 4-way adjustable roller guides to enable versatile mounting and hose flow directions. The delivered hose is made from 100% rubber, making it 40% lighter than conventional rubber hoses yet double the strength, offering unmatched flexibility between -45°C to 82°C and resistance to ozone and UV degradation. Operating at a working pressure of 20 BAR with a burst pressure of 80 BAR, the hose is reinforced with polyester braiding, ensuring reliable performance under demanding conditions. The product comes complete with Zephyr Oil-Shield hose variants and mounting hardware, making it a turnkey solution for businesses aiming to enhance their workshop efficiency with dependable air hose handling equipment.
Key Features
| Features | Description |
|---|---|
| Hose Diameter and Length | 13mm x 15 meters |
| Dual-Arm Heavy Duty Frame | Provides superior rigidity and durability |
| Material Construction | 18-gauge powder-coated steel for high durability |
| Auto-Retractable Mechanism | Spring-based smooth automatic rewind |
| Ratchet Stopping Mechanism | 12-point ratchet for multiple stopping positions |
| Roller Guides | 4-way adjustable roller guides for flexible mounting |
| Hose Material | 100% rubber, 40% lighter than standard rubber hoses |
| Operating Temperature Range | -45°C to 82°C |
| Working and Burst Pressure | Working Pressure: 20 BAR; Burst Pressure: 80 BAR |
| Included Components | 6ft lead-in hose, mounting hardware, Zephyr and Oil-Shield hose options |
| Attributes | Description |
|---|---|
| Model Number | ZAR1315DA |
| Hose Diameter | 13 mm |
| Hose Length | 15 m |
| Frame Design | Dual-arm |
| Material | 18-gauge powder-coated steel |
| Retracting System | Industrial-grade spring-based auto-retraction |
| Ratchet System | 12-point ratchet for precise hose length control |
| Roller Guides | Four-way adjustable rollers |
| Hose Material | 100% rubber with polyester braided reinforcement |
| Weight | 40% lighter than regular rubber hoses |
| Temperature Resistance | -45°C to +82°C |
| Working Pressure | 20 BAR |
| Burst Pressure | 80 BAR |
| Mounting Options | Multiple mounting options with adjustable outlet arm |
| Included Accessories | Mounting hardware and 6ft lead-in hose |
| Optional Features | Swivel mount and Oil-Shield hose variants available |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The dual-arm design enhances the rigidity and durability of the hose reel, enabling it to withstand rough and frequent usage common in industrial and workshop environments, preventing deformation and ensuring long-term reliability.
The 12-point ratchet system allows the hose to be stopped securely at multiple lengths, giving users precise control over the deployed hose length and preventing slack, which improves workflow efficiency and safety.
Yes, the included 100% rubber hose is engineered for all-weather flexibility, functioning reliably in temperatures from -45° to 82°C, and is resistant to ozone and ultraviolet degradation, making it ideal for outdoor and demanding workshop environments.
Yes, the reel features adjustable four-way roller guides and multiple mounting options with an adjustable outlet arm, allowing installation in different positions to suit diverse workspace layouts.
The reel supports standard Zephyr hoses as well as Oil-Shield variants designed for enhanced resistance against oil exposure, available by appending "-OS" to the product SKU.
Yes, each unit comes complete with mounting hardware and a 6ft lead-in hose, providing a ready-to-install package for quick setup.
Brand: zephyr
Country Of Origin: India
The Zephyr Dual Arm Air Hose Reels, delivers robust strength and durability. Zephyr Air Hose Reels Dual-ARM Are Made With Quality And Durability In Mind. The Zephyr 13MMX 15MTR (Dual-ARM) Is an Auto- Retractable Air Hose Reel That’s Built To Last - Perfect For Auto Shops, Workshops, Home Studios, And Garages. Dual-Arm frame For Rough-n-Tough Use. The Reel Is Constructed With Powder Coated 18 Gauge Heavy-Duty Steel, With Auto Hose Binding Mechanism System. Features Include A Smooth Automatic Rewind, Roller Guides That Adjust For Any Mounting Position.
Hose Reel Features:
Hose Features:
