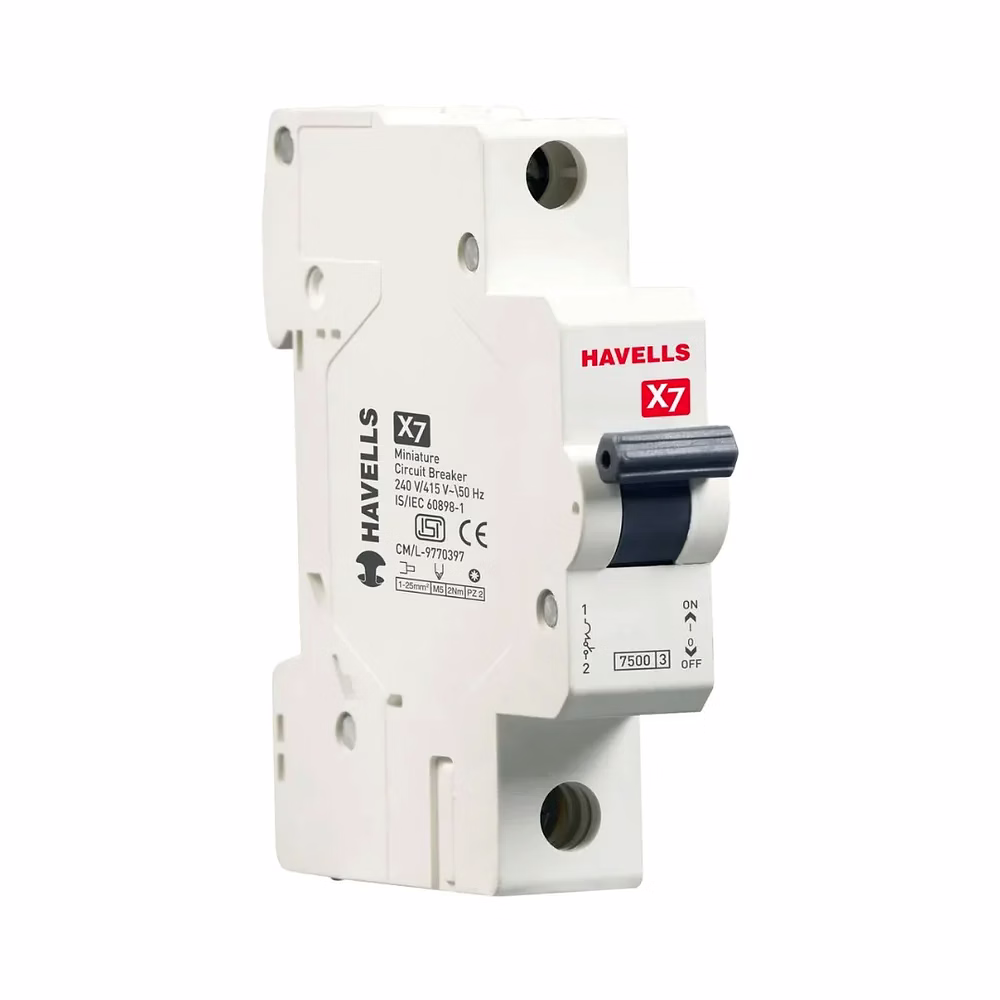

The X7 MCB (Miniature Circuit Breaker) is a high-performance electrical protection device designed for industrial and commercial electrical systems. Rated from 6A to 63A, this single-pole MCB ensures reliable circuit protection against overload and short circuits. Featuring advanced air circulation design, the adjacent poles form a tunnel for effective heat dissipation, enhancing performance and safety. The device is DIN rail mountable, allowing for convenient installation and removal inside distribution boards. Its dual connect terminal on the incoming side supports both fork-type and pin-type busbars, providing installation flexibility. Suitable for cables up to 25 mm² cross-sectional area, this MCB complies with IS/IEC 60898-1 and IEC 60898-1 standards, ensuring high safety and manufacturing quality. Ideal for use in industrial and commercial electrical circuits, the X7 MCB offers robust and versatile circuit protection with easy maintenance and compatibility features.
Key Features
| Features | Description |
|---|---|
| Rated Current Range | 6A to 63A |
| Pole Type | Single Pole |
| Air Circulation Design | Channels between adjacent poles form a heat dissipation tunnel |
| Mounting Type | DIN Rail Mountable |
| Dual Connect Terminal | Supports fork type and pin type busbars |
| Terminal Cable Capacity | Supports cables up to 25 mm² cross-sectional area |
| Compliance Standards | IS/IEC 60898-1 & IEC 60898-1 |
| Application | Industrial and Commercial purposes |
| Attributes | Description |
|---|---|
| Rated Current | 6A to 63A |
| Number of Poles | Single Pole |
| Mounting | DIN Rail |
| Terminal Connection Type | Dual connect (fork type and pin type busbars) |
| Max Cable Cross Section | 25 mm² |
| Standards Compliance | IS/IEC 60898-1 & IEC 60898-1 |
| Typical Application | Industrial and Commercial electrical circuits |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The terminals support cables up to 25 mm² cross-sectional area, allowing compatibility with a wide range of industrial and commercial wiring setups.
Yes, the dual connect terminal at the incoming side supports both fork type and pin type busbars for flexible installation.
Yes, it is designed to be DIN Rail mountable, making installation and removal inside distribution boards straightforward.
When two poles are placed adjacent, the channels between them form an air tunnel that enhances heat dissipation, improving device longevity and safety.
It complies with IS/IEC 60898-1 and IEC 60898-1 standards ensuring reliable performance and safety.
Rated current: 63 A
Air Circulation: When two poles are placed adjacent to each other, the channels between two poles form a tunnel resul
DIN Rail Mountable: DIN Rail Mountable for easy mounting/ demounting inside DB.
Dual Connect Terminal: Dual connect terminal at incoming side - Two types of busbars can be used, that is, Fork Type and Pi
Terminal: The terminals are suitable for cables up to 25 mm 2 cross section area thus making it suitable for c

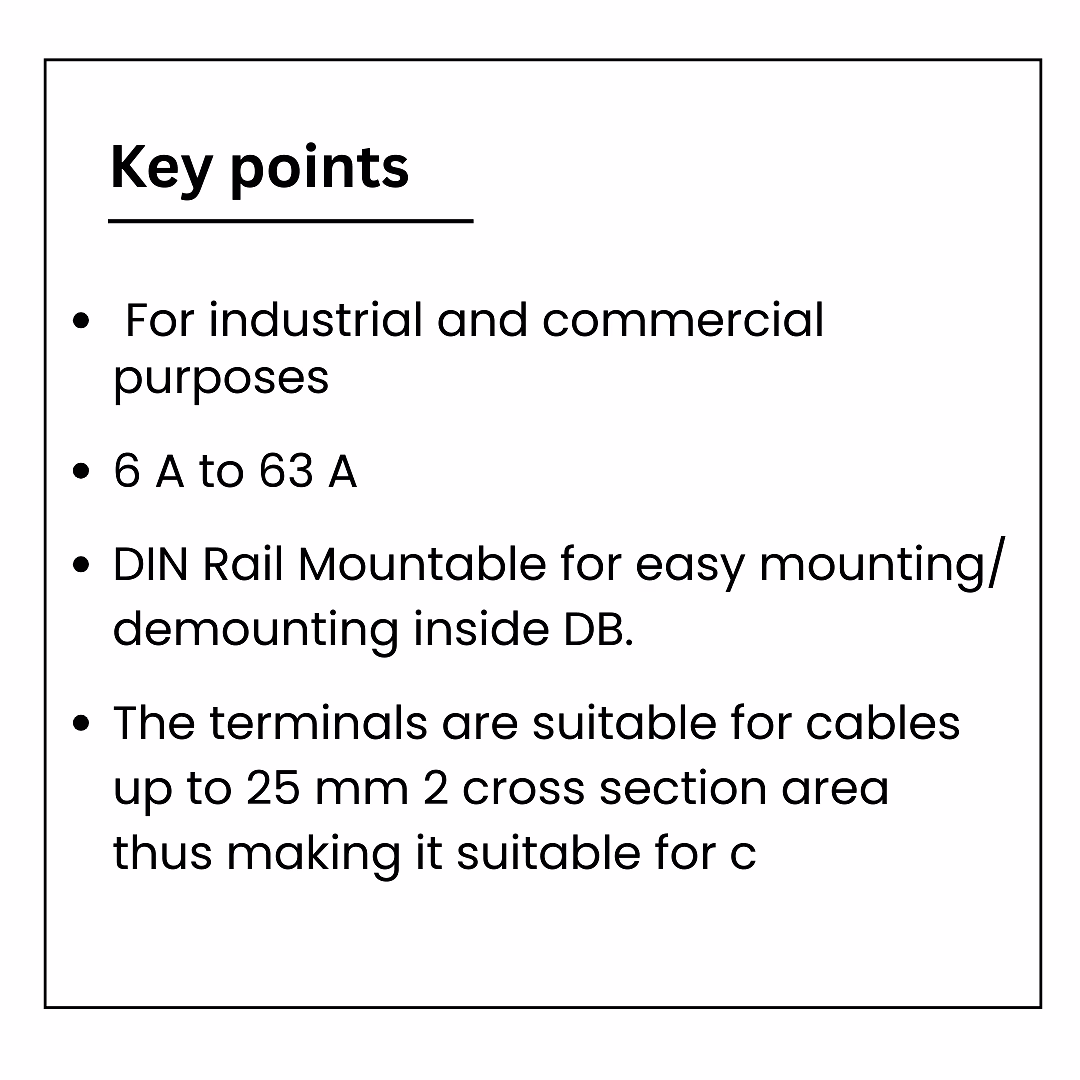

Application : For industrial and commercial purposes

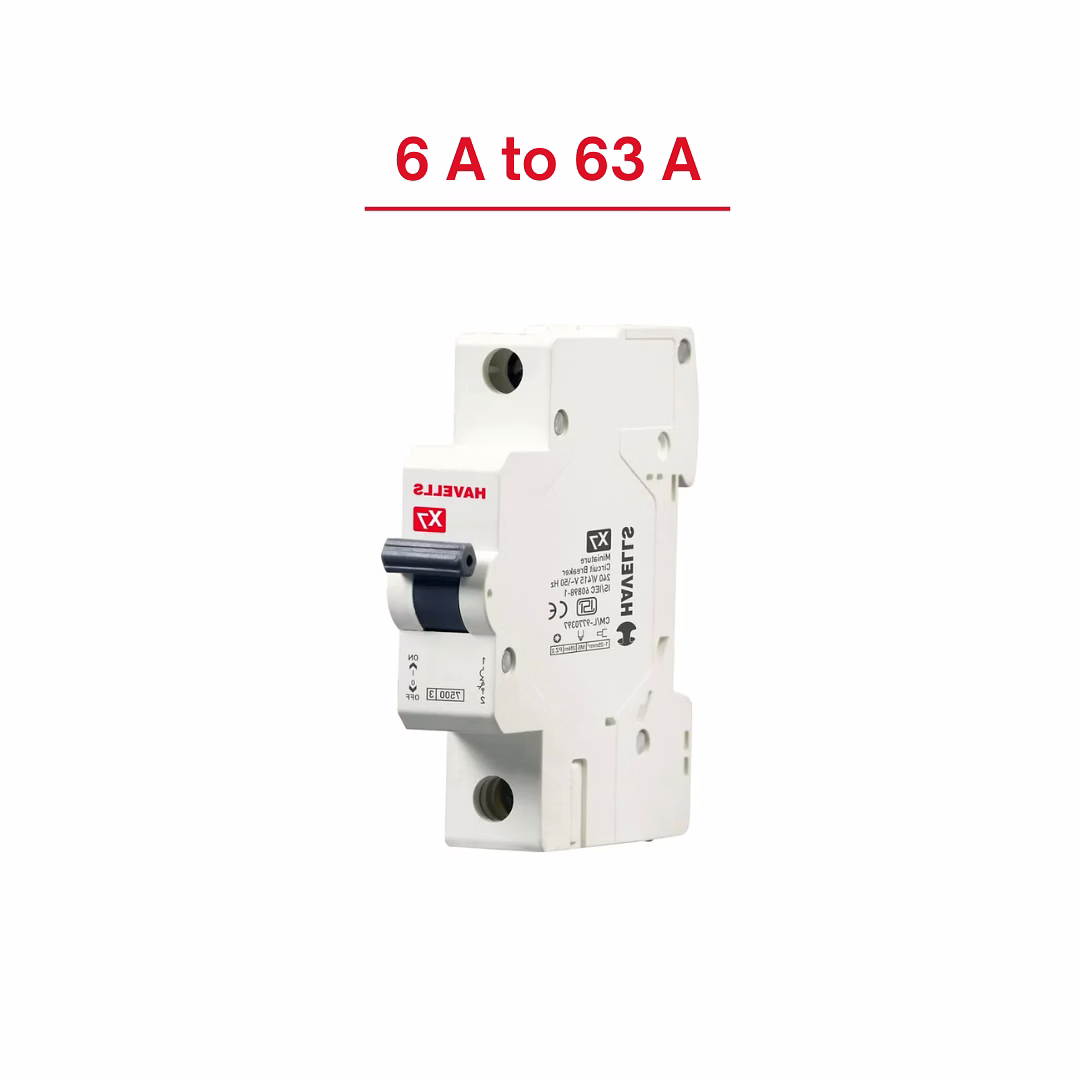

Rating : 6 A to 63 A
Specification : IS/IEC 60898-1 & IEC 60898-1
Note: Product images are for illustrative purposes and may differ from the actual product
