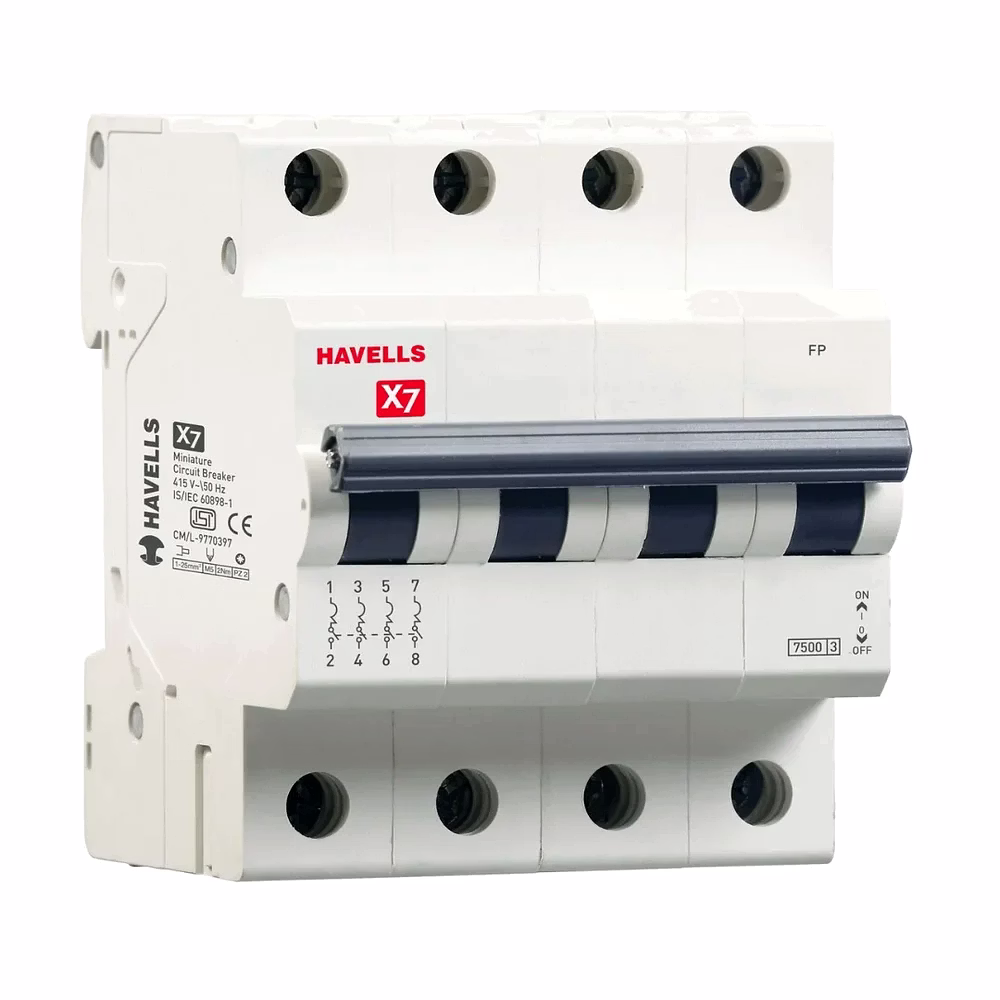

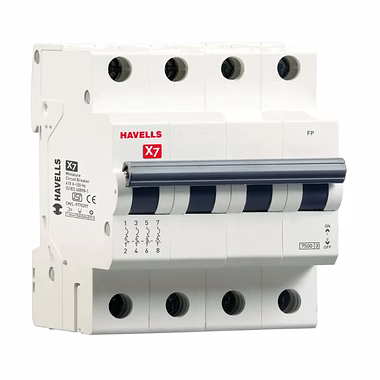

The X7 MCB Four Pole series offers reliable circuit protection for industrial and commercial electrical installations with rated currents ranging from 6A to 63A. Designed to handle multi-pole configurations, the four-pole miniature circuit breaker ensures simultaneous disconnection in all four poles, providing enhanced safety and preventing electrical hazards. Featuring specialized air circulation channels formed between adjacent poles, the X7 MCB improves heat dissipation for optimal performance under continuous load. It supports DIN Rail mounting, allowing for convenient installation and maintenance within distribution boards. The dual connect terminal at the incoming side accommodates both fork type and Pi type busbars, enhancing installation flexibility. Its terminals can securely connect cables up to 25 mm² cross-sectional area, meeting the demands of industrial-grade wiring. Furthermore, the trip free mechanism ensures the breaker trips even when manually held in the ON position, enhancing operational safety. Certified under IS/IEC 60898-1 & IEC 60898-1 standards, this MCB is a robust solution for protecting electrical circuits in demanding environments.
Key Features
| Features | Description |
|---|---|

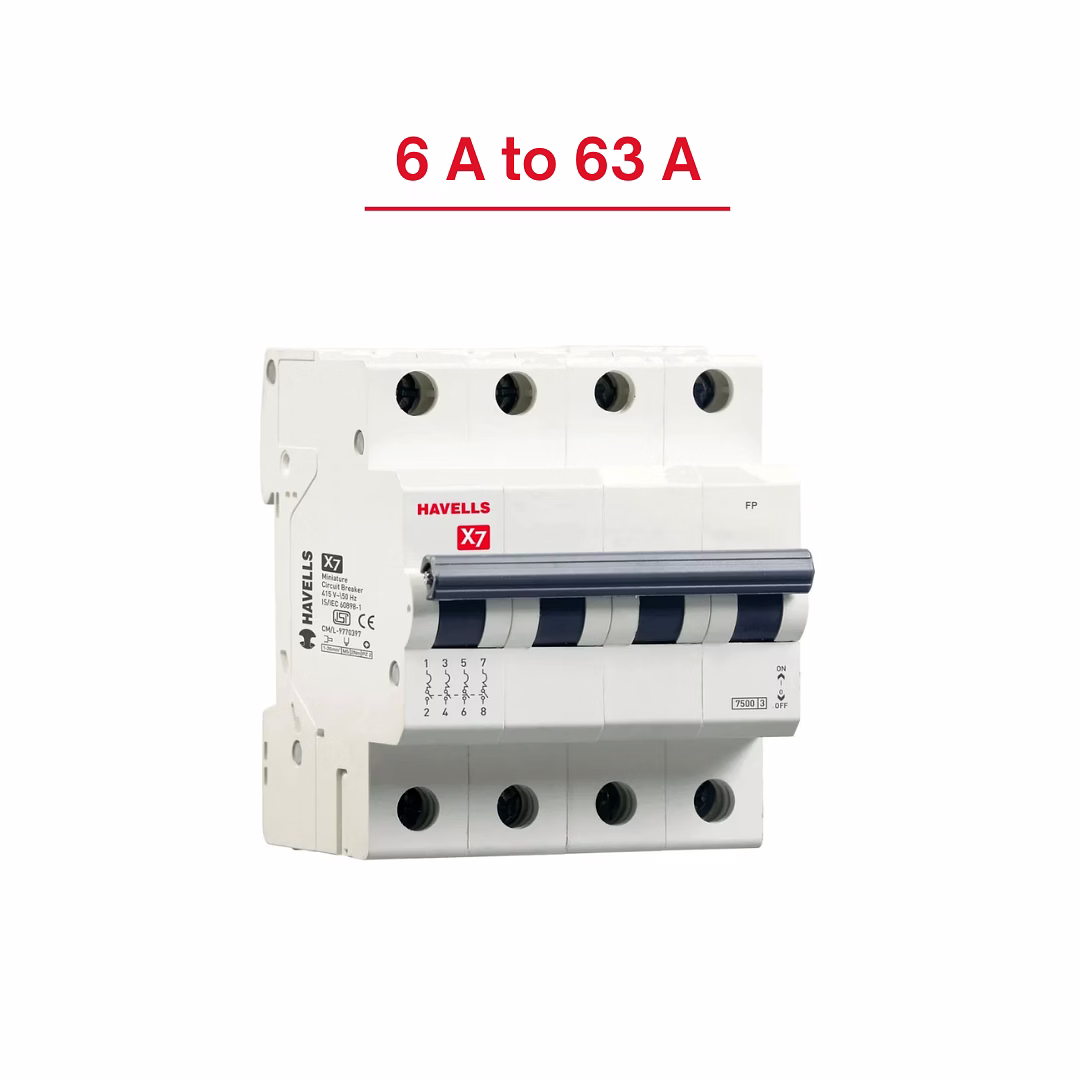

| Rated Current Range | 6A to 63A |
| Poles | Four Pole (4P) |
| Air Circulation Design | Channels between adjacent poles form tunnels for improved heat dissipation |
| Mounting Type | DIN Rail Mountable for easy mounting and demounting inside Distribution Boards |
| Dual Connect Terminal | Supports both fork type and Pi type busbars |
| Terminal Cable Support | Suitable for cables up to 25 mm² cross section area |
| Trip Mechanism | Trip free mechanism ensures MCB trips even when held in ON position |
| Standards Compliance | IS/IEC 60898-1 & IEC 60898-1 |

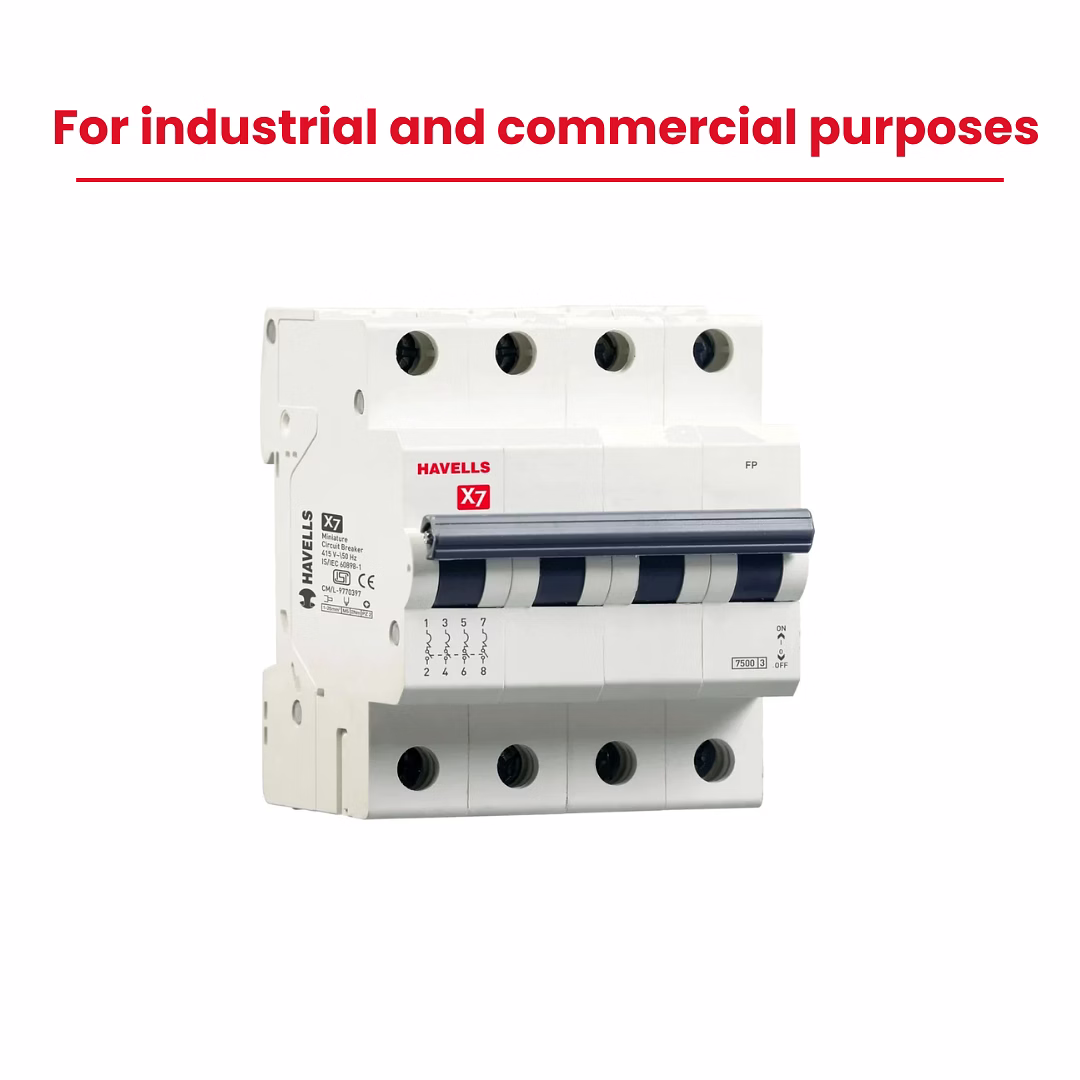

| Application | Ideal for industrial and commercial electrical circuit protection |
| Attributes | Description |
|---|---|
| Rated Current | 6A to 63A |
| Number of Poles | 4 |
| Terminal Connection Type | Dual Connect (Fork Type and Pi Terminal) |
| Maximum Cable Size | 25 mm² |
| Mounting Method | DIN Rail Mounting |
| Trip Mechanism | Trip Free |
| Standards | IS/IEC 60898-1 & IEC 60898-1 |
| Air Circulation Feature | Channels between poles form tunnels improving heat dissipation |
| Usage Environment | Industrial and Commercial Electrical Systems |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Yes, the X7 MCB features dual connect terminals at the incoming side specifically designed to support both fork type and Pi type busbar connections, enabling flexible installation.
The terminals of the X7 MCB can accommodate cables with cross-sectional areas up to 25 mm², suitable for robust industrial wiring requirements.
Yes, this MCB is designed for easy DIN Rail mounting and demounting within distribution boards, facilitating straightforward installation and maintenance.
When two poles are adjacent, the channels between them form tunnels that enhance air circulation, improving heat dissipation and ensuring reliable operation under load.
The X7 four pole MCB includes a trip free mechanism that guarantees the breaker trips in response to faults even if an attempt is made to hold it in the ON position, enhancing safety.
The product complies with IS/IEC 60898-1 and IEC 60898-1 standards, ensuring it meets internationally recognized quality and safety benchmarks.
