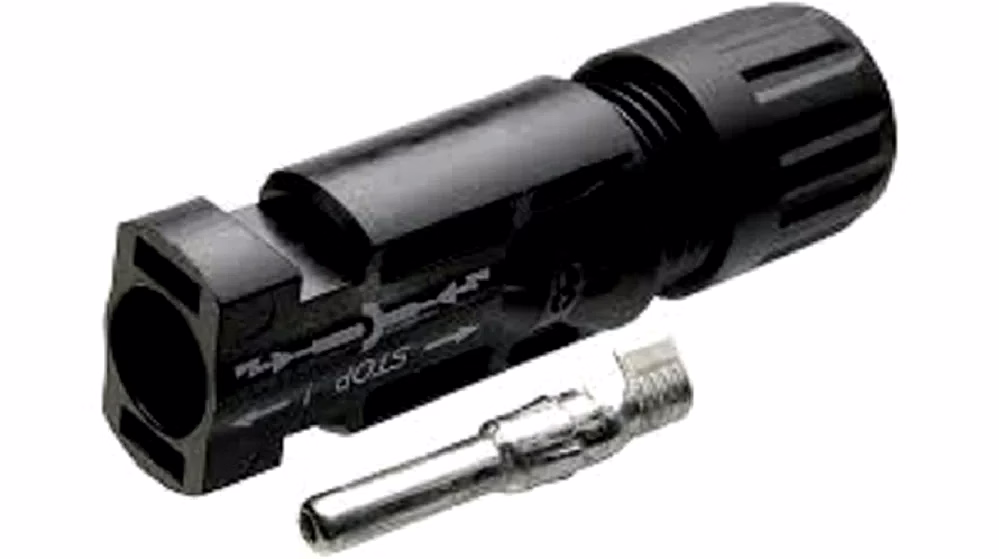

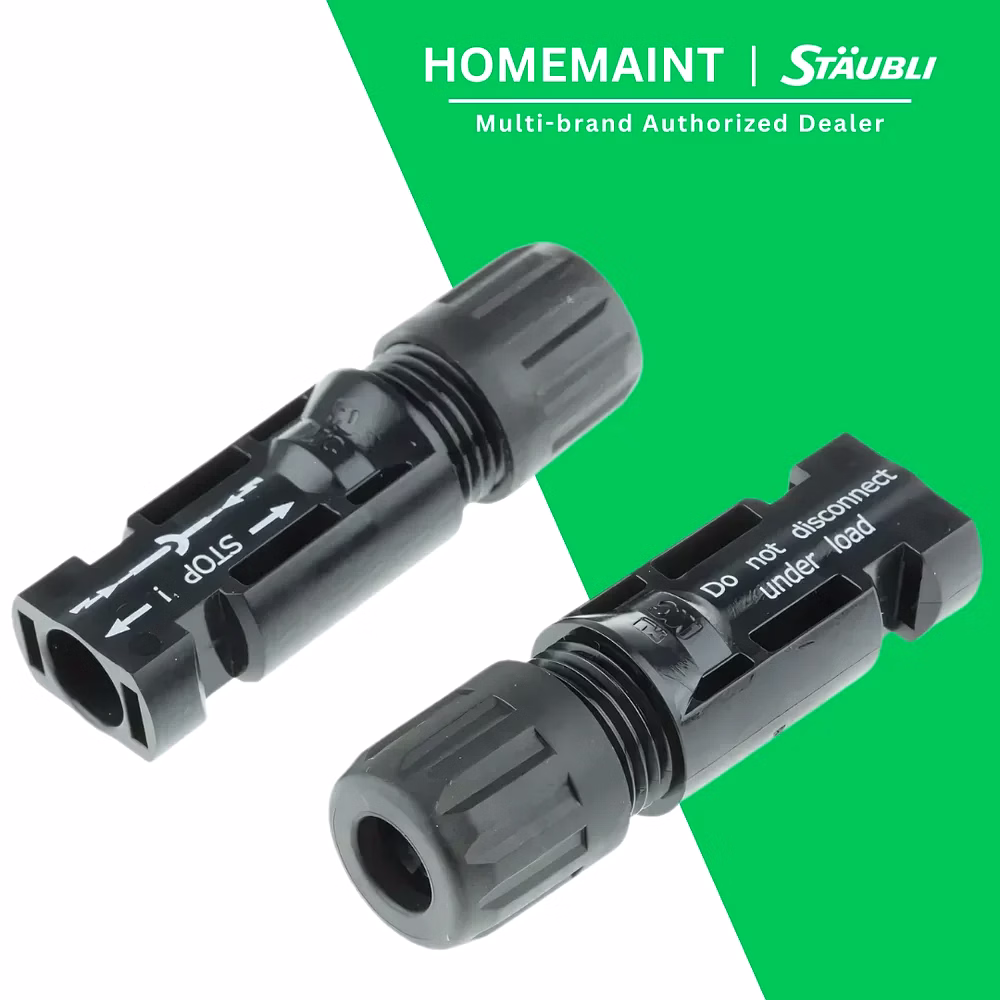

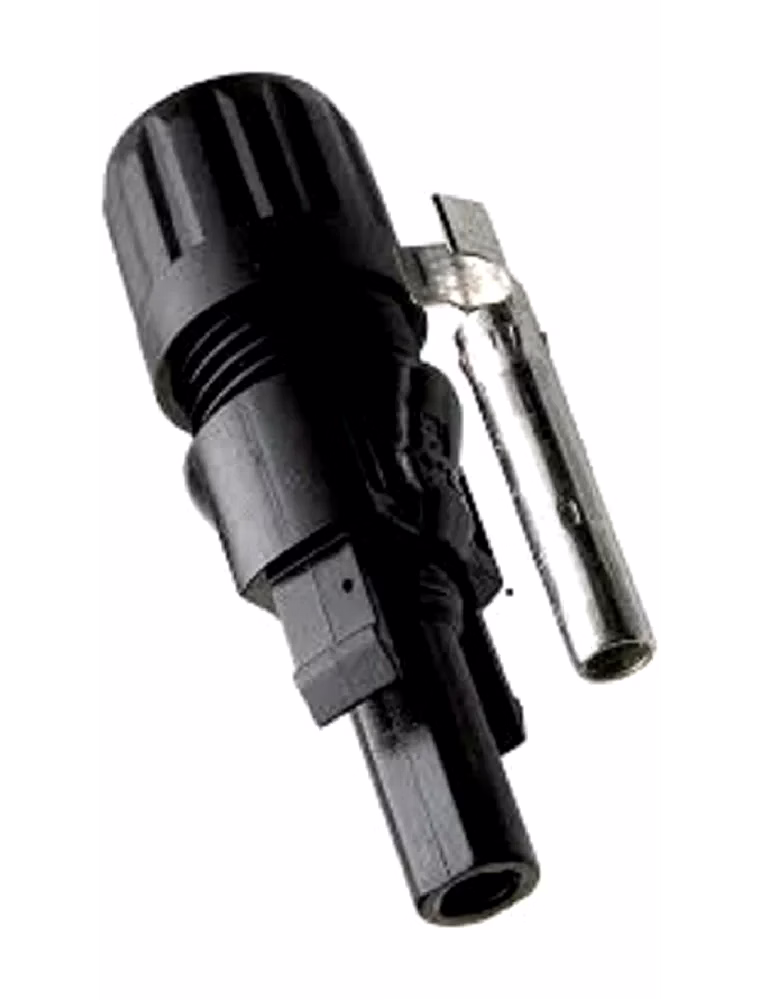

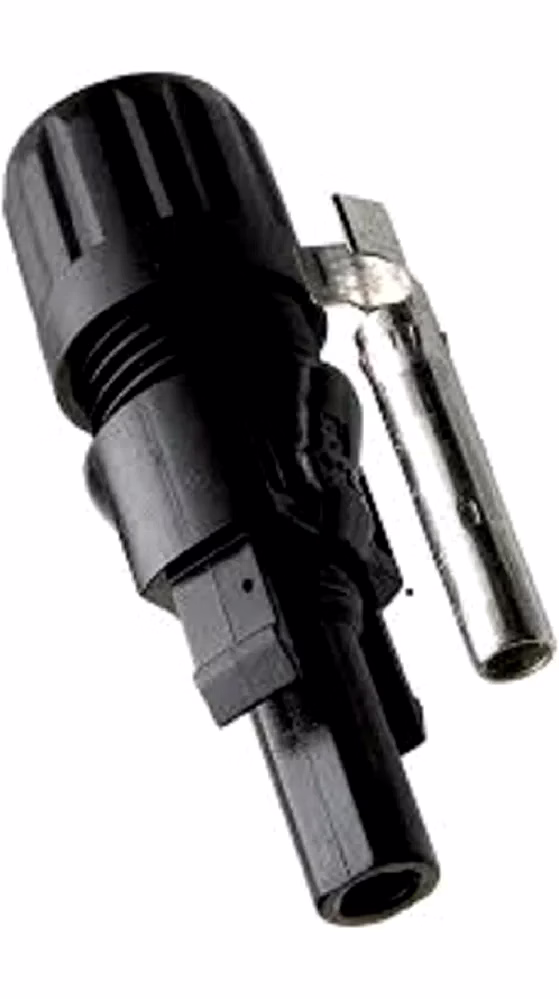

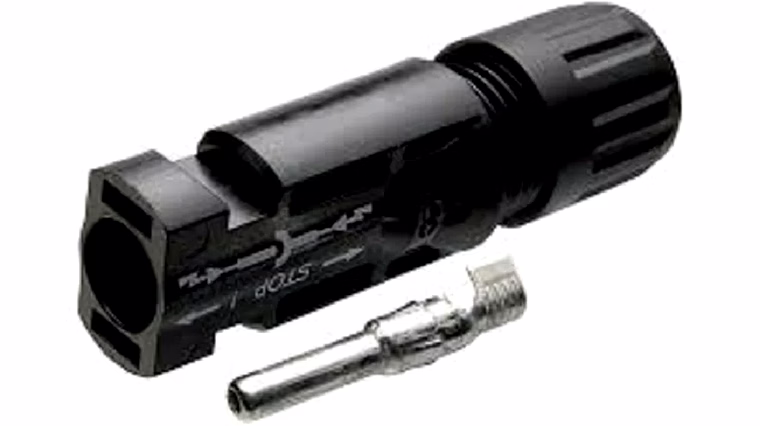

The Staubli Multi Contact MC4 Connector, part number 32.0017P0001-UR, is a high-performance electrical connector specifically designed for solar photovoltaic (PV) systems. It features a snap-in locking mechanism secured by a safety lock clip PV-SSH4, compliant with NEC 2011 standards, ensuring secure and tool-releasable connections. This connector operates at a voltage rating of 1000V DC in accordance with IEC 62852 and up to 1500V DC as per 2Pfg2330 standards, supporting currents up to 17A. Manufactured using Staubli's proven MULTILAM technology, the MC4 connector delivers reliable long-term stability and consistently low power losses over its entire service life. With over 12 years of industry experience and rigorous field testing, this connector assures durability and optimal electrical performance, making it an ideal choice for professional solar installations. Packaged in a protective box, it guarantees safe storage and easy handling during deployment.
Key Features
| Features | Description |
|---|---|
| Brand | Staubli |
| Part Number | 32.0017P0001-UR |
| Voltage Rating | 1000V DC (IEC 62852), 1500V DC (2Pfg2330) |
| Current Rating | 17 A |
| Connection Type | Snap-in locking with safety lock clip PV-SSH4 |
| Compliance | NEC 2011 |
| Technology | MULTILAM technology for high long-term stability |
| Release Mechanism | Tool-releasable safety lock clip |
| Packaging Type | Box |
| Industry Experience | Over 12 years of proven performance in solar connectors |
| Attributes | Description |
|---|---|
| Connector Type | MC4 Connector |
| Rated Voltage | 1000V DC (IEC 62852), 1500V DC (2Pfg2330) |
| Rated Current | 17 A |
| Locking Mechanism | Snap-in locking with safety lock clip PV-SSH4 |
| Material Technology | MULTILAM contact technology |
| Release Method | Requires tool for unlocking safety clip |
| Compliance Standards | NEC 2011 |
| Packaging | Box |
| Application | Solar photovoltaic systems |
| Service Life | High long-term stability with low performance loss |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Yes, the Staubli MC4 connector supports typical solar panel cable sizes used in the industry and meets IEC 62852 requirements for PV connectors.
No, the safety lock clip PV-SSH4 is designed to be released only with a specialized tool to prevent accidental disconnections, complying with NEC 2011.
The connector uses Staubli’s MULTILAM technology which provides high long-term stability and low contact resistance, ensuring minimal performance loss over its service life.
The standard voltage rating is 1000V DC per IEC 62852; however, it is rated up to 1500V DC based on 2Pfg2330 certification for 2-pole configurations, making it suitable for higher voltage applications with proper system design.
The product is securely packaged in a box, ensuring protection from damage during transport and easy handling at installation sites.
Country Of Origin: India
Packaging Type - Box
Brand - Staubli
Part Number - 32.0017P0001-UR
Voltage - 1000V DC(IEC 62852), 1500V DC(2Pfg2330)
Type - Connector
Current - 17 A
