The Wood/Bamboo Chemical Impregnation Treatment Plant by Multi Equipment Machinery Corp is engineered for the deep vacuum pressure impregnation of timber products including wood and bamboo by using water-borne preservatives such as Chromated Copper Arsenate (CCA), Copper Chromium Boron (CCB), Boron, and Sodium Bicarbonate solutions. It is specially designed to serve industries like furniture manufacturing, handicrafts, plywood production, flush door making, bamboo goods, and cooling tower wood treatment. The system guarantees deep and uniform chemical penetration with a fully automated, laborless process, recording vital parameters like solution strength, vacuum and pressure timing, and absorption rates per cubic foot. Its compact and relocatable design allows installation within 3 to 4 hours and features a unique gravity-fed solution circulation system, reducing pump requirements. Equipped with ISO-approved, high quality components such as gun metal valves, stainless steel water level sets, and flange piping, the plant ensures leak-proof and zero-maintenance operation with robust construction details like 25mm thick rubber seals and heavy-duty ball valves. Capacities range from 50 cubic feet to 650 cubic feet with customization available, making it ideal for businesses requiring reliable chemical treatment of timber and bamboo for durable and preserved end products.
Key Features
| Features | Description |
|---|---|
| Automation | Fully automated, laborless operation with recorded treatment cycle data (solution strength, vacuum/pressure timing, absorption). |
| Treatment Method | High-pressure vacuum impregnation for deep and uniform chemical penetration. |

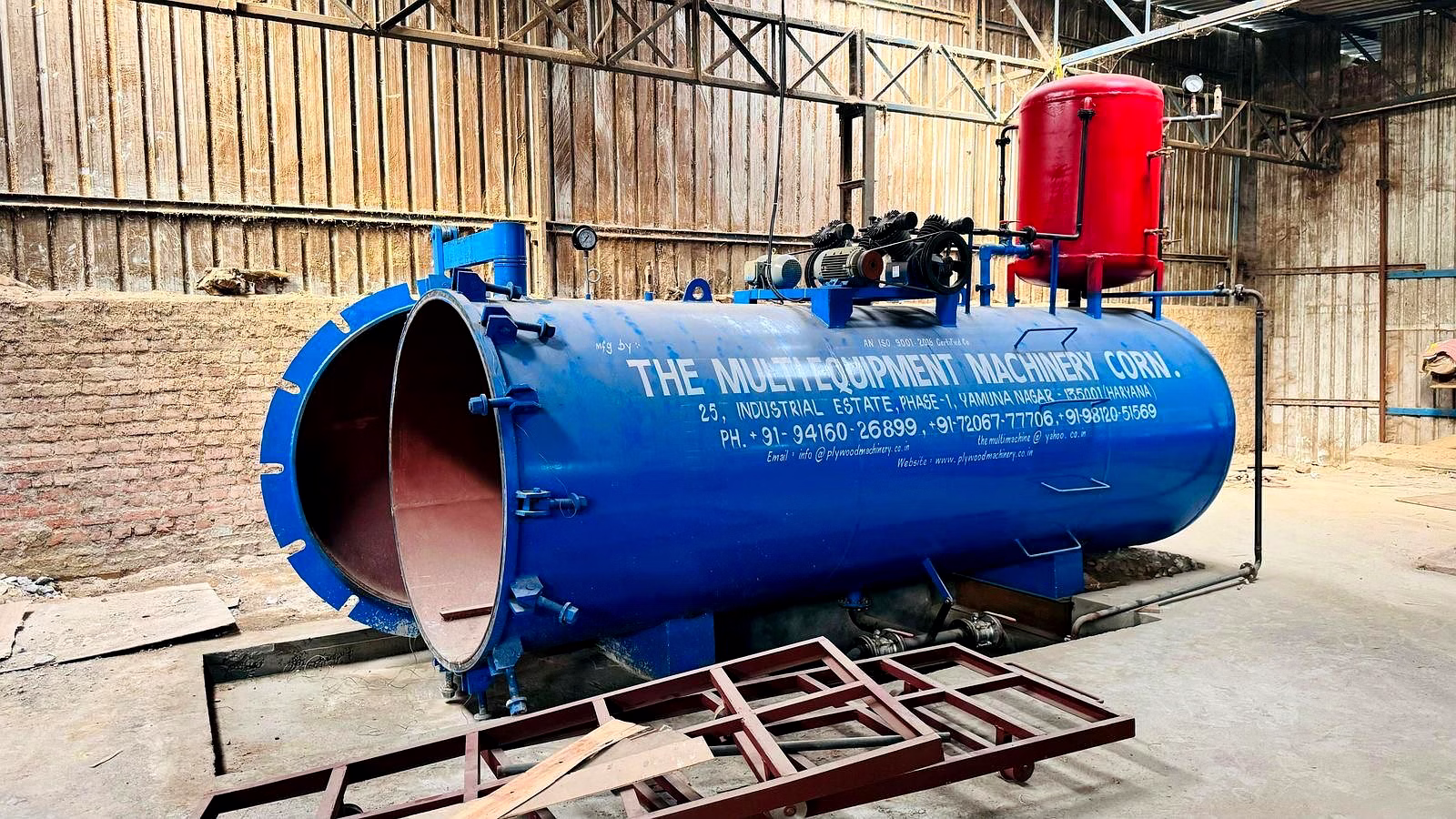

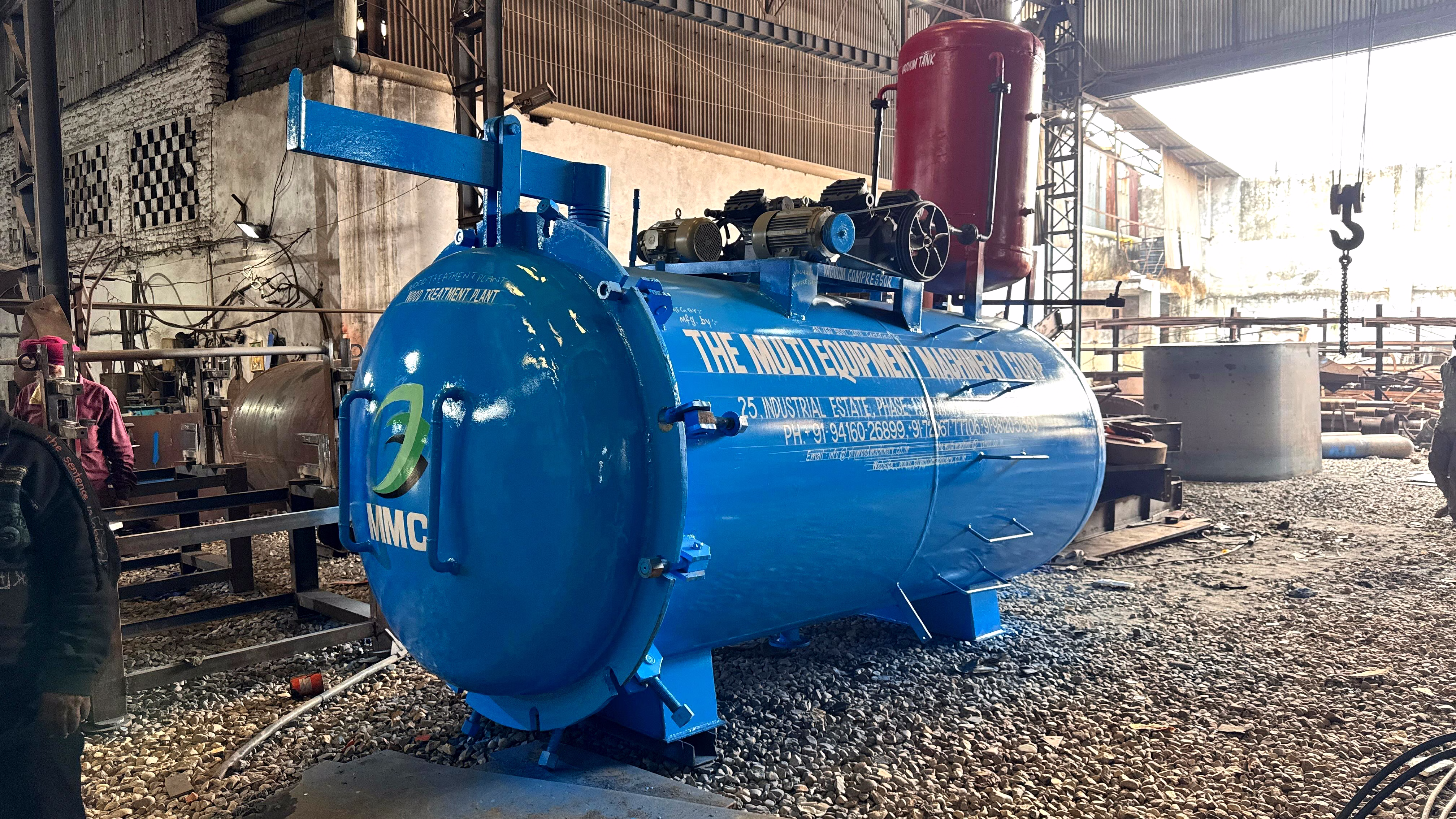

| Design | Compact horizontal pressure vessel mounted above a concrete storage tank with gravity-fed solution flow. |
| Installation | Quick installation in 3–4 hours with relocatable setup. |
| Operation Ease | Top-mounted valves and motors for convenient supervision and operation. |
| Leak Protection | Bolt locking system combined with 25mm thick rubber sealing for leak-proof operation. |
| Component Quality | ISO-approved components including gun metal valves, stainless steel water level sets, and flange-type piping. |
| Maintenance | Zero maintenance system supported by high-quality parts including extra heavy-duty ball valves and compressor replacement warranty. |
| Capacity Range | Standard sizes from 50 C.F.T to 650 C.F.T, custom sizes available on request. |
| Attributes | Description |
|---|---|
| Treatment Process | Vacuum pressure impregnation using water-borne preservatives (CCA, CCB, Boron, Sodium Bicarbonate). |
| Preservative Compatibility | Supports CCA, CCB, Boron compounds, and Sodium Bicarbonate treatment chemicals. |
| Vessel Type | Horizontal pressure vessel above concrete storage tank. |
| Sealing | 25mm thick rubber sealing with bolt locking mechanism. |
| Material Quality | Gun metal valves, stainless steel water level sensors, flange piping. |
| Automation Level | Fully automated control with data logging for all treatment parameters. |
| Installation Time | 3 to 4 hours for full setup. |
| Maintenance Requirements | Zero scheduled maintenance; warranty on compressors and heavy-duty valves. |
| Standard Capacity Options | 50 to 650 cubic feet; custom sizing available. |
| Application Industries | Furniture, handicrafts, plywood, flush doors, bamboo products, cooling towers. |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The plant is designed for sequential treatment cycles using different water-borne preservatives such as CCA, CCB, Boron, and Sodium Bicarbonate but not for simultaneous multi-chemical processing.
Uniform penetration is ensured by the high-pressure vacuum system that removes air from the timber pores before applying pressure to impregnate preservatives deeply and evenly.
The plant features a compact and relocatable design allowing it to be dismantled and reinstalled quickly at another site with minimal downtime.
Yes, the fully automated system records all treatment cycle parameters including solution strength, vacuum and pressure timing, and absorption per cubic foot for comprehensive monitoring.
The high-quality components and design lead to zero scheduled maintenance, with warranty coverage on compressors and heavy-duty valves minimizing downtime and cost.
Brand: mmc
Country Of Origin: India
The Wood/Bamboo Chemical Impregnation Treatment Plant by Multi Equipment Machinery Corp is designed for vacuum pressure impregnation of timber using water-borne preservatives such as CCA, CCB, Boron, and Sodium Bicarbonate. This plant is commonly used across multiple industries including furniture, handicrafts, plywood, flush doors, bamboo products, and cooling towers.
Key Features:
• Fully automated and laborless operation with recorded treatment cycles (solution strength, vacuum/pressure timing, absorption per CFT).
• High-pressure vacuum treatment ensures deep and uniform chemical penetration.
• Compact design with a horizontal pressure vessel above a concrete storage tank—uses gravity instead of pumps for solution flow.
• Quick installation in 3–4 hours; relocatable setup.
• Top-mounted valves and motors for ease of supervision and operation.
• Bolt locking system and 25mm thick rubber sealing for leak-proof operation.
• Components are of ISO-approved brands, with gun metal valves, stainless steel water level sets, and flange-type piping.
• Zero maintenance due to high-quality parts including extra heavy-duty ball valves and replacement-warranty compressors.
Available Capacities:
Standard sizes range from 50 C.F.T to 650 C.F.T, with custom sizes available on request.
