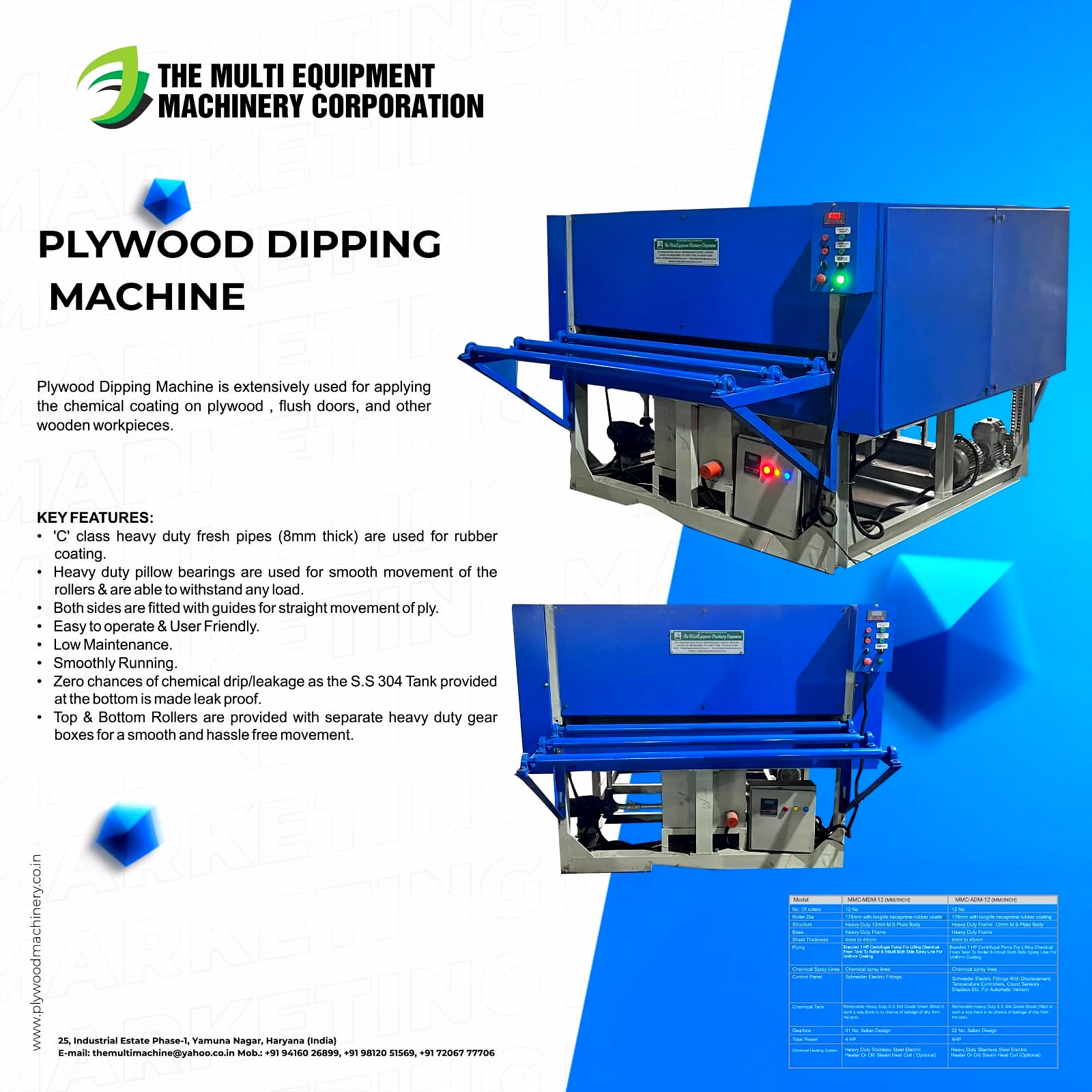

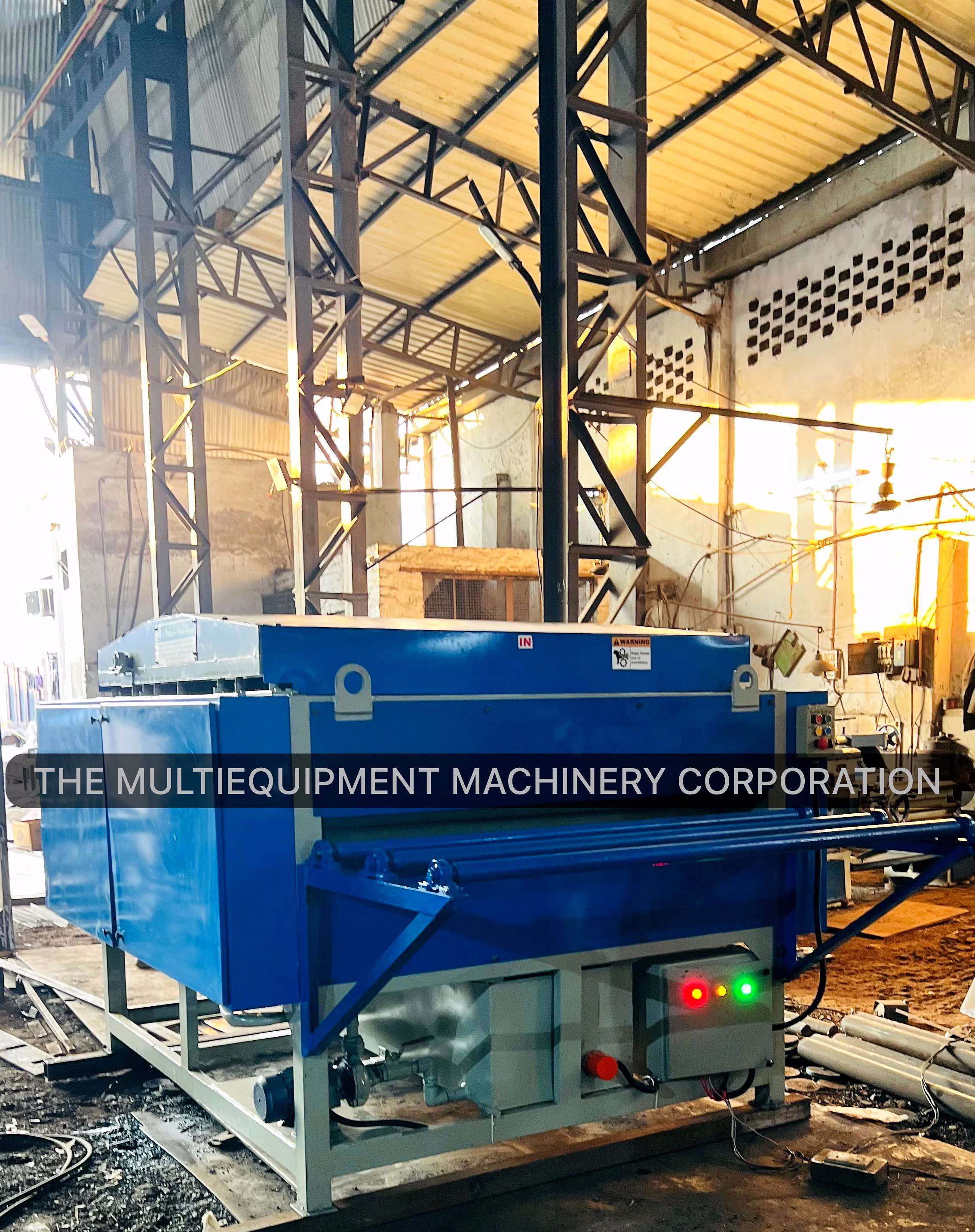

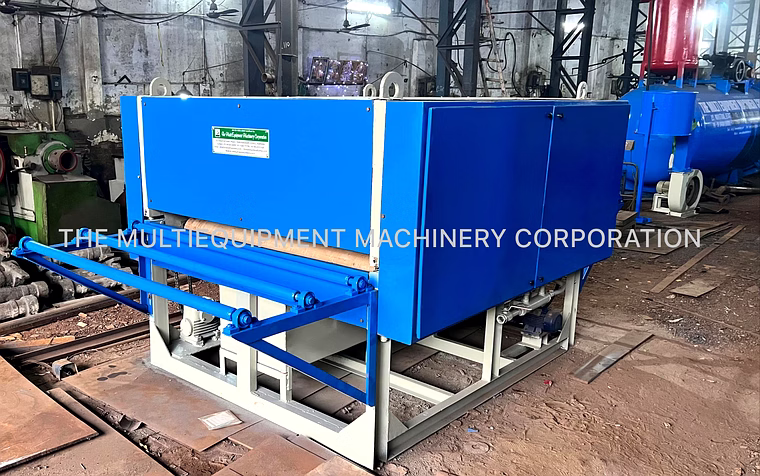

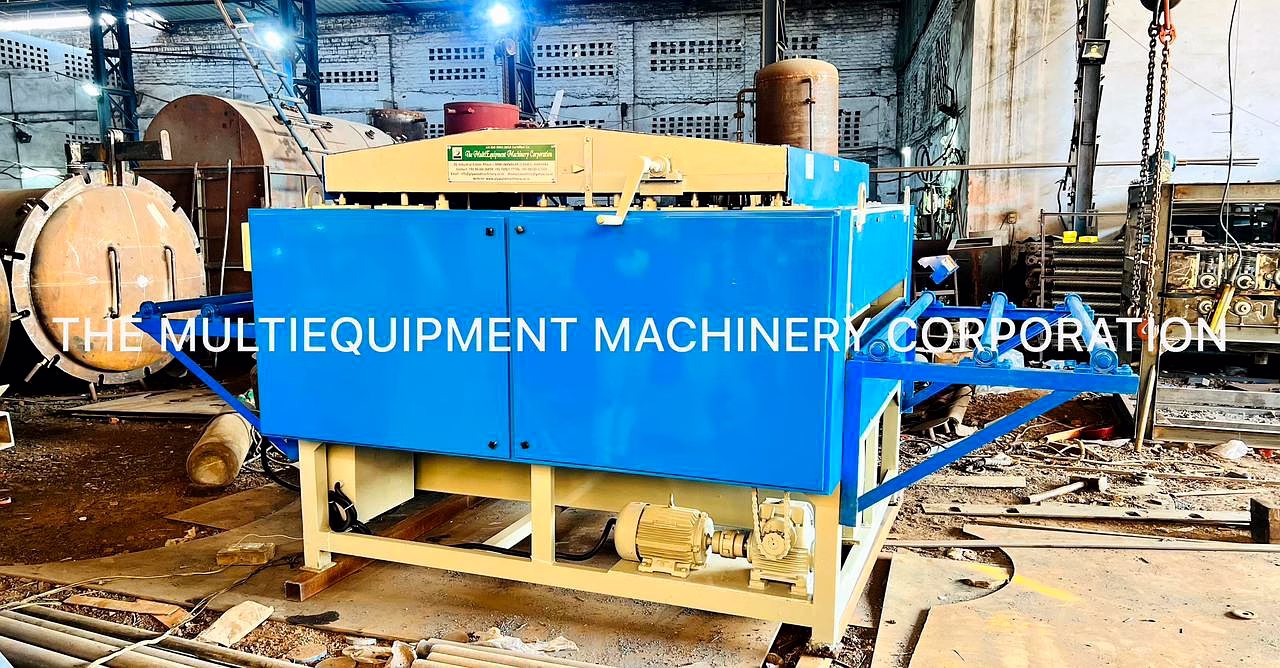

The Plywood Dipping Machine is engineered specifically for the high-efficiency chemical coating of plywood sheets, flush doors, and various wood panels. Featuring a leak-proof SS 304-grade chemical tank with a removable heavy-duty liner, this machine guarantees consistent and uniform application of rubber and other coating chemicals. Equipped with robust 'C' class 8mm thick fresh pipes and Ø178mm Neoprene rubber-coated rollers, it ensures precision and durability during the coating process. Powered by a branded 1 HP centrifugal pump supplying dual-side spray lines, the machine effectively coats surfaces while preventing leakage. The design incorporates separate heavy-duty gearboxes for both top and bottom rollers, enhancing performance and reliability. Operators benefit from an advanced Schneider electric control panel with integrated temperature and displacement sensors available with the automatic version, allowing precise control and optimization of coating parameters. The user-friendly, low maintenance construction makes this machine ideal for plywood manufacturers aiming to increase productivity and quality. Available in manual and automatic models with motor power options of 4 HP and 6 HP respectively, this Plywood Dipping Machine stands as an essential equipment in modern plywood processing units.
Key Features
| Features | Description |
|---|---|
| Chemical Tank Material | SS 304-grade, leak-proof with removable heavy-duty liner |
| Pipe Thickness and Grade | 8mm thick, heavy-duty ‘C’ class fresh pipes |
| Roller Size and Coating | Ø178mm rollers coated with Neoprene rubber |
| Pump | Branded 1 HP centrifugal pump with dual-side spray lines |
| Gearboxes | Separate heavy-duty gearboxes for top and bottom rollers |
| Control Panel | Schneider electric with temperature and displacement sensors (automatic version) |
| Models Available | Manual and Automatic |
| Motor Power Options | 4 HP (manual), 6 HP (automatic) |
| Maintenance | Low maintenance, user-friendly design |
| Application | Uniform chemical coating on plywood, flush doors, wood panels |
| Attributes | Description |
|---|---|
| Tank Material | Stainless Steel 304 (SS 304) |
| Tank Features | Leak-proof, removable heavy-duty liner |
| Pipe Specifications | 8 mm thick, ‘C’ class fresh pipes |
| Roller Diameter | 178 mm |
| Roller Coating | Neoprene rubber |
| Pump Power | 1 HP centrifugal pump |
| Spray Line | Dual-side spray |
| Gearbox Configuration | Separate gearboxes for top and bottom rollers |
| Control System | Schneider electric panel with temp & displacement sensors (auto) |
| Machine Models | Manual and Automatic |
| Motor Power | 4 HP for manual, 6 HP for automatic |
| Application | Chemical coating on plywood, flush doors, wood panels |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
This machine is specifically designed for coating plywood sheets, flush doors, and wood panels with chemical coatings such as rubber compounds.
Yes, the automatic model features a Schneider electric control panel equipped with temperature and displacement sensors to ensure precise coating thickness and uniformity.
The SS 304-grade chemical tank is leak-proof and comes with a removable heavy-duty liner, enabling easy cleaning and maintenance to ensure longevity and chemical resistance.
The Neoprene rubber coating on Ø178mm rollers ensures smooth and precise application of chemical coatings while providing durability and resistance to wear during prolonged use.
Yes, the manual model typically comes with a 4 HP motor, while the automatic version is equipped with a 6 HP motor for enhanced performance.
Yes, the leak-proof SS 304-grade chemical tank design along with heavy-duty pipes helps prevent any leakage during the dipping and coating process.
Brand: mmc
Country Of Origin: India
Designed for efficient chemical coating on plywood, flush doors, and wood panels, this machine ensures uniform application, leak-proof operation, and long-term durability. Built with industrial-grade components and a sturdy SS 304 tank, it meets the high standards of modern plywood processing.
Quality Features:
• Leak-proof SS 304-grade chemical tank with removable heavy-duty liner
• Heavy-duty ‘C’ class fresh pipes (8mm thick) used for long-lasting rubber coating
• Ø178mm rollers with Neosprene rubber coating for smooth, precise application
• Branded 1 HP centrifugal pump with inbuilt dual-side spray lines
• Separate heavy-duty gearboxes for top and bottom rollers
• Schneider electric control panel with temperature, displacement sensors (auto version)
• Low maintenance, user-friendly design
• Available in manual and automatic models (4 HP / 6 HP)
