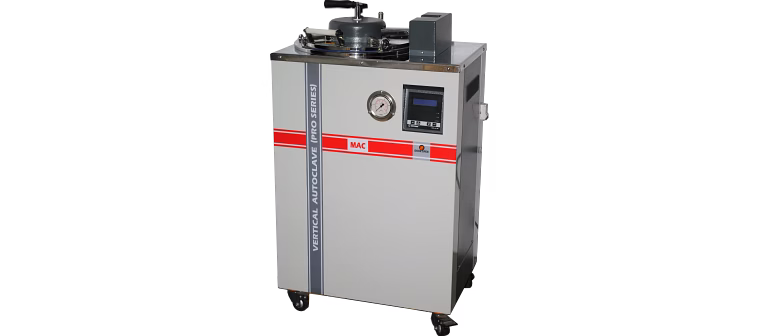

The Vertical Autoclave Fully Automatic (Single Lever) Model AVF-28 (PROFAD-MS) is designed for efficient and safe sterilization suitable for laboratory, medical, and industrial applications. This autoclave features a robust Stainless Steel SS-304 inner chamber and top lid, ensuring durability and corrosion resistance, while the outer body is crafted from Mild Steel for structural strength. Its chamber, designed strictly as per ASME guidelines, guarantees compliance with industry safety and quality standards. Equipped with a leakproof silicon gasket and an overpressure safety mechanism, this autoclave maintains a secure and reliable operational environment. The device operates up to 122°C at 20 psi, making it ideal for sterilization needs. It incorporates a microprocessor-based fully automatic fuzzy logic control system with an alphanumeric digital backlit LCD display, facilitating user-friendly and precise control. The class “A” platinum (pt-100) sensor offers accurate temperature monitoring, while safety features such as low water level cut-off, sensor open alarm, and end-of-cycle buzzer enhance operational safety and convenience. The heater load is 2.0 KW, optimized for efficient heating. With inner dimensions of 250x450mm and a gross capacity of 28 liters (usable 22 liters), this autoclave balances capacity with compactness, suitable for various professional sterilization environments.
Key Features
| Features | Description |
|---|---|
| Model | AVF-28 (PROFAD-MS) |
| Inner Chamber Material | Stainless Steel SS-304 |
| Outer Body Material | Mild Steel |
| Inner Dimensions (Dia x Height) | 250 x 450 mm |
| Gross Capacity / Usable Capacity | 28 liters / 22 liters |
| Heater Load | 2.0 KW |
| Maximum Temperature and Pressure | Up to 122°C at 20 psi |
| Safety Features | Leakproof silicon gasket, Overpressure safety valve, Low water level cut-off |
| Control System | Microprocessor-based Fully Automatic Fuzzy Logic Control with Alphanumeric Digital Backlit LCD |
| Temperature Sensor | Class “A” platinum (pt-100) sensor for precise monitoring |
| User Interface | Time and temperature programmable by user |
| Alarms and Alerts | Sensor open alarm, End of cycle buzzer with auto reset |
| Attributes | Description |
|---|---|
| Model Number | AVF-28 (PROFAD-MS) |
| Inner Chamber Dimensions | 250 mm diameter x 450 mm height |
| Capacity | Gross 28 liters, Usable 22 liters |
| Heater Power | 2.0 Kilowatts |
| Pressure and Temperature Rating | Up to 20 psi and 122°C |
| Inner Chamber Material | SS-304 Stainless Steel |
| Outer Body Material | Mild Steel |
| Control System Type | Microprocessor-based Fully Automatic Fuzzy Logic |
| Display Type | Alphanumeric Digital Backlit LCD |
| Temperature Sensor | Class “A” Platinum PT-100 Sensor |
| Safety Mechanisms | Leakproof silicon gasket, Overpressure valve, Low water cut-off |
| Automation | Single lever fully automatic operation |
| Alerts | Sensor open alarm and end-of-cycle buzzer with auto reset |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The AVF-28 autoclave includes a leakproof silicon gasket to prevent steam escape, an overpressure safety valve to avoid excessive pressure build-up, and a low water level cut-off system to protect heating elements from damage.
The fuzzy logic control provides fully automatic operation with precise time and temperature programming, ensuring consistent sterilization cycles while adapting to varying load conditions, controlled through an alphanumeric digital backlit LCD.
The inner chamber and top lid are made from stainless steel SS-304 for excellent corrosion resistance and durability under high pressure and temperature. The outer body is constructed from mild steel for sturdy structural support.
Yes, the microprocessor-based control system allows users to program both temperature and sterilization duration according to specific requirements, enhancing versatility and efficiency.
The AVF-28 features an inner chamber diameter of 250 mm and height of 450 mm, offering a gross capacity of 28 liters with a usable volume of approximately 22 liters.
Brand: mac
Country Of Origin: India
Backed with 56 years of service to science and our expertise in steam pressure sterilization autoclaves. Our Top Loading PRO Series Autoclaves are the ideal companion for the modern microbiologists and institutes, pharma companies, hospitals etc.
Leakproof silicon gasket
Over pressure safety
Safe and sturdy chamber manufactured from SS-304
Chamber is designed as per ASME guidelines.
Low water level cut off for safety of heating elements.
Electrical on/off safety switch
Easy draining of chamber
Easy portability and placement and movement
