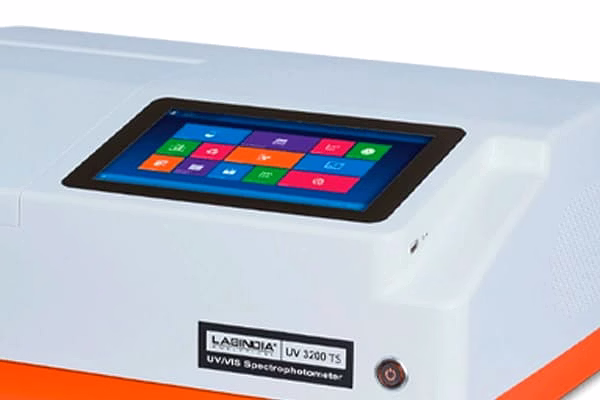

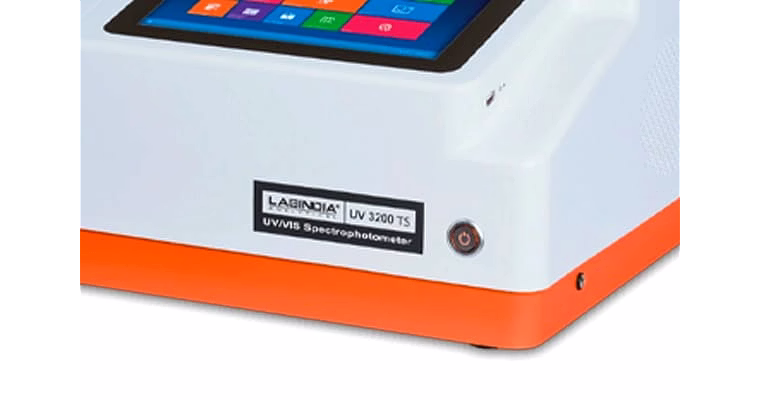

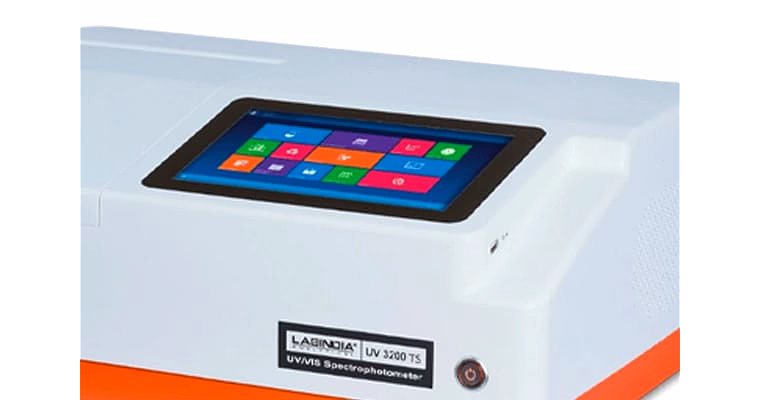

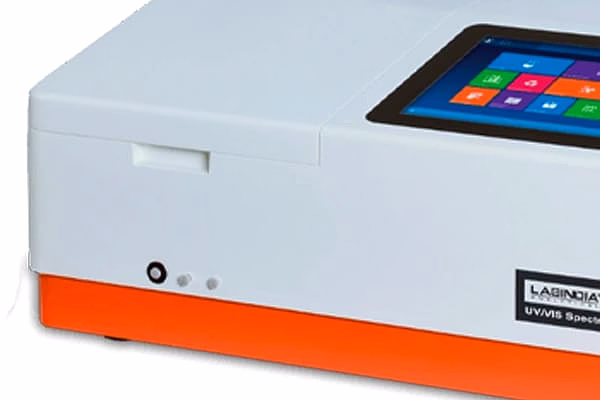

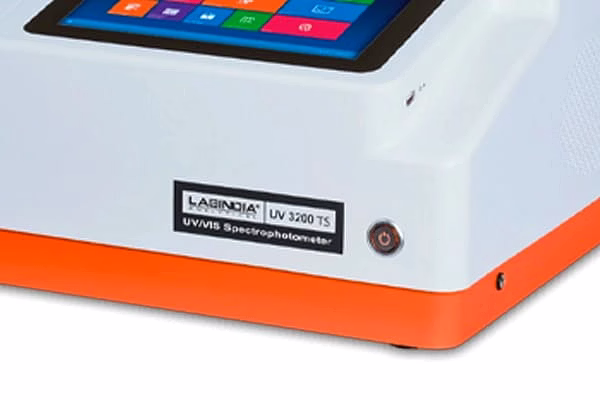

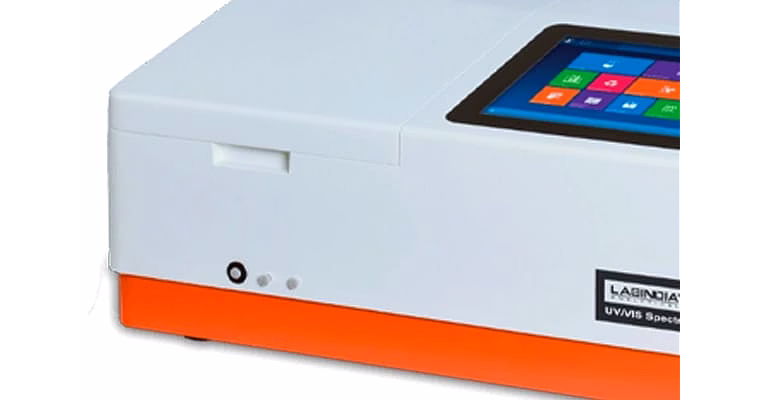

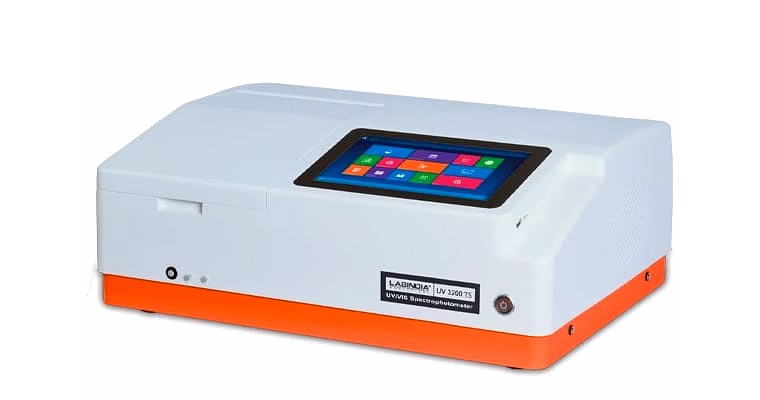

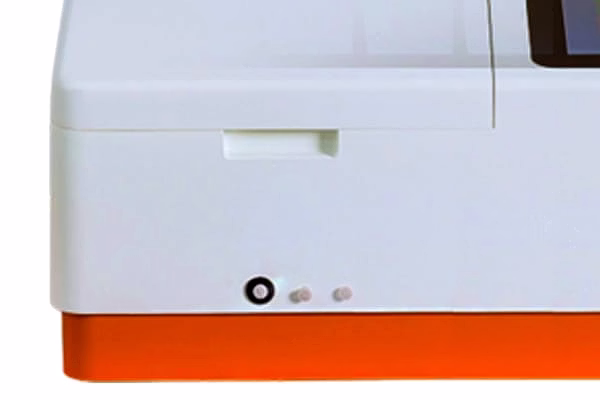

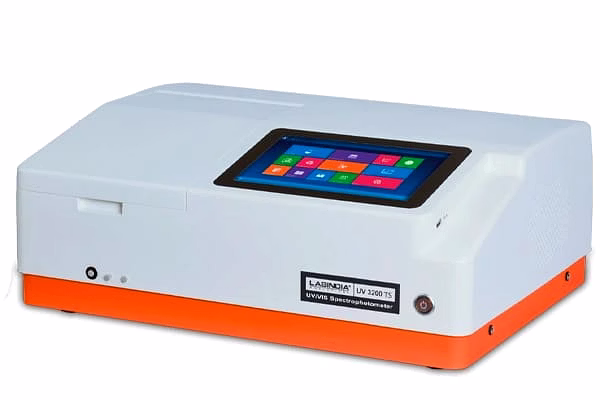

The UV3200 Touch Screen Double Beam UV-Vis Spectrophotometer is a cutting-edge analytical instrument designed for highly accurate and reliable spectrophotometric measurements. Featuring a double beam optical system combined with a Czerny-Turner monochromator and 1200 l/mm grating, it ensures minimal stray light and superior measurement precision. The instrument boasts a robust all-aluminum die-cast base, enhancing durability and stability for laboratory use. Its 10.1 inch TFT high-resolution IPS color LCD touch screen with capacitive 10-point touch control allows for intuitive operation and excellent visualization of results in vibrant 16 million colors across a full 178-degree viewing angle. Equipped with a built-in computer with 2GB memory and 64GB SSD storage, the spectrophotometer offers seamless data management and firmware upgrade capability via USB. Optimal for a wide range of sample cells from 5mm to 100mm, the instrument also supports direct printing and PC connectivity for versatile usage. Advanced software conforms to 21 CFR regulations for pharmaceutical compliance and integrates GLP/GMP functionalities for performance tracking and data management. This model is ideal for pharmaceutical laboratories, research institutions, and quality control environments requiring precision UV-Visible spectral analysis over a broad wavelength range of 190 to 1100 nm with excellent wavelength accuracy (±0.3 nm) and scanning speeds up to 3000 nm/min.
Key Features
| Features | Description |
|---|---|
| Optical System | Double beam with Czerny-Turner Monochromator and 1200 l/mm grating |
| Light Source | Pre-aligned Tungsten and Deuterium Lamp |
| Wavelength Range | 190 to 1100 nm |
| Wavelength Accuracy | ± 0.3 nm |
| Wavelength Repeatability | 0.1 nm |
| Spectral Bandwidth Options | 0.5, 1, 2, 4 nm |
| Display | 10.1 inch TFT IPS color LCD with capacitive 10-point touch control, 178° viewing angle, 16 million colors |
| Memory and Storage | 2GB RAM and 64GB SSD built-in computer |
| Photometric Range | -4 to 4.0 Absorbance |
| Noise Level | 0.000016 Abs RMS @500 nm |
| Software Compliance | 21 CFR compliance with GLP/GMP functions |
| Connectivity | USB for PC control, direct printer connection, USB firmware upgrade |
| Sample Accommodation | Supports 5 mm to 100 mm sample cell holders |
| Calibration | Automatic startup self-calibration and zeroing |
| Attributes | Description |
|---|---|
| Scanning Speed | 1 to 3000 nm/min, variable |
| Photometric Accuracy | 0.5 Absorbance Units ± 0.002 Abs |
| Wavelength Resolution | 0.1 nm |
| Drift | Not specified |
| Base Material | All aluminum die-casting for enhanced durability |
| Operating Software | Built-in system with GLP/GMP tracking and 21 CFR compliance |
| Touch Screen Type | Capacitive 10-point multi-touch |
| Display Resolution | High resolution TFT LCD |
| Data Storage Capacity | 64 GB SSD |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The double beam optical system with a Czerny-Turner monochromator reduces stray light, enhances measurement accuracy, and allows simultaneous measurement of the sample and reference, improving data reliability.
The built-in computer with 2GB RAM and 64GB SSD facilitates fast data processing, onboard data storage, firmware upgrades via USB, and compliance with 21 CFR regulations for pharmaceutical applications.
Yes, it supports sample cell holders ranging from 5 mm to 100 mm, providing flexibility for various sample types and volumes.
The instrument’s software complies with 21 CFR requirements and includes GLP/GMP functions that effectively trace and manage instrument performance and measurement data, critical for regulated laboratory environments.
The 10.1 inch capacitive ten-point touch screen offers intuitive, simple operation with wide viewing angles and high-resolution display, enhancing usability and interaction during measurements.
Country Of Origin: India
Optical system: Double beam with Czerny-Turner Monochromator
Light Source: Tungsten and Deuterium Lamp, pre-aligned
Spectral Bandwidth: 0.5, 1, 2 4nm
Wavelength range: 190 to 1100nm
Wavelength Accuracy: ± 0.3 nm Full range 190 -1100nm
Wavelength Repeatability: 0.1nm
Wavelength Resolution: 0.1nm
Scanning speed: 1 to 3000 nm/min, Variable
Photometric Range: -4 to 4.0A
Photometric Accuracy 0.5A ± 0.002A
Noise: 0.000016 Abs RMS @500 nm
Drift: <0.0002Abs/H @ 500 nm
Baseline Flatness ± 0.001 Abs
Stray light: 0.02 @ 220nm KCl 198nm=1%T
Optional Accessory: Specular Reflection Accessory, Integrating Sphere 60mm/ 100mm Peltier solid sample holder, long path cell holder etc.
Photometric mode: Photometry, Quantitation, Spectrum, Kinetics
Detector: Dual Silicon photodiode
Wavelength Slew rate: 6500nm/min
Sample Cell Holder: Pair of 10mm cell holder, upgradable to automatic 8 cell changer
Display: 10.1 inch IPS colour LCD touch screen, capacitive 10-point touch control, 178degree full view, 16 million colours, high resolution (1280 X 800)
Software: Complies with requirement of 21 CFR Part II, with GLP/GMP functions, file management functions.
Storage 64GB (built-in), unlimited expansion (USB storage, SD card, network storage device)
Interface: USB-A (extensible; Connect USB printers, storages, mice, keyboards and other peripherals) X 3. USB B (PC)x1, RJ 45 (Ethernet) VGAx1, HDMIx1, Bluetooth, WiFi
Dimension: (W x D x H): 600 x 450 x 200 mm
Weight: 18 Kg
