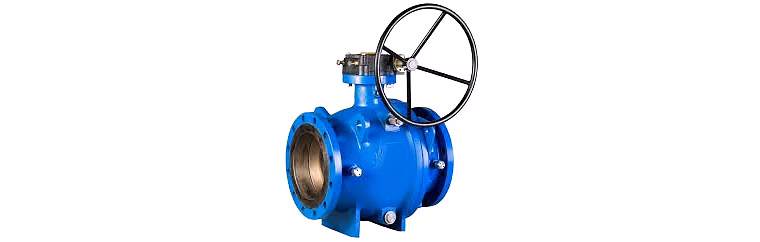

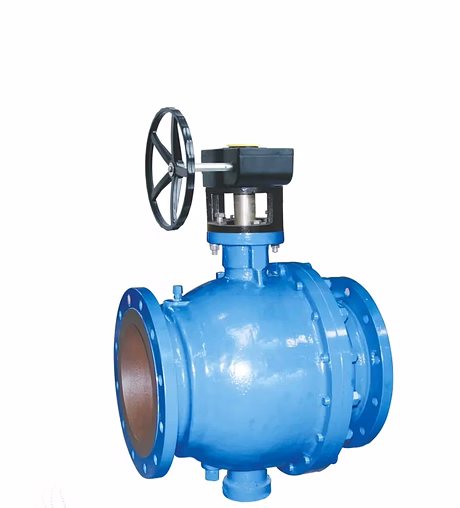

The Trunnion Mounted Ball Valve stands out as a premier choice for industrial applications, providing unparalleled performance and durability, tailored for a wide range of conditions. Engineered for versatility, this valve is available in an extensive size range from ¼” to 48”, accommodating various installation needs. With multiple material options including Stainless Steel, Carbon Steel, Duplex Steel, and more, it meets the rigorous demands of different industries. The valve offers an impressive pressure rating from Class 150 to Class 2500 and operates efficiently within a broad temperature range of -196°C to 450°C, making it suitable for both cryogenic and high-temperature applications. Additionally, diverse end connection choices ensure compatibility with existing piping systems. Compliance with international manufacturing standards such as API 6D and ASME B16.34, along with enhanced safety features like fire-safe design and anti-static properties, guarantee reliability. Ideal for media compatibility ranging from water, oil, chemicals, to acidic and alkaline solutions, our Trunnion Mounted Ball Valve is built to perform in challenging environments, providing precise control and sealing capabilities.
Key Features
| Features | Description |
|---|---|
| Size Range | ¼” to 48” (DN 6 to DN 1200) |
| Material Options | Stainless Steel (SS 304, SS 316, SS 316L), Carbon Steel (ASTM A216 WCB), Duplex Steel, Alloy Steel (ASTM A182 F22), Cast Iron (ASTM A126 Class B), Bronze, Brass (IS 319 Type 1, DZR Brass) |
| Pressure Rating | Class 150 to Class 2500, PN10 to PN420, Hydraulic Valves up to 700 bar (10,000 PSI) |
| Working Temperature | -196°C to 450°C (Cryogenic to high-temperature applications) |
| End Connections | Flanged (RF, FF), Screwed (BSP, NPT), Socket Weld (SW), Butt Weld (BW), Tri-Clamp |
| Seat Material | PTFE, RPTFE, CPTFE, NYLON PEEK, Metal-to-Metal |
| Attributes | Description |
|---|---|
| Manufacturing Standards | API 6D, API 607 (Fire-Safe), ASME B16.34, ISO 5211, BS 5351, EN 13709, DIN 3357, DIN EN 1092-1 (Flanges), DIN 3230 (Testing), JIS B2002 |
| Design Standards | Fire Safe (API 607, ISO 10497), Anti-Static, Blowout-Proof Stem Design |
| Dimensions | ASME B16.10, BS 5351, DIN 3202 |
| Leakage Class | ANSI Class VI (Soft Seat), Class IV (Metal Seat) |
| Testing Standards | API 598, ISO 5208 |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
They are available in various sizes ranging from ¼” to 48” (DN 6 to DN 1200).
Material options include Stainless Steel (SS 304, SS 316, SS 316L), Carbon Steel, Duplex Steel, Alloy Steel, Cast Iron, Bronze, and Brass.
The valve can operate within a working temperature range of -196°C to 450°C.
Yes, it supports a wide pressure rating from Class 150 to Class 2500 and hydraulic valves up to 700 bar (10,000 PSI).
The valve has a leakage class of ANSI Class VI for soft seat and Class IV for metal seat.
Country Of Origin: India
Explore the versatility of Trunnion Mounted Ball Valve, designed for optimal performance and durability. From size options to material selections, this valve offers top-tier quality for industrial applications.
Precision Engineering
Versatile Functionality
|
Size Range |
¼” to 48” (DN 6 to DN 1200) |
|
Material Options |
Stainless Steel (SS 304, SS 316, SS 316L), Carbon Steel (ASTM A216 WCB), Duplex Steel, Alloy Steel (ASTM A182 F22), Cast Iron (ASTM A126 Class B), Bronze, Brass (IS 319 Type 1, DZR Brass) |
|
Pressure Rating |
Class 150 to Class 2500, PN10 to PN420, Hydraulic Valves up to 700 bar (10,000 PSI). |
|
Working Temperature |
-196°C to 450°C (Cryogenic to high-temperature applications) |
|
Seat Material |
PTFE, RPTFE, CPTFE, NYLON PEEK, Metal-to-Metal |
|
End Connections |
Flanged (RF, FF), Screwed (BSP, NPT), Socket Weld (SW), Butt Weld (BW), Tri-Clamp. ASME B16.5 (Flanges), ASME B16.11 (SW), ASME B1.20.1 (Threaded). |
|
Manufacturing Standards |
API 6D, API 607 (Fire-Safe), ASME B16.34, ISO 5211, BS 5351, EN 13709, DIN 3357, DIN EN 1092-1 (Flanges), DIN 3230 (Testing). JIS B2002. |
|
Media Compatibility |
Water, Oil, Gas, Chemicals, Steam, Slurry, Hydraulic Fluids, Acidic and Alkaline Solutions. |
|
Actuation Options |
Manual (Lever/Gear), Pneumatic, Electric, Hydraulic. |
|
Design Standards |
Fire Safe (API 607, ISO 10497), Anti-Static, Blowout-Proof Stem Design. API 6D, BS EN ISO 17292, ASME B16.34. |
|
Dimensions |
ASME B16.10, BS 5351, DIN 3202. |
|
Face-to-Face |
ASME B16.10. |
|
Leakage Class |
ANSI Class VI (Soft Seat), Class IV (Metal Seat) |
|
Testing |
API 598, ISO 5208. |
