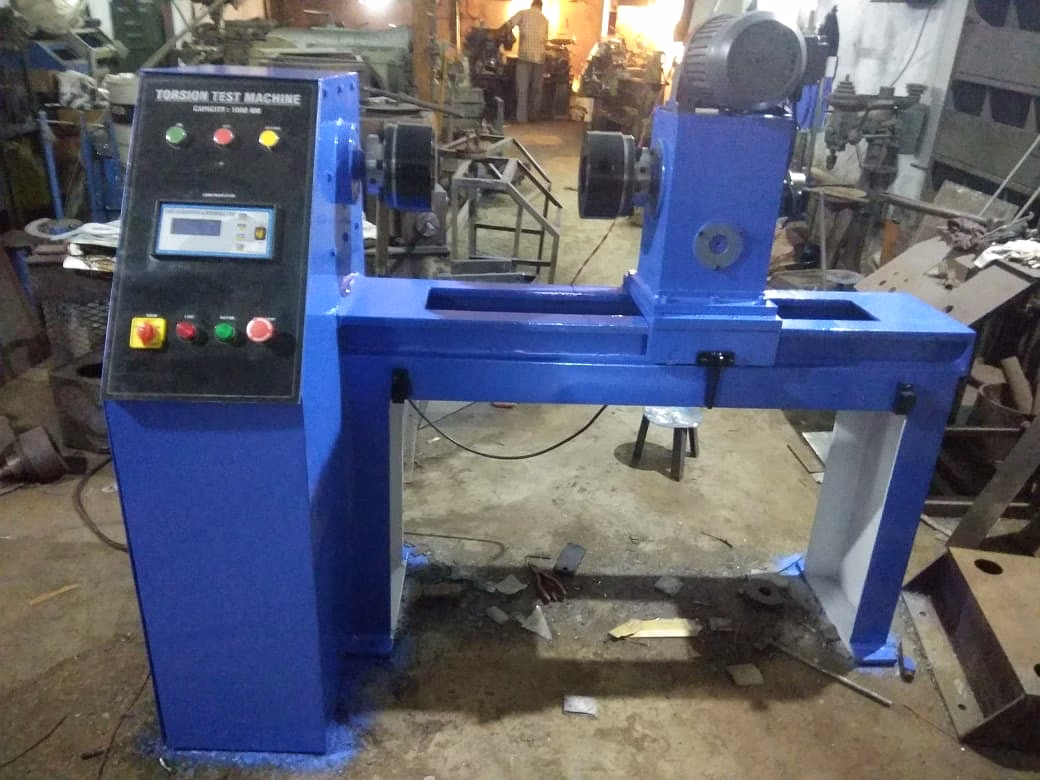

Torsion Test Machine

1. Suitable for Torsion & Twist tests on metal rods &flats.

2. Torque Measurement by cell.

3 One range with high resolution throughout the range.

4. Geared Motor to apply the torque to specimen through gearbox.

5. Measurement of angle of twist by rotary encoder.

6 Digital Display System for Load in Nm & angle of twist.

Technical Specification

Model                                                           MSITR-200/500/600/1000

Maximum Torque Capacity (Nm)                 200 Nm/500/600/1000 Nm

Torque resolution (Nm)                                0.5

Angle of Twist (degree)                                0.1

Torsion Speed & direction                            1.5 RPM reverse

Distance between Grips (mm)                      0-500/0-600/0-800 mm

Power requirement                                       3 Ph,440 V,50 Hz, AC
