The Concrete Cube Compression Test Machine 2000 KN Automatic is an advanced testing equipment designed for accurately determining the compressive strength of concrete and other hard materials. With a robust capacity range between 100kN and 3000kN, this machine ensures precise load application with a load least count of 0.1 kN. It features a user-friendly 7-inch touch screen for operation, making data reading and test execution straightforward. The machine's sophisticated software allows for automatic release of load post-testing, captures load vs. time graphs, and generates comprehensive test reports, facilitating easy documentation with a storage capacity of up to 10,000 logs. This device is especially essential for construction and building material testing companies looking to ensure quality and compliance with industry standards. Coupled with essential safety features, it offers a reliable, efficient, and thorough testing process.
Key Features
| Features | Description |
|---|---|
| Operation Display | Large key catching display - 7” touch screen |
| Testing Capacity | Available from 100 kN to 3000 kN |
| Load Least Count | 0.1 kN for precision measurement |
| Load Application | Spherical seating for self-centering load |
| Pump Type | Reciprocating Pump servo motor controlled |
| Test Software | Automatic load release and report generation |
| Pace Rate | Controlled from 0.5 kN/s to 20 kN/s |
| Data Access | USB facility for data transfer and storage |
| Testing Modes | Includes Flexural & Aggregate testing mode |
| Safety Features | Max pressure valve, travel limit switch, emergency stop button |
| Attributes | Description |
|---|---|
| Frame Type | 4 Pillar Type Heavy Duty Load Frame |
| Ram Diameter | 182 mm |
| Platen Diameter | 305 mm with hardness 55 HRC |
| Flatness Tolerance | 0.03 mm |
| Gap Between Platens | 305 mm |
| Test Accuracy | ± 1% |
| Log Capacity | 10000 logs |
| Emergency Stop Button | Yes |
| Piston Travel | Limit at 50 mm |
| Automatic Report Generation | Yes |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
This machine is capable of testing concrete and various types of hard materials, ensuring accurate compressive strength determination.
The machine's software automatically releases the load after the test is complete, simplifying the process and ensuring precision.
Yes, the machine has a storage capacity for up to 10,000 logs, allowing users to easily access and review past test data via USB.
Safety features include a max pressure valve to prevent machine overload, a limit switch for piston travel, an emergency stop button, and a door close safety switch.
Absolutely! The touch screen controller allows users to insert various shapes and areas to calculate direct readings in kN.
Brand: msi
Country Of Origin: India
.

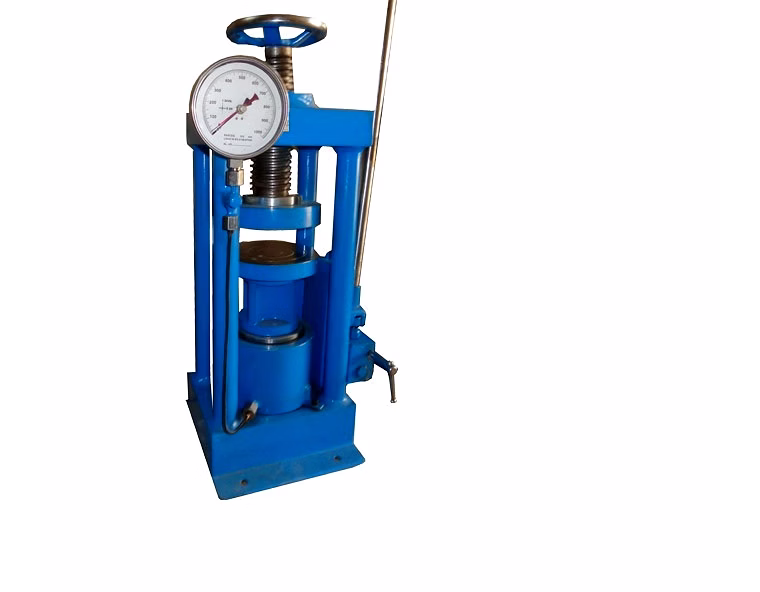

1. Four-Pillar, Three Pressure Gauge Compression Testing Machine
A hand-operated or semi-automatic system with a robust four-pillar steel frame.
Features include adjustable upper and lower platen, a ball-seated platen, spacer inserts for different sample sizes, and multiple pressure gauges including a maximum-load pointer
Multitech Scientific Instruments
.

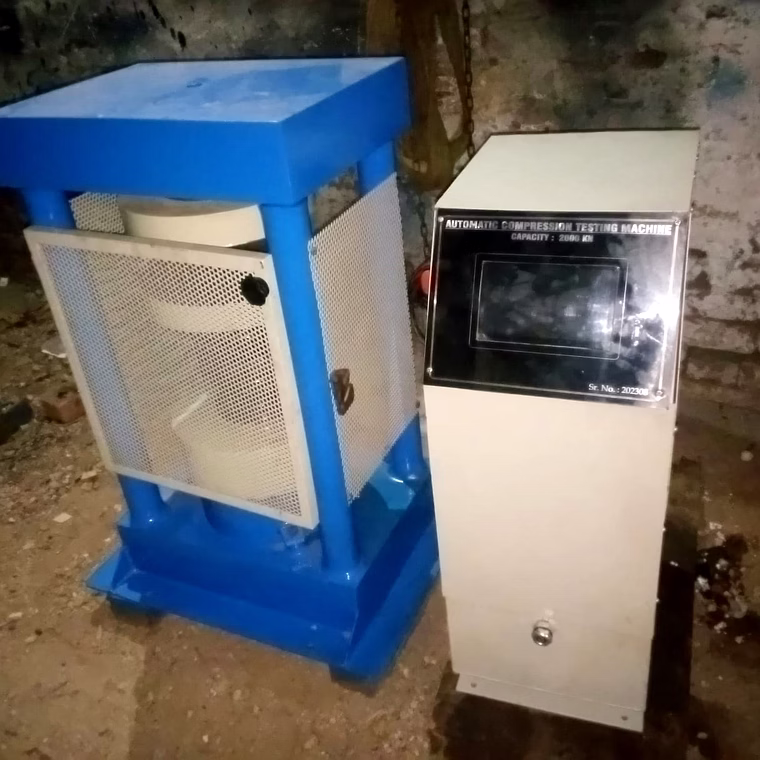

2. Automatic Compression Testing Machine (Automatic / PLC-controlled)
Equipped with a heavy-duty load frame, touch-screen PLC controller, fast/slow loading rate control ranging from ~1 kN/sec to ~10 kN/sec, auto-report generation, data storage (up to ~10,000 logs), and report download via scanner or phone
Aajjo
.

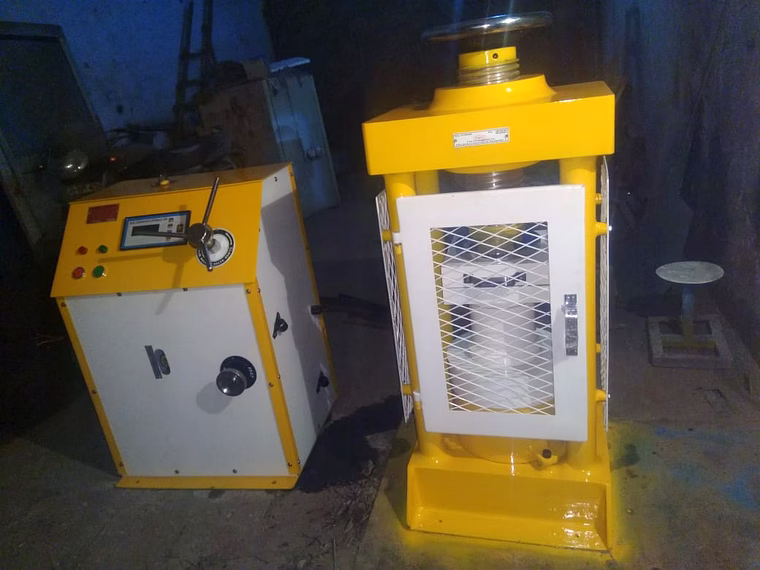

3. Semi-Automatic Compression Testing Machine
Hydraulic operation, stainless steel construction, capacity up to 2000 kN, automatic-grade functionality (models MSI 2059A/B)
Multitech Scientific Instruments
.
4. Universal Compression/Tension Tester
Designed for the plastic pipe industry, capable of both compression and tension testing.
Provides data storage, report retrieval, and computer-controlled testing with real-time load-deformation display—a more advanced solution for automated environments
.
