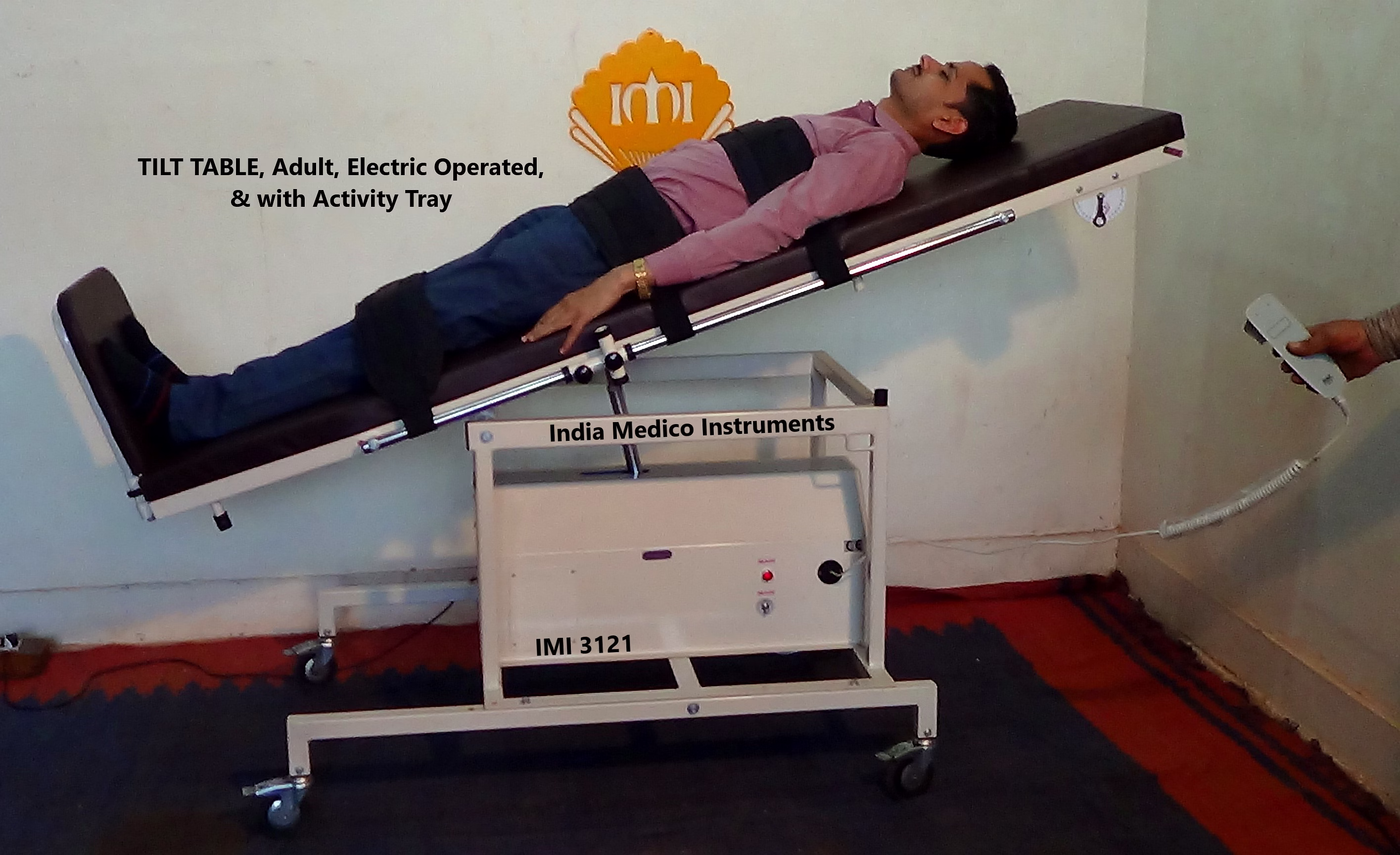

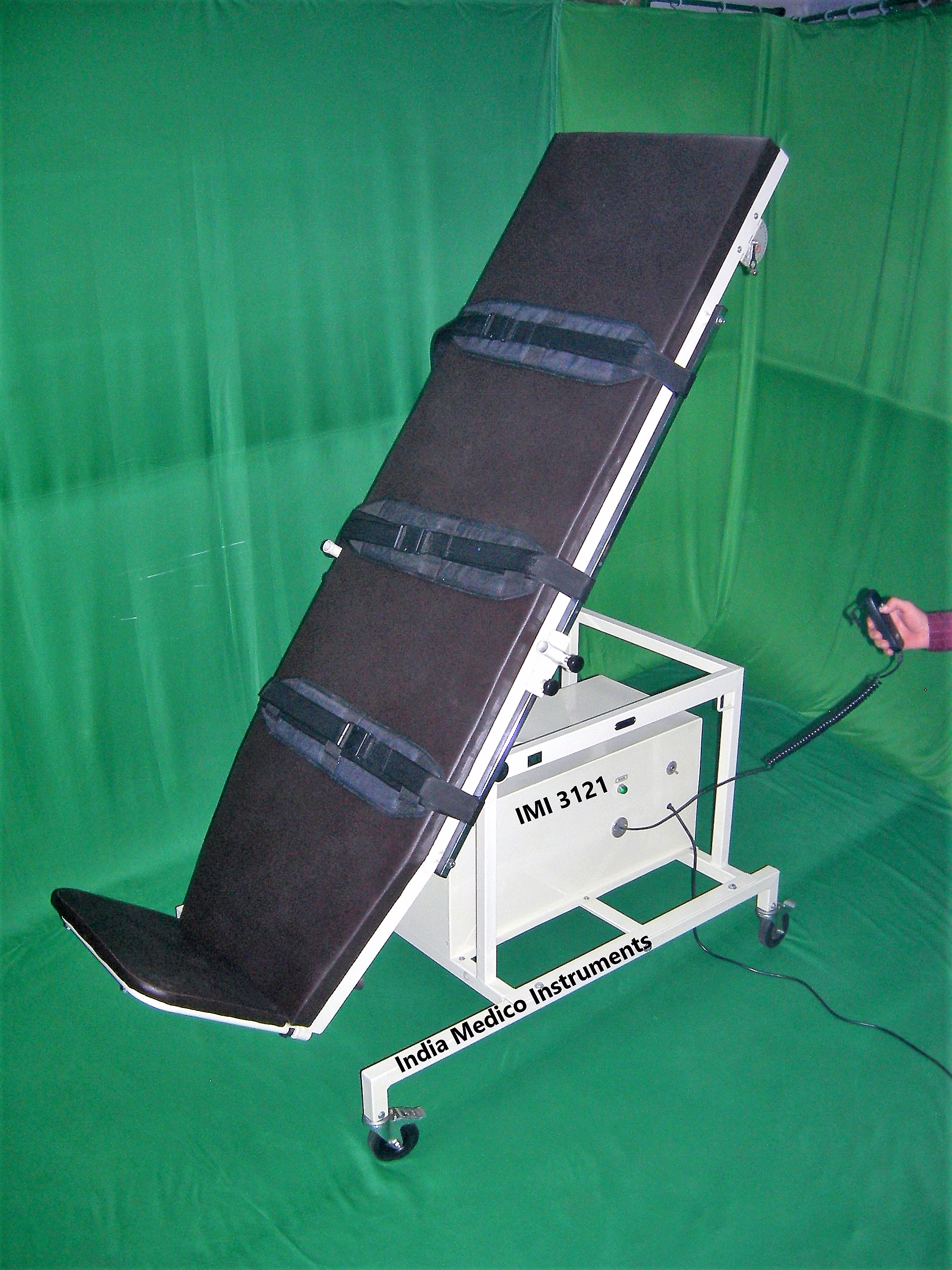

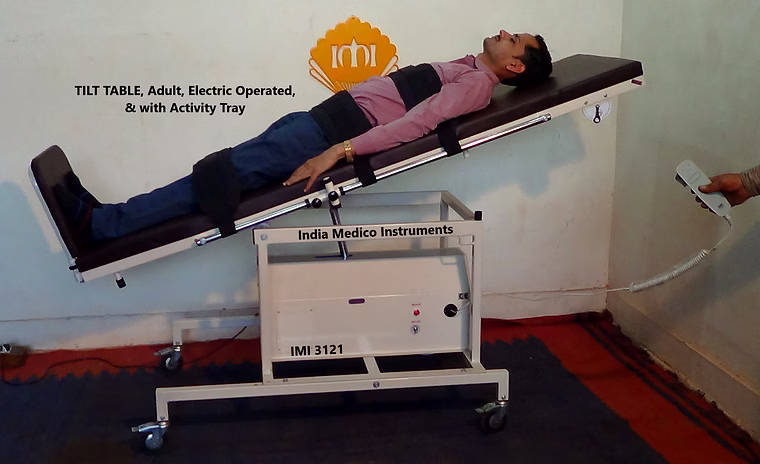

The Electric Operated Tilt Table IMI 3121 is designed for enhanced patient mobility and rehabilitation, allowing users to transition smoothly from horizontal to a full vertical position. This robust tilt table features an electric operating system with a sealed heavy-duty actuator, ensuring a silent and efficient tilting action. With a maximum tilt range of 0 to 90 degrees adjustable at a pace of 1.5 degrees per second, the tilt table facilitates essential activities of daily living (A.D.L.) through its specially designed activity tray. Equipped with soft foam padded upholstery and adjustable straps for patient safety, the IMI 3121 enhances the experience for caregivers and patients alike, ensuring comfort and stability during operation. Perfect for hospitals, rehabilitation centers, and clinics, the IMI 3121 is an essential tool for enhancing patient care and promoting mobility.
Key Features
| Features | Description |
|---|---|
| Electric Tilt Operation | Silent and smooth operation with heavy-duty actuator. |
| Adjustable Tilt Range | 0 to 90 degrees, adjustable for patient comfort. |
| User Control | Hand-held push button control switches for ease of operation. |
| Patient Safety | Fitted with wide straps to secure the patient during tilting. |
| Durable Build | Welded frame with steel tubes for enhanced stability. |
| Utility Activity Tray | Laminated surface for Activities of Daily Living (A.D.L.). |
| Mobility | Fitted with lockable castors for easier movement. |
| Weight Capacity | Supports up to 130 kg when weight is evenly distributed. |
| Attributes | Description |
|---|---|
| Tilt Type | Electric operated sealed heavy-duty system. |
| Tilt Speed | Achieves horizontal to vertical in 60 seconds (1.5 degrees per second). |
| Table Dimensions | 198 cm long x 61 cm wide x 82 cm high. |
| Foam Padding | 35 mm thick foam padded upholstery for enhanced patient comfort. |
| Base Frame Width | 75 cm for improved stability. |
| Steel Tube Dimensions | 25 mm x 50 mm and 30 mm square steel tubes. |
| Lockable Castors Diameter | 10 cm diameter for mobility. |
| Power Requirement | Operates on 220V AC. |
| Color Finish | Powder-coated finish in light cream color. |
| Footboard | Foam padded removable footboard for easy entry/exit. |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The maximum patient weight capacity is 130 kg when the weight is evenly distributed.
The tilt table can adjust from horizontal to vertical in 60 seconds, moving at a rate of 1.5 degrees per second.
The Tilt Table is fitted with three wide straps to securely hold the patient throughout the tilting process.
The Tilt Table operates on a 220V AC power source.
The table features 35 mm thick foam padded upholstery for optimum comfort.
Brand: india medico instruments
Country Of Origin: India
SPECIFICATIONS:
* Tilt System: Electrical operated Sealed Heavy duty system is well lubricated for life time performance,
* Range of Tilt: Adjustable from 0 to 90 degree.
* Tilt Angle: Horizontal to 90 degree vertical in 60 seconds. (1.5 degree per Second)
* Table Top: 198cm long x 61cm wide x 82cm high,
: Tilts on Two heavy duty Bush bearings
: Fitted with Tilt angle indicator.
: Fitted with 35mm thick foam padded upholstery.
: Fitted with Three, wide straps to hold patient.
* Base Frame: Welded frame is 75cm wide for more stability.
: Made of Rectangular (25mm x 50mm) & 30mm square steel Tubes.
: Legs fitted with 10cm dia. Lockable Castors for mobility.
* Foot-Board: Foam Padded removable Footboard for easy Entry & Exit.

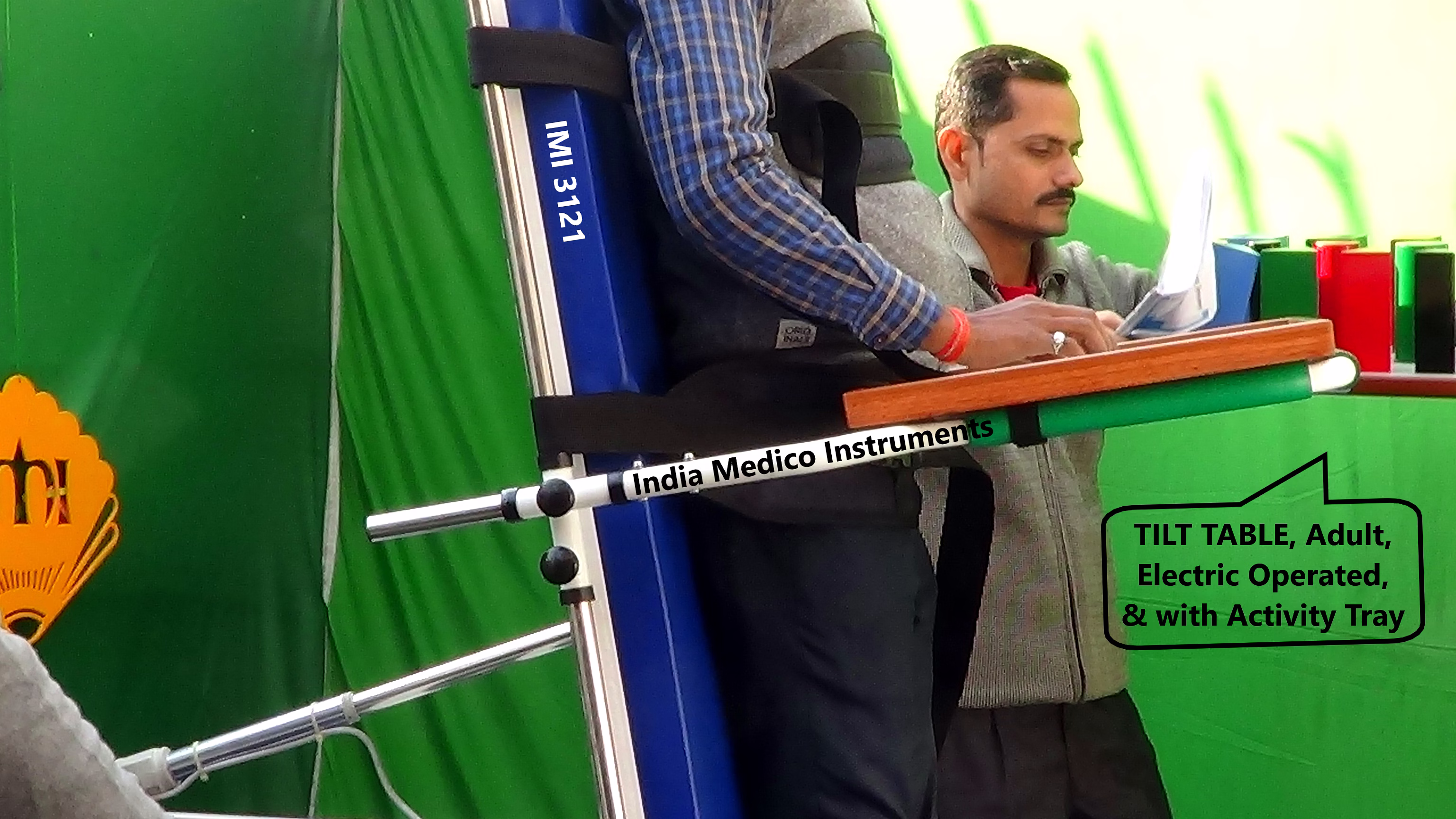

* Utility Tray: Laminated surface for ADL activity.
* Arm Supports: Tubular frame to grip for support.
* Finish: Powder coated finish in light cream Color.
* Weight capacity: Maximum patient weight 130kg, distributed evenly.
* Power: 220V. AC.
