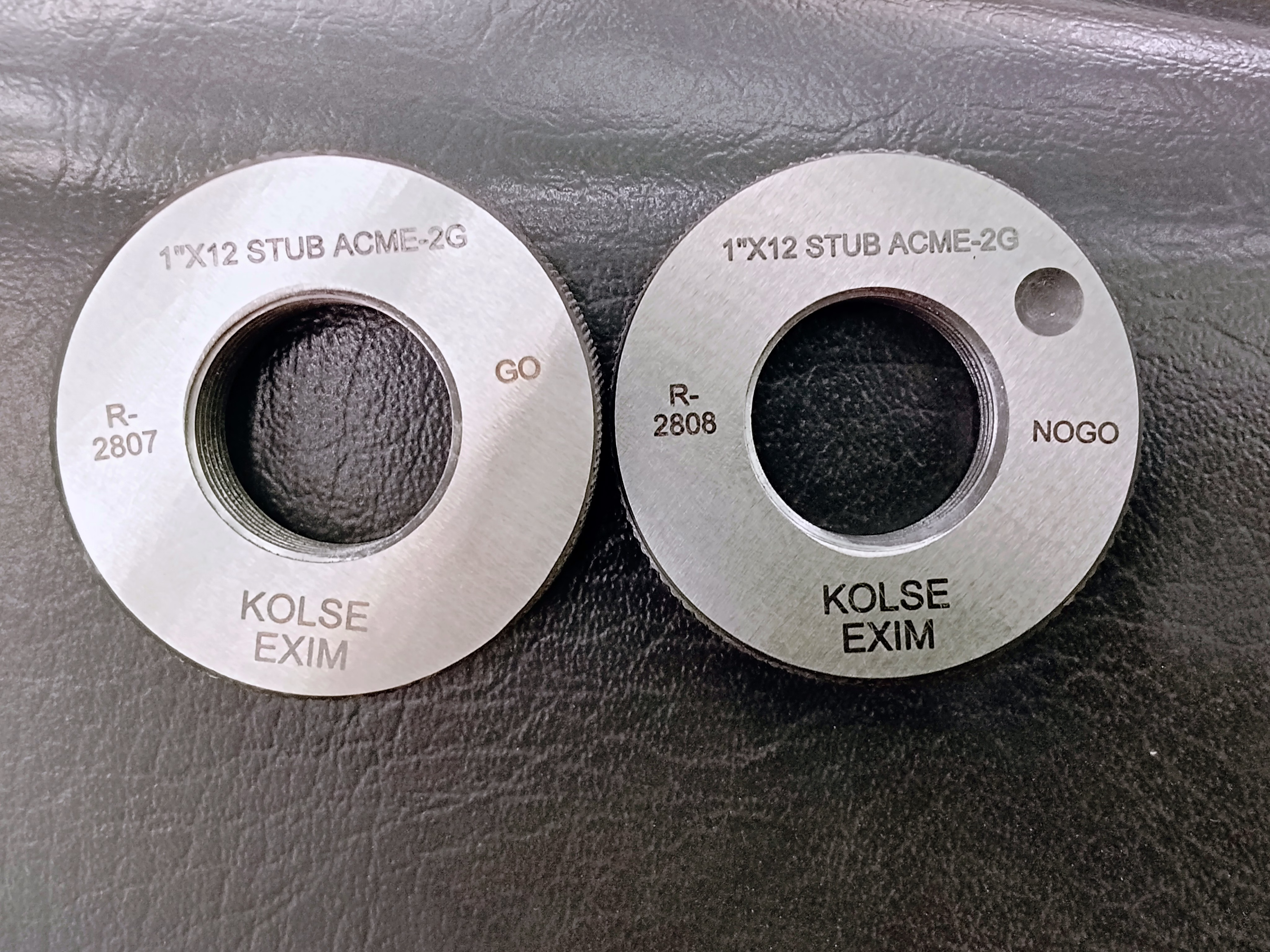

Kolse EXIM offers high-precision Thread Ring Gauges designed for stringent quality control in manufacturing processes involving external threads. These gauges are expertly crafted to check and verify the accuracy, pitch, and dimension of external threads on various components such as bolts and studs. Utilized extensively in industries requiring strict adherence to thread standards like STUB ACME, BSP, BSW, HELICOIL, and customized non-standard threads, Kolse EXIM's Thread Ring Gauges operate on the ‘GO/NO-GO’ principle to ensure the threads conform exactly to specifications. The GO gauge confirms that the external thread size is within tolerance and not undersized, while the NO-GO gauge ensures it is not oversized, providing a comprehensive inspection tool that promotes product reliability and quality compliance. These gauges are manufactured with precision material to withstand frequent use and maintain high durability, making them invaluable for quality inspectors, production engineers, and manufacturing professionals aiming for accuracy and efficiency in threaded component inspection.
Key Features
| Features | Description |
|---|---|
| Design Principle | GO/NO-GO checking system for thread validation |
| Thread Types Supported | STUB ACME, BSP, BSW, HELICOIL, and Non-Standard threads |
| Material | High-grade hardened steel for durability and wear resistance |
| Usage | Inspection of external thread accuracy and pitch |
| Accuracy | Precision-crafted to comply with international thread standards |
| Applications | Ideal for quality control in manufacturing of threaded components |
| Customization | Available for standard and non-standard thread profiles |
| Maintenance | Long-lasting with minimal calibration requirements |
| Attributes | Description |
|---|---|
| Thread Type Compatibility | STUB ACME, BSP, BSW, HELICOIL, Non-standard threads |
| Gauge Type | Thread Ring Gauge |
| Principle of Operation | GO/NO-GO principle |
| Material Construction | Hardened steel |
| Surface Finish | Precision finished to ensure accurate thread fit checks |
| Measurement Type | External thread size and pitch verification |
| Customization | Custom designs available based on client requirements |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Yes, Kolse EXIM offers customization of Thread Ring Gauges to match non-standard thread profiles as per client requirements.
The gauge supports major thread standards including STUB ACME, BSP, BSW, HELICOIL, as well as non-standard threads.
The GO end ensures the thread is not undersized by fitting smoothly, while the NO-GO end verifies the thread is not oversized by not fitting, ensuring precision compliance.
They are constructed from hardened steel to ensure durability and sustained accuracy even during rigorous use.
Yes, the gauges are designed to withstand frequent use in industrial settings while maintaining their precision and durability.
