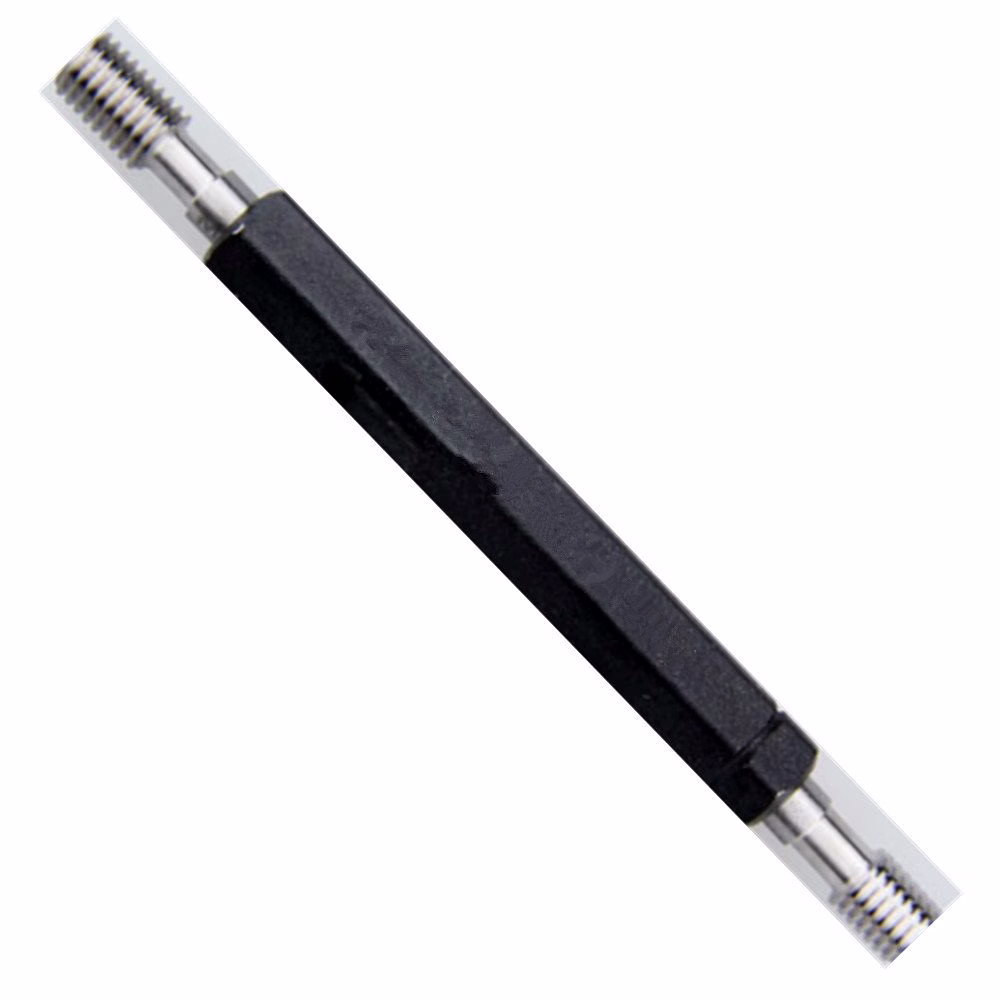

Kolse EXIM presents a premium Thread Plug Gauge, an essential precision measuring tool used in industrial quality control to verify internal thread dimensions in manufactured components like nuts. This thread plug gauge is meticulously crafted with accurate threading on both ends, following the 'GO/NO-GO' inspection method. The 'GO' end confirms that the internal thread meets minimum size and pitch specifications without being undersized, while the 'NO-GO' end ensures that it does not exceed maximum permissible dimensions, thus preventing oversized threading. This gauge helps manufacturers maintain stringent quality standards by enabling quick and reliable pass/fail assessment of threaded components. Apart from thread plug gauges, Kolse EXIM also provides complementary measuring tools such as Thread Ring Gauges for external thread verification and Plain Plug Gauges for hole size checking, catering comprehensively to threading inspection needs in production and quality assurance operations.
Key Features
| Features | Description |
|---|---|
| Type | Thread Plug Gauge |
| Measurement Principle | GO/NO-GO |
| Application | Verification of internal thread size, pitch and accuracy |
| Ends | Two ends: GO (for undersized check), NO-GO (for oversized check) |
| Industry Use | Used in manufacturing quality control and inspection |
| Material | High-grade hardened steel (commonly) |
| Complementary Tools | Thread Ring Gauge, Plain Plug Gauge also available |
| Suitability | Ideal for ensuring accuracy in nuts and other internally threaded parts |
| Attributes | Description |
|---|---|
| Thread Type | Internal threads |
| Measurement Method | GO/NO-GO gauge system |
| Material | Hardened steel for durability and wear resistance |
| Calibration | Precision calibrated to international standards |
| Usage | Pass/Fail verification of thread conformity |
| Compatible Parts | Nuts, internally threaded fasteners, and machine parts |
| Finish | Surface treated for corrosion resistance and longevity |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The GO end of the thread plug gauge fits the internal thread if the thread size and pitch are within minimum limits, confirming the thread is not undersized; the NO-GO end should not fit if the thread does not exceed maximum limits, thus preventing oversized threads, ensuring precise thread dimensions.
Thread plug gauges from Kolse EXIM are manufactured to suit specific thread sizes and types according to requirements. Customers need to specify thread standards and dimensions to get the appropriately calibrated gauge.
Kolse EXIM thread plug gauges are made from high-grade hardened steel, treated for wear resistance and corrosion protection to provide longevity and reliable measurement accuracy.
Yes, all thread plug gauges from Kolse EXIM are precision calibrated and manufactured following international inspection standards to ensure consistent quality control in production.
Kolse EXIM also offers Thread Ring Gauges for external thread verification and Plain Plug Gauges for checking hole sizes, allowing comprehensive inspection capability for threaded and unthreaded parts.
Country Of Origin: India
We, Kolse EXIM provided A thread plug gauge is a quality control tool with specifically designed threads on its ends, used to verify the size, pitch, and overall accuracy of internal threads in manufactured parts, such as nuts. It operates on a "GO/NO-GO" principle, where the "GO" end ensures the thread is not undersized and the "NO-GO" end ensures the thread is not oversized.
THREAD PLUG GAUGE, THREAD RING GAUGE & PLAIN PLUG GAUGE.
