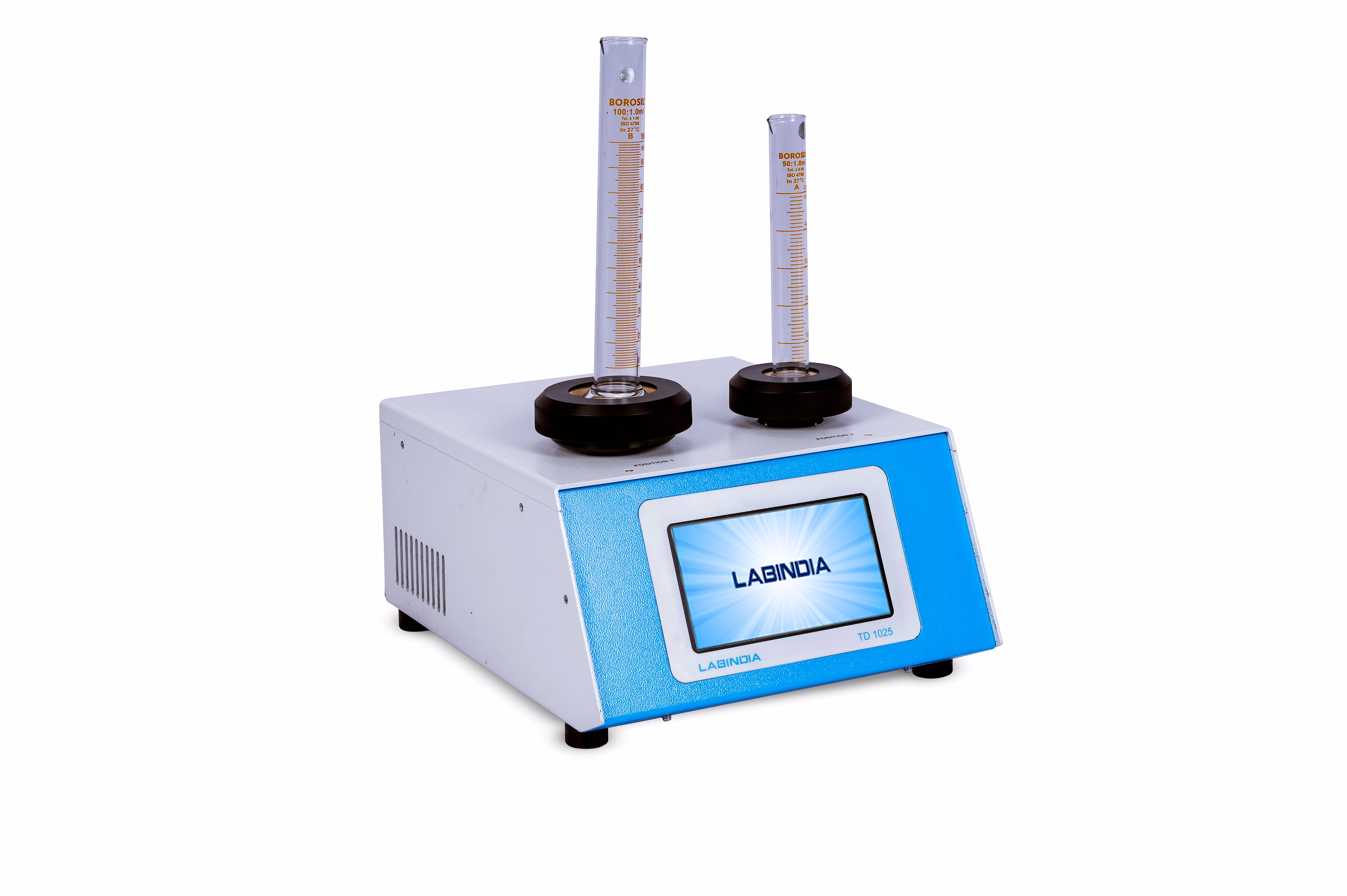

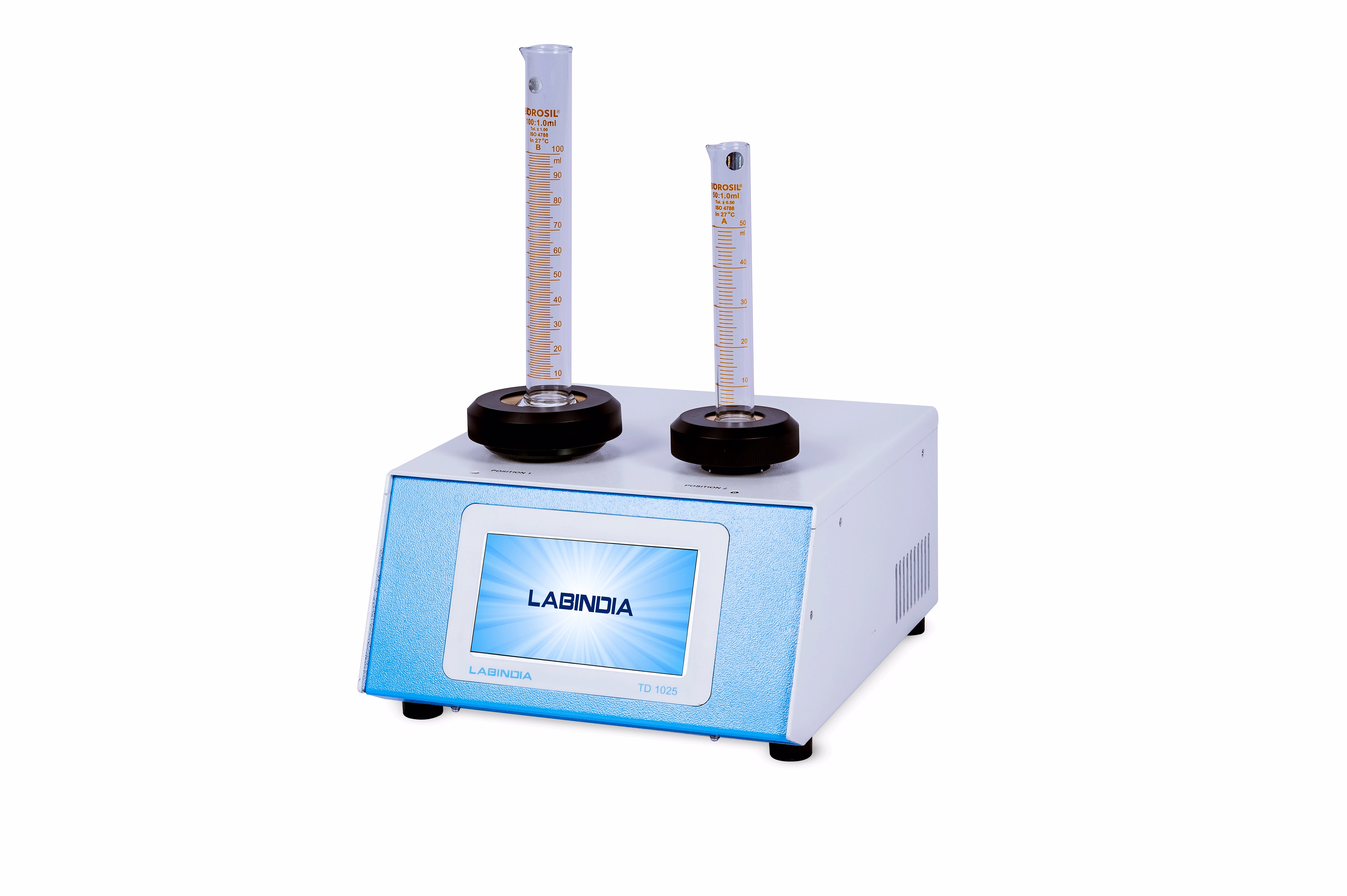

The Tap Density Tester with Touch Screen is an advanced, precision instrument designed specifically for accurate tap density measurement complying with USP and ASTM standards. Featuring a 7-inch high-resolution color display with an intuitive touch screen interface, this tester integrates user-friendly interactive software that facilitates effortless operation and detailed data analysis. It supports two tapping positions suitable for 14mm and 3mm taps with dedicated holders for 100 ml and 250 ml cylinders, ensuring versatile sample processing. The unique mechanism combines simultaneous tapping and rotating motion, guaranteeing uniform packing of powder samples for reliable and repeatable results. This device accurately calculates key powder characteristics including Tapped Density, Compressibility Index, Hausner Ratio, and Bulk Density, vital for pharmaceutical, chemical, and materials science industries. Equipped with a built-in 16 GB SD card (expandable to 32 GB), it offers extensive data storage capabilities, seamless balance interface for direct sample weight transfer, and customizable report files with preview options prior to printing. Additional features include optional low volume cylinder adapters (10 ml, 25 ml, 50 ml) compliant with ASTM standards, and 100 ml stainless steel cylinder complying with USP Method III. The Tap Density Tester also supports an auto-resume function to continue operations after short power interruptions, multi-level user management with configurable access privileges, and easy data download through PC-based EDC 21 software. This instrument is indispensable for laboratories and production environments requiring precise powder flow and packing property evaluations.
Key Features
| Features | Description |
|---|---|
| Display | 7-inch colour high-resolution touch screen |
| Compliance | Meets USP and ASTM tap density testing specifications |
| Tapping Positions | Two positions for 14mm and 3mm taps |
| Cylinder Holders | Holds 100 ml and 250 ml cylinders |
| Tapping Mechanism | Simultaneous tapping and rotating motion for even packing |
| Calculated Parameters | Tapped Density, Compressibility Index, Hausner Ratio, Bulk Density |
| Storage | 16 GB built-in SD card (expandable up to 32 GB) |
| Balance Interface | Seamless sample weight transfer |
| Optional Accessories | Low volume cylinder adapters (10ml, 25ml, 50ml), 100ml stainless steel cylinder (USP Method III) |
| Software Features | Customizable reports, result preview, auto-resume after power failure, multi-level user management |
| Data Handling | PC-based EDC 21 software data download |
| Attributes | Description |
|---|---|
| Display Type | 7-inch colour high resolution touch screen |
| Tapping Positions | 14 mm and 3 mm |
| Supported Cylinder Sizes | 100 ml and 250 ml standard holders; optional 10 ml, 25 ml, 50 ml adapters |
| Data Storage | 16 GB internal SD card, expandable to 32 GB |
| Calculated Output Parameters | Tapped Density, Compressibility Index, Hausner Ratio, Bulk Density |
| Compliance Standards | USP and ASTM specifications |
| Software Integration | User interactive with EDC 21 PC software compatibility |
| Power Failure Management | Auto resume facility |
| User Management | Multi-level with editable privileges |
| Material | Cylinder holders support stainless steel and plastic cylinders |
| Balance Interface | Direct connection for sample weight transfer |
| Optional Accessories | Low volume cylinder adapters and USP Method III 100 ml SS cylinder |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Yes, the tester comes with holders for 100 ml and 250 ml cylinders as standard, and offers optional low volume adapters for 10 ml, 25 ml, and 50 ml cylinders, all compliant with ASTM standards.
Yes, it features an integrated balance interface that allows direct transfer of sample weight data into the system, ensuring accurate and efficient measurement processing.
The tester employs a unique simultaneous tapping and rotating motion, which evenly packs the powder sample within the cylinder for consistent and reliable tap density measurements.
Yes, it includes an auto-resume facility that enables the test to continue from the last point in the event of short power failure, preventing data loss and ensuring test continuity.
The instrument generates detailed reports including Tapped Density, Compressibility Index, Hausner Ratio, and Bulk Density, with customizable report files and a preview option before printing to tailor reporting to specific lab requirements.
Yes, it offers multilevel user management with editable privileges, allowing controlled access and secure operation across different users in a laboratory or production setting.
Country Of Origin: India
Product Description
• 7” Colour High resolution Display with Touch Screen Interface with User interactive software.
• Designed to meet current USP and ASTM specifications for tap density testing.
• Two Tapping Positions for 14mm and 3mm respectively with cylinder holders to hold 100 ml and 250ml cylinders.
• The unique simultaneous tapping and rotating motion assures that the material is evenly packed.
• Calculates results - Tapped Density, Compressibility Index, Hausner Ratio and Bulk Density.
• Built in 16 GB SD card (expandable up to 32 GB) for report data storage.
• Balance Interface for sample weight transfer.
• Low Volume Cylinder Adapters - 10 ml, 25 ml, 50 ml Cylinders - ASTM Compliant (Optional)
• 100 ml SS Cylinder - USP Method III (Optional)
• Customizable report file.
• Result preview before printing.
• Auto resume facility to continue the run-in case of short power failure.
• Data downloading facility with PC based EDC 21 software.
• Multilevel user management with editable privileges
