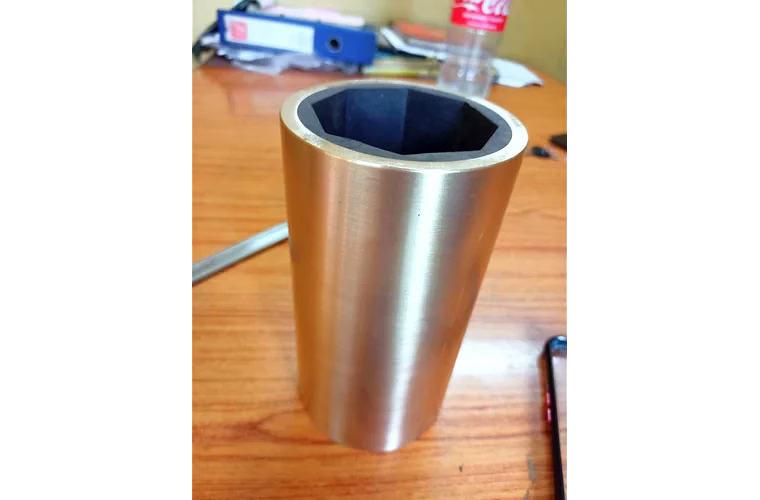

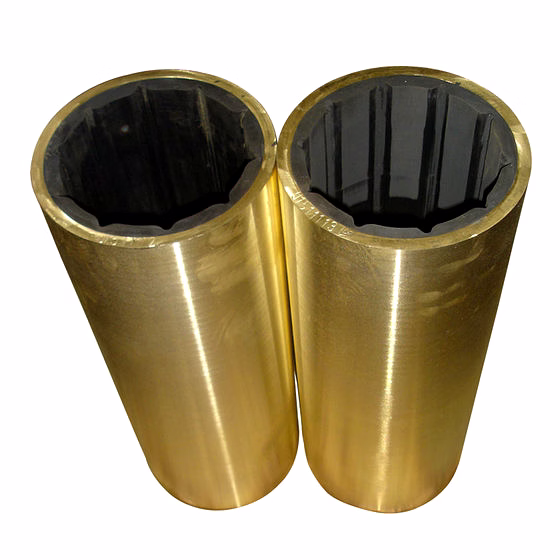

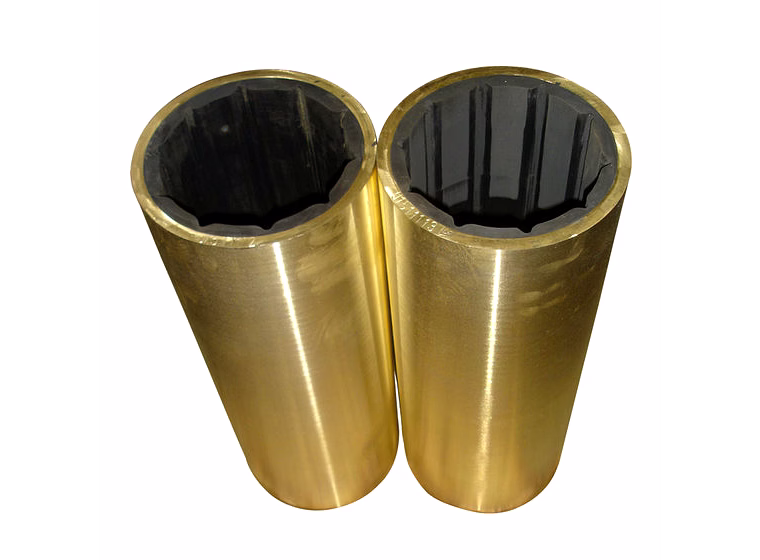

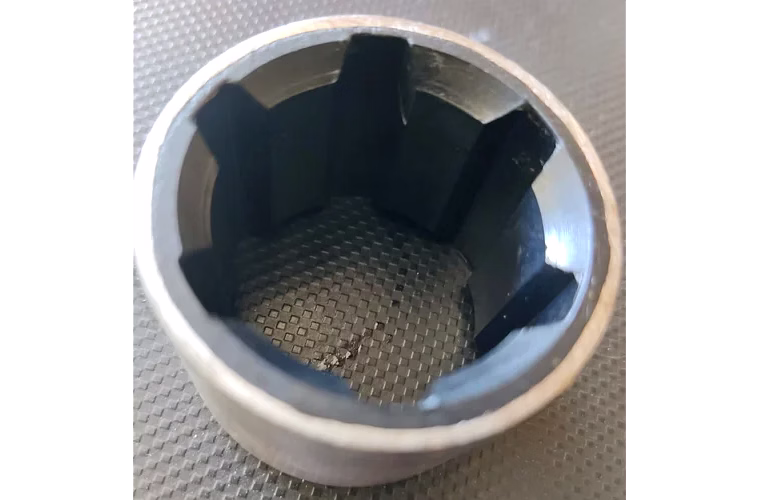

The Submersible Rubber Bush is crafted from high-performance Nitrile Rubber, designed to withstand demanding industrial applications requiring resistance to oils, fuels, and hydraulic fluids. With a static load capacity of up to 4 N/mm² and dynamic load capacity of up to 35 m/s, this rubber bush ensures reliable performance under both steady and fluctuating stresses. Featuring a hardness rating between 65-75 Shore A, the material balances flexibility and durability effectively. It exhibits superior tensile strength at 11 MPa, allowing it to endure significant stretching and stress without damage. The modulus of 3.7 MPa at 100% elongation emphasizes its elasticity under strain. The product maintains excellent elongation up to 250%, tear strength of 22 MPa for resistance against mechanical wear, and a compression set rating of 20 after 22 hours at 70°C, ensuring dimensional stability under prolonged compression and elevated temperatures. These robust mechanical and physical properties make the Submersible Rubber Bush ideal for use in submersible motor housings, pumps, and other submerged machinery components, providing effective sealing, vibration dampening, and protection against environmental factors. This specialized rubber bush is highly sought in the industrial and manufacturing sectors where component reliability under harsh operational conditions is critical.
Key Features
| Features | Description |
|---|---|
| Material | High-grade Nitrile Rubber (NBR) |
| Static Load Capacity | ≤4 N/mm² |
| Dynamic Load Capacity | ≤35 m/s |
| Hardness | 65-75 Shore A |
| Tensile Strength | 11 MPa |
| Modulus at 100% Elongation | 3.7 MPa |
| Elongation at Break | 250% |
| Tear Strength | 22 MPa |
| Compression Set | 20 (22 hrs at 70°C) |
| Application | Submersible motor housings, pumps, vibration dampening |
| Attributes | Description |
|---|---|
| Rubber Type | Nitrile Rubber (NBR) |
| Load Capacity - Static | ≤4 N/mm² |
| Load Capacity - Dynamic | ≤35 m/s |
| Hardness | 65-75 Shore A |
| Tensile Strength | 11 MPa |
| Modulus at 100% | 3.7 MPa |
| Elongation at Break | 250% |
| Tear Strength | 22 MPa |
| Compression Set | 20 after 22 hrs at 70°C |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Nitrile Rubber offers excellent resistance to oils, fuels, and abrasion, along with strong mechanical properties such as high tensile strength and elasticity, making it ideal for submersible environments where exposure to fluids and mechanical stress is common.
A compression set of 20 after 22 hours at 70°C indicates good dimensional stability and recovery after prolonged compression under heat, which ensures the bush remains effective in sealing and vibration dampening over time.
Yes, with a dynamic load capacity of up to 35 m/s, this rubber bush is engineered to handle dynamic stresses typical to submersible pumps and motors operating at high speeds.
A hardness range of 65-75 Shore A strikes the right balance, providing enough rigidity for support while maintaining flexibility to absorb vibrations and shocks in submersible applications.
Yes, with a tear strength of 22 MPa, these rubber bushes exhibit excellent resistance to tearing and mechanical wear, ensuring long service life even under challenging operating conditions.
Country Of Origin: India
Properties of Nitrile Rubber
Static Load capacity: ≤4 [N/mm2]
Dynamic Load capacity: ≤35 [m/s]
Hardness: 65-75 Shore-A
Tensile Strength: 11 MPa
Modulus: 3.7 @ 100% (MPa)
Elongation Break: 250%
Tear strength: 22 MPa
Compression set: 20 (22 hrs. @ 70oC)
