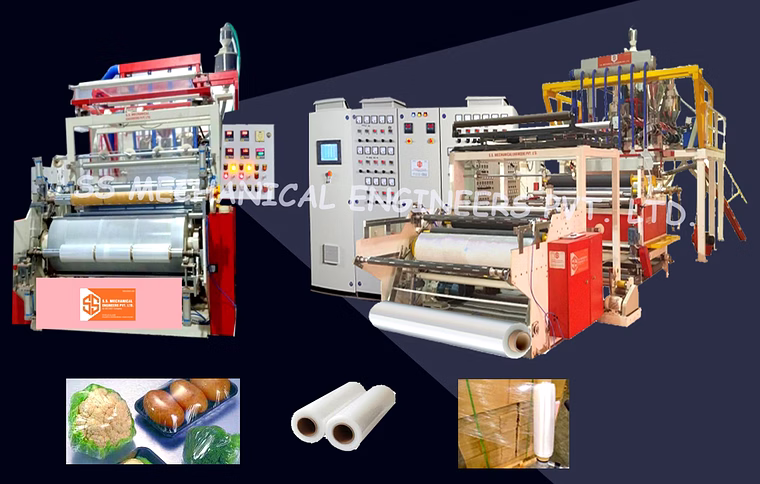

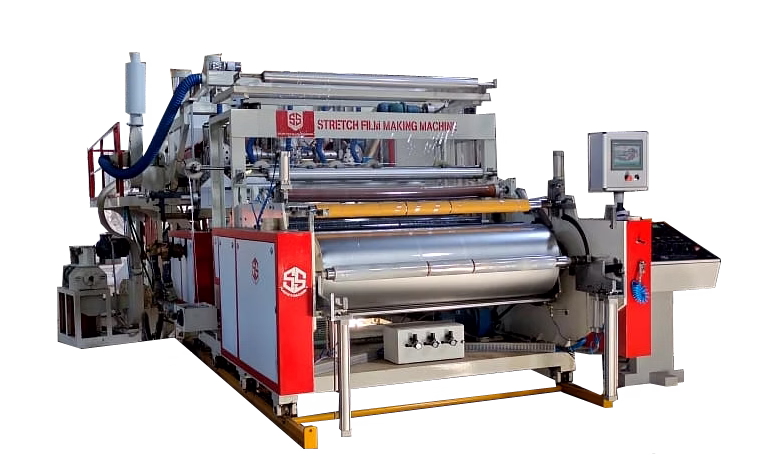

The Stretch/Cling Film Making Machine is engineered to cater specifically to the demands of the packaging industry, offering versatile and high-quality cast stretch film production. Designed to produce films ranging from 8 microns to 250 microns, this machine supports a wide variety of applications including stretch film, cling film, pallet wrap, agricultural coverings, medical films, and food packaging barrier films. The machine portfolio encompasses various configurations including 2-layer, 3-layer, and 5-layer film extrusion options, accommodating film widths from 1000 mm up to 3000 mm and production capacities between 85 Kg/hr to 350 Kg/hr. Equipped with groove feed extruders featuring variable frequency speed drives, the system ensures optimized productivity combined with low power consumption. Additional sophisticated features such as a hydraulic-type screen changer and an inline trim cutting & re-feeding system guarantee zero material wastage, enhancing cost-efficiency. The integration of a T-Die with an internal deckling system enables precise film width control, while the roll winder employs auto reel cutting and roll changeover systems governed by PLC automation for seamless operation. All electrical and mechanical components utilized are sourced from reputed manufacturers, ensuring durability and reliability. This machine is ideal for manufacturers and packaging professionals seeking an efficient, customizable, and economically optimized solution for producing high-grade stretch and cling films tailored to various industrial uses.
Key Features
| Features | Description |
|---|---|
| Film Width Range | 1000 mm to 3000 mm |
| Layer Options | 2 Layer, 3 Layer, 5 Layer Film Production |
| Production Capacity | 85 Kg/hr to 350 Kg/hr |
| Film Thickness Range | 8 Micron to 250 Micron |
| Extruder Type | Groove Feed Extruders with Variable Frequency Speed Drive |
| Screen Changer | Hydraulic Type |
| Waste Management | Inline Trim Cutting & Re-Feeding System ensuring Zero Wastage |
| Die System | T-Die with Internal Deckling System |
| Roll Handling | Auto Reel Cutting and Roll Changeover System controlled by PLC |
| Power Efficiency | Optimized Productivity with Less Power Consumption |
| Component Quality | Electrical and Mechanical Parts from Reputed Manufacturers |
| Attributes | Description |
|---|---|
| Applications | Stretch Film, Cling Film, Pallet Wrap Film, Agriculture Film, Medical Film, Barrier Film for Food Packaging |
| Film Thickness Capability | 8 Micron to 250 Micron |
| Film Width | 1000 mm to 3000 mm |
| Extrusion Layers | 2 Layer / 3 Layer / 5 Layer Options |
| Production Output | 85 Kg/hr to 350 Kg/hr |
| Extruder Feature | Groove Feed with Variable Frequency Speed Drive |
| Screen Changer | Hydraulic Type |
| Waste Minimization | Inline Trim Cutting & Re-Feeding System (Zero Waste) |
| Die Type | T-Die with Internal Deckling System |
| Roll Winder Feature | Auto Reel Cutting and Roll Changeover System controlled via PLC |
| Material Quality | High-Grade Electrical and Mechanical Parts |
| Power Consumption | Low Power Consumption for Higher Productivity |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The machine produces films with a thickness ranging from 8 microns to 250 microns, allowing versatile application across various packaging needs.
This system ensures zero wastage by cutting excess film trims and automatically re-feeding them into the extrusion process, minimizing material costs and environmental impact.
Yes, it supports 2-layer, 3-layer, and 5-layer film extrusion configurations to meet different performance and application requirements.
The roll winder includes auto reel cutting and roll changeover functionalities governed by PLC, ensuring continuous and efficient production without manual intervention.
Besides general packaging, the machine is optimized for producing agricultural films, medical films, and barrier films specifically for food packaging, enhancing versatility in specialized markets.
This feature enables precise control over extrusion speed, improving film quality and ensuring optimal productivity while reducing power consumption.
The machine can produce up to 350 Kg/hr, making it suitable for high-volume industrial production requirements.
Brand: ss
Country Of Origin: India
Cast Stretch Film have now become an indispensable product in the packaging industry. It provides versatile and high quality option for safe and economic packaging of various kind of Products. Our Cast Line portfolio offers the right machine for your individual production requirement with our expert know how on Cast Film Extrusion Process. We will be more than happy to support you in selecting the ideal Cast Film Making Machine for your Specific Requirements.
APPLICATIONS
Stretch Film.
Cling Film.
Pallet Wrap Film.
Agriculture Film.
Medical Film.
Barrier Film for Packaging Food.
Features
Groove feed Extruders with variable frequency speed drive.
To manufacture multiple packaging material from 8 Micron to 250 Micron.
Optimum product costing due to higher productivity with less power consumption.
Hydraulic type screen changer.
In-line trim cutting & Re - Feeding system (Zero Wastage)
We offer Wide Range of Stretch Film Making Machines:-
- For Film Width from 1000 MM to 3000 MM
- 2 Layer / 3 Layer / 5 Layer Film Options
- T- Die with Internal Deckling System
- Production Capacity of 85 Kg/hr. to 350 Kg/hr.
- Trim Cutting & Re-Feeding Attachment for (Zero Waste)
- Roll Winder with Auto Reel Cutting and Roll Chang over System controlled by PLC
- All Electrical and Mechanical Parts used in Machines are of Reputed Make.
