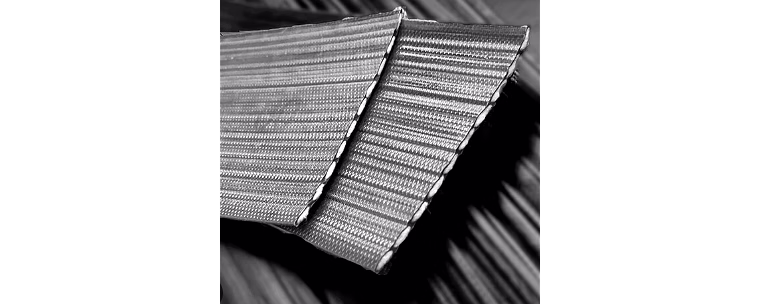

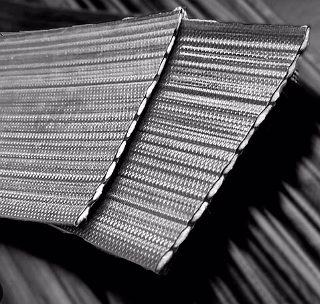

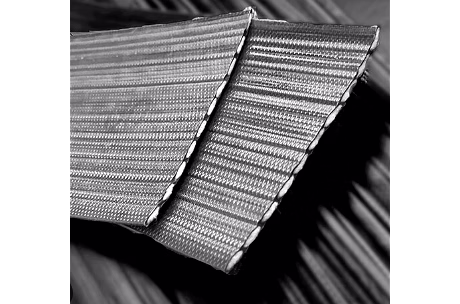

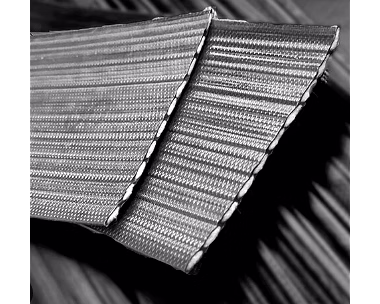

The Stalwartone GeoStrap SGS75 kN is an advanced geosynthetic planar structure engineered for robust civil engineering and construction applications. This product features a core composed of high tenacity polyester yarn tendons encapsulated within a durable polymer sheath, delivering exceptional tensile strength and durability. Specifically designed to provide an ultimate tensile strength (UTS) of 75 kN as per ISO 10319 standards, the GeoStrap SGS75 offers reliable performance for soil reinforcement, slope stabilization, and load distribution tasks. With a precise strap width of 91 mm (±3 mm) and a thickness of 2.40 mm, this geostrip is optimized to integrate seamlessly into geotechnical designs requiring high tensile capacities, long-term durability, and resistance against environmental degradation. Its polyester core ensures minimal elongation under load, making it ideal for reinforcing embankments, retaining walls, and other infrastructure projects in demanding environments.
Key Features
| Features | Description |
|---|---|
| Ultimate Tensile Strength (UTS) | 75 kN (As per ISO 10319) |
| Core Material | High tenacity polyester yarn tendons |
| Polymer Sheath | Encases polyester core providing durability and protection |
| Strap Width | 91 mm ±3 mm |
| Thickness | 2.40 mm |
| Standard Compliance | ISO 10319 tensile strength testing |
| Geotechnical Applications | Soil reinforcement, slope stabilization, load distribution |
| Durability | Resistant against environmental degradation and mechanical damage |
| Low Elongation | Ensures structural stability under tensile load |
| Attributes | Description |
|---|---|
| Product Name | Stalwartone GeoStrap SGS75 |
| Ultimate Tensile Strength | 75 kN |
| Material Composition | High tenacity polyester yarn with polymer sheath |
| Width | 91 mm ±3 mm |
| Thickness | 2.40 mm |
| Testing Standard | ISO 10319 |
| Application Type | Geogrid, soil reinforcement |
| Typical Usage | Slope stabilization, retaining wall reinforcement, embankment construction |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The GeoStrap SGS75 is engineered to withstand an ultimate tensile strength of 75 kN as per ISO 10319 testing standards.
The core consists of high tenacity polyester yarn tendons, which are encased within a protective polymer sheath that enhances durability and environmental resistance.
The strap has a width of 91 mm with a tolerance of ±3 mm and a thickness of 2.40 mm.
Yes, its tensile strength has been tested and certified according to ISO 10319 standards.
It is used primarily for soil reinforcement, slope stabilization, load transfer, and retention in embankment and retaining wall structures.
Brand: stalwartone geostrap
Country Of Origin: India
“Stalwartone GeoStrap” is planar structures consisting of a core of high tenacity polyester yarn tendons encased in a polymer sheath.
Stalwartone Geostrap SGS75 (75 kN) :
- Ultimate Tensile Strength : 75 kN
(UTS) (As ISO 10319)
- Strap Width (±3) : 91 mm
-Thickness : 2.40 mm
