The Stalwartone GeoStrap SGS100 is a high-performance geosynthetic strapping solution engineered for demanding civil engineering and construction applications. Designed with a core of high tenacity polyester yarn tendons encased in a durable polymer sheath, the GeoStrap SGS100 offers an ultimate tensile strength of 100 kN as per ISO 10319 standards, making it ideal for soil reinforcement, slope stabilization, and load-bearing structural support. With a precise strap width of 95 mm and a thickness of 2.80 mm, this geosynthetic strap combines strength with flexibility, ensuring long-lasting durability under various environmental conditions. Its excellent tensile properties and dimensional stability provide enhanced performance in reinforcing geo-structures, making the Stalwartone GeoStrap SGS100 a reliable choice for engineers and contractors seeking superior geotechnical reinforcement materials.
Key Features
| Features | Description |
|---|---|
| Ultimate Tensile Strength (UTS) | 100 kN (As per ISO 10319) |
| Strap Width | 95 mm (±3 mm) |
| Thickness | 2.80 mm |
| Core Material | High Tenacity Polyester Yarn Tendons |
| Sheath Material | Durable Polymer |
| Compliance Standard | ISO 10319 |
| Application | Soil Reinforcement, Slope Stabilization, Load Bearing |
| Attributes | Description |
|---|---|
| Product Name | Stalwartone GeoStrap SGS100 |
| Tensile Strength | 100 kN |
| Material Core | High Tenacity Polyester Yarn |
| Sheath Material | Polymer |
| Strap Width | 95 mm (±3 mm) |
| Thickness | 2.80 mm |
| Standard Reference | ISO 10319 |
| Type | Planar Geosynthetic Strap |
| Use Case | Geotechnical Reinforcement |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The GeoStrap SGS100 features a high tenacity polyester yarn core encased in a protective polymer sheath, delivering an ultimate tensile strength of 100 kN, fulfilling ISO 10319 standards. This high tensile capacity makes it apt for supporting heavy loads in soil reinforcement and slope stabilization.
The polymer sheath encasing the polyester core protects the internal tendons from environmental factors such as moisture, UV radiation, and chemical exposure, thereby extending the lifespan and performance consistency of the GeoStrap SGS100 in geotechnical applications.
The strap width of 95 mm has a tolerance of ±3 mm, ensuring dimensional stability for precise installation in geosynthetic soil reinforcement projects, facilitating compatibility with standard anchoring devices.
Yes, due to its high tensile strength and durable construction, the Stalwartone GeoStrap SGS100 is specifically designed to reinforce slopes and prevent soil erosion, making it ideal for slope stabilization.
The tensile strength of the GeoStrap SGS100 is measured and compliant with ISO 10319, ensuring that the strap meets internationally recognized performance standards.
Brand: stalwartone geostrap
Country Of Origin: India

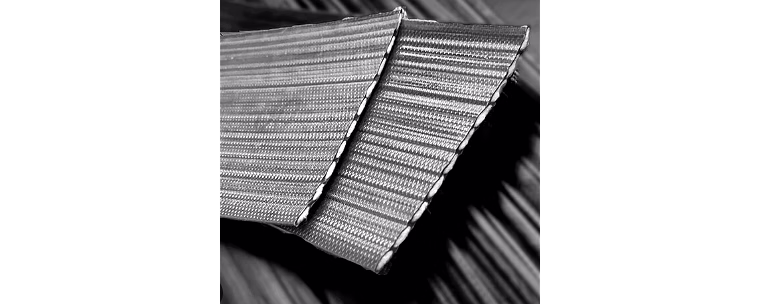

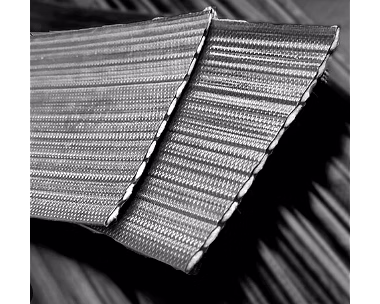

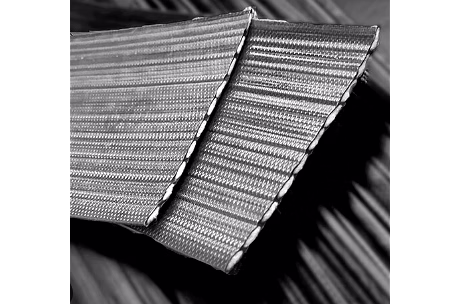

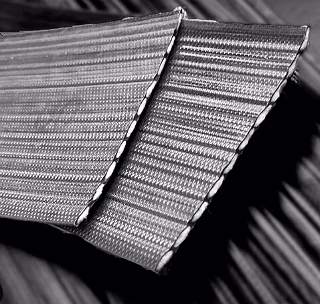

“Stalwartone GeoStrap” is planar structures consisting of a core of high tenacity polyester yarn tendons encased in a polymer sheath.
Stalwartone Geostrap SGS100 (100 kN) :
- Ultimate Tensile Strength : 100 kN
(UTS) (As ISO 10319)
- Strap Width (±3) : 95 mm
-Thickness : 2.80 mm
