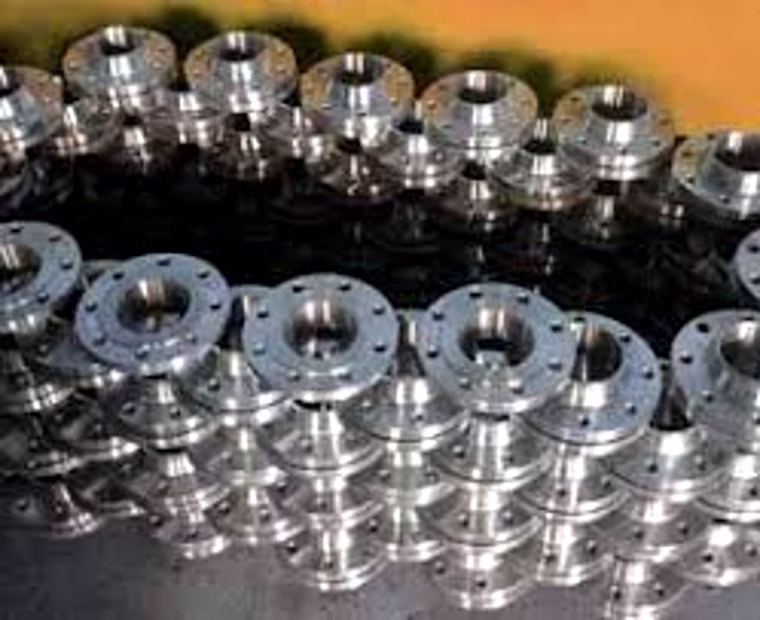

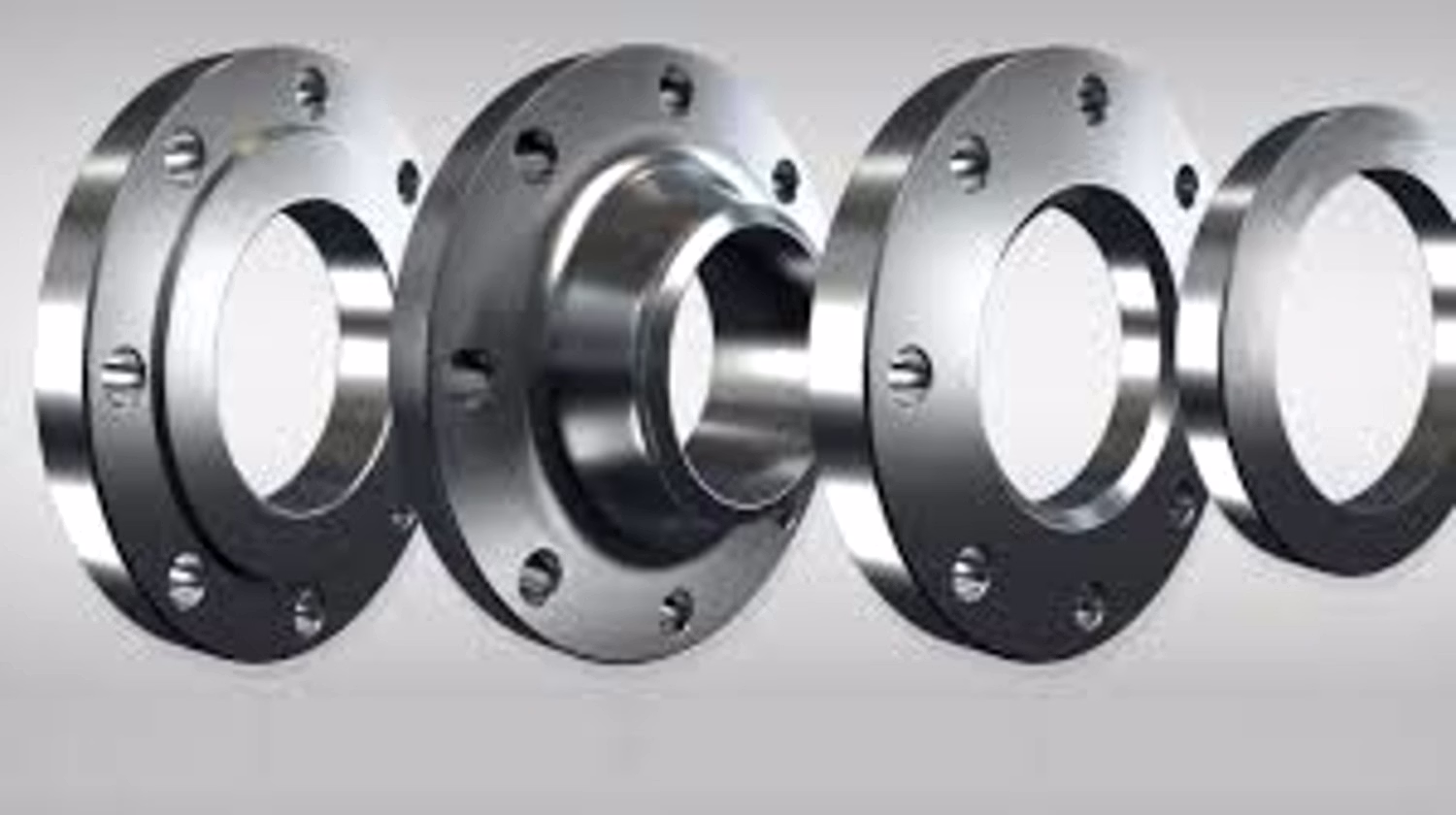

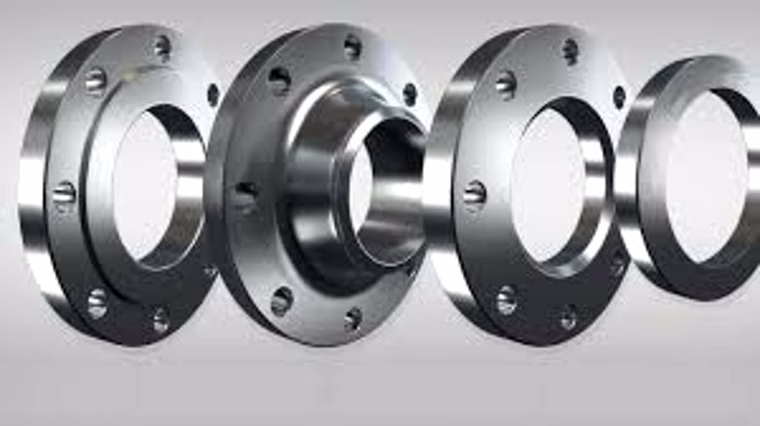

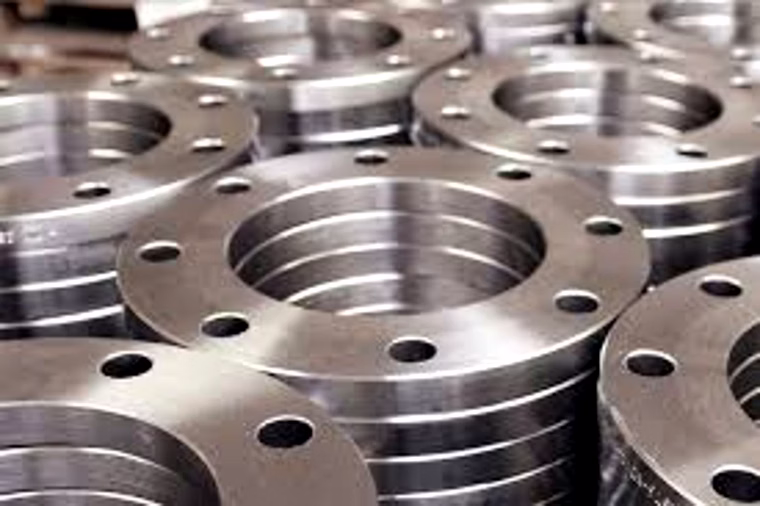

SS Flanges, or Stainless Steel Flanges, are precision-engineered forged or cast rings designed to connect pipes, valves, pumps, and other equipment in piping systems. These flanges facilitate secure, reliable joints that allow for easy disassembly, cleaning, maintenance, or customization of pipelines. Manufactured from high-grade stainless steel, SS Flanges offer excellent corrosion resistance and high durability under extreme pressure and temperature conditions. Available in multiple types and sizes, these flanges support various connection methods, including welding, threading, and bolting, making them versatile for diverse industrial applications. Commonly used flange types include Weld Neck (WN), Slip-On (SO), Socket Weld (SW), Threaded (TH), Blind (BL), Lap Joint (LJ), and Orifice / Ring Type Joint (RTJ), each tailored to specific use cases from high-pressure petrochemical plants to low-pressure piping systems. Ideal for industries such as oil & gas, chemical processing, power generation, and shipbuilding, SS Flanges ensure robust, leak-proof pipe connections critical to system safety and performance.
Key Features
| Features | Description |
|---|---|
| Material | High-grade Stainless Steel for superior corrosion resistance |
| Design | Forged or Cast ring shape for strong pipe connections |
| Pressure & Temperature Resistance | Durable under high pressure and elevated temperatures |
| Connection Methods | Supports welding, threading, or bolting for flexible installation |
| Variety of Types | Includes Weld Neck, Slip-On, Socket Weld, Threaded, Blind, Lap Joint, RTJ types |
| Sizes Available | Multiple sizes tailored to various pipeline diameters |
| Applications | Suitable for petrochemical, offshore, power, and chemical industries |
| Maintenance | Allows easy disassembly for cleaning, inspection, or modification |
| Attributes | Description |
|---|---|
| Material Grade | AISI 304, AISI 316, or equivalent stainless steel grades |
| Manufacturing Process | Forged or Cast |
| Flange Types | Weld Neck (WN), Slip-On (SO), Socket Weld (SW), Threaded (TH), Blind (BL), Lap Joint (LJ), Orifice / RTJ |
| Surface Finish | Polished or machined as per customer requirements |
| Dimensions | Compliant with ANSI/ASME B16.5 or equivalent standards |
| Pressure Rating | Ranges from Class 150 to Class 2500 based on flange type |
| Temperature Range | -50°C to 600°C depending on material grade |
| Connection Type | Welding, Threading, Bolting |
| Industry Standards | Conforms to ASTM, ANSI, ASME, and ISO standards |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
SS Flanges typically conform to standards such as ANSI/ASME B16.5, ensuring uniformity in dimensions, pressure ratings, and compatibility with other piping components.
Weld Neck (WN) flanges, with their long tapered hub and butt-welding design, are preferred for high-pressure and high-temperature piping systems due to their strength and durability.
Yes, SS Flanges can be supplied in various grades, finishes, sizes, and pressure classes, customized to meet specific requirements of different industries and applications.
SS Flanges are widely used in petrochemical, chemical processing, oil & gas, power generation, and offshore platforms due to their corrosion resistance and mechanical strength.
Yes, types like Slip-On, Threaded, and Blind flanges are commonly used in low-pressure and non-welded piping systems, providing easy assembly and maintenance.
Country Of Origin: India
🔧 What is an SS Flange?
A Stainless Steel Flange is a forged or cast ring used to connect pipes, valves, pumps, or other equipment in a piping system. Flanges allow for easy disassembly, cleaning, or modification.
✅ Key Features:
Corrosion-resistant
Durable under pressure & heat
Available in multiple types & sizes
Supports welding, threading, or bolting
🔩 Common Flange Types
Flange Type Description Use Case
Weld Neck (WN) Long tapered hub, welded to pipe High-pressure/temperature systems
Slip-On (SO) Slides over pipe, fillet welded inside & outside Low-pressure systems
Socket Weld (SW) Recessed connection, welded only on the outside Small-bore pipes
Threaded (TH) Screwed onto threaded pipe Low-pressure, non-welded systems
Blind (BL) Seals end of a piping line Pressure testing, pipe ends
Lap Joint (LJ) Works with stub ends, loose-fitting Systems needing frequent dismantle
Orifice / Ring Type Joint (RTJ) Grooved sealing surface for high-pressure lines Petrochemical, offshore platforms
