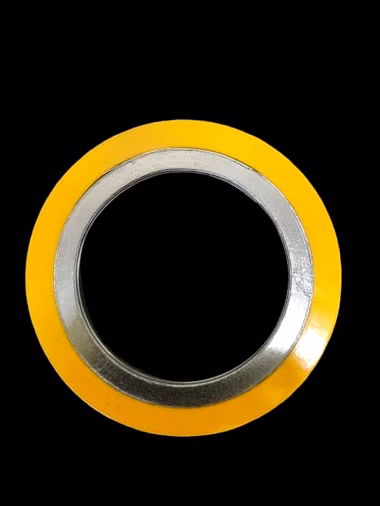

The Spiral Wound Gasket 1" 150# with CS Outer Ring is a precision-engineered sealing solution designed specifically for demanding industrial applications involving high temperatures and pressures up to 150 pounds per square inch. This gasket features a robust carbon steel (CS) outer ring that enhances stability and prevents gasket over-compression or blowout under extreme conditions. The internal spiral winding comprises a V-shaped stainless steel strip paired with a soft filler material, offering exceptional resilience and adaptability to flange irregularities. Ideal for use in petrochemical, refinery, power generation, and chemical industries, this gasket guarantees reliable sealing performance in corrosive and thermally challenging environments. The 1" size specification ensures compatibility with a vast range of piping and flange designs, while the 150# pressure rating adheres to standardized industrial requirements. With its superior durability and precise fit, this spiral wound gasket minimizes downtime by reducing leakage risk and facilitating easier installation and maintenance.
Key Features
| Features | Description |
|---|---|
| Size | 1 inch |
| Pressure Rating | 150# (150 psi) |
| Outer Ring Material | Carbon Steel (CS) |
| Winding Material | V-shaped Stainless Steel strip |
| Filler Material | Soft resilient filler (typically Graphite or PTFE) |
| Temperature Resistance | Suitable for high-temperature applications |
| Sealing Performance | Effective in high-pressure, high-temperature, and corrosive environments |
| Industrial Applications | Chemical, petrochemical, refinery, power plants |
| Durability | Resistant to over-compression and blowout |
| Installation | Easy to install with precise fit |
| Attributes | Description |
|---|---|
| Nominal Size | 1 inch |
| Pressure Class | 150# (150 psi) |
| Outer Ring Material | Carbon Steel (CS) |
| Spiral Winding Composition | V-shaped Stainless Steel strip |
| Filler Material | Graphite or PTFE (depending on application) |
| Applicable Standards | ASME B16.20 / API 601 |
| Operating Temperature Range | -50°C to 550°C (varies with filler) |
| Corrosion Resistance | High due to stainless steel winding and selected filler |
| Face Finish Compatibility | Suitable for raised face, flat face flanges |
| Pressure Sealing Capability | Up to 150 psi |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The carbon steel outer ring enhances the gasket's structural integrity, prevents over-compression, and protects against blowout under high-pressure circumstances, ensuring reliable sealing performance.
Yes, the combination of stainless steel spiral winding and soft filler materials such as graphite or PTFE provide excellent chemical resistance, making it suitable for many corrosive environments.
The gasket can operate effectively in temperatures ranging from -50°C up to 550°C, depending on the filler material used, making it suitable for most high-temperature industrial settings.
Yes, the 1 inch size adheres to industry-standard dimensions, ensuring compatibility with standard pipework and flange sizes for ease of installation.
This gasket typically complies with standards like ASME B16.20 and API 601, assuring quality and performance expectations in industrial applications.
A Spiral Wound Gasket (SWG) is a type of industrial gasket that is widely used in high-temperature, high-pressure, and corrosive environments. It consists of a V-shaped metal strip and a softer filler material that is wound in a spiral fashion to create a resilient sealing surface.
