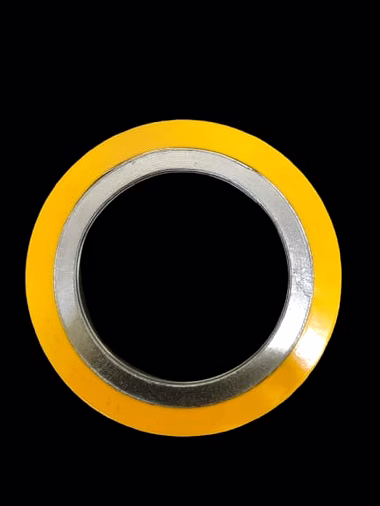

Our Spiral Wound Gaskets 3" with Carbon Steel (CS) Outer Ring are precision-engineered sealing solutions designed for demanding industrial applications involving high temperatures, elevated pressures, and corrosive environments. Each gasket combines a spirally wound V-shaped metal strip with a softer filler material, ensuring exceptional resilience and leak-proof performance. The 3-inch dimension suits a wide array of piping and flange sizes, while the robust carbon steel outer ring enhances structural integrity, flange alignment, and protects against damage during installation. This makes the gasket ideal for use in petrochemical, power generation, oil and gas, and chemical processing industries where sealing reliability is critical. These gaskets ensure durability and provide excellent resistance to chemical attack, thermal cycling, and mechanical stress, enhancing operational safety and equipment longevity.
Key Features
| Features | Description |
|---|---|
| Size | 3 inches |
| Outer Ring Material | Carbon Steel (CS) |
| Gasket Type | Spiral Wound Gasket (SWG) |
| Sealing Components | V-shaped metal strip and softer filler material |
| Operating Conditions | High-temperature, high-pressure, corrosive environments |
| Applications | Petrochemical, power plants, oil and gas, chemical industries |
| Structural Benefits | Outer ring ensures flange protection and alignment |
| Leak Resistance | Excellent sealing under thermal cycling and mechanical stress |
| Attributes | Description |
|---|---|
| Inner Diameter | 3 inches |
| Outer Ring Material | Carbon Steel (CS) |
| Filler Material | Graphite or PTFE (depending on model) |
| Metal Strip Material | Stainless steel (typical) |
| Temperature Range | -200 to 650°C (depending on filler) |
| Pressure Range | Up to 5000 psi |
| Standards Compliance | ASME B16.20, API 601 (typical) |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The carbon steel outer ring provides enhanced mechanical strength, protects the gasket during installation, ensures proper flange alignment, and reduces the risk of gasket buckling under high pressure conditions.
Yes, depending on the application requirements, fillers such as flexible graphite or PTFE can be used to enhance chemical resistance and temperature tolerance.
The gasket is designed to fit standard flange dimensions per ASME B16.5 and similar standards, but compatibility should be confirmed based on flange specifications and operating conditions.
Typically, it can withstand temperatures from -200°C up to 650°C and pressures up to 5000 psi, depending on the filler and metal materials used.
The spiral wound construction allows the gasket to maintain a tight seal even under thermal cycling and mechanical stress by combining resilience from the metal strip and compressibility from the filler material.
Country Of Origin: India
A Spiral Wound Gasket (SWG) is a type of industrial gasket that is widely used in high-temperature, high-pressure, and corrosive environments. It consists of a V-shaped metal strip and a softer filler material that is wound in a spiral fashion to create a resilient sealing surface.
