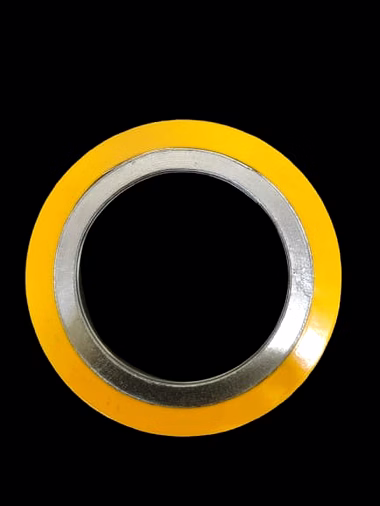

Spiral wound gaskets 0.5 are precision-engineered sealing solutions designed to provide reliable performance in high-pressure and high-temperature industrial applications. These gaskets are constructed by winding alternating layers of metallic strips and flexible filler materials into a compact spiral shape, ensuring exceptional resilience and leak-proof capabilities. The 0.5 specification denotes the gasket thickness, optimized for use in pipe flanges, heat exchangers, and pressure vessels with moderate sealing requirements. Their robust design enables superior mechanical strength, chemical resistance, and thermal stability, making them ideal for use in chemical processing plants, oil and gas facilities, power generation units, and other demanding industrial environments. With standardized dimensions and compatibility with various flange types, spiral wound gaskets 0.5 offer enhanced durability, ease of installation, and long service life, reducing downtime and maintenance costs for businesses.
Key Features
| Features | Description |
|---|---|
| Gasket Thickness | 0.5 mm |
| Construction | Alternating layers of metal strip and filler material wound spirally |
| Material Options | Stainless steel inner and outer rings with flexible filler materials such as graphite or PTFE |
| Temperature Range | -100°C to 550°C (depending on filler and metal type) |
| Pressure Rating | Suitable for high-pressure applications up to 50 bar |
| Application | Pipe flanges, heat exchangers, boilers, pressure vessels |
| Sealing Performance | Excellent leakage prevention under thermal cycling and mechanical stress |
| Standards Compliance | Manufactured as per ASME B16.20 and API standards |
| Attributes | Description |
|---|---|
| Thickness | 0.5 mm |
| Outer Diameter | Customizable as per flange size |
| Inner Diameter | Customized according to application requirements |
| Metal Type | 304 Stainless Steel / 316 Stainless Steel |
| Filler Material | Graphite / PTFE / Flexible Carbon |
| Temperature Range | -100°C to 550°C |
| Pressure Range | Up to 50 bar |
| Standards | ASME B16.20, API 601 |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The 0.5 mm spiral wound gaskets can be manufactured with filler materials including graphite, PTFE, or flexible carbon to suit different chemical and thermal resistance requirements.
Yes, the outer and inner diameters of the 0.5 mm spiral wound gaskets can be customized to fit specific flange dimensions and application needs.
Industries such as petrochemical processing, oil and gas, power generation, and chemical manufacturing commonly use 0.5 mm thick spiral wound gaskets for their reliability under high pressure and temperature.
Yes, these gaskets are manufactured in compliance with ASME B16.20 and API 601 standards to ensure safety and performance.
The gaskets are suitable for high-pressure applications up to 50 bar, depending on the specific material combination and operating conditions.
