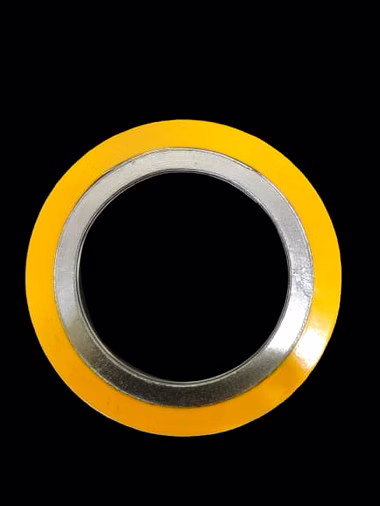

The Spiral Wound Gasket 0.5 is engineered specifically for demanding industrial applications where sealing integrity is critical under extreme conditions. This gasket features a precisely wound V-shaped metal strip combined with a flexible filler material to provide a robust and durable sealing solution. Designed for high-temperature, high-pressure, and corrosive environments, the 0.5 size Spiral Wound Gasket offers excellent resistance to deformation and leakage, ensuring long-term reliability in piping, heat exchangers, valves, and flanged joints. Its unique spiral construction allows for expansion and compression, maintaining a tight seal despite fluctuations in temperature and pressure, making it ideal for chemical processing, oil and gas, power generation, and other heavy industries. The 0.5 dimension assures precise compatibility with standardized flange sizes, facilitating easy installation and reducing downtime during maintenance. This gasket also offers superior chemical resistance due to the choice of filler material and corrosion-resistant metal winding, enhancing performance in aggressive media.
Key Features
| Features | Description |
|---|---|
| Size | 0.5 (thickness in inches or specific dimension) |
| Construction | V-shaped metal strip spiral wound with softer filler material |
| Temperature Resistance | Effective at high temperatures typically up to 1000°F (540°C) depending on materials used |
| Pressure Handling | Suitable for high-pressure applications, typically up to 5000 psi or as per design specifications |
| Material Composition | Combination of corrosion-resistant metal (e.g., stainless steel) and flexible filler (PTFE, graphite, or ceramic fiber) |
| Sealing Performance | Excellent recovery and resilience to maintain tight sealing under variable conditions |
| Application Areas | Used in chemical processing, oil & gas pipelines, power plants, and heat exchangers |
| Compatibility | Compatible with standard flange sizes corresponding to the 0.5 dimension |
| Installation | Easy to install and replace with minimal maintenance requirements |
| Attributes | Description |
|---|---|
| Thickness | 0.5 inches |
| Metal Strip Material | Stainless Steel (304/316) or Carbon Steel options |
| Filler Material | Graphite/PTFE/Ceramic fiber |
| Outer Diameter | Customized to flange specifications |
| Inner Diameter | Customized to flange specifications |
| Temperature Range | -200°F to 1000°F (-130°C to 540°C) depending on filler |
| Pressure Rating | Up to 5000 psi, subject to application conditions |
| Industry Standards | ASME B16.20, API 601, and other relevant standards |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The Spiral Wound Gasket 0.5 uses corrosion-resistant stainless steel for the metal winding and filler materials such as graphite or PTFE which provide chemical resistance in harsh environments.
Yes, the gasket can be manufactured with customized inner and outer diameters to fit various standard flange sizes while maintaining the 0.5 inch thickness.
Depending on the filler material, the gasket typically supports temperatures up to 1000°F (540°C) and pressures up to 5000 psi, suitable for most high-demand industrial applications.
The spiral wound construction allows for expansion and contraction, providing excellent recovery and maintaining a strong seal despite changes in temperature and pressure.
Yes, it meets key industry standards such as ASME B16.20 and API 601 ensuring reliability and safety in critical industrial applications.
A Spiral Wound Gasket (SWG) is a type of industrial gasket that is widely used in high-temperature, high-pressure, and corrosive environments. It consists of a V-shaped metal strip and a softer filler material that is wound in a spiral fashion to create a resilient sealing surface.
