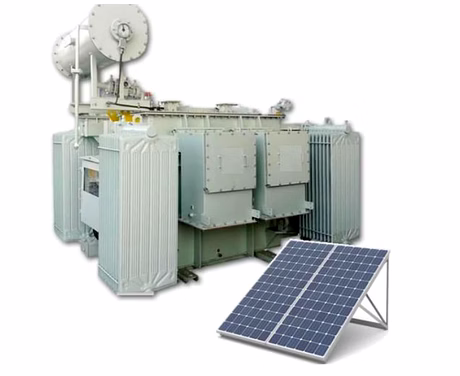

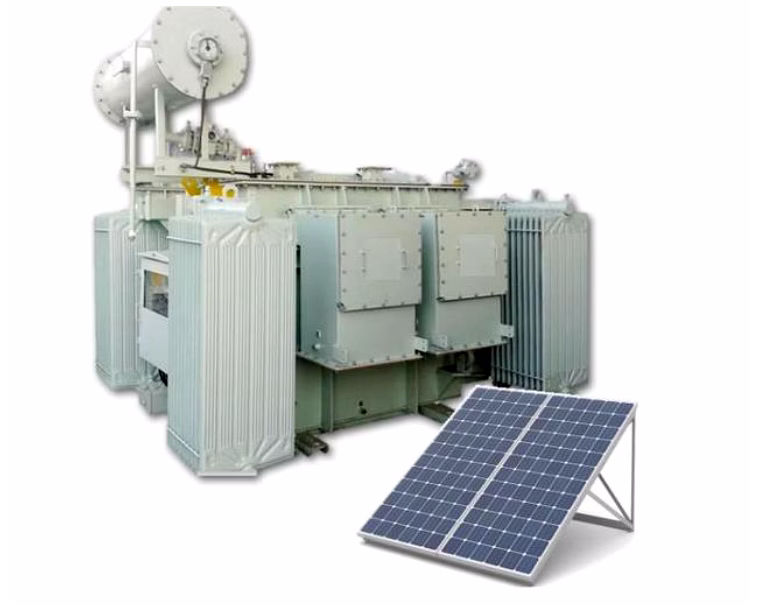

Our Solar Transformers are specifically engineered to meet the demanding requirements of large-scale solar photovoltaic (PV) power plants. Designed as inverter-duty transformers, these units are optimized to handle the unique solar load profiles, ensuring high efficiency and reliable performance. Available with multi-winding configurations ranging from 2 to 6 windings, these transformers provide flexibility in power distribution and system design. Customers can choose between oil-filled or dry-type transformers, according to the installation environment and maintenance preferences. Power ratings vary from 2 MVA to 12.5 MVA, with low voltage (LV) options spanning from 0.35 kV to 0.69 kV, and high voltage (HV) from 3.3 kV up to 33 kV. They feature low-loss construction, incorporating either high-quality aluminum or copper windings, enhancing energy efficiency. An electrostatic shield is integrated between the LV and MV windings to reduce noise and improve electromagnetic compatibility. These transformers are essential for solar power plant setups aiming for optimal energy management and grid integration. For custom specifications and further technical details, interested clients are encouraged to contact us directly.
Key Features
| Features | Description |
|---|---|
| Type | Inverter duty solar transformers |
| Load Profile Compatibility | Suitable for solar load profile |
| Winding Configurations | Multi-winding (2 to 6 windings) |
| Cooling Type | Oil-filled or Dry type |
| Power Rating | 2 MVA to 12.5 MVA |
| Low Voltage Side | 0.35 kV to 0.69 kV |
| High Voltage Side | 3.3 kV to 33 kV |
| Winding Material | Aluminum or Copper winding |
| Efficiency | Low-loss construction |
| Additional Feature | Electrostatic shield between LV and MV winding |
| Attributes | Description |
|---|---|
| Transformer Type | Inverter Duty Solar Transformer |
| Number of Windings | 2 to 6 winding options |
| Cooling Method | Oil filled or Dry type |
| Power Capacity Range | 2MVA to 12.5MVA |
| Low Voltage Side Rating | 0.35kV to 0.69kV |
| High Voltage Side Rating | 3.3kV to 33kV |
| Winding Material Options | Aluminum or Copper |
| Load Profile Suitability | Solar PV plant specific |
| Electrostatic Shield | Installed between LV and MV windings |
| Application | Large scale solar PV power plants |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
These transformers are inverter duty rated and designed specifically to handle rapid load variations and harmonics typical in solar PV plants, ensuring stable operation and minimal losses.
Yes, the solar transformers are offered in both oil-filled and dry type versions to accommodate different environmental, safety, and maintenance conditions.
Multi-winding (2 to 6 windings) allows for flexible power distribution and multiple voltage outputs, which is essential for complex solar power plant grids.
The electrostatic shield reduces electromagnetic interference and noise, improving transformer longevity and performance in sensitive solar PV applications.
Both options are available; aluminum windings offer cost savings and lighter weight, while copper provides better conductivity and efficiency. The choice depends on project specifications.
The LV side voltage ratings range from 0.35kV to 0.69kV, while the HV side covers 3.3kV up to 33kV, supporting various solar PV plant configurations.
Country Of Origin: India
We can supply solar transformers ideally suited for large MW scale solar PV plants.
Bullet Points - . Inverter duty Solar transformers, suitable for solar load profile . Multi-winding (2 to 6 windings), oil-filled or dry type. . 2MVA to 12.5MVA, LV Side: 0.35kV to 0.69kV, HV Side 3.3kV to 33kV . Low-loss, with Aluminum or Copper winding. . Electrostatic shield between LV and MV Winding. For more details please contact us
