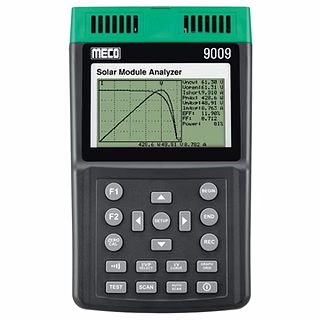

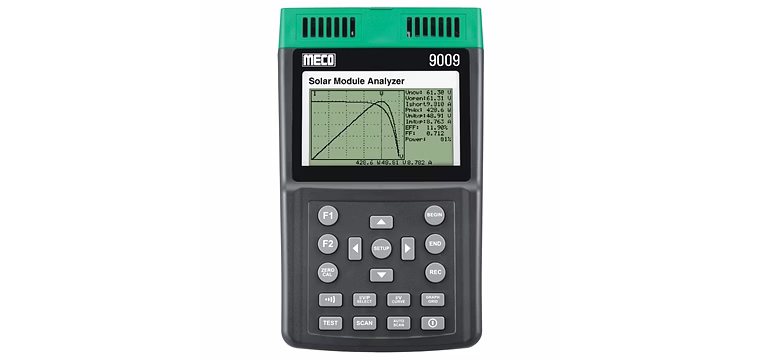

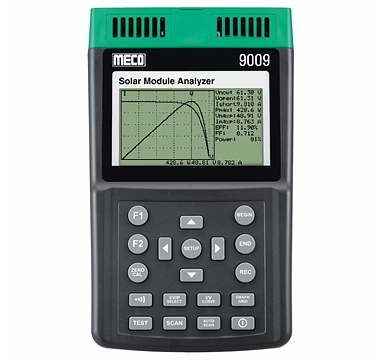

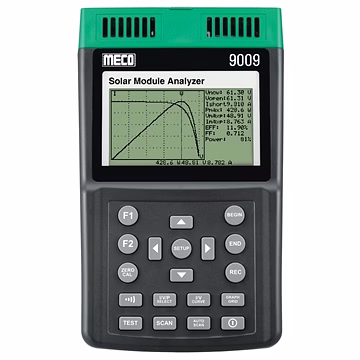

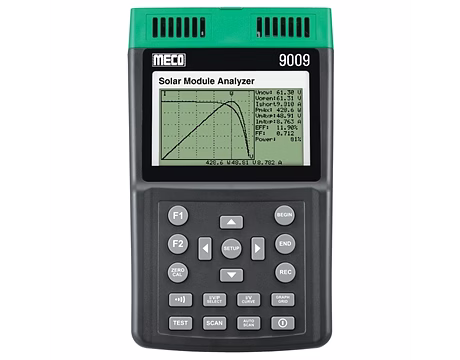

The SOLAR MODULE ANALYZER (PHOTOVOLTAIC I-V CURVE TESTER) Model 9009 by Meco Instruments Private Limited is a highly efficient and precise device designed for comprehensive testing of solar panels, modules, and cells. With the capability to conduct I-V curve analysis, the tester supports automated power search up to 60V and 12A, accommodating a maximum power of 500W, making it ideal for both small and medium-sized photovoltaic systems. It offers exceptional resolution with 1mV voltage and 1mA current accuracy, allowing detailed manual single-point I-V testing. The device can measure essential parameters such as maximum voltage at peak power (Vmaxp), maximum current at peak power (Imaxp), open circuit voltage (Vopen), and short circuit current (Ishort). Featuring a large, backlit LCD screen with cursor functionality, users can easily view the detailed I-V curve with data point precision. It also calculates solar panel efficiency based on user-defined panel area (from 0.001 m² up to 9999 m²) and customizable standard light source settings ranging from 10 W/m² to 1000 W/m², ensuring accurate field measurements. The analyzer is equipped with a USB interface for PC communication, supports internal data logging with storage for 100 records, and allows adjustable data sampling intervals from 0 to 99 minutes. Powered by both an AC adapter and a rechargeable lithium battery, this tester is built for convenience and portability in field and lab environments. This model is an indispensable tool for solar module manufacturers, testing laboratories, and research institutions looking for reliable and precise photovoltaic characterization tools.
Key Features
| Features | Description |
|---|---|
| I-V Curve Testing Capability | Comprehensive I-V curve analysis for solar panels, modules, and cells |
| Power Search Range | Auto-scan supports up to 60V and 12A (500W capability) |
| Measurement Resolution | High precision with 1mV voltage and 1mA current resolution |
| Manual Single Point I-V Testing | Manual testing for precise voltage and current at max power, open circuit, and short circuit points |
| Solar Panel Efficiency Calculation | Calculates efficiency using customizable panel area and light source settings |
| Data Logging and Storage | Memory for 100 records with configurable sampling intervals from 0 to 99 minutes |
| Display | Large LCD with backlight and cursor function for detailed data point display |
| Communication Interface | USB connection for seamless PC data transfer |
| Power Supply | Supports both AC adapter and rechargeable lithium battery for field portability |
| Solar Panel Area Range | Settable from 0.001 m² up to 9999 m² for tailored efficiency calculations |
| Standard Light Source Range | Adjustable from 10 W/m² to 1000 W/m² for various testing conditions |
| Attributes | Description |
|---|---|
| Model | 9009 |
| Voltage Range | 0 - 60V |
| Current Range | Up to 12A |
| Maximum Power Capability | 500W |
| Voltage Resolution | 1mV |
| Current Resolution | 1mA |
| Memory Capacity | 100 Records |
| Data Sampling Time | 0 to 99 minutes configurable |
| Display | Large LCD with backlight and cursor |
| Communication Interface | USB |
| Power Supply | AC adapter and rechargeable lithium battery |
| Solar Panel Area Setting Range | 0.001 m² to 9999 m² |
| Light Source Setting Range | 10 W/m² to 1000 W/m² |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Yes, the device measures voltage at open circuit (Vopen) and current at short circuit (Ishort) accurately.
Absolutely, the solar panel area can be set anywhere from 0.001 m² to 9999 m² to ensure precise efficiency computation.
Yes, it features a USB interface that allows seamless data communication and export to a PC.
The analyzer supports solar panel/module power up to 500W, making it suitable for various small to medium photovoltaic modules.
Yes, it comes with a rechargeable lithium battery and an AC adapter, ensuring flexibility during field tests.
Brand: meco
Country Of Origin: India
MECO Model 9009 is listed as a Solar Module Analyzer (PHOTOVOLTAIC I-V CURVE Tester) for buyers sourcing solar module analyzer and related photovoltaic I-V curve tester solutions. The content has been rewritten from the supplied catalogue details while retaining the stated product category, model reference and specifications. Key listed specification: I-V Curve Test for Solar Panel / Module / Cell. It is suitable for professional procurement teams comparing electrical, industrial or marketplace-ready product information. The description supports B2B evaluation with clear facts, structured attributes and search-relevant terminology.
Features:
Attributes:
Product Overview
MECO 9009 is presented as a Solar Module Analyzer (PHOTOVOLTAIC I-V CURVE Tester) within the Solar Analyzers category. This rewritten listing uses the provided product title, summary and available specification details to support accurate B2B sourcing for international buyers.
Technical Details
The listed information includes Model: 9009; I-V Curve Test for Solar Panel / Module / Cell; Max. Solar Panel / Module / Cell Power (Pmax) search by Auto-Scan : 60V, 12A (500W Capability); Best Resolution : 1mV, 1mA; Manual Single Point I-V Test. These details help buyers assess the product against application needs such as electrical testing, measurement, calibration, monitoring, panel installation or field maintenance where applicable.
Application Suitability
This solar module analyzer listing is suitable for procurement teams, distributors and importers who need structured product data for online marketplaces and catalogue comparison. Related keywords include photovoltaic I-V curve tester, solar PV tester and solar panel analyzer, used naturally to improve search relevance.
B2B Buyer Value
The rewritten content emphasizes clear specifications, model identification and category alignment rather than unsupported claims. This helps technical buyers compare the product with similar instruments, request quotations and evaluate suitability for industrial, commercial or resale requirements.
Listing Accuracy
All wording is based on the supplied source data for Product ID 8608902. No unverified certification, packaging, warranty or performance claim has been added, ensuring the page remains factual, searchable and appropriate for international B2B product discovery.
Question: What is the product name?
Answer: The product is MECO 9009 Solar Module Analyzer (PHOTOVOLTAIC I-V CURVE Tester), listed under Solar Analyzers.
Question: Which buyers is this product suitable for?
Answer: It is suitable for B2B buyers, importers, distributors and technical procurement teams sourcing solar module analyzer products for professional use.
Question: What key details are provided?
Question: Does this FAQ include unverified claims?
Answer: No. The FAQ uses only the supplied product title, description, brand, model, category and listed specifications.
Question: How does this content support AI discoverability?
Answer: It uses structured questions, factual answers, product identifiers and relevant industry keywords such as solar module analyzer, photovoltaic I-V curve tester and solar PV tester.
