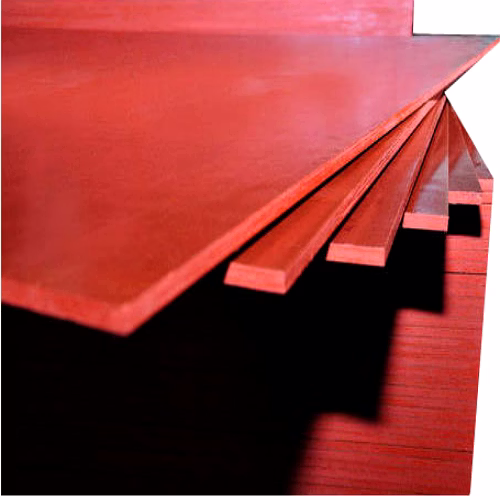

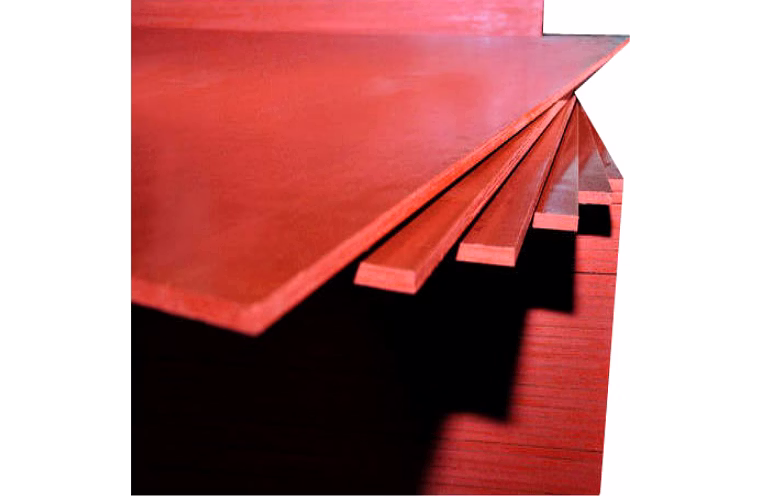

Shuttering Plywood is a high-quality, durable plywood specially designed for concrete formwork applications in the construction industry. It provides a smooth surface finish and excellent strength to withstand the pressure of wet concrete during casting. Manufactured with phenolic film face, this plywood offers water resistance, abrasion resistance, and superior durability for multiple reuse cycles. Ideal for architects, contractors, and builders, shuttering plywood ensures dimensional stability, minimal warping, and excellent load-bearing capacity to maintain the shape and integrity of concrete structures. It is widely used in casting beams, columns, walls, slabs, and other structural elements requiring precise formwork. This product meets industry standards for moisture resistance and strength, making it an essential material in construction projects aiming for high-quality concrete finishes and reduced formwork labor.
Key Features
| Features | Description |
|---|---|
| Surface Finish | Smooth phenolic film face for superior concrete finish |
| Water Resistance | High moisture resistance to prevent swelling and delamination |
| Strength | Excellent load-bearing capacity suitable for heavy concrete pressure |
| Durability | Abrasion-resistant surface ensuring multiple reuse cycles |
| Dimensional Stability | Minimal warping and deformation under wet conditions |
| Thickness Options | Available in various thicknesses typically ranging from 12mm to 21mm |
| Panel Size | Standard panel size of 8ft x 4ft or customized dimensions |
| Adhesive Type | Phenolic glue bonded for waterproof performance |
| Environmental Compliance | Made using eco-friendly adhesives and sustainable wood sources |
| Attributes | Description |
|---|---|
| Material | High-quality hardwood and softwood veneers |
| Core Type | Multi-layered core with cross-bonded veneers |
| Face Finish | Phenolic film coated |
| Thickness | 12mm, 15mm, 18mm, 21mm |
| Panel Dimensions | 2440mm x 1220mm (8ft x 4ft) |
| Glue Type | Phenolic resin, waterproof |
| Usage | Concrete formwork/shuttering |
| Reusability | Can be reused multiple times depending on usage |
| Compliance Standard | IS 4990:2006 - Specification for Phenol Formaldehyde Bonded Plywood |
| Weight | Varies by thickness; approx. 10-15 kg/m² |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Yes, this shuttering plywood is coated with a phenolic film surface providing abrasion resistance and waterproofing that allows multiple reuse cycles in concrete formwork applications.
The plywood is available in various thicknesses including 12mm, 15mm, 18mm, and 21mm to suit different construction needs.
Yes, it complies with IS 4990:2006 specifications for phenol formaldehyde bonded plywood, ensuring high durability and waterproof performance.
Standard panel sizes are typically 8ft by 4ft; however, customization options may be available depending on the supplier capabilities.
The phenolic film provides a smooth, non-stick surface that results in high-quality concrete finishes and minimizes formwork cleaning time.
