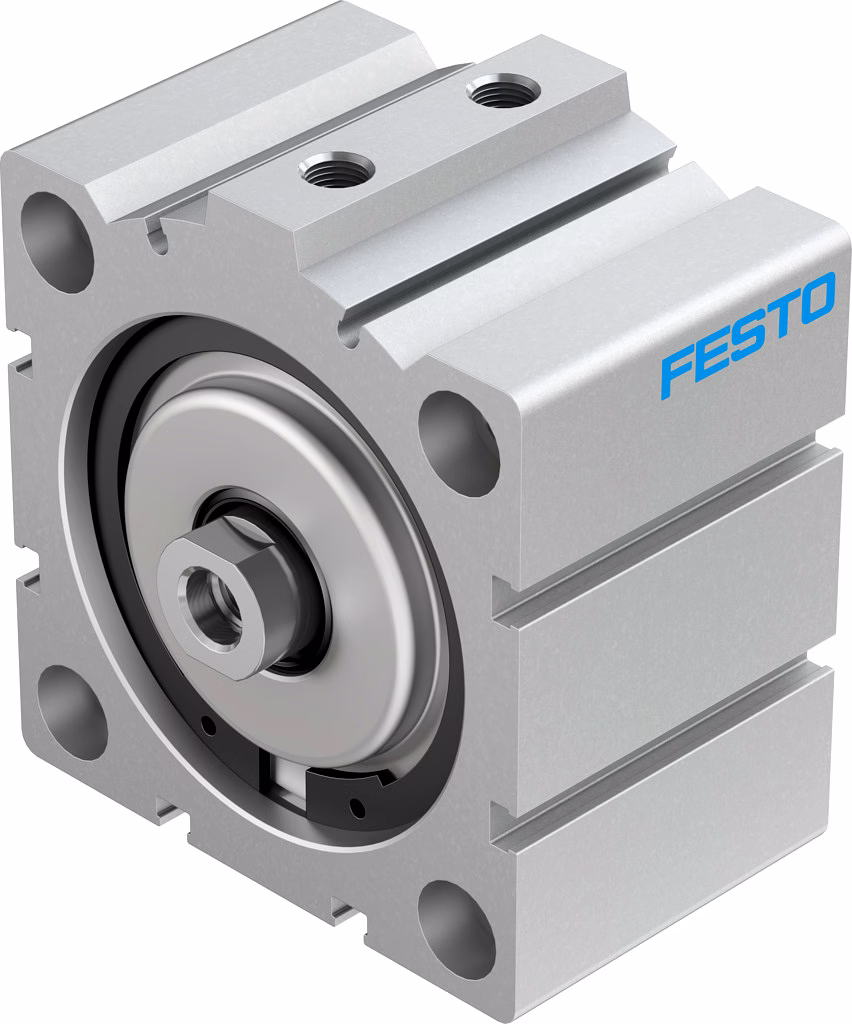

The Festo ADVC-80-20-I-P (188314) is a specialized short-stroke pneumatic cylinder engineered for applications requiring high force within limited space constraints. Designed with precision and robustness, this cylinder delivers reliable and powerful linear motion, ensuring optimal performance in demanding industrial environments. Constructed from high-quality aluminum, it combines durability with lightweight characteristics, making it suitable for automation systems, pressing tasks, and clamping operations. Its compact form factor enables seamless integration into machinery where space efficiency and mechanical strength are critical. The cylinder’s advanced design ensures consistent output force and precise positioning, enhancing overall process efficiency in manufacturing and processing industries.
Key Features
| Features | Description |
|---|---|
| Cylinder Type | Short-stroke pneumatic cylinder |
| Model Number | ADVC-80-20-I-P (188314) |
| Stroke Length | 20 mm |
| Bore Diameter | 80 mm |
| Material | Robust Aluminum Body |
| Mounting Type | Integrated mounting solutions |
| Force Output | High force suitable for pressing and clamping |
| Motion | Precise linear motion |
| Application Areas | Automation, pressing, clamping |
| Design | Compact, space-saving design |
| Attributes | Description |
|---|---|
| Stroke Length | 20 mm |
| Bore Diameter | 80 mm |
| Operating Pressure Range | 2 - 10 bar |
| Maximum Force Output | Dependent on pressure, approx. 500 N at 8 bar |
| Operating Temperature Range | -10°C to +60°C |
| Weight | Approximately 2.5 kg |
| Port Size | M12 x 1.5 |
| Cushioning | Adjustable cushioning at the end positions |
| Seal Type | High-quality pneumatic seals for leak prevention |
| Connection Type | Pneumatic fittings compatible with industrial automation |
| Compliance Standards | Compliant with ISO 6431 pneumatic cylinder standards |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The ADVC-80-20-I-P cylinder operates safely within a pressure range of 2 to 10 bar, with optimal performance around 8 bar.
Yes, its compact design and short-stroke functionality make it ideal for applications where space constraints are critical.
The cylinder features a robust aluminum body designed for durability and lightweight operation.
Yes, it is specifically designed for automation, pressing, and clamping, delivering high force output and precise linear motion required for these tasks.
Yes, the cylinder includes high-quality pneumatic seals designed to prevent air leakage and maintain performance.
Brand: festo
Country Of Origin: Germany
The Festo ADVC-80-20-I-P (188314) is a short-stroke pneumatic cylinder designed for high force output in compact spaces. It delivers powerful and precise linear motion. Its robust aluminum construction ensures durability, while the compact design makes it ideal for automation, pressing, and clamping applications.
