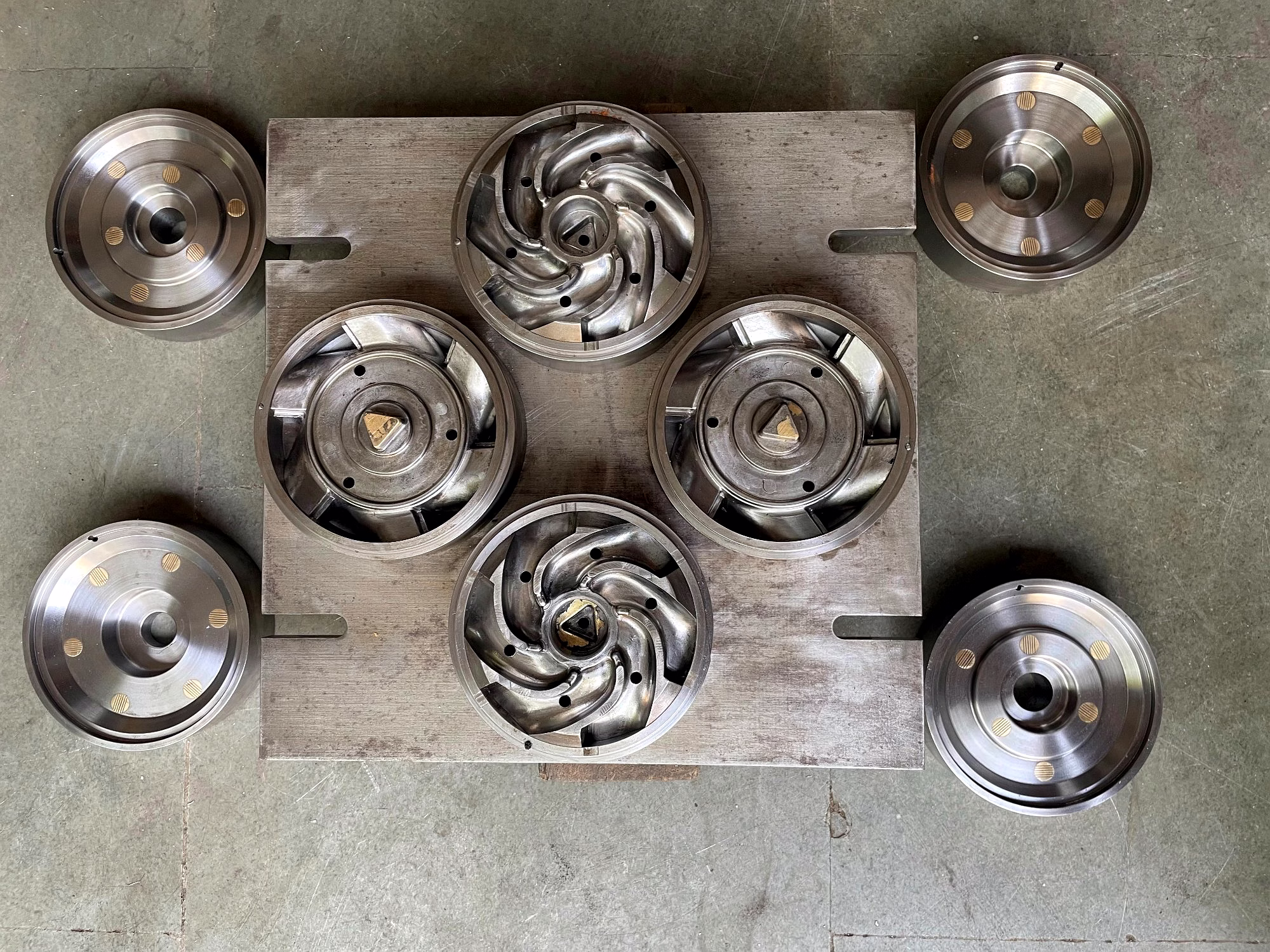

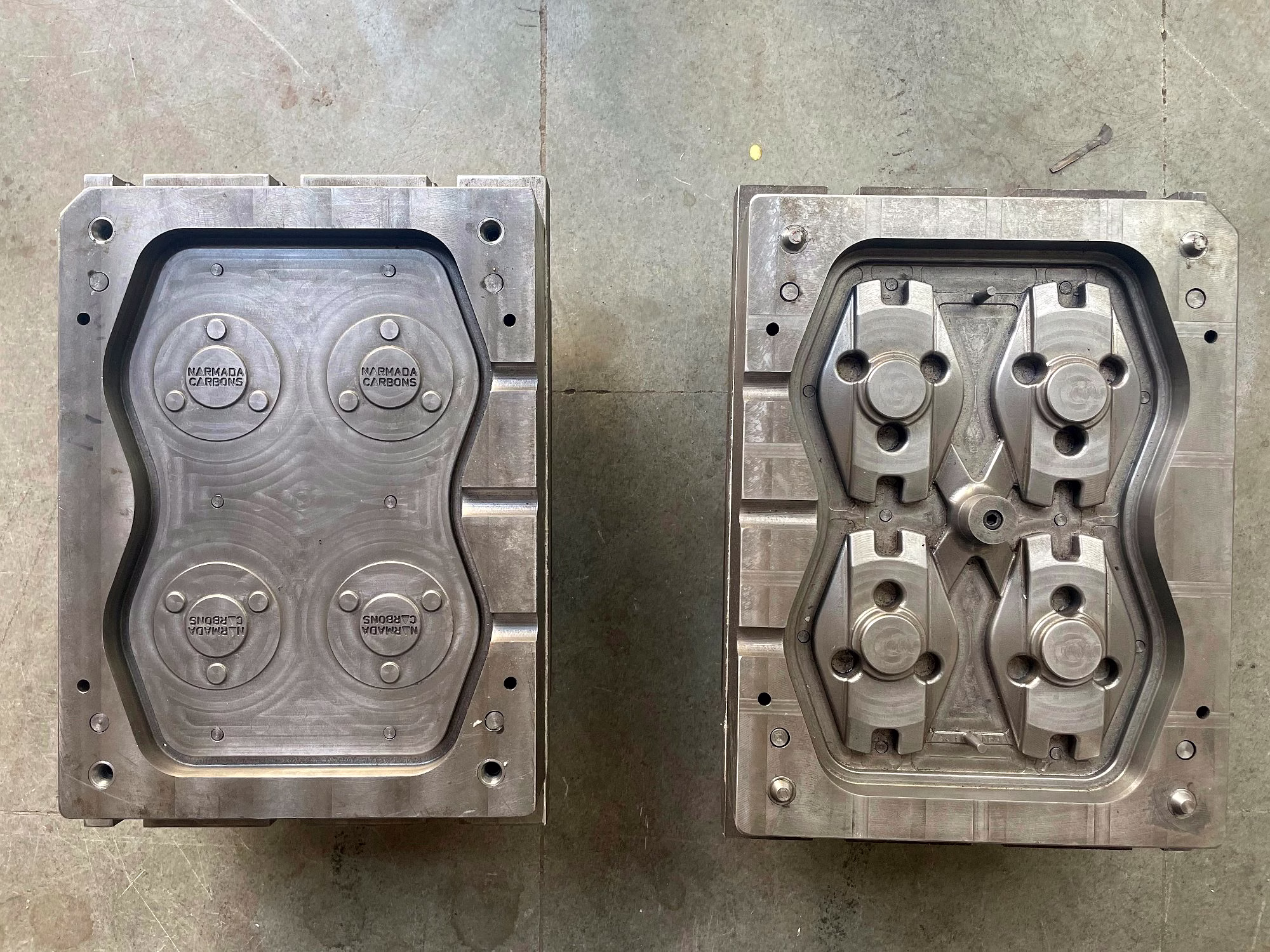

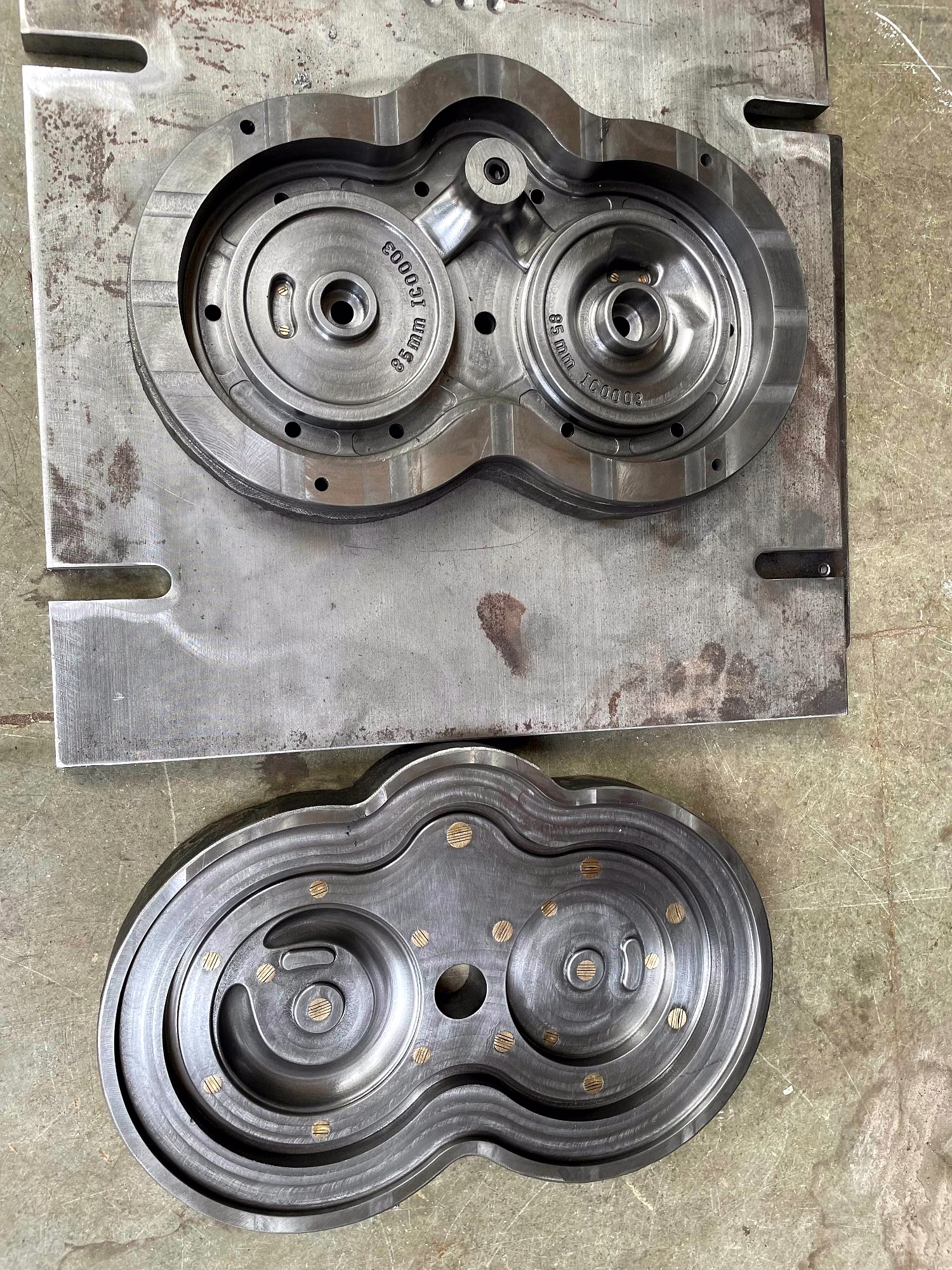

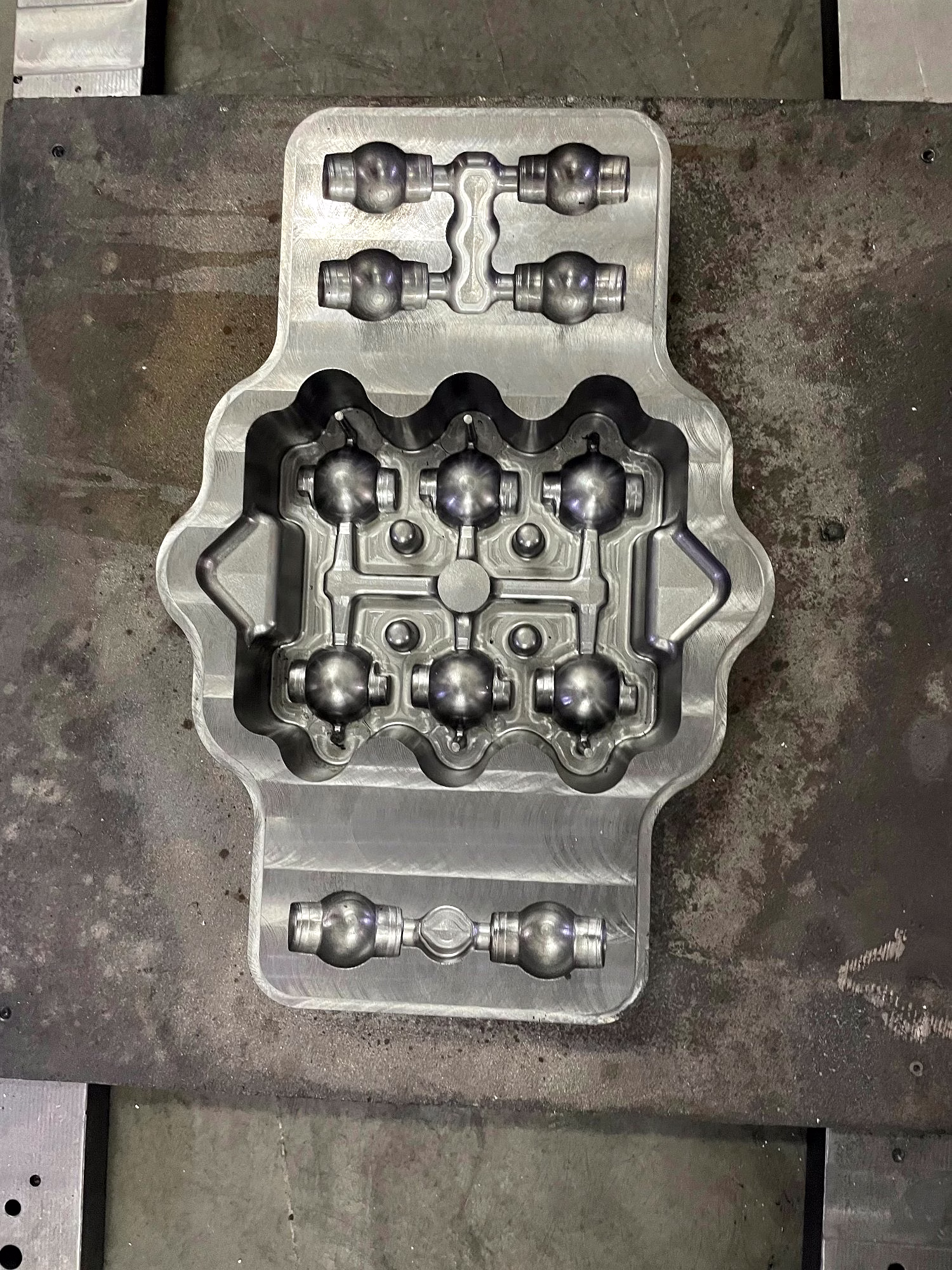

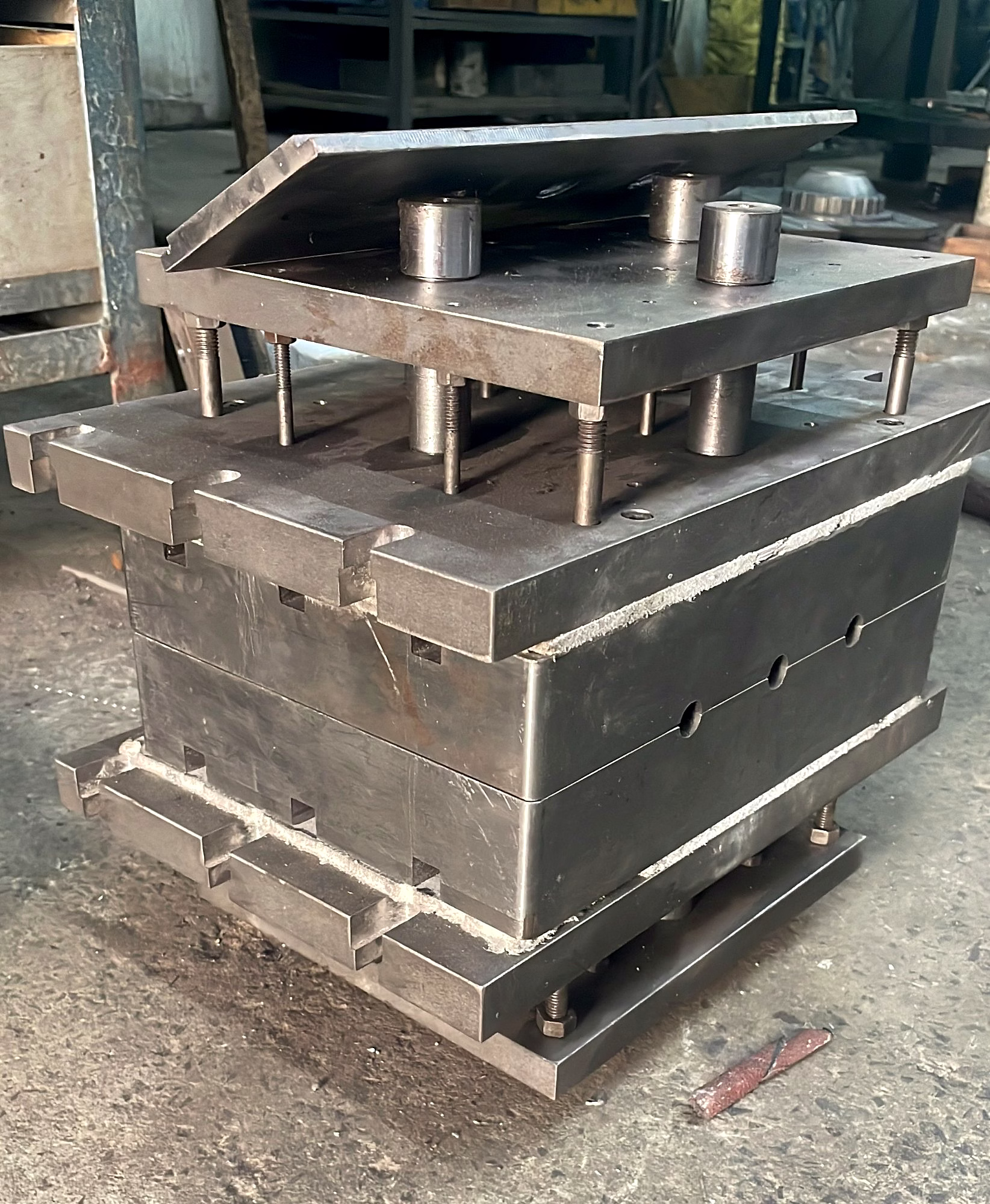

The Shell Core Die and Shell Moulding Die are precision-engineered tools specifically designed for the foundry industry to produce hollow or cored metal components with high accuracy. The Shell Core Die is utilized to manufacture cores that create the internal cavities or complex hollow sections within castings. It operates by forming a hardened shell from a mixture of shell sand and thermosetting resin within a core box, ensuring consistent and durable core shapes essential for high-quality casting. On the other hand, the Shell Moulding Die is used in the shell moulding process, a method that involves forming a thin shell of sand bonded by resin around the die's surface, which serves as a mould for casting metal components with intricate geometries and fine surface finishes. Both dies enable foundries to achieve precise, repeatable casting dimensions and superior surface quality, significantly improving casting efficiency and reducing post-processing requirements. They are manufactured using high-strength materials to withstand high temperatures and repetitive usage, making them reliable tools in modern casting operations.
Key Features
| Features | Description |
|---|---|
| Purpose | Shell Core Die is used to create sand cores for hollow sections; Shell Moulding Die is used to form the mould shell for casting. |
| Material Compatibility | Suitable for various thermosetting resin coated shell sand mixtures. |
| Precision | Provides high accuracy in core and mould shape for complex casting geometries. |
| Durability | Manufactured from robust metals to endure high temperature and repeated cycles. |
| Surface Finish | Ensures smooth surface finish on cores and moulds reducing the need for machining. |
| Customization | Customizable design allows for varied core and mould shapes per casting requirements. |
| Use in Foundry Industry | Ideal for use in shell moulding casting processes for metals like iron, steel, and aluminum. |
| Attributes | Description |
|---|---|
| Core Box Material | Metal, Wood, or Plastic (depending on application) |
| Sand Type | Thermosetting resin coated shell sand |
| Die Material | High-grade steel or alloy |
| Temperature Resistance | Withstands casting temperatures up to 1200°C |
| Typical Core Thickness | 2-20 mm |
| Compatibility | Compatible with automatic and manual shell moulding processes |
| Lifecycle | Designed for thousands of casting cycles with proper maintenance |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The Shell Core Die is compatible with thermosetting resin coated shell sand mixtures, typically used in iron, steel, and aluminum casting processes.
By forming precise hardened sand cores in the shape of the internal cavity, the Shell Core Die ensures exact replication of hollow sections resulting in improved dimensional accuracy.
Yes, the Shell Moulding Die can be customized to accommodate intricate mould shapes, enabling the production of castings with complex designs and fine details.
Manufactured from high-grade steel or alloy, these dies typically withstand thousands of casting cycles with proper maintenance and handling.
Yes, Shell Core Dies and Shell Moulding Dies are designed for compatibility with both manual and automated shell moulding processes.
Country Of Origin: India
Shell core die and shell mould die are two different types of dies used in the foundry industry for creating hollow or cored components.
