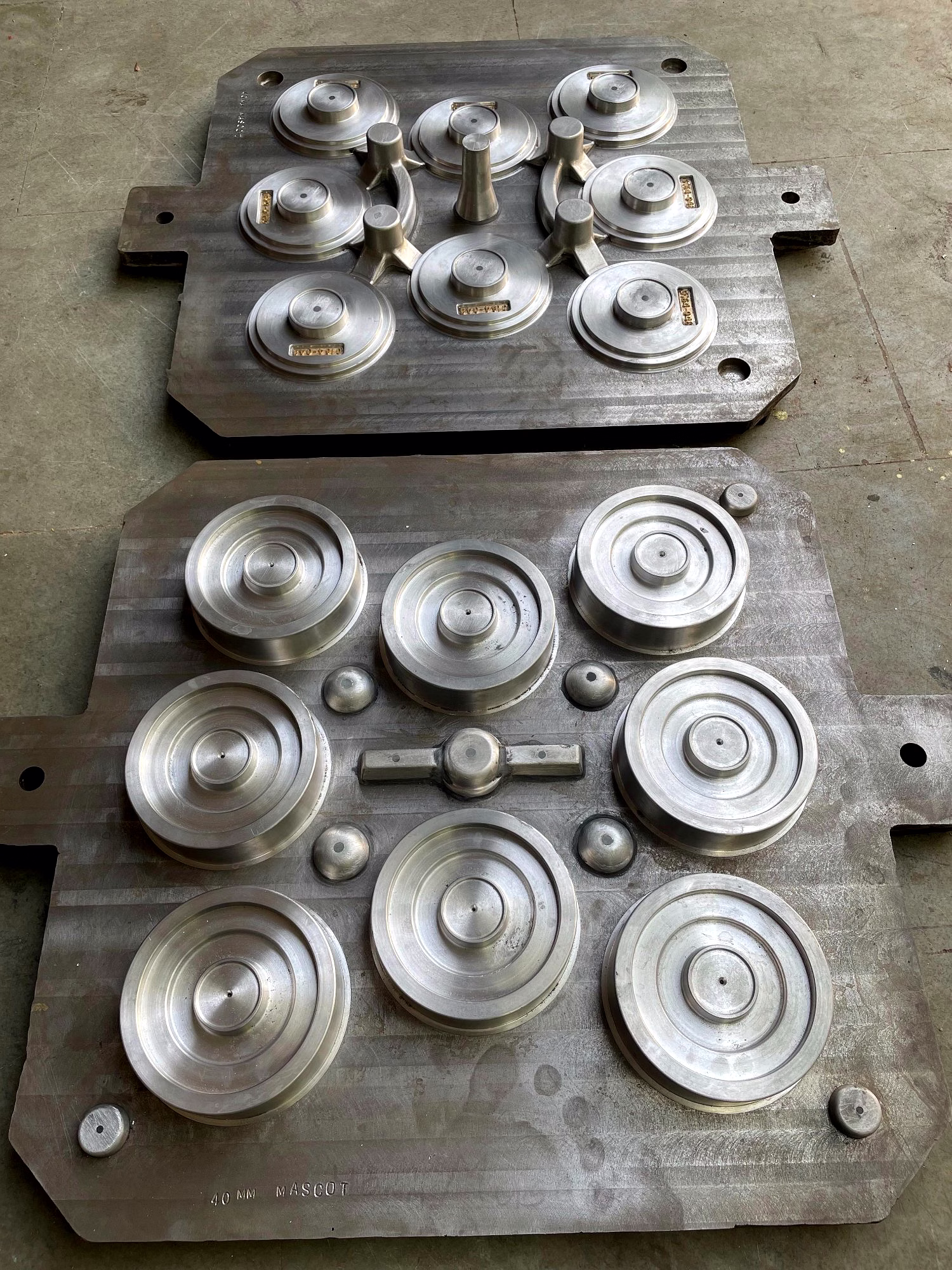

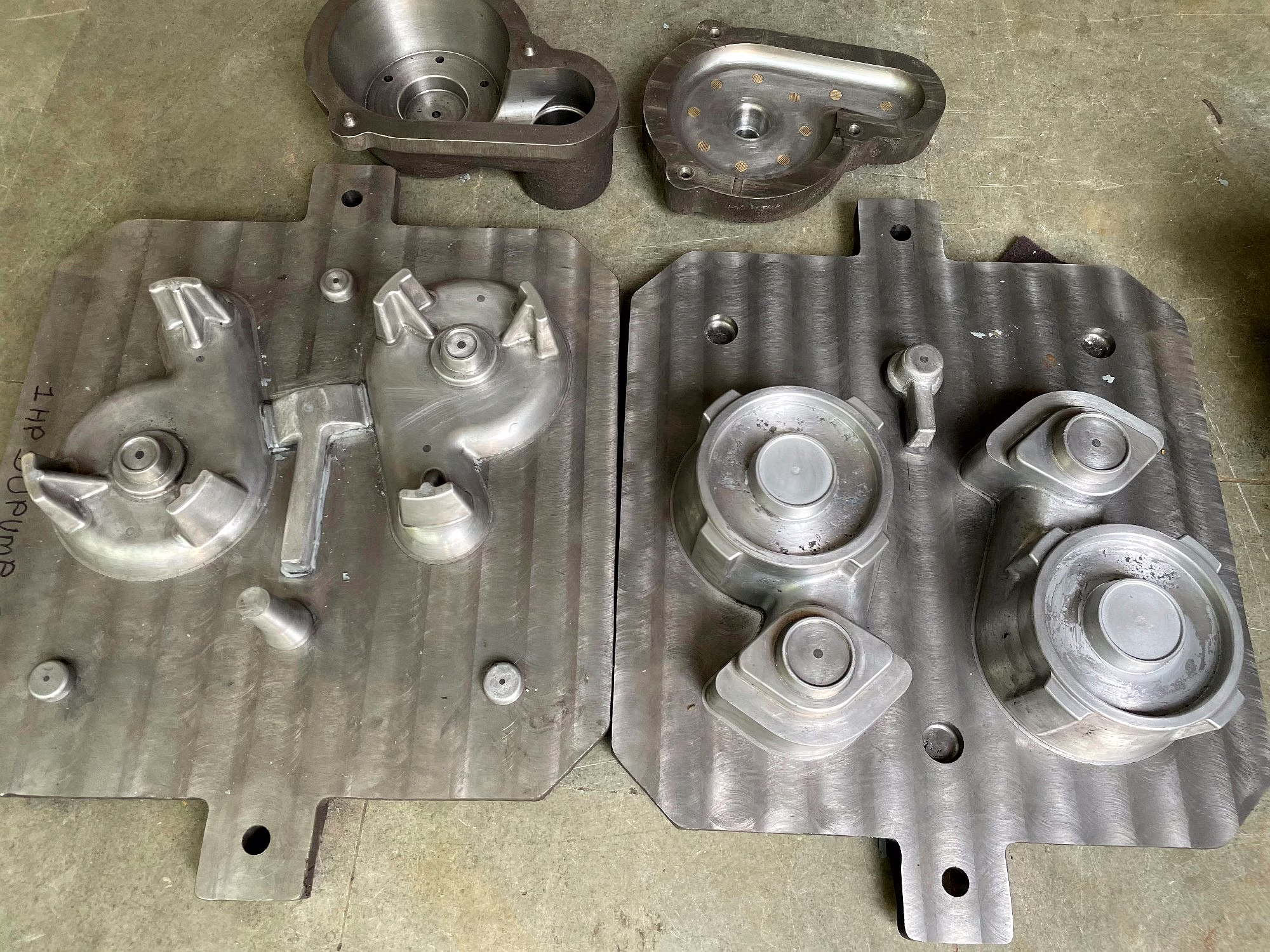

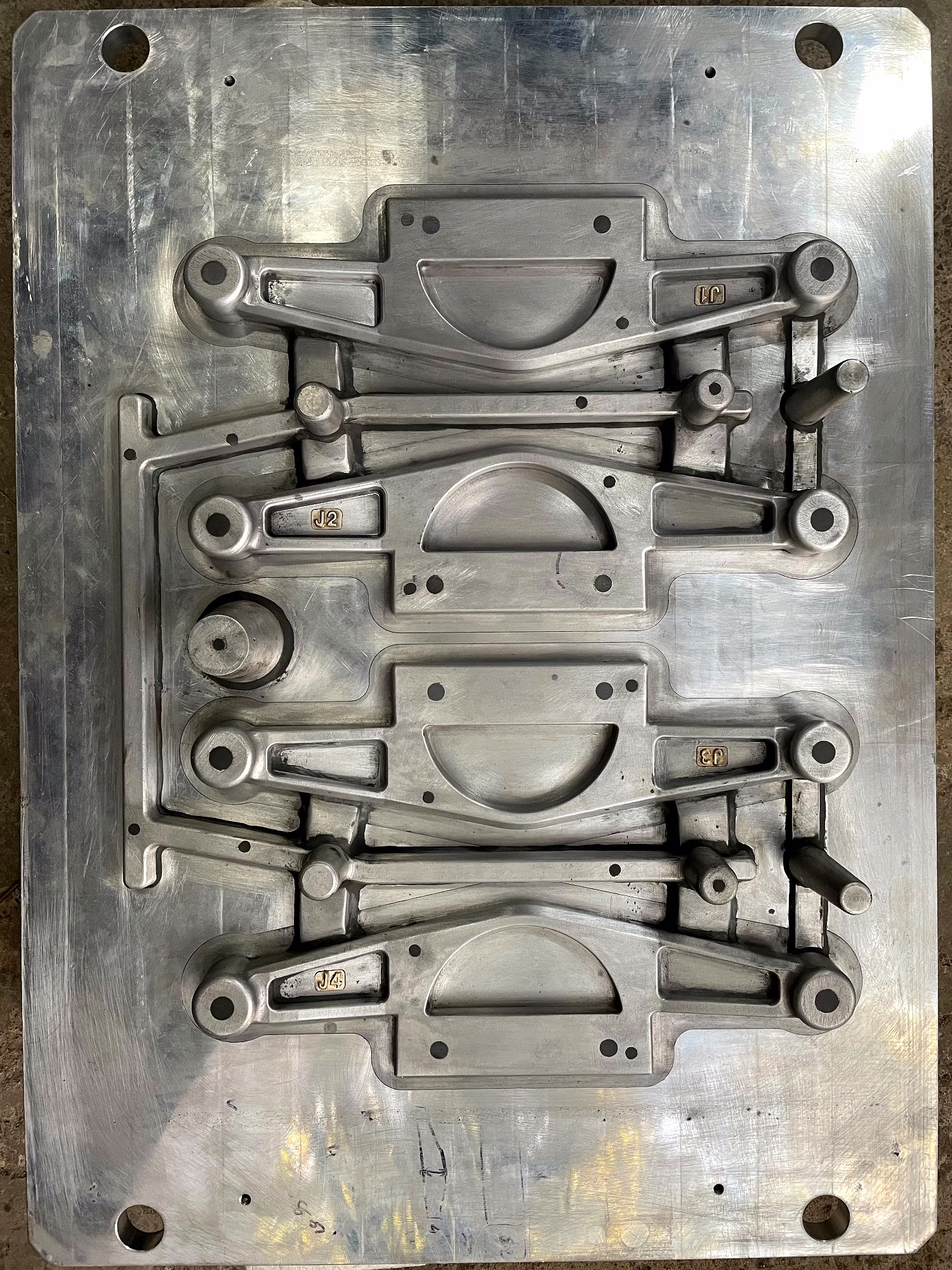

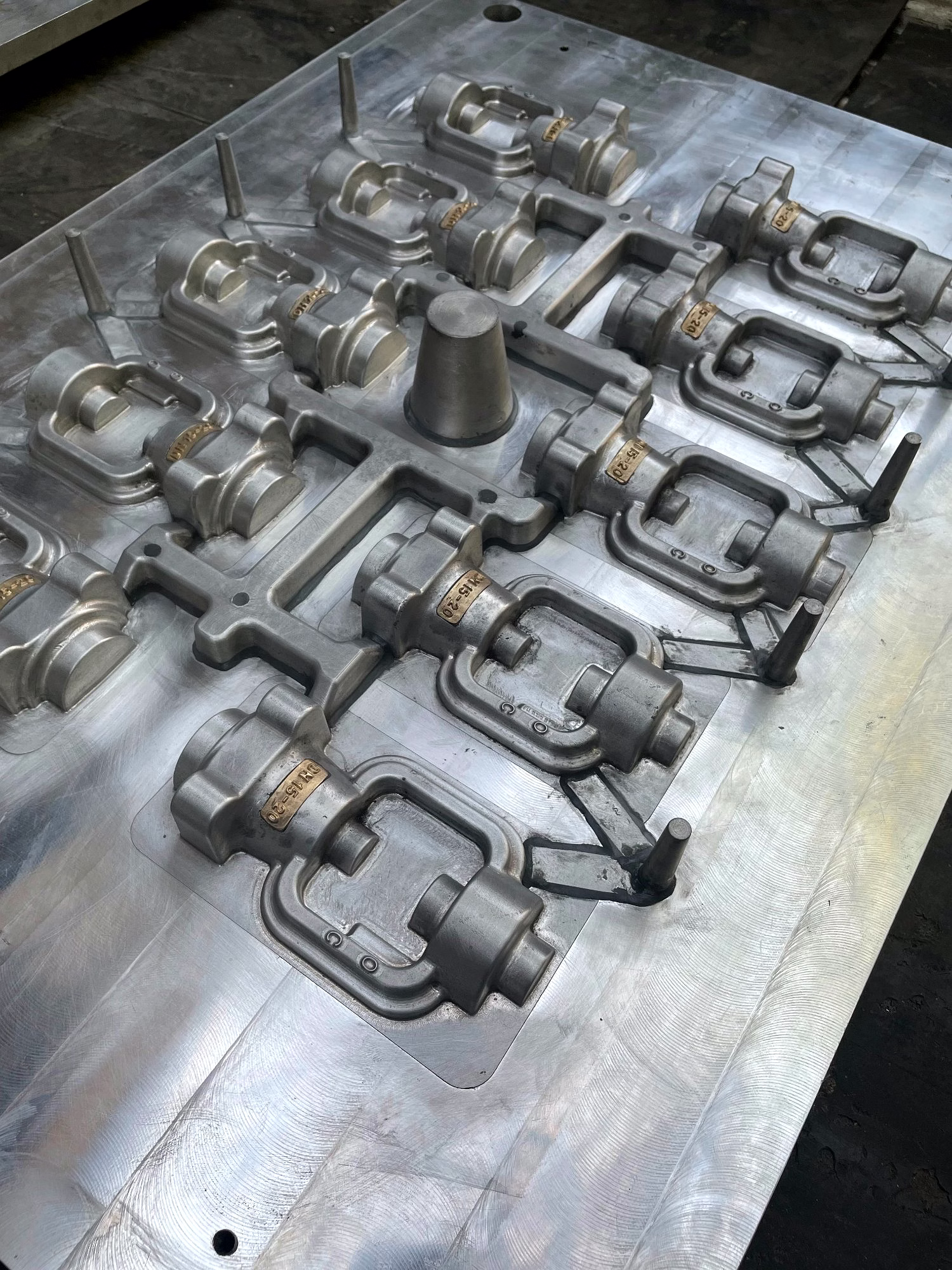

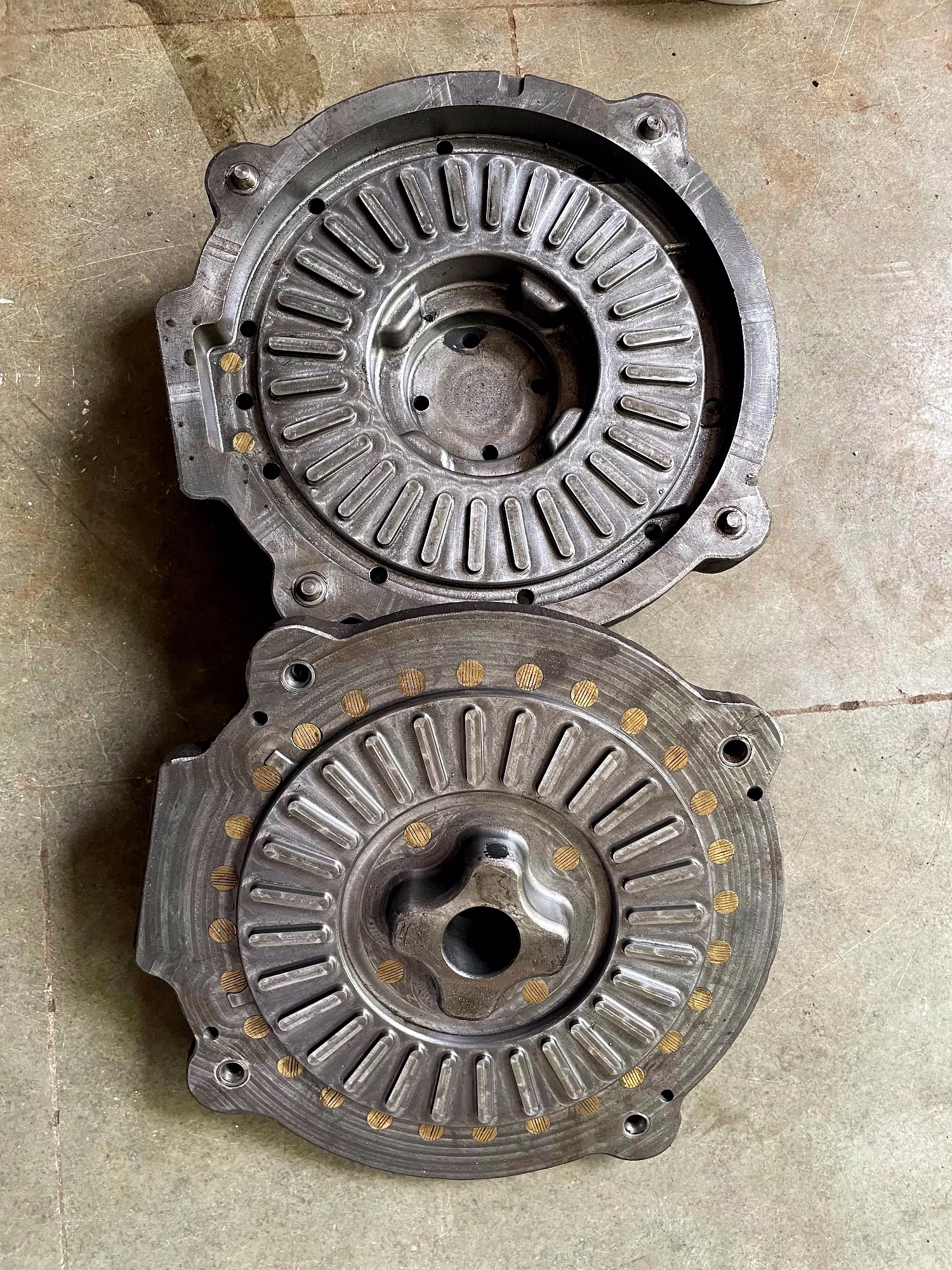

Machine Moulding Patterns & Dies are specialized tools used in advanced sand casting processes within the foundry industry. Crafted with high precision using CNC machining technology, these patterns enable the creation of extremely accurate and complex moulds for metal casting. The Machine Moulding Pattern facilitates rapid and efficient production, ensuring consistency and repeatability essential for industrial-scale operations. Meanwhile, the High-Pressure Moulding Line (HPML) pattern is engineered to endure the rigors of the high-pressure moulding process. It combines resilient wood and metal materials, offering durability and stability required under intense operational pressures. Together, these patterns and dies are critical components in foundries aiming for superior quality, reduced lead times, and higher production throughput in metal casting applications.
Key Features
| Features | Description |
|---|---|
| Production Method | CNC machined for precision and consistency |
| Material Composition (HPML Pattern) | Hybrid construction using wood and metal for strength and durability |
| Application | Used in sand casting processes, especially high-pressure moulding lines |
| Durability | Designed to withstand high pressure and repeated use |
| Complexity | Capable of producing intricate and detailed mould patterns |
| Efficiency | Enables rapid mould creation reducing production time |
| Suitability | Ideal for industrial foundries requiring high accuracy and throughput |
| Attributes | Description |
|---|---|
| Pattern Type | Machine Moulding Pattern and HPML Pattern |
| Manufacturing Technique | CNC Machining |
| Materials Used | Wood and Metal composites (for HPML), high-grade pattern materials for CNC patterns |
| Usage Environment | High-pressure moulding sand casting lines |
| Compatibility | Compatible with automated moulding lines requiring precision patterns |
| Maximum Operational Pressure | Designed for high-pressure casting applications (specific pressure values may vary) |
| Customization | Patterns can be custom-designed per casting requirement |
| Durability | High resistance to wear and deformation under pressure |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
HPML patterns are typically made from a hybrid of wood and metal. Wood provides ease of shaping and repairs while metal components offer structural strength to withstand the high pressures used in the HFML sand moulding process.
CNC machining ensures high precision and repeatability in creating complex mould shapes, leading to improved dimensional accuracy in castings and faster turnaround during pattern production.
Yes, machine moulding patterns and HPML patterns are fully customizable as per the dimensional and design requirements of the casting component.
Absolutely. HPML patterns are specifically designed for compatibility with automated high-pressure sand moulding lines, ensuring durability and reliability under intensive production conditions.
The lifespan depends on factors like material, operating pressure, and frequency of use, but CNC machined patterns and HPML patterns are designed to offer long-term durability with minimal maintenance in industrial foundry environments.
Country Of Origin: India
