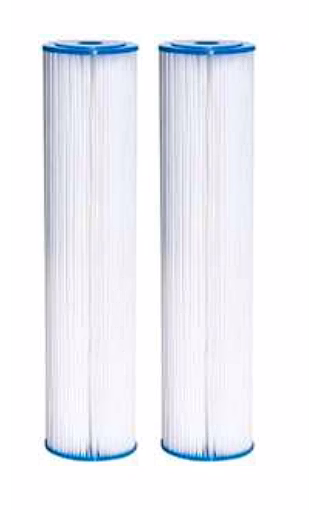

The Ro Components 10" & 20" ClaryPleat NE Filter is a high-performance pleated cartridge filter designed specifically for general non-demanding filtration applications. Constructed using premium quality polypropylene or polyester pleated filter media, this filter cartridge ensures low pressure drop coupled with a high flow capacity, making it ideal for industrial processes and water purification systems that need efficient and economical filtration. The ClaryPleat NE filter cartridges offer a large filtration surface area—4.30 ft² for the 10" size—facilitating extended service life and enhanced contaminant retention efficiency. Key components including end caps and core are made from durable polyurethane (PU), while the “O”-ring gasket is silicon-based, ensuring reliable sealing and longevity under operational stress. Available in nominal lengths of 10 and 20 inches with a standard outer diameter of 2.6 inches, these cartridges come with retention ratings of 5 and 10 microns, suitable for capturing fine particulates. The filter cartridges operate effectively under a maximum temperature of 55°C and are capable of withstanding a maximum collapse pressure of 40.6 PSI and a differential pressure of 26.1 PSI (for polypropylene media) at 55°C, assuring robust performance and reliability in various industrial filtration environments.
Key Features
| Features | Description |
|---|---|
| Filter Media Options | Polypropylene or Polyester pleated media |
| Retention Rating | 5 micron and 10 micron |
| Surface Area | 4.30 ft² for 10-inch cartridge |
| Pleated Cartridge Design | Allows high flow rate with low pressure drop |
| Operating Temperature | Maximum 55°C |
| Maximum Differential Pressure | PLEATED PP: 26.1 PSI at 55°C |
| Collapse Pressure Resistance | 40.6 PSI |
| Sealing Material | Silicone "O"-ring/gasket |
| Endcap and Core Material | Polyurethane (PU) |
| Dimensions | Available in 10" and 20" lengths with 2.6" outer diameter |
| Attributes | Description |
|---|---|
| Filter Media | Polypropylene or Polyester |
| Endcaps and Core Material | Polyurethane (PU) |
| Gasket Material | Silicon |
| Retention Rating | 5 µm, 10 µm |
| Surface Area (10-inch) | 4.30 ft² |
| Maximum Operating Temperature | 55°C |
| Maximum Differential Pressure | 26.1 PSI @ 55°C (Polypropylene) |
| Collapse Pressure | 40.6 PSI |
| Dimensions (Nominal Length) | 10 inch, 20 inch |
| Standard Outer Diameter | 2.6 inch |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The ClaryPleat NE Filter uses pleated polypropylene or polyester as the filter media, offering versatility depending on application requirements.
The filters can operate up to a maximum temperature of 55°C, with a collapse pressure resistance of 40.6 PSI and a maximum differential pressure of 26.1 PSI for polypropylene media at 55°C.
The ClaryPleat NE Filters are available with retention ratings of 5 microns and 10 microns to effectively capture fine particulates.
The filter cartridges utilize a silicon "O"-ring gasket to provide a reliable seal during operation.
These filters come in nominal lengths of 10 inches and 20 inches with a standard outer diameter of 2.6 inches.
Country Of Origin: India
Pleated cartridge filter for general non-demanding applications
Claryplat NE high flow rate pleated filter cartridges are made of pleated type Polypropylene or polyester filter media and designer for applications requiring low pressure drop and high flow capacity. Manufactured by high quality polymeric media, these cartridges exhibit highly effective retention efficiency, larger surface are extends the service life and makes the cartridges one of the most economical filter option.
Specification:
1.Materials:
Filter Media : Polypropylene, Polyester
Endcaps, Core* : Polyurathane (PU)
"O"-ring/Gasket : Silicon
2.Retention rating : 5, 10 μm
3. Surface area:
Standard : 4.30 ft²/10" (Standard)
4..Maximum operating conditions:
Collapse Pressure : 40.6 PSI
Max. Differential Pressure :Pleated PP: 26.1 PSI @ 55°C
Maximum operating temperature : 55°C
5.Dimensions (nominal):
Length : 10, 20 inch
Standard OD : 2.6 Inch
