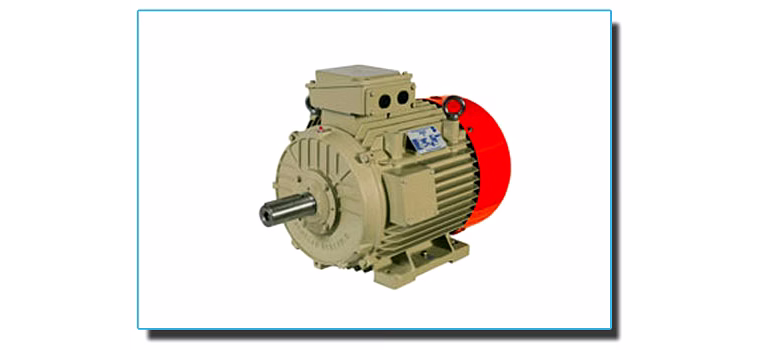

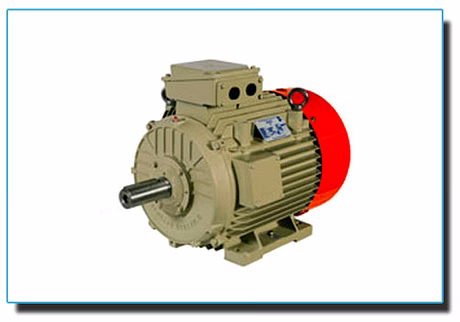

The Ravi Series motors are engineered for superior durability and efficiency, making them a preferred choice in diverse industrial applications. They deliver consistent power and an extended service life, perfectly suited for critical machinery such as pumps, fans, and conveyors. Our inventory includes all standard rated motors, and we offer flexibility in sourcing non-stock motors to meet specific customer requirements, ensuring fast delivery and competitive pricing. Additionally, Ravi Series motors are recognized across the industry, having made their way onto the vendor lists of prominent corporate houses and multinational corporations. With robust construction, adherence to IS standards, and versatile features, Ravi Series motors guarantee reliable performance even in challenging operating conditions.
Key Features
| Features | Description |
|---|---|
| Starting Method | DOL for all; Star Delta for frames 100 & above |
| Permissible Starts/Hour | 2 Hot / 3 Cold / 4 Equally spread |
| Insulation/Temperature Rise | Class F / 70 deg C |
| Direction of Rotation | Bi-Directional |
| No. of Leads | 3 for up to 90 frame; 6 for 100 frame and above |
| Degree of Protection | IP55; IP66 on request |
| Cooling Method | IC 411 |
| Bearings Life | 40,000 hours (direct drive); 20,000 hours (belt drive) |
| Noise Compliance | As per IS 12065 |
| Attributes | Description |
|---|---|
| Frame Sizes | Ravi series 63-315 |
| Mounting Arrangement | Multiple mounting holes; S/M/L as per standard |
| Shaft Extension | Single cylindrical extension as per IS 1231 |
| Body Material | CI from 63-315 frame |
| T.box Material | Nylon up to 132 frame; sheet metal for 160 frame and above |
| Fan Material | Polypropylene up to 225 frame; fabricated steel for 250 and above |
| Accessories | Thermistor, space heater, winding RTD, BTD on request |
| Paint & Shade | RAL 1020 for main body; Shade 592 for fan cover |
| Bearing Type and Greasing | Sealed Bearings grease lubricated for life up to 225 frame; open bearings with online greasing for 250 and above |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Ravi Series motors are suitable for a variety of industrial applications, including pumps, fans, and conveyors, providing dependable performance across different conditions.
Yes, non-stock motors can be made available within a short and flexible delivery period tailored to customer needs.
The bearings in direct drive applications last approximately 40,000 hours, while in belt drive applications, they have a life of around 20,000 hours.
The standard degree of protection for Ravi Series motors is IP55, with an option for IP66 available upon request.
The body material is made of CI (Cast Iron) from 63-315 frames, while the terminal box material is nylon for frames up to 132 and sheet metal for frames 160 and above.
Brand: kirloskar
Country Of Origin: India
| FEATURES | VALUES/ STANDARDS |
|---|---|
| Starting | DOL for all Or Star delta for frames 100 & above. |
| Permissible starts/hr | 2 Hot / 3 Cold / 4 Equally spread |
| Loading at reduced volts | 75% Rated volts for 5 minutes |
| Insulation / temp.rise | Class F/70 deg C |
| Direction of rotation | Bi-Directional |
| No. Of leads | 3 up to 90 frame & 6 for including and above 100 frame |
| Connection | Star up to 90 frame and , Delta including and above 100 frame |
| Degree of protection | IP55, IP 66 on request. |
| Method of cooling | IC 411 |
| T.box position | Top TB Standard and side TB optional ( RHS from DE) |
| Bearing life |
40,000 hours for direct drive, 20,000 hours for belt drive |
| Vibration | Normal class as per IS 12075 |
| Noise | As per IS 12065. |
| Construction | Foot, B flange, C flange, Foot cum B flange , Foot cum C flange |
| Frame sizes | Ravi series 63-315 |
| Mounting arrangement | Multiple mounting holes in same body, S/M/L as per standard |
| Shaft extension | Single cylindrical extension as per IS 1231 |
| Body material | CI from 63-315 frame |
| T.box material | Nylon Up to 132 frame /sheet metal 160 frame and above |
| Fan material | Polypropylene up to 225frame/ 250 and above fabricated steel |
| Accessories |
Nil, Thermistor, space heater, winding RTD, BTD on request in select frames. |
| Paint & shade | Standard Motor |
| Main body: Shade RAL 1020 | |
| Fan cover: Shade 592 of IS 5 International orange | |
| Bearing type and Greasing facility |
Sealed Bearings grease lubricated for life up to 225 frame and open bearings with online greasing facility in 250 and above frames. |
