PVC Foot Steps are robust, durable, and designed for industrial and commercial applications where sturdy and reliable steps are required. Made from high-quality polypropylene material with thickness options of 6 mm, these steps incorporate steel bars of 10mm or 12mm diameter to provide exceptional load-bearing capacity, supporting up to 140 kg. The surface features a 2 mm tread with ribbing or chequering, ensuring slip resistance and safety during use. Multiple size options are available, including standard sizes such as 263x165x25 mm and specialized variants like the 12mmAT with a base plate and anchor for firm installation. These PVC foot steps are suitable for usage in factories, warehouses, construction sites, and machinery access points, combining longevity with safety and easy maintenance.
Key Features
| Features | Description |
|---|---|
| Material | Polypropylene with embedded steel bars |
| Polypropylene Thickness | 6 mm |
| Steel Bar Diameter | 10 mm or 12 mm |
| Load Bearing Capacity | Up to 140 kg (12 mm steel bar) |
| Surface Finish | 2 mm tread with ribbing or chequering for anti-slip |
| Standard Sizes | 10mm: 263x165x25 mm; 12mm: 261x163x23 mm |
| Additional Size Options | 12mmB: 263x370x25 mm; 16mm: 265x170x29 mm; 12mmAT: 165x170x25 mm with base plate and anchor |
| Applications | Industrial, commercial, machinery access, warehouses, construction sites |
| Durability | Weather and corrosion resistant |
| Installation | Can be securely fixed with anchor type base plate |
| Attributes | Description |
|---|---|
| Polypropylene Thickness | 6 mm |
| Steel Bar Diameter | 10 mm / 12 mm |
| Load Bearing Capacity | 140 kg (with 12 mm steel bars) |
| Surface Tread | 2 mm ribbed or checkered pattern |
| Size 10mm | 263 x 165 x 25 mm (L x W x H) |
| Size 12mm | 261 x 163 x 23 mm (L x W x H) |
| 12mmB Size | 263 x 370 x 25 mm |
| 16mm Size | 265 x 170 x 29 mm |
| 12mmAT Size | 165 x 170 x 25 mm with 140 mm anchor base plate |
| Surface Finish | 2 mm ribbing or chequering for anti-slip |
| Material Composition | Polypropylene combined with steel reinforcement |
| Load Capacity | Supports weight up to 140 kg |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The PVC foot steps can support a maximum load of up to 140 kg when utilizing the 12 mm diameter steel bars embedded in the step.
Yes, the surface features a 2 mm tread with ribbing or chequering which provides an anti-slip, safe surface for users.
Multiple sizes are available including 10mm (263x165x25 mm), 12mm (261x163x23 mm), 12mmB (263x370x25 mm), 16mm (265x170x29 mm), and the 12mmAT with base plate and anchor (165x170x25 mm).
These steps are made from 6 mm thick polypropylene combined with embedded steel bars of 10 mm or 12 mm diameter for enhanced strength.
Yes, the 12mmAT variant includes a 140mm base plate with an anchor type mounting system for secure installation.
Yes, the polypropylene material is weather resistant and suitable for outdoor industrial and commercial use.
Brand: efficacy
Country Of Origin: India
Specifications:
Polypropylene – 6 mm thick polypropylene.
Steel – 10/12mm diameter steel bar.
Load Bearing Capacity- Easily holds 140 kg [12 mm].
Surface Finish- 2 mm tread on top surface by ribbing or chequering.
Size :10mm 263x165x25 mm (LxWxH).
12mm 261x163x23 mm (LxWxH).
Size also available:
10mm - 263x165x23mm.
12mm - 263x165x25mm.

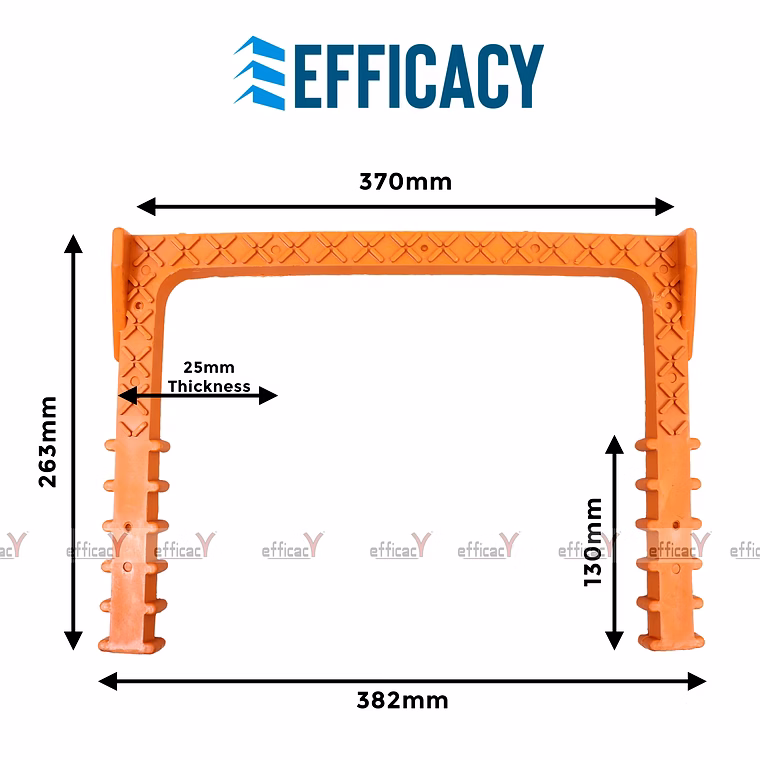

12mmB- 263x370x25mm.

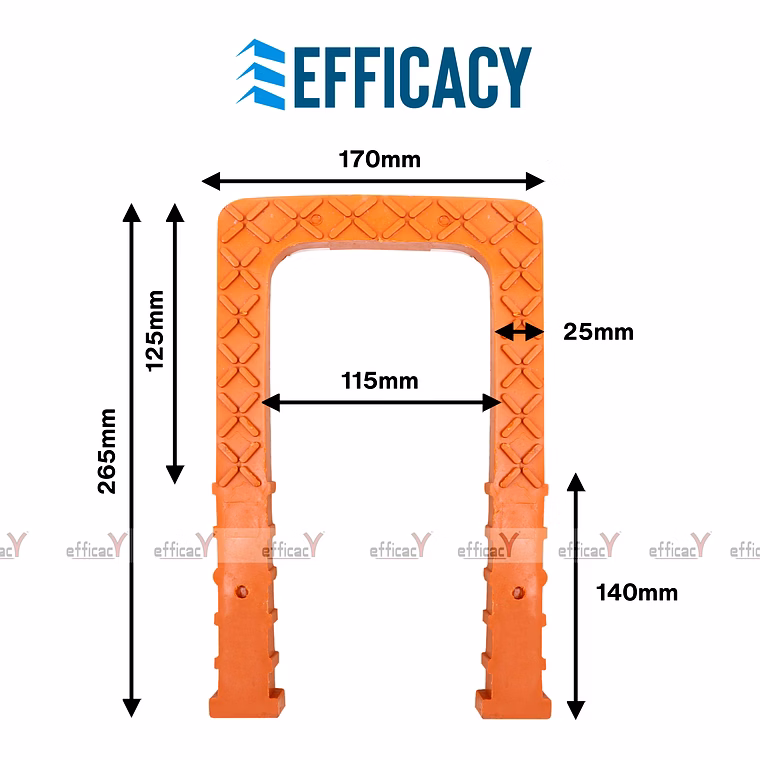

16mm - 265x170x29mm.
12mmAT - 165x170x25mm with base plate 140mm anchor type.
