Polymeric Pin Insulators designed for high voltage electrical distribution systems, available in voltage ratings of 11kV, 22kV, and 33kV. These insulators offer robust mechanical strength with load capacities of 5KN and 10KN, ensuring reliability in supporting overhead power lines. Featuring optimal creepage distances of 25mm, 31mm, and 40mm per kV, these insulators provide excellent insulation properties and resistance to environmental contamination. Made from durable polymeric materials, they are lightweight, corrosion-resistant, and ideal for use in harsh outdoor conditions where enhanced performance and longevity are required for power transmission infrastructure.
Key Features
| Features | Description |
|---|---|
| Voltage Rating | 11kV, 22kV, 33kV |
| Mechanical Load Capacity | 5KN and 10KN |
| Creepage Distance | 25 mm/kV, 31 mm/kV, 40 mm/kV |
| Material | High-grade polymeric composite |
| Application | Overhead power lines insulation for medium voltage systems |
| Environmental Resistance | Corrosion and UV resistant |
| Weight | Lightweight compared to porcelain insulators |
| Durability | High mechanical strength and weather resistance |
| Attributes | Description |
|---|---|
| Voltage Ratings Available | 11kV, 22kV, 33kV |
| Mechanical Load Options | 5KN, 10KN |
| Creepage Distance Options | 25 mm/kV, 31 mm/kV, 40 mm/kV |
| Material Type | Polymeric composite |
| Typical Use | Medium voltage overhead electrical distribution lines |
| Installation Type | Pin type insulator mounting |
| Resistance Properties | UV resistant, corrosion resistant |
| Weight Advantage | Significantly lighter than ceramic or glass insulators |
| Mechanical Strength | Designed to withstand mechanical loads of 5KN and 10KN |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
These pin insulators are available in voltage ratings of 11kV, 22kV, and 33kV, suitable for medium voltage power distribution lines.
The insulators come with mechanical load ratings of 5KN and 10KN, allowing selection based on mechanical stress requirements of the specific overhead line design.
Creepage distances of 25mm, 31mm, and 40mm per kV are offered to ensure optimal insulation performance against surface contamination and moisture, which is critical for reliability in varying environmental conditions.
Polymeric pin insulators are lighter, more resistant to corrosion and UV radiation, have higher impact resistance, and better hydrophobic properties, resulting in longer service life and lower maintenance.
Yes, the polymeric materials used provide excellent resistance to corrosion and degradation under high humidity and polluted environments, making them ideal for outdoor applications.
Country Of Origin: India

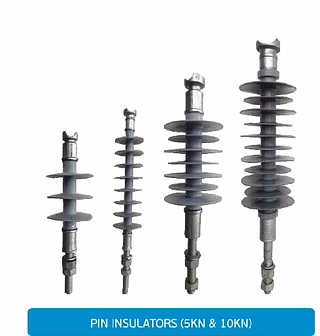

POLYMERIC PIN INSULATORS
VOLTAGE RATING (kV) - 11kV, 22kV, 33kV
MECHANICAL LOAD (KN) - 5KN / 10KN
CREEPAGE (mm/kv) - 25 / 31 / 40 mm / kV
