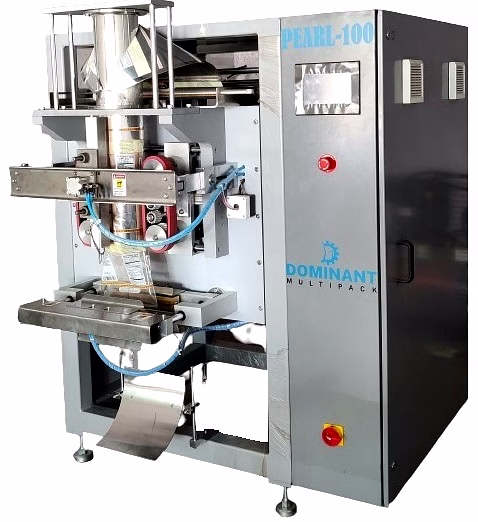

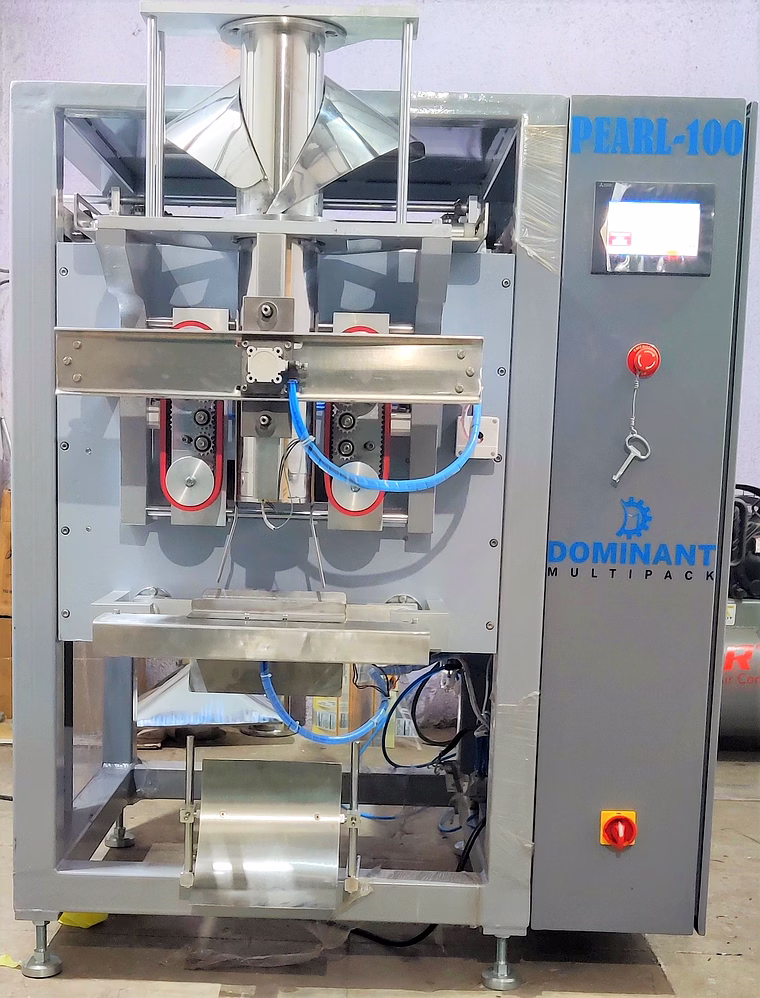

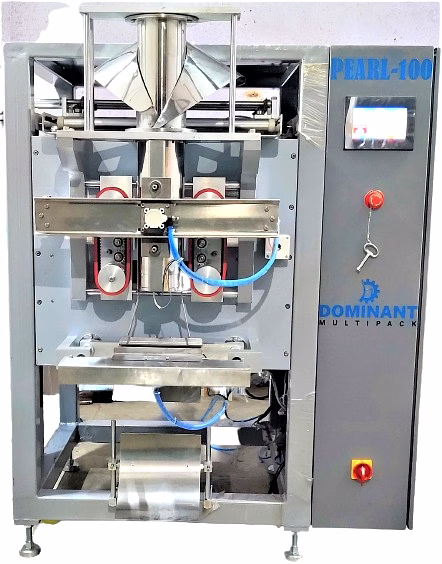

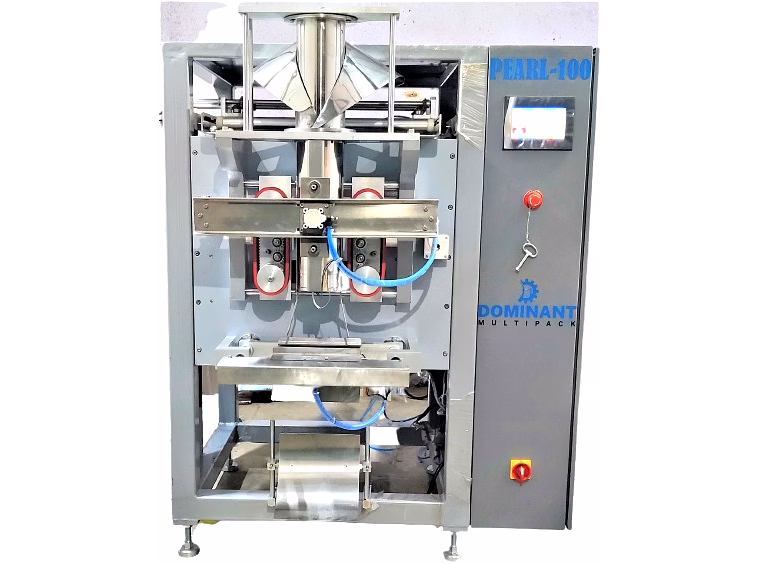

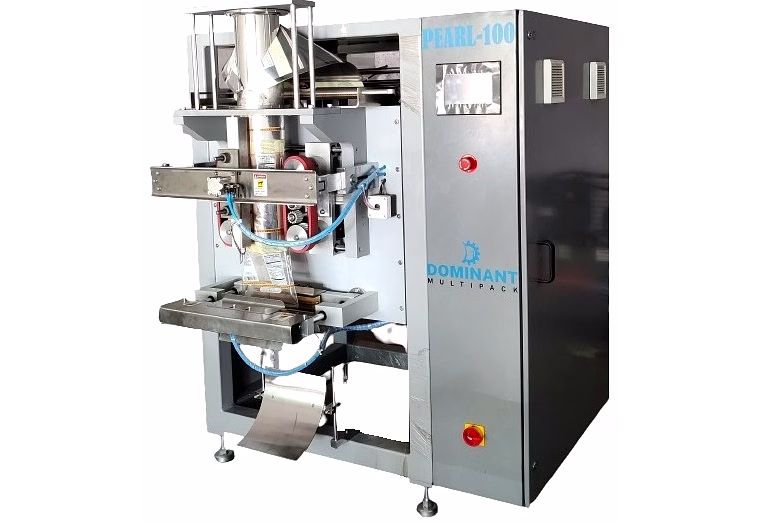

The PEARL-100 Packing Machine is a high-performance packaging solution designed for efficient and precise packing of products ranging from 10 gm to 1000 gm. With a maximum speed of up to 60 bags per minute, this machine features advanced automation technology powered by Mitsubishi PLC with an intuitive touch screen operating panel. It includes integrated PID temperature controllers for exact temperature management during the sealing process, ensuring consistent quality and reliability. The PEARL-100 supports easy job changeover through recipe functions and a user-friendly forming assembly changeover system, reducing downtime and boosting productivity. Its motorized roll unwinding mechanism, controlled by four sensors and equipped with an air shaft, facilitates seamless roll mounting and operation. Additionally, the optional perforation attachment enables production of pouch chains, enhancing packaging convenience. Constructed with robust and versatile materials, the PEARL-100 incorporates multiple safety devices within its control panel and a motorized web tracking system, ensuring operational safety and superior packaging accuracy. This machine is ideal for businesses seeking a dependable and efficient packing solution suitable for varied product sizes and packaging formats.
Key Features
| Features | Description |
|---|---|
| Model Number | PEARL-100 |
| Maximum Speed | Up to 60 bags per minute (bpm) |
| Filling Capacity Range | 10 gm to 1000 gm |
| Roll Size Compatibility | Minimum 120 mm, Maximum 520 mm |
| Control System | Mitsubishi PLC with Touch Screen Operating Panel |
| Temperature Control | Integrated PID Temperature Controllers for precise sealing |
| Job Changeover | Recipe functions for quick and easy changeover |
| Roll Unwinding | Motorized with 4 sensors and air shaft for easy mounting |
| Perforation Attachment | Optional for chain of pouches production |
| Safety Features | Multiple safety devices in control panel |
| Web Tracking | Motorized web tracking system for accurate packaging |
| Attributes | Description |
|---|---|
| Supply Voltage | 415 VAC, 3-phase |
| Power Requirement | 3 kW |
| Air Consumption | 7 CFM |
| Machine Construction | Sturdy and versatile |
| Operating Panel Type | Touch screen |
| Roll Unwinding Control | 4 sensor motorized system with air shaft |
| Sealing Temperature Control | PID controllers integrated into PLC |
| Packaging Format | Single pouches and chain of pouches (perforation available) |
| Safety Devices | Included in control panel |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The PEARL-100 is equipped with integrated PID temperature controllers within the Mitsubishi PLC, allowing precise and consistent temperature regulation during the sealing process to maintain packaging quality.
Yes, the machine supports minimum roll sizes of 120 mm and maximum roll sizes up to 520 mm, providing flexibility for various packaging film sizes.
The PEARL-100 features recipe functions in its PLC and easy forming assembly changeover that simplify and speed up the transition between different packaging jobs.
Yes, the machine offers a perforation attachment option which enables it to produce a chain of pouches for specialized packaging needs.
The PEARL-100 includes multiple safety devices integrated in the control panel designed to protect the operator and maintain machine safety during operation.
The PEARL-100 incorporates an air shaft for easy roll mounting and a motorized roll unwinding system controlled by four sensors to optimize material feed.
Country Of Origin: India
TECHNICAL SPECIFICATIONS:
Model No: PEARL-100
Max. Speed: Upto 60 bpm
Filling Capacity: 10 gm to 1000 gm
Min.Roll Size: 120 mm
Max.Roll Size: 520 mm
Supply Voltage: 415 VAC, 3-ph
Power: 3 kw
Air Consumption: 7 CFM
❖ SALIENT FEATURES
▪ Controlled by most advanced PLC from Mitsubishi with touch screen operating panel.
▪ Integrated PID temperature controllers in PLC, precisely controls temperature within limits.
▪ Recipe functions for easy job changeover. ▪ Easy Forming assembly changeover.
▪ Motorized Roll unwinding controlled with 4 sensors.
▪ Air Shaft for easy Roll Mounting
▪ Perforation attachment to offer chain of pouches.
▪ Sturdy and versatile construction of machine.
▪ Enough Safety devices used in control panel to protect.
▪ Motorized Web tracking System.
