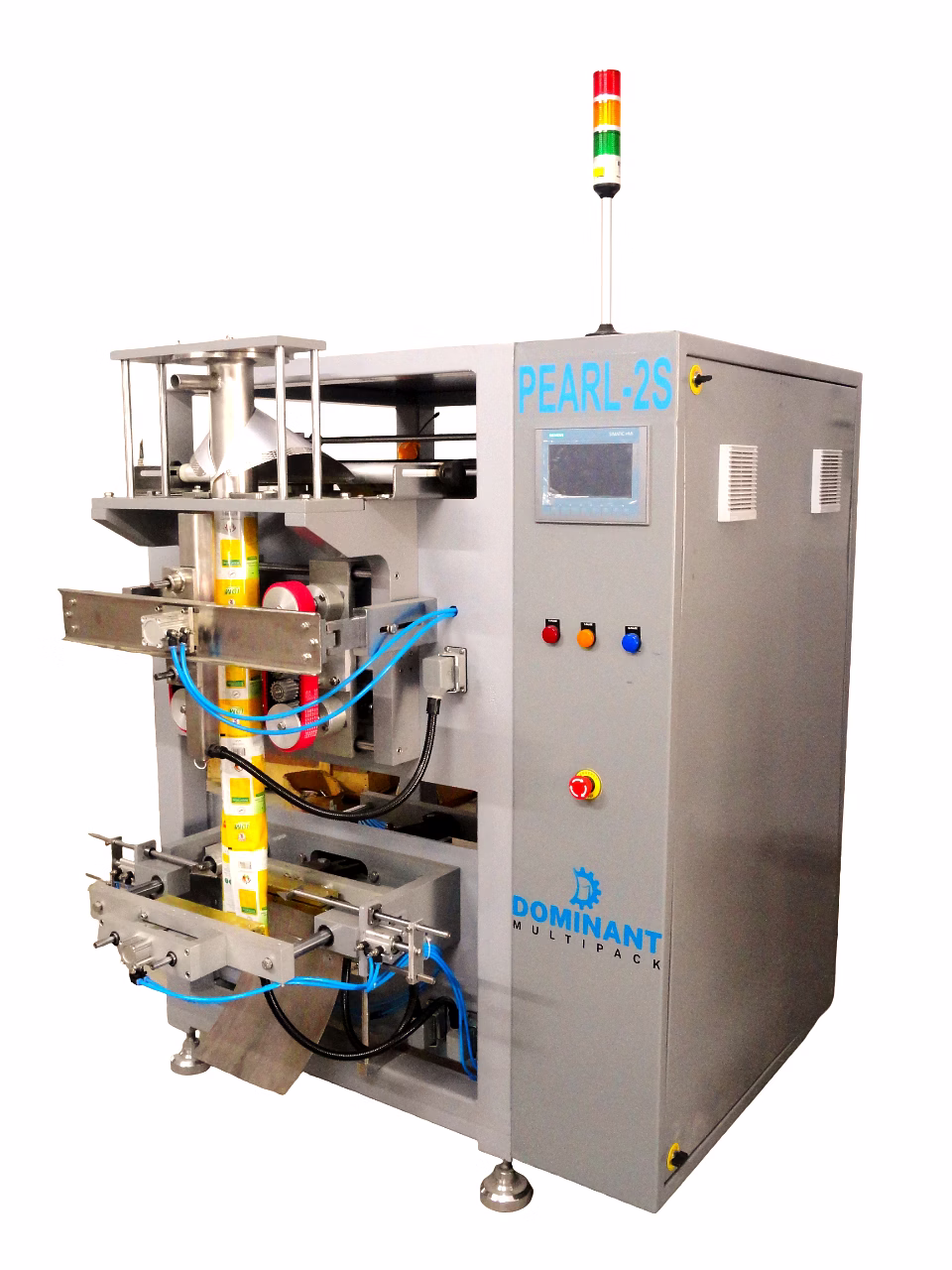

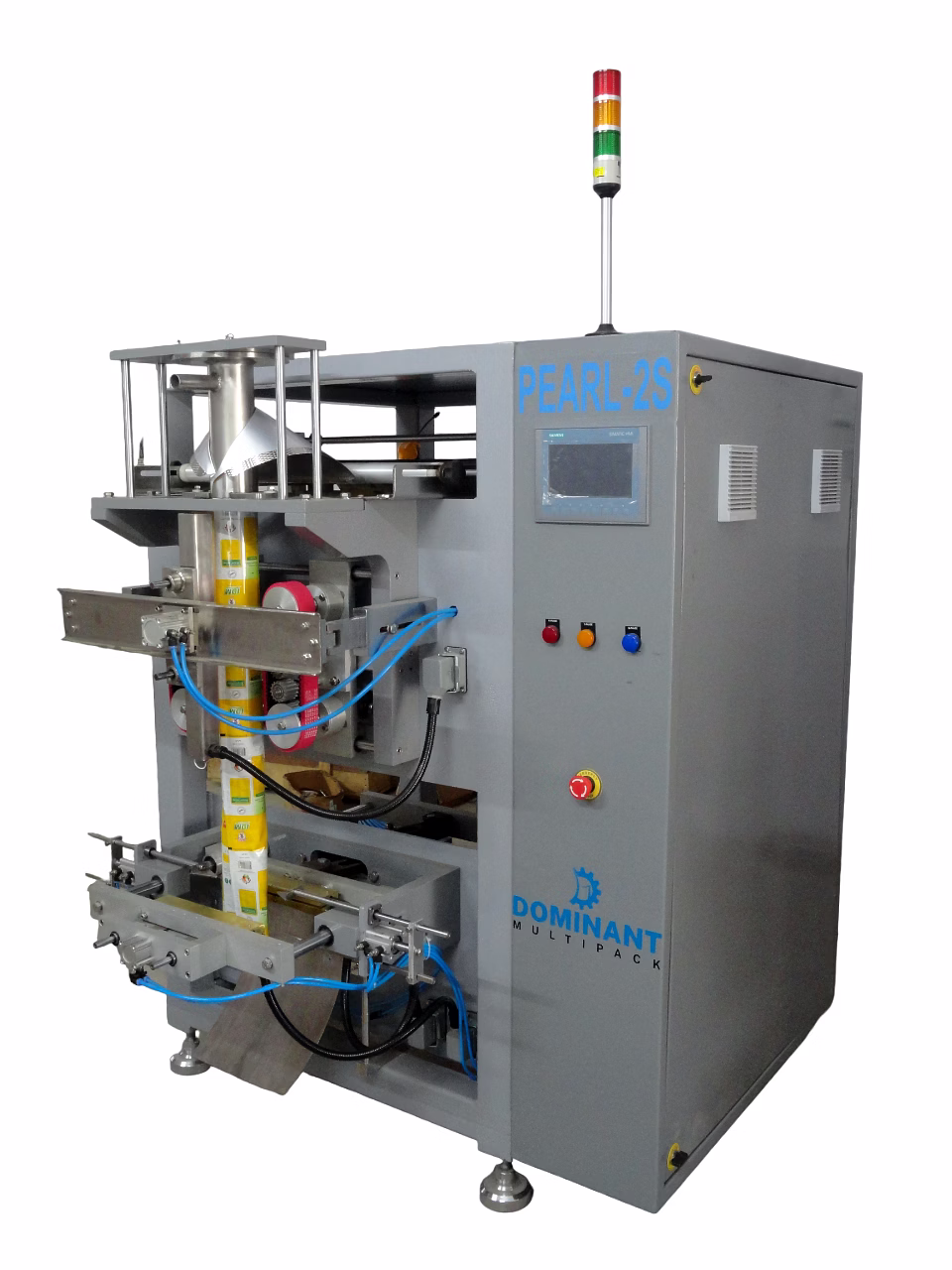

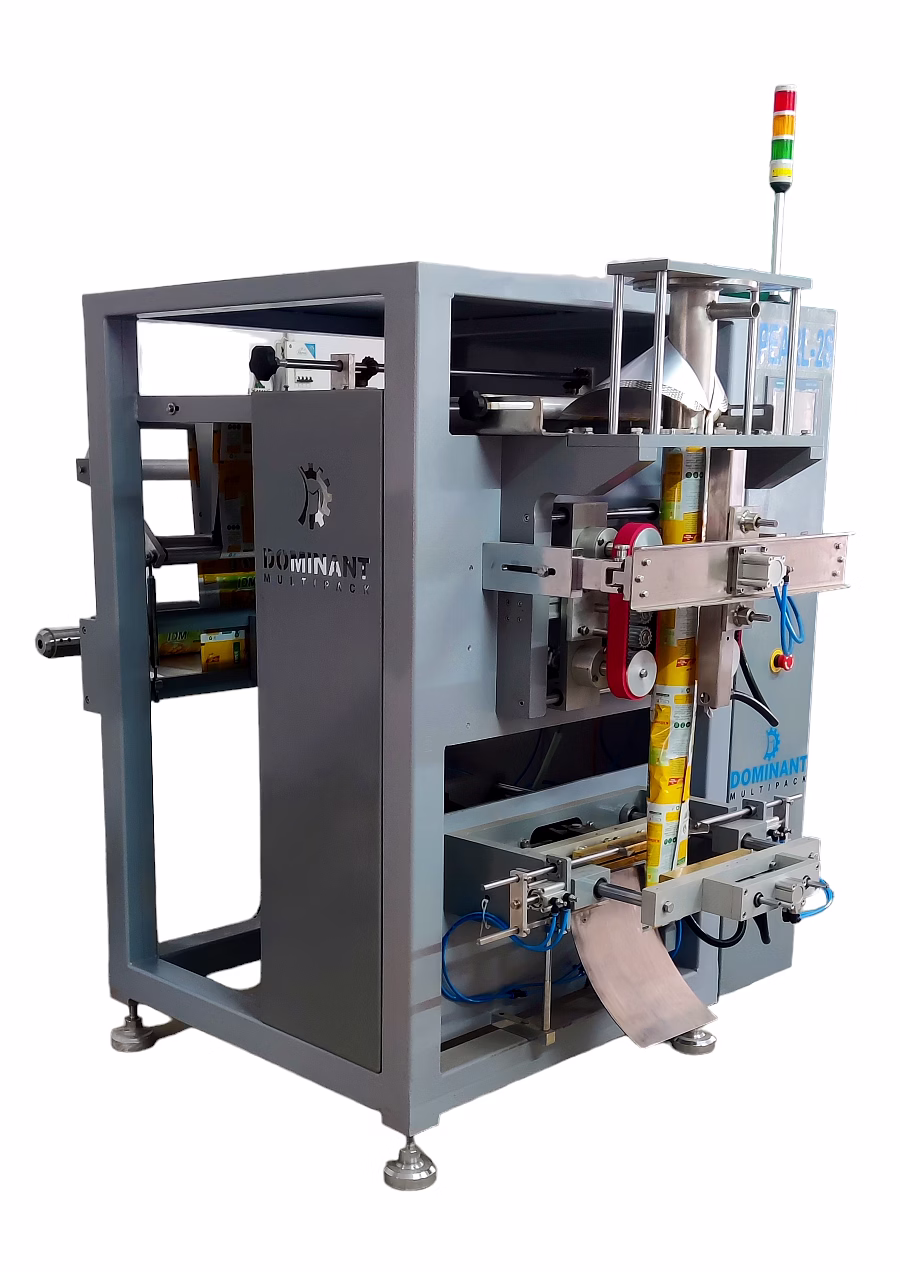

The PEARL-2S Packing Machine is a high-performance, versatile packaging solution designed for efficient and precise packing of products ranging from 25 grams to 1000 grams. Engineered with advanced Mitsubishi PLC technology and a user-friendly touchscreen operating panel, this machine offers seamless control and automated packing processes. Its integrated PID temperature controllers ensure exact temperature regulation for consistent sealing quality. The servo-driven horizontal sealing and bag pulling mechanisms enhance speed and accuracy, enabling packing speeds of up to 80 bags per minute. The machine's construction supports minimum roll sizes of 120 mm and maximum sizes up to 520 mm, making it adaptable to various packaging materials. With an air consumption of 7 CFM and a power rating of 4 kW, the PEARL-2S is energy efficient and reliable for continuous industrial-grade operations. Additional features like easy forming assembly changeover, recipe functions for quick job switching, motorized web tracking, and a sturdy build highlight its suitability for rigorous B2B packaging applications. Safety is prioritized with multiple protective devices within the control panel, ensuring operator and machine safety. The option for perforation attachment to create chained pouches adds to its versatility, catering to clients requiring customized packaging solutions.
Key Features
| Features | Description |
|---|---|
| Control System | Most advanced Mitsubishi PLC with touchscreen operating panel |
| Temperature Control | Integrated PID temperature controllers for precise temperature regulation |
| Sealing Mechanism | Servo operated horizontal sealing for fast and superior seals |
| Bag Handling | Servo operated bag pulling ensuring fast and accurate movement |
| Packaging Speed | Up to 80 bags per minute (bpm) |
| Bag Size Range | 25 grams to 1000 grams filling capacity |
| Roll Size Compatibility | Minimum roll size 120 mm and maximum roll size 520 mm |
| Power Requirements | 415 VAC, 3-phase supply with 4 kW power consumption |
| Air Consumption | 7 CFM |
| Additional Features | Motorized web tracking, recipe changeover, air shaft roll changeover, perforation attachment |
| Safety | Multiple safety devices integrated in control panel |
| Motor Control | 3-speed VFD controlled motorized roll unwinding using 4 sensors |
| Attributes | Description |
|---|---|
| Model Number | PEARL-2S |
| Max Speed | Up to 80 bpm |
| Filling Capacity | 25 gm to 1000 gm |
| Minimum Roll Size | 120 mm |
| Maximum Roll Size | 520 mm |
| Supply Voltage | 415 VAC, 3-phase |
| Power Consumption | 4 kW |
| Air Consumption | 7 CFM |
| Control Panel | Mitsubishi PLC with touchscreen |
| Sealing Mechanism | Servo horizontal sealing |
| Bag Pulling Mechanism | Servo operated |
| Roll Unwinding System | 3-speed VFD controlled with 4 sensors |
| Forming Assembly | Easy changeover |
| Web Tracking | Motorized |
| Safety Features | Multiple safety devices in control panel |
| Perforation Attachment | Available for chained pouches |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The PEARL-2S packing machine can handle filling capacities ranging from 25 grams up to 1000 grams, accommodating a wide variety of product volumes.
The machine utilizes integrated PID temperature controllers within the Mitsubishi PLC system to precisely regulate the sealing temperature, combined with servo-operated horizontal sealing for accurate and reliable seals.
Yes, it supports a minimum roll size of 120 mm up to a maximum of 520 mm, allowing flexibility for various packaging film sizes.
Yes, the machine features recipe functions accessible via the touch screen panel, enabling fast and easy job changeover to accommodate different product packaging requirements.
The machine integrates multiple safety devices within its control panel to protect operators and ensure safe operation during packaging processes.
Yes, an optional perforation attachment is available which enables the machine to produce a chain of pouches as required.
Country Of Origin: India
TECHNICAL SPECIFICATIONS:
Model No : PEARL-2S
Max. Speed : Upto 80 bpm
Filling Capacity : 25 gm to 1000 gm
Min.Roll Size : 120 mm
Max.Roll Size : 520 mm
Supply Voltage : 415 VAC, 3-ph
Power : 4 kw
Air Consumption: 7 CFM
❖ SALIENT FEATURES
▪ Controlled by most advanced PLC from Mitsubishi - with touch screen operating panel.
▪ Integrated PID temperature controllers in PLC, precisely controls temperature within limits.
▪ Servo operated horizontal sealing for fast and better sealing.
▪ Servo operated bag pulling for fast and accurate bag pulling.
▪ Easy Forming assembly changeover.
▪ Recipe functions for easy job changeover.
▪ Air Shaft for easy Roll changeover.
▪ Motorized Web tracking System.
▪ Enough Safety devices used in control panel to protect.
▪ 3 speed VFD controlled motorized Roll unwinding controlled by 4 sensors.
▪ Sturdy and versatile construction of machine.
▪ Perforation attachment to offer chain of pouches.
