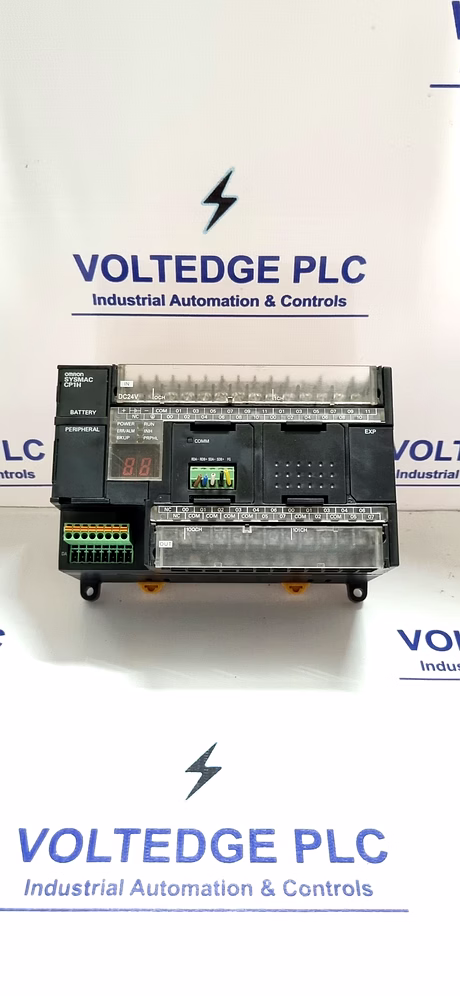

The OMRON CP1H-X40DT-D Programmable Logic Controller (PLC) is engineered for high-performance automation applications requiring rapid processing and versatility. Integrating 24 digital inputs and 16 transistor outputs, the CP1H-X40DT-D accommodates intricate system controls with its powerful built-in capabilities like high-speed counters and pulse output. Ideal for tasks ranging from motion and machine automation to small-scale process control, this compact PLC supports various communication protocols, ensuring compatibility with multiple industrial devices. Designed with user-friendly programming options via CX-Programmer or Sysmac Studio, this PLC guarantees a seamless integration into your current automation system, making it perfect for complex, space-constrained environments while maintaining optimal efficiency in smart manufacturing processes.
Key Features
| Features | Description |
|---|---|
| Model | CP1H-X40DT-D |
| Digital Inputs | 24 inputs (24V DC) |
| Digital Outputs | 16 transistor outputs (NPN type) |
| Power Supply | 24V DC |
| High-Speed Counters | Up to 4 axes |
| Pulse Output Frequency | Up to 100 kHz |
| Communication Ports | RS-232C and RS-485 |
| Memory Capacity (Program) | 20 ksteps |
| Memory Capacity (Data) | 32 kwords |
| Expansion Capabilities | Supports CP1W/CP1L expansion I/O units |
| Programming Software | CX-Programmer or Sysmac Studio |
| Ideal Applications | Machinery automation, conveyor systems, marine applications |
| Attributes | Description |
|---|---|
| Dimensions | 150 x 90 x 75 mm |
| Weight | 1.3 kg |
| Operating Temperature | 0 to 55 °C |
| Storage Temperature | -20 to 65 °C |
| Relative Humidity | 10 to 90% (non-condensing) |
| Certification | CE, UL, CUL |
| Protection Level | IP20 |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The OMRON CP1H-X40DT-D supports 24 digital inputs (24V DC) and 16 transistor outputs (NPN type).
Yes, the CP1H-X40DT-D is designed for various applications, including motion control, with capabilities for high-speed counters and pulse outputs.
The CP1H-X40DT-D can be programmed using the CX-Programmer or Sysmac Studio platforms.
The pulse output frequency can reach up to 100 kHz, suitable for controlling stepper or servo motors.
Yes, it supports the addition of CP1W/CP1L expansion I/O units for increased functionality.
Brand: omron
Country Of Origin: China
The OMRON CP1H-X40DT-D is a compact and powerful PLC (Programmable Logic Controller) designed for applications requiring high-speed processing, advanced functionality, and flexibility. Here’s a quick overview of its specifications and features:
The OMRON CP1H-X40DT-D is a compact and powerful PLC (Programmable Logic Controller) designed for applications requiring high-speed processing, advanced functionality, and flexibility. Here’s a quick overview of its specifications and features:
Key Specifications:
Model: CP1H-X40DT-D
Input/Output Configuration:
Digital Inputs: 24 inputs (24V DC)
Digital Outputs: 16 transistor outputs (NPN type)
Power Supply: 24V DC
Built-in High-Speed Counters:
Supports up to 4 axes of high-speed counters.
Pulse Output:
Up to 4 axes of pulse output (100 kHz) for stepper or servo motor control.
Communication Ports:
RS-232C and RS-485 (optional expansion modules available for other protocols like Ethernet or DeviceNet).
Memory Capacity:
Program capacity: 20 ksteps.
Data memory: 32 kwords.
Expansion Capabilities:
Supports CP1W/CP1L expansion I/O units.
Programming:
Uses CX-Programmer or Sysmac Studio for ladder logic programming.
Key Features:
Compact Design: Ideal for space-constrained applications.
High-Speed Processing: Meets demanding industrial automation requirements.
Flexible Configuration: Modular design for easy expansion.
Versatile Application: Suitable for motion control, machine automation, and small-scale process control.
Applications:
Small to mid-size machinery automation.
Conveyor and material handling systems.
Packaging and labeling machines.
Marine applications.
