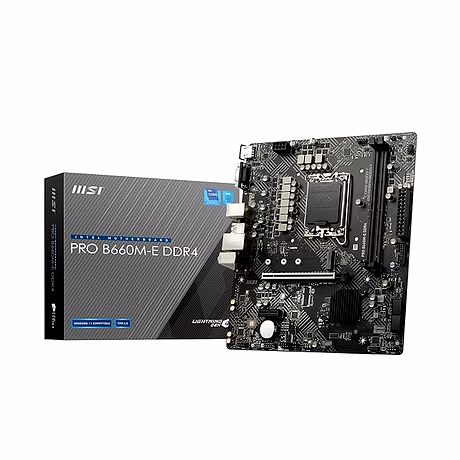

The MSI Pro B660M-E DDR4 motherboard is a robust and high-performance Micro-ATX motherboard tailor-made to support the latest Intel 12th Gen Core processors with socket LGA 1700. Engineered for both gaming enthusiasts and professional productivity applications, it offers superior DDR4 Memory Boost capability with overclocking speeds exceeding 4600 MHz. Featuring a cutting-edge PCIe 4.0 x16 slot, this motherboard ensures maximum throughput for high-end graphics cards and expansion devices. Additionally, the inclusion of a fast M.2 Gen3 x4 slot enables ultra-quick NVMe SSD storage, dramatically reducing load and boot times. Network connectivity is enhanced with integrated 2.5G LAN, catering to users requiring high-speed, stable wired internet for online gaming or data transfer. The Micro-ATX form factor offers a compact but highly functional layout for various PC builds, making the MSI Pro B660M-E DDR4 motherboard an ideal choice for those seeking a blend of performance, connectivity, and overclocking capabilities within a cost-effective and reliable platform.
Key Features
| Features | Description |
|---|---|
| Processor Support | Compatible with Intel 12th Gen Core processors (LGA 1700 socket) |
| Memory Type | Supports DDR4 Memory Boost up to 4600+ MHz Overclocked |
| Form Factor | Micro-ATX |
| PCIe Slot | PCIe 4.0 x16 slot for high bandwidth graphics cards and expansion |
| Storage Interface | M.2 Gen3 x4 slot supporting NVMe SSDs |
| Network | Integrated 2.5G LAN for high-speed wired connectivity |
| Overclocking Capabilities | Supports DDR4 memory overclocking up to 4600+ MHz |
| Use Case | Ideal for gaming and productivity PC builds |
| Chipset | Intel B660 chipset |
| Expansion Slots | Multiple expansion slots compatible with add-on cards |
| Attributes | Description |
|---|---|
| CPU Socket | LGA 1700 |
| Supported Processors | Intel 12th Gen Core i9/i7/i5/i3 and Pentium/Celeron |
| Memory Slots | 4 x DDR4 DIMM slots |
| Max Memory Supported | Up to 128GB DDR4 RAM |
| Memory Speed | Supports DDR4 2133 MHz, 2400 MHz, 2666 MHz, 2933 MHz, 3200 MHz, and OC up to 4600+ MHz |
| PCIe Version | PCIe 4.0 |
| PCIe Slots | 1 x PCIe 4.0 x16, 2 x PCIe 3.0 x1 |
| Storage Interfaces | 1 x M.2 Gen3 x4 slot, 4 x SATA 6Gb/s ports |
| LAN | Realtek 2.5G LAN |
| Audio | High Definition Audio with Audio Boost |
| USB Ports | Multiple USB 3.2 Gen1/Gen2 and USB 2.0 ports |
| Form Factor Dimension | Micro-ATX, 244mm x 244mm |
| BIOS | UEFI BIOS with advanced configuration and overclocking features |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Yes, the MSI Pro B660M-E motherboard supports DDR4 memory overclocking up to 4600+ MHz, enabling enhanced performance for gaming and demanding applications.
Absolutely, this motherboard is fully compatible with Intel 12th Gen Core processors, including the i9 series, using the LGA 1700 socket.
It includes a fast M.2 Gen3 x4 slot suitable for high-speed NVMe SSDs, as well as four SATA 6Gb/s ports for additional storage devices.
Yes, it comes with integrated Realtek 2.5G LAN that provides stable and faster wired network connections, ideal for gaming and professional use.
The MSI Pro B660M-E uses a Micro-ATX form factor (244mm x 244mm), which is designed to fit in smaller PC cases without sacrificing expandability.
